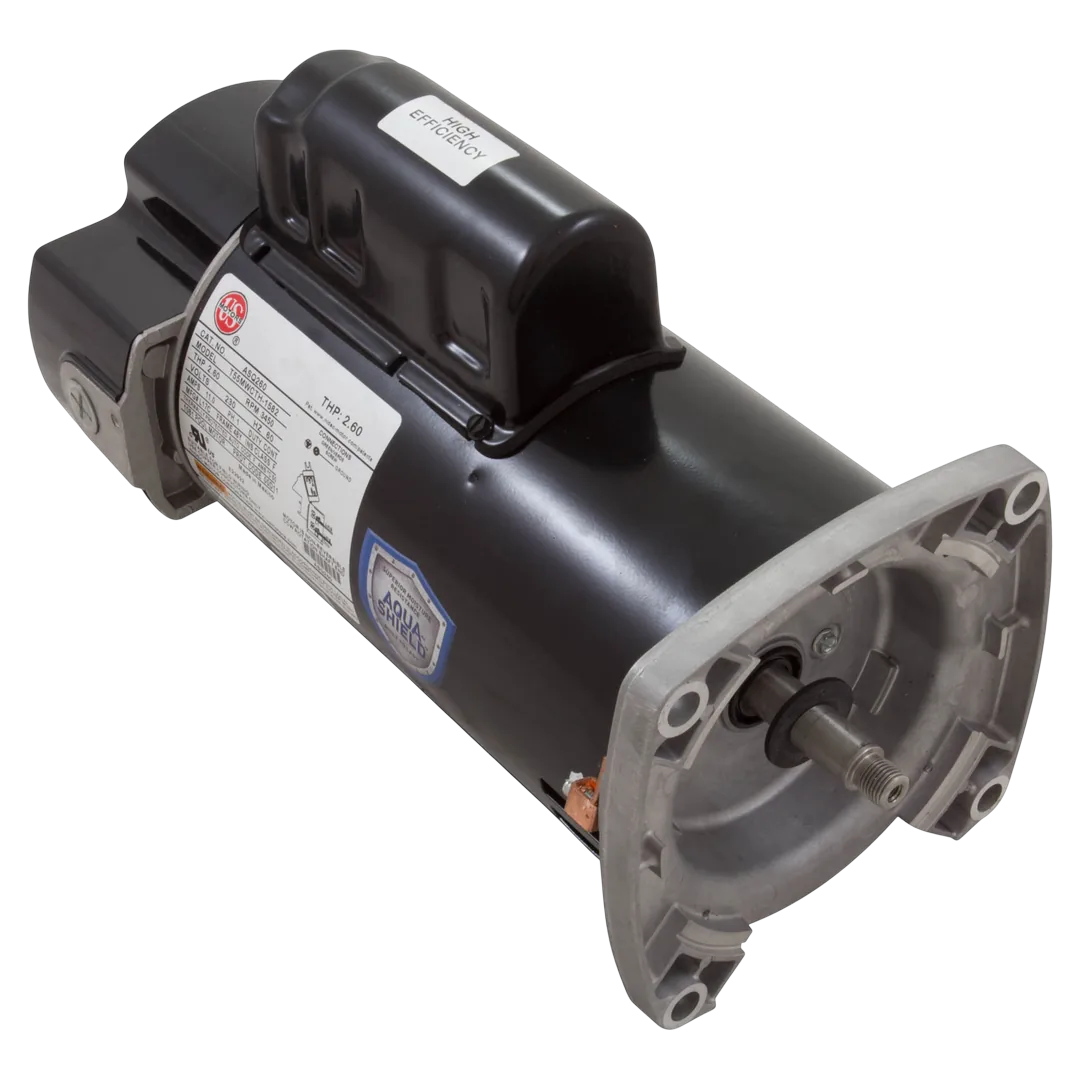

US Motors ASQ260 Aqua-Shield Square Flange Pool Pump Motor
Nidec Motor Corp/US Motors | SKU:
ASQ260
$48300/ea
Unit price
/
Unavailable
US Motors ASQ260 Aqua-Shield Square Flange Pool Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

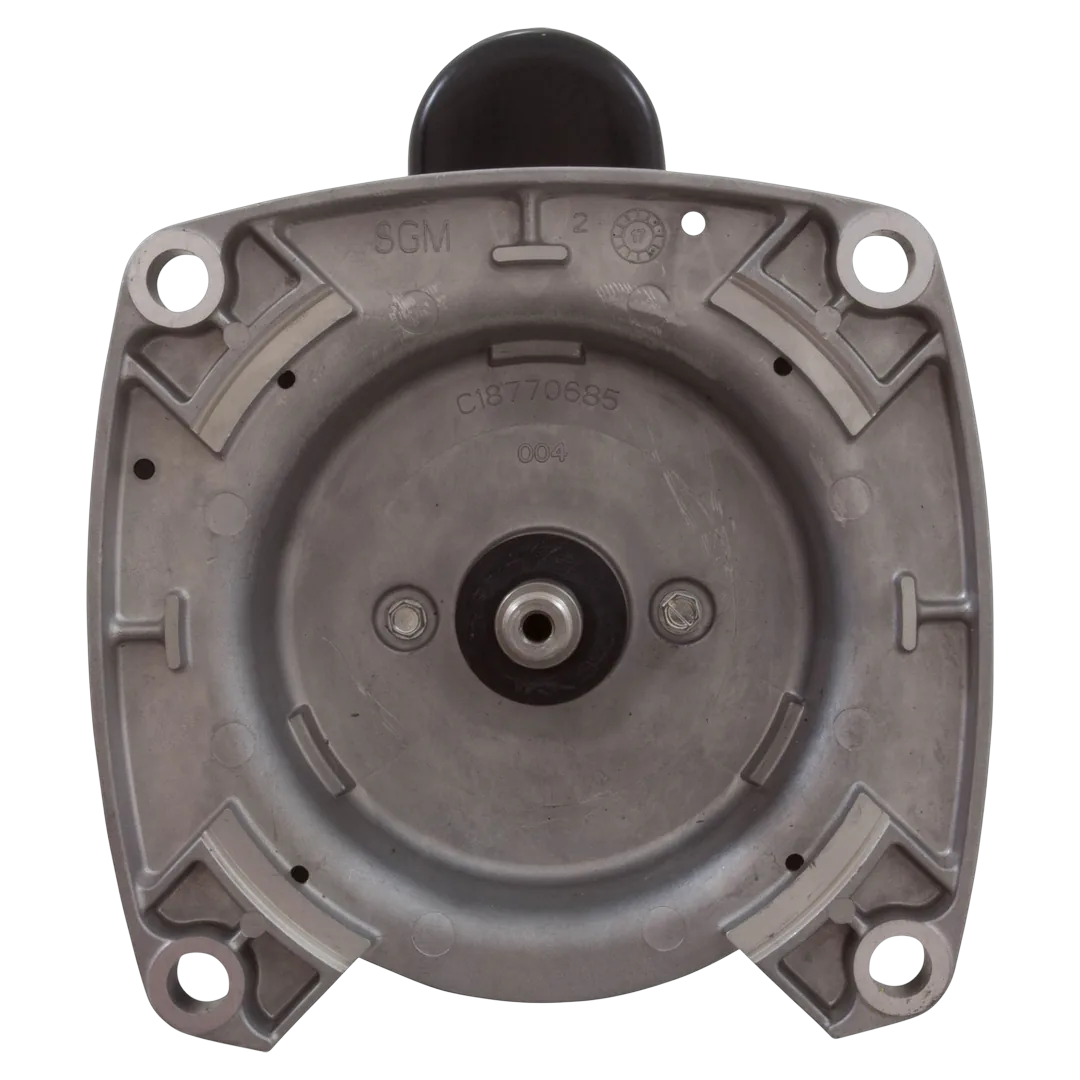

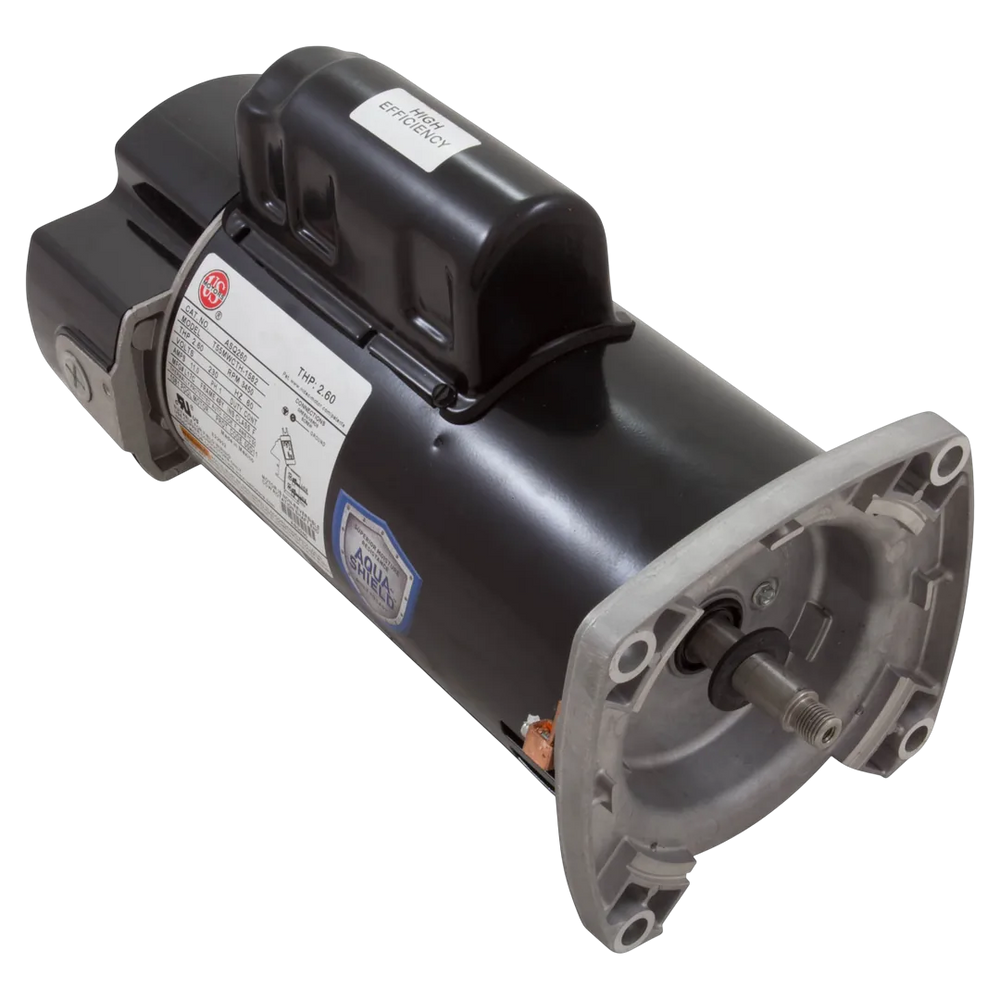

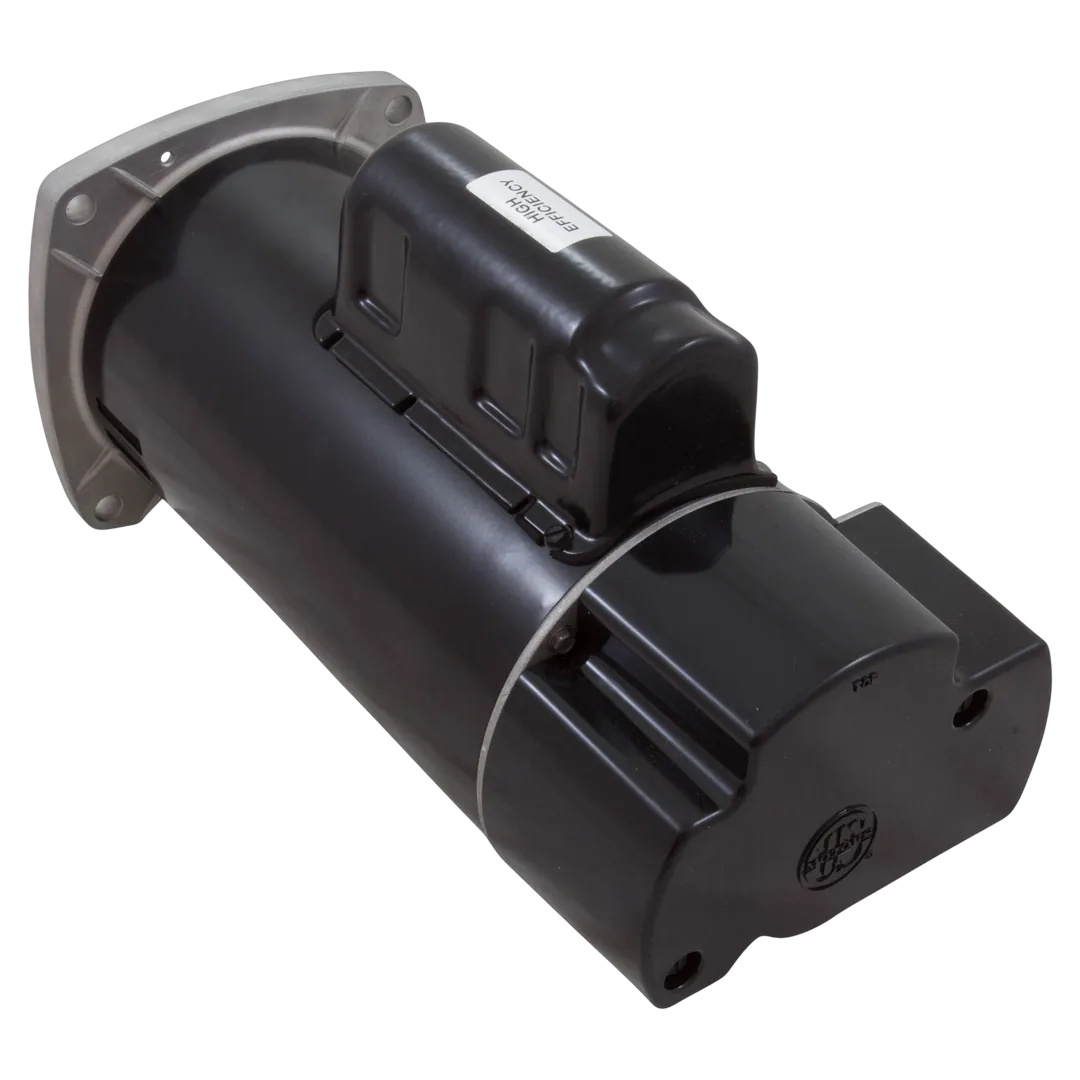

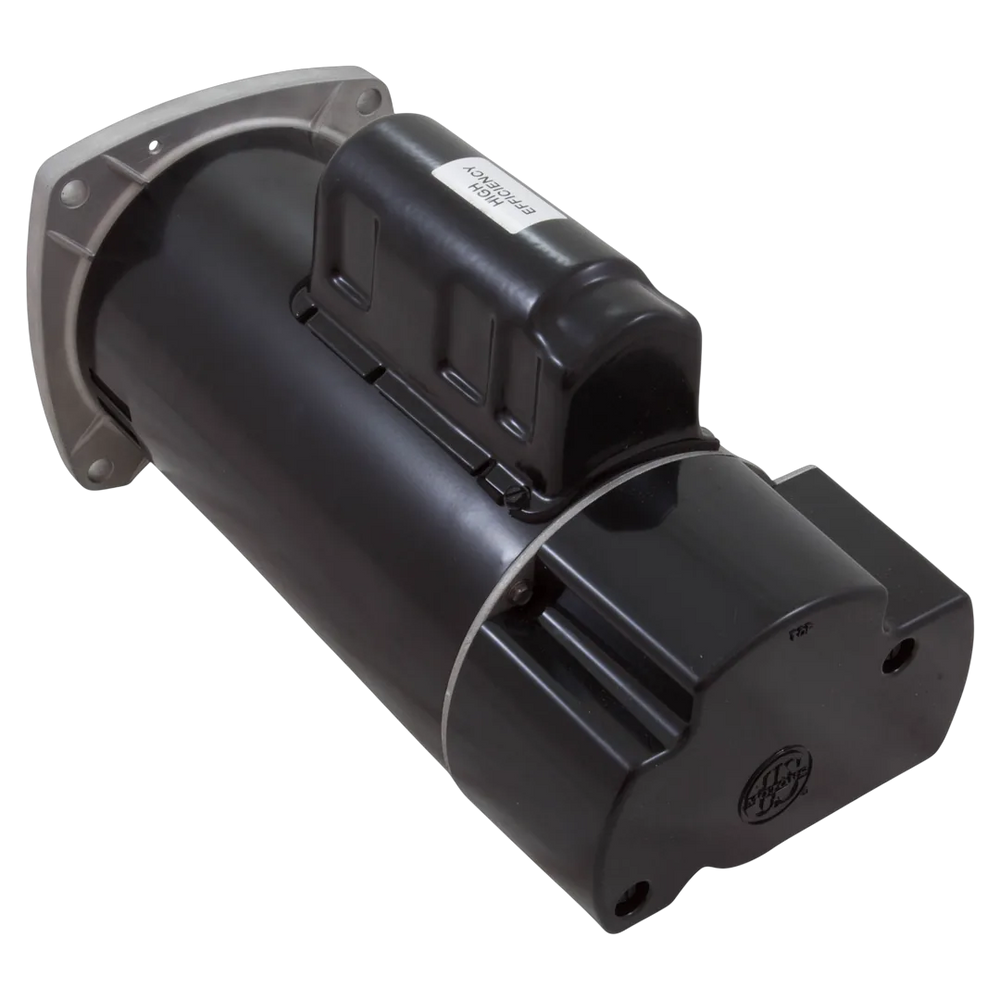

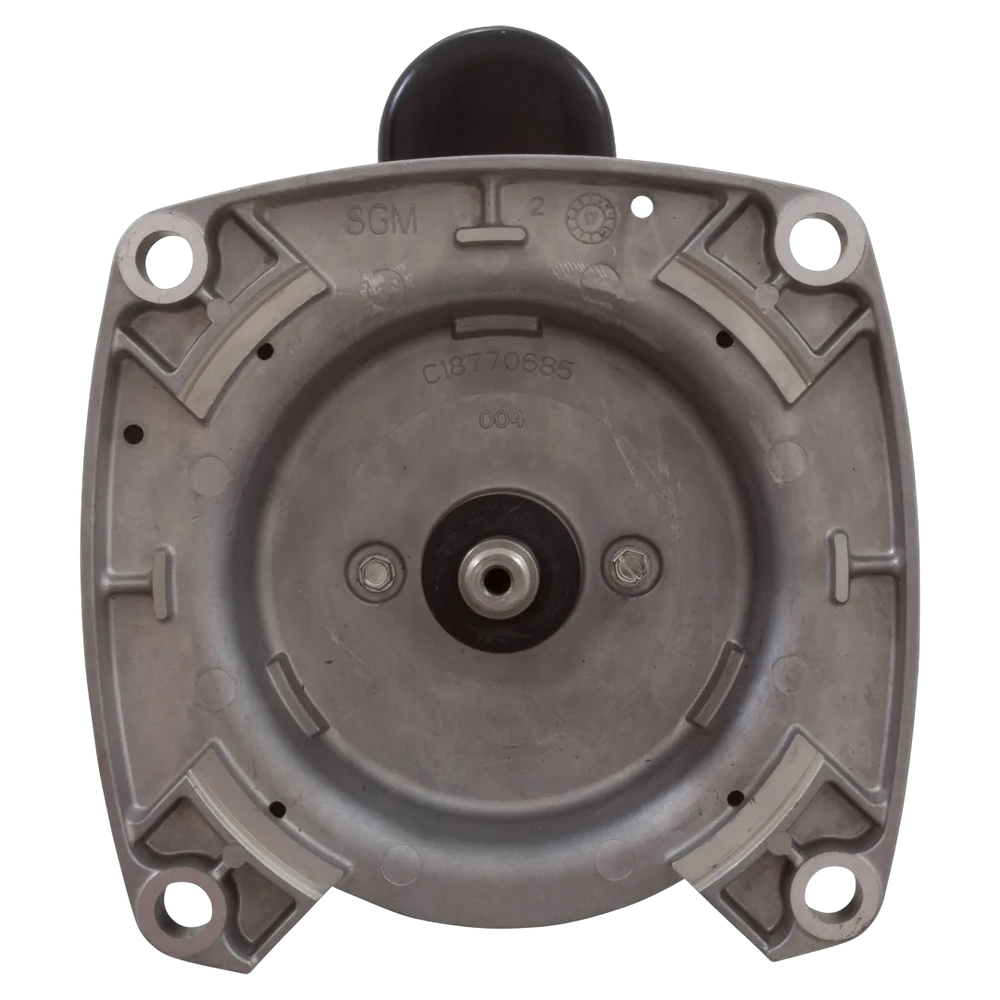

Replacement square-flange pump motor for in-ground pools, the U.S. Motors ASQ260 AquaShield fits 48Y/SQFL mounts and replaces single-speed units rated 2.6 THP at 230V. It drives the pump at full speed and uses AquaShield airflow and an internal bearing cover to reduce heat and moisture intrusion.
Includes: Motor only

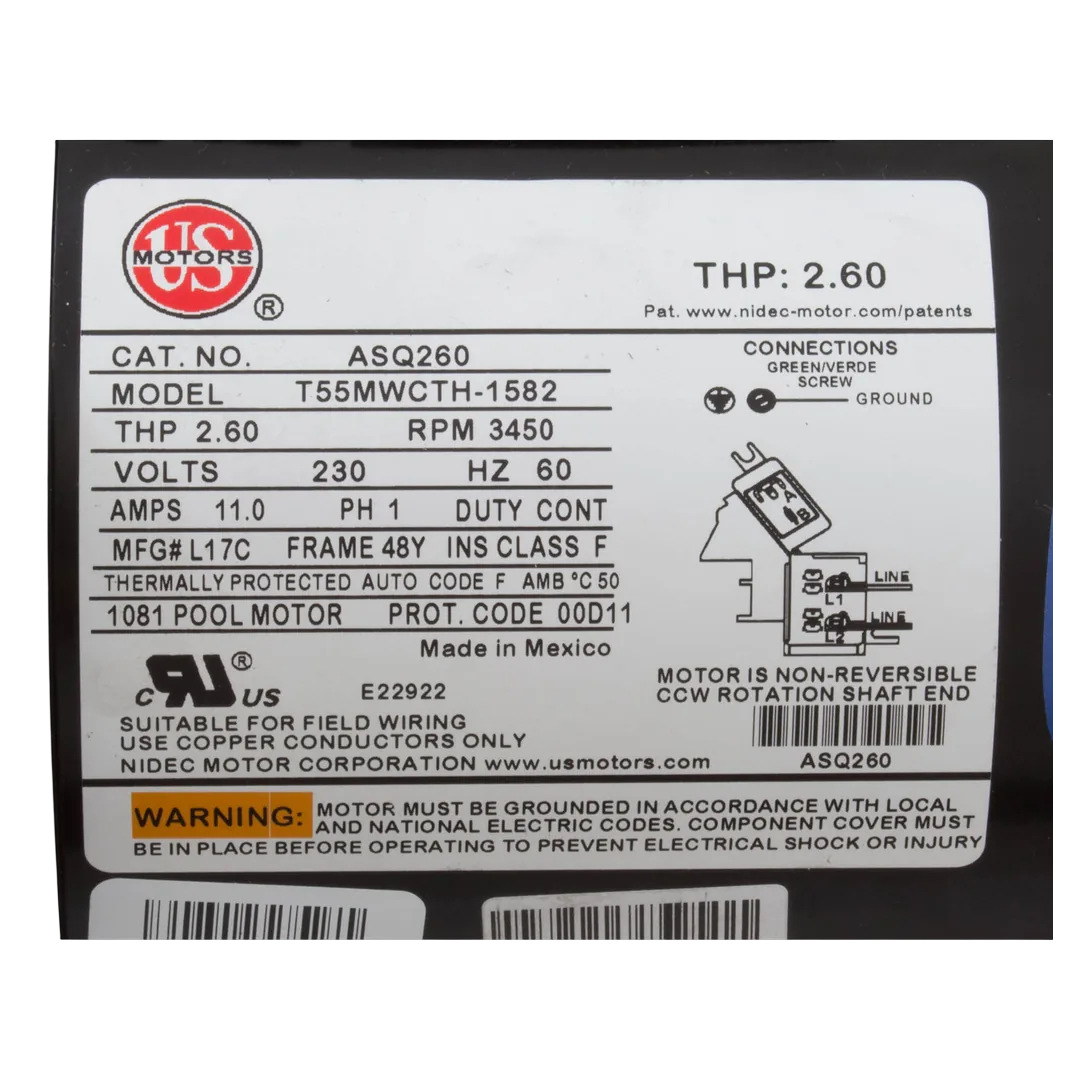

Technical Specifications
| Specification | Details |
|---|---|
| Part Name | U.S. Motors ASQ260 48Y Square Flange Pool and Spa Pump Motor |
| Part Number | ASQ260 |
| Part Type | Pump Part |
| Includes | Motor only |
| Certifications | UL 1081 Design |
| Material | 300 Series Stainless Steel Shaft |
| Motor Enclosure Type | Open Drip Proof |
| Motor Frame Size | 48Y |
| Motor Speed | 1-Speed |
| Phase | Single |
| Voltage | 230V |
| Frequency Rating | 60 Hz |
| Service Factor | 1.00 |
| Thermal Protection | Thermally Protected |
| Insulation Class | Class B |
| Ambient Temperature | 50°C |
| Shaft Threads | 1/2-20 UNF-2A |
| Shipping Dimensions | 18.5 x 10.5 x 10.5 inch |
| Product Weight | 29.2 pound |
