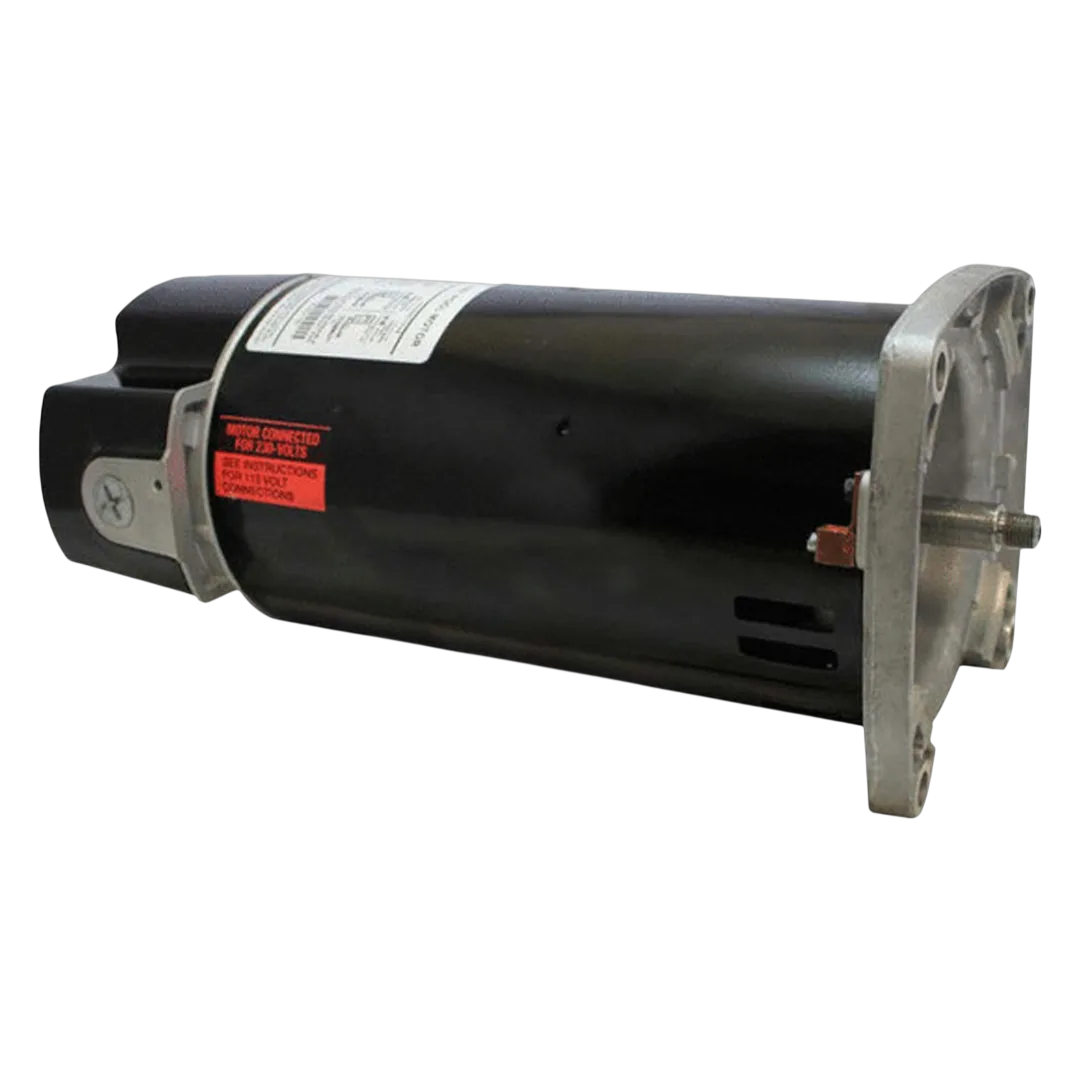

US Motors ASQ225 Aqua-Shield EZ48 2.25 HP Square Flange Motor

Nidec Motor Corp/US Motors  |  SKU: ASQ225
$38900/ea
5-digit zip required

Description

Replacement square-flange pump motor for pool and spa pumps that use a 48Y frame - US Motors/Nidec ASQ225. It provides 2.25 total HP in a single-speed configuration with Aqua-Shield EZ48 construction and an open-drip-proof enclosure. Rotation is CCW at the drive end, and the 48Y square-flange bolt pattern matches standard pump mounts.


Includes: Motor only

Technical Specifications

Specification Details
Part Name ASQ225
Part Number ASQ225
Part Type Square Flange Pool Motor
Compatibility Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max, Pentair Whisperflow, Pinnacle, Anthony AR2 Series
Substitute Part Numbers 38654, AOS-60-5060, EMR-60-6104, EMR-60-6106, EMR-60-6178, ESQ1152, EUSQ1202, HSQ225, SQ1152, USQ1202
Includes Motor only
Certifications 1081 Design
Material 300 Series Stainless Steel
Mount Type Square Flange
Connection Size 1/2-20 UNF-2A shaft threads
Number of Positions Single-speed
Flow Paths N/A
Pressure Rating N/A
Seal Material Sealed ball bearings
Shipping Dimensions 18.5 x 10.5 x 10.5 inch
Product Weight 28.4 pounds
