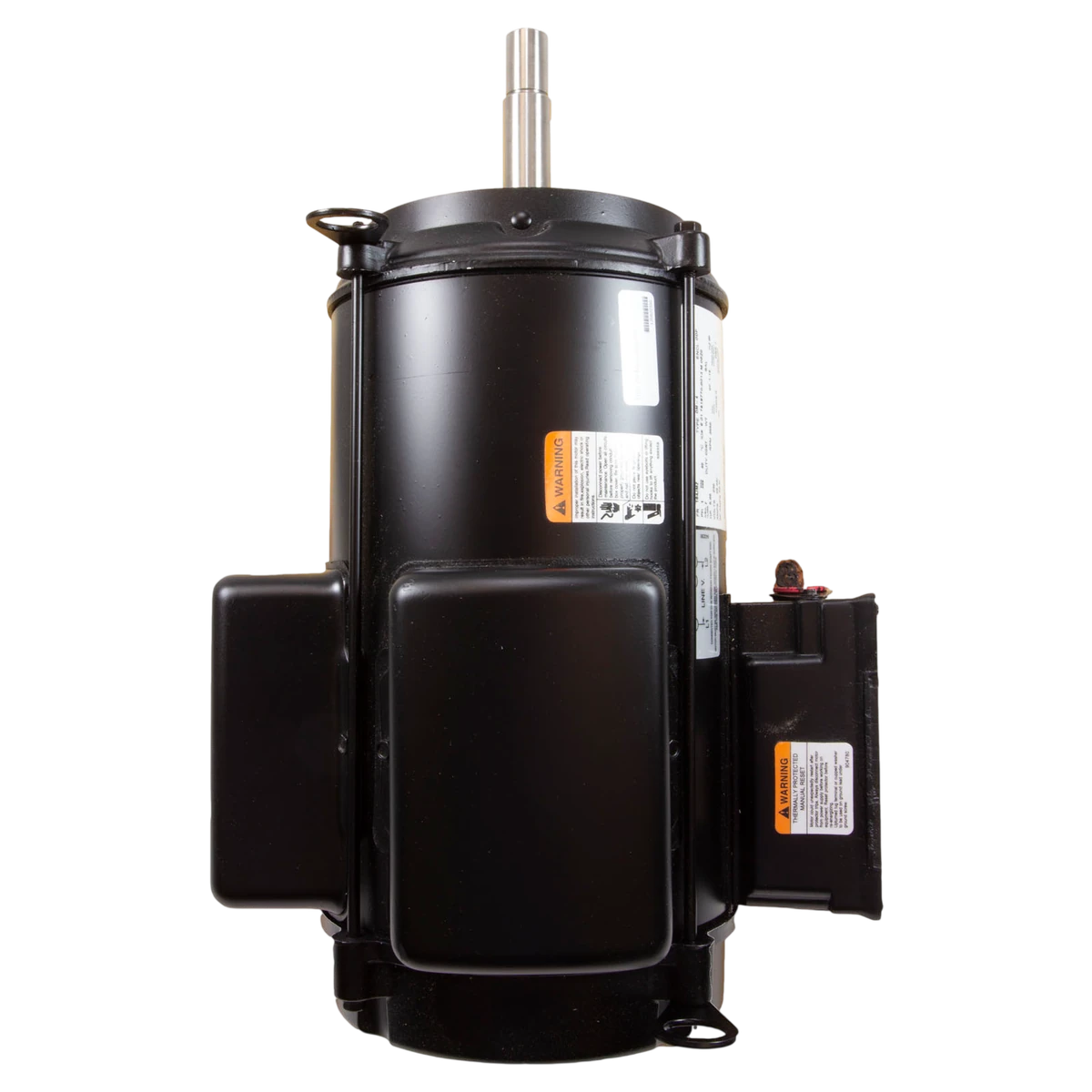

EQ Series ODP Pump Motor 5HP

U.S. MOTORS | SKU: EEQ500

$1,372⁹⁹^/ea

5-digit zip required

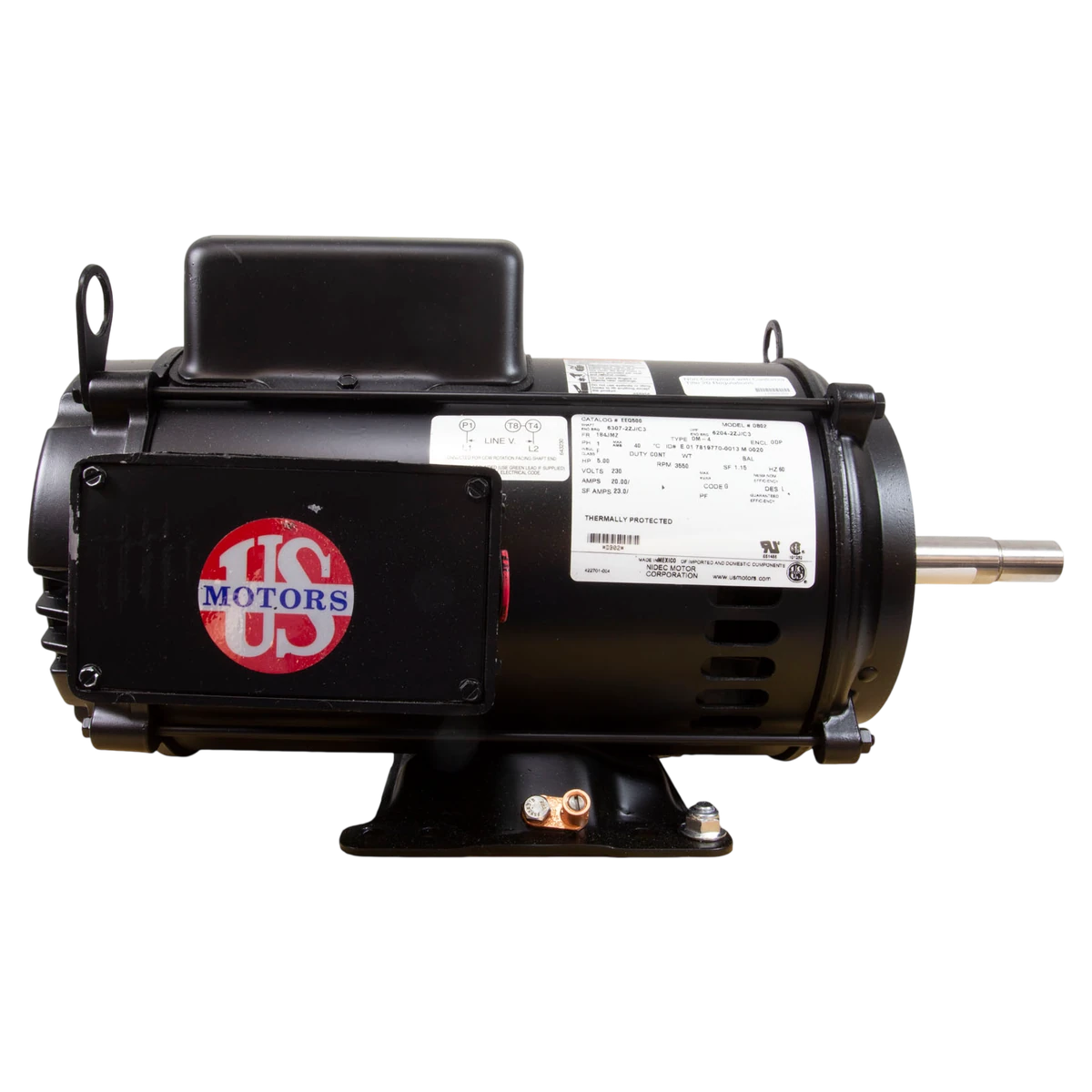

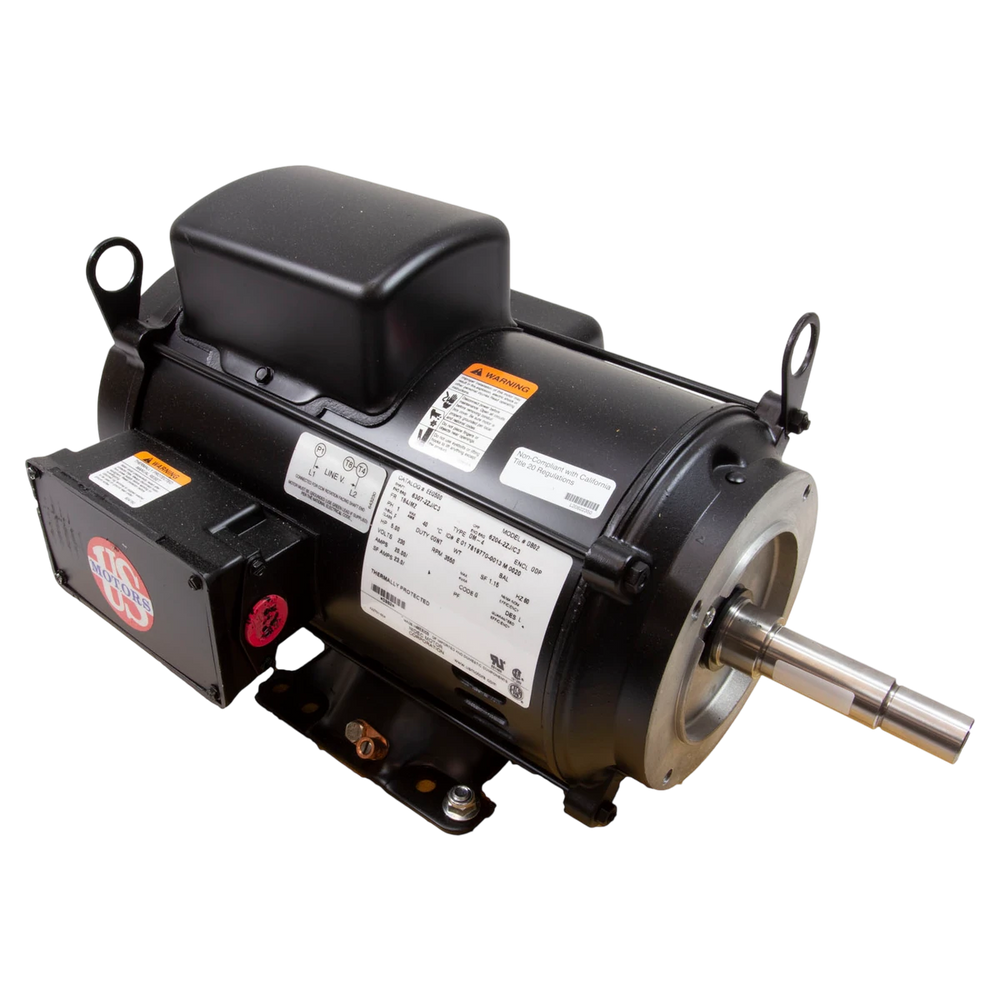

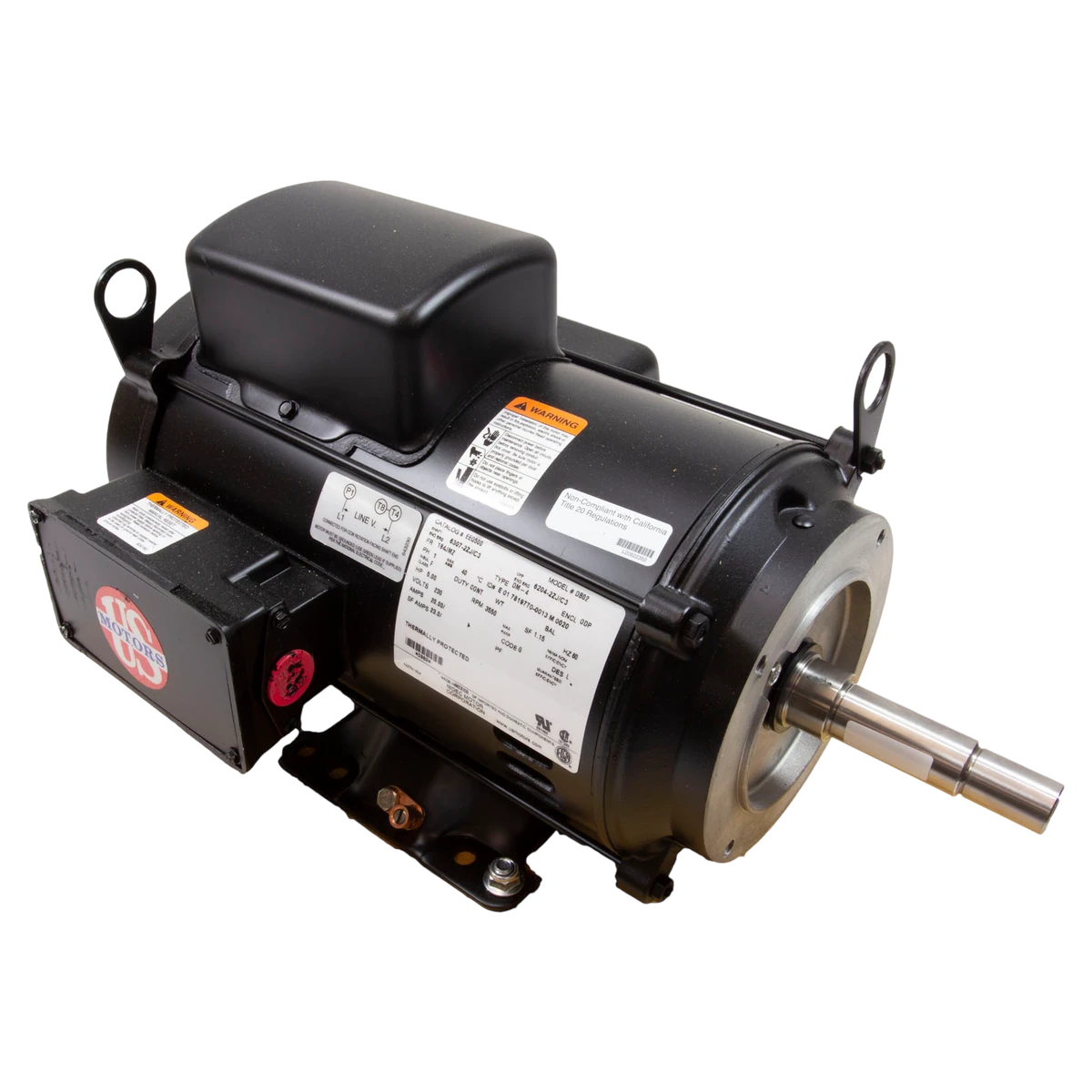

EQ Series ODP Pump Motor 5HP

The EEQ500 is a 5HP, single-phase, 230V open drip-proof motor on a 184JMZ frame built for Pentair EQ Series close-coupled pool pumps.

Key Features

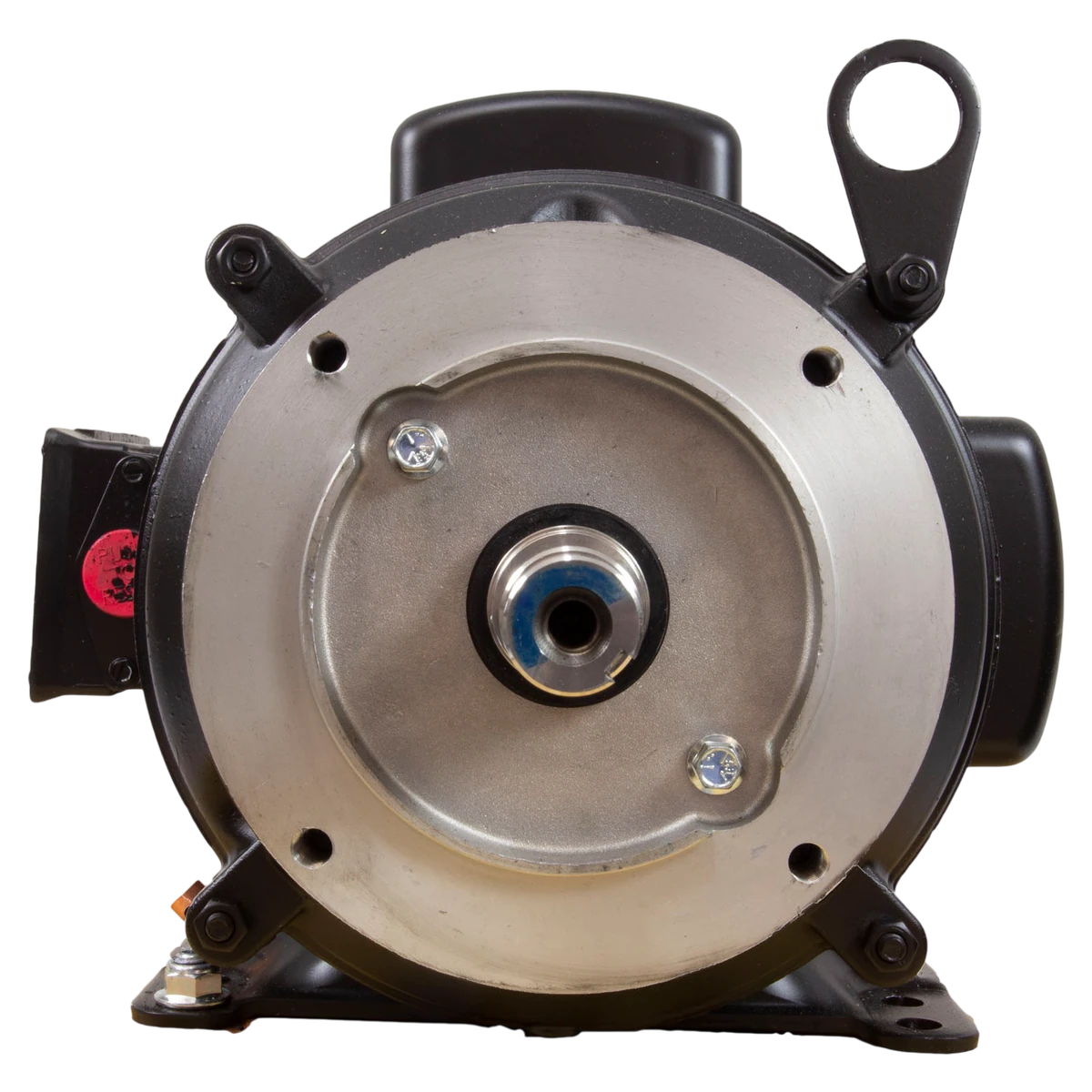

JMZ mounting pattern for direct close-coupled fit

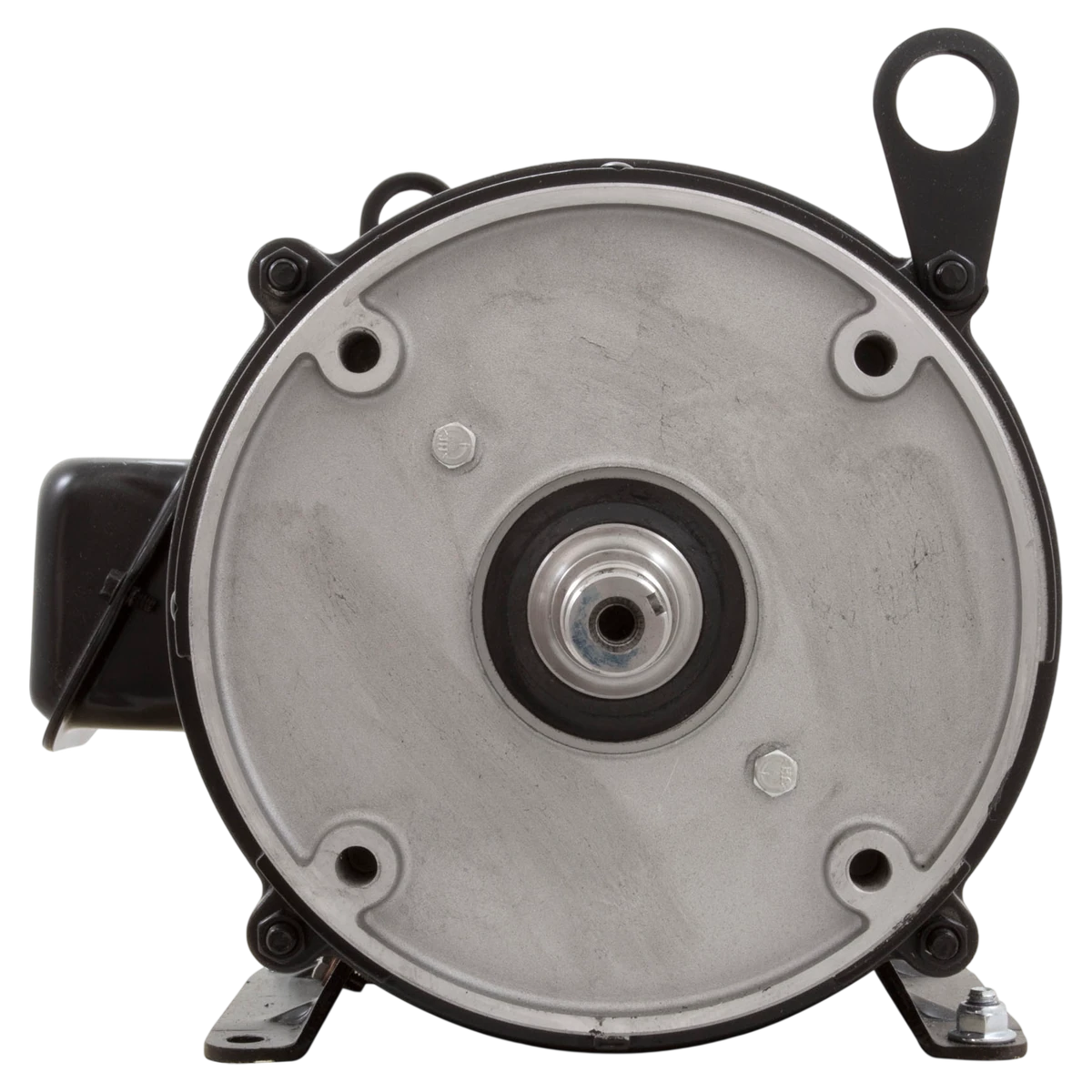

303 stainless steel keyed shaft
Permanently lubricated ball bearings
Class F insulation, 88% efficiency
3600 RPM, 1.15 service factor

Compatibility

Pentair EQ Series close-coupled pumps
Does not fit EQK500/EEQK500 or EQKT500/EEQKT500 pumps, which use 3-phase or TEFC motors

The EQ Series name covers several motors with different phase and enclosure types, including the 3-phase EEQK500 and TEFC EEQKT500, which are not interchangeable with this 1-phase ODP EEQ500.

Color

Black

Shipping Dimensions

23 x 16.5 x 15 inch

Weight

78 pound

Warranty - General

1 years
