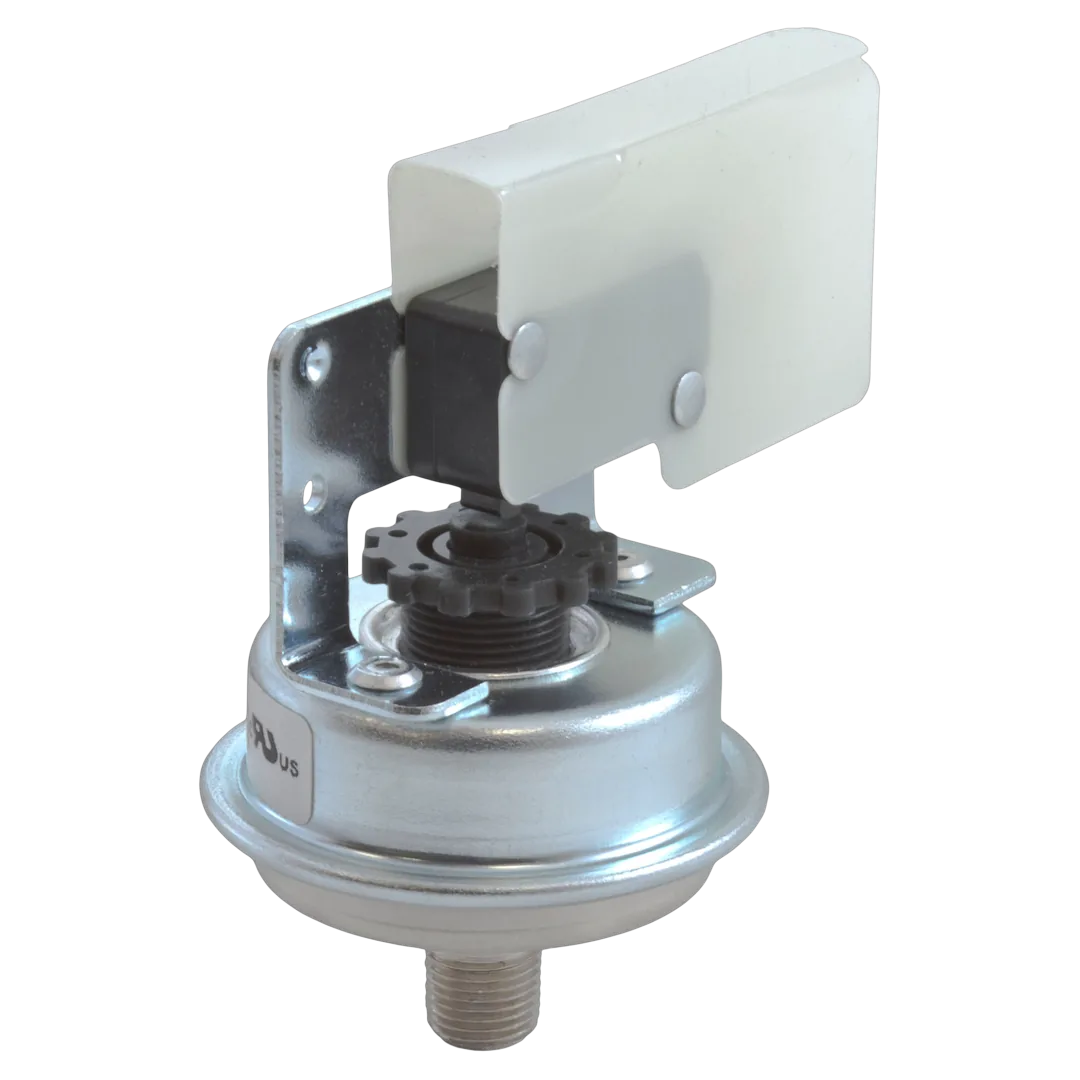

Tecmark 3029 Pressure Switch
Tecmark | SKU:
3029
$6100/ea
Unit price
/
Unavailable
Tecmark 3029 Pressure Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement adjustable pressure switch for spa and pool heaters with a 1/8" MPT port (Tecmark 3029). It proves flow by closing at the set pressure to enable the heater, then opens on low flow to prevent dry-firing. Stainless steel body and threads with an adjustable 1-5 psi setpoint; SPST (normally open), 25A.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Tecmark 3029 Pressure Switch |
| Part Number | 3029 |
| Part Type | Pressure Switch |
| Material | Stainless Steel |
| Pressure Range | 1 to 5 PSI |
| Electrical Rating | 25 Amps at 250 VAC |
| Switch Type | SPST (Single Pole Single Throw) |
| Connection Size | 1/8" NPT Male |
| Mount Type | Threaded |
| Certifications | UL Recognized, CSA Certified |
Schematics:
|
Sta-Rite Max-E-Therm Water System Parts
View in Sta-Rite Max-E-Therm Water System Parts
|
