Sundance Spas LX-10 Circuit Board
Sundance Spas LX-10 Circuit Board is backordered and will ship as soon as it is back in stock.
10 In Stock
Description
Description

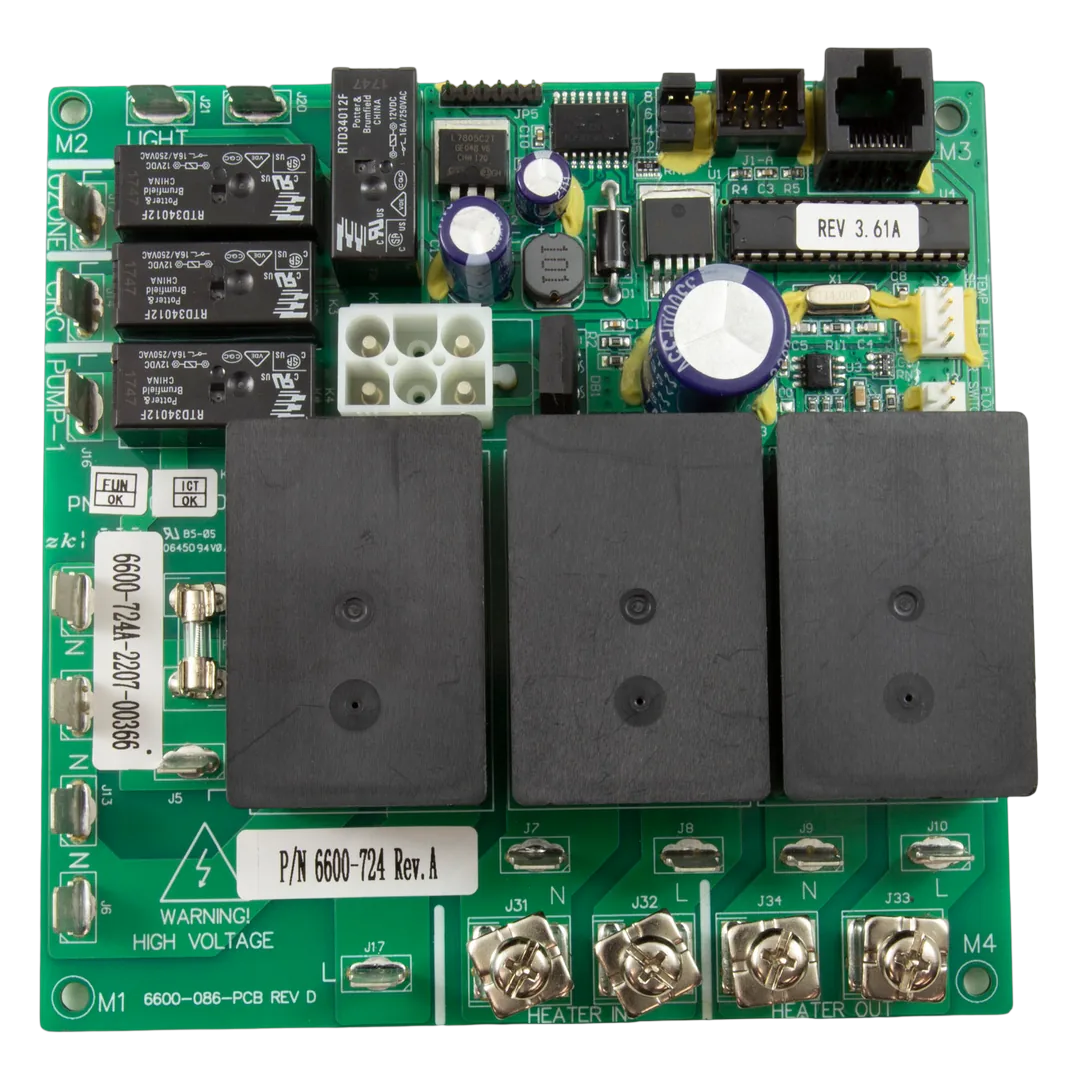

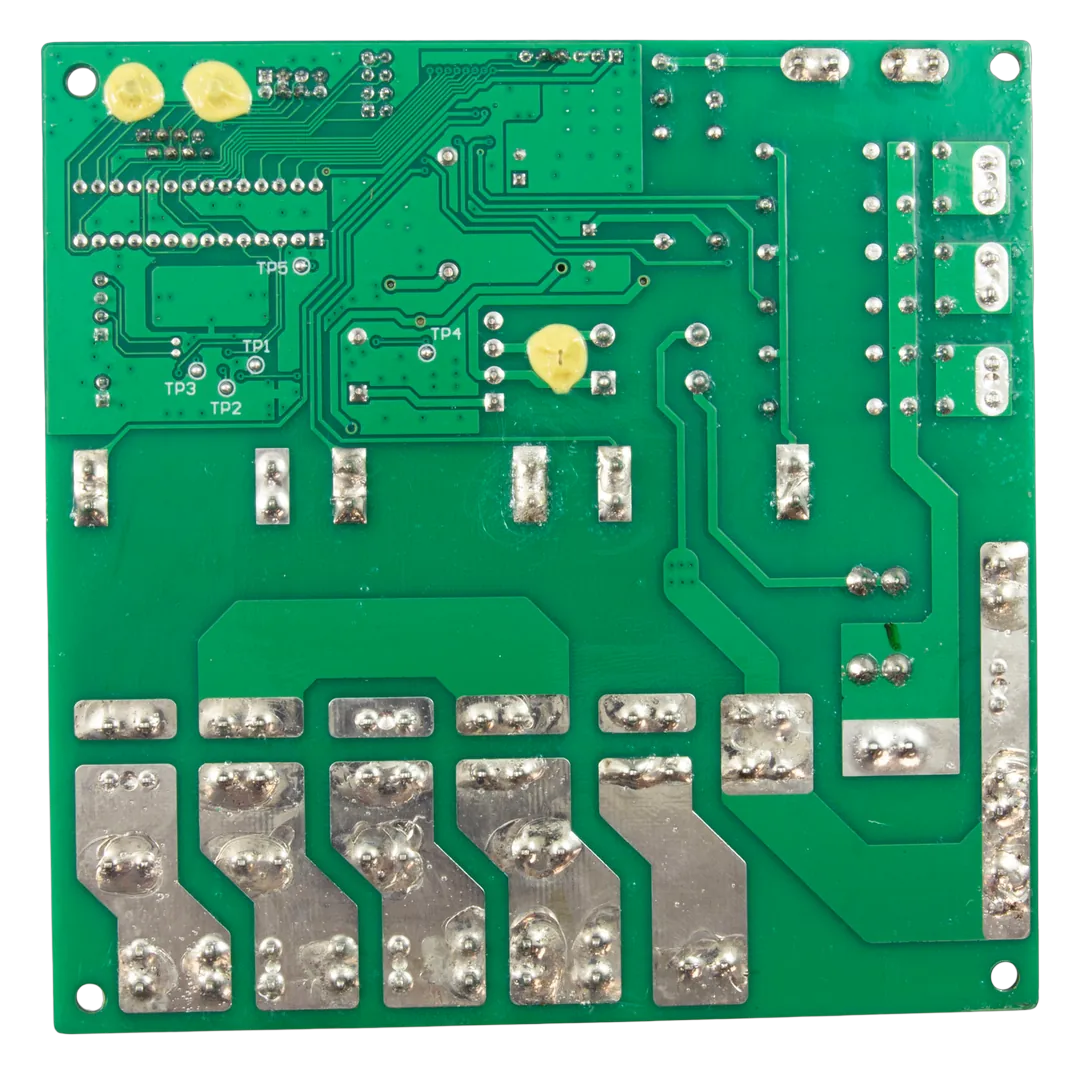

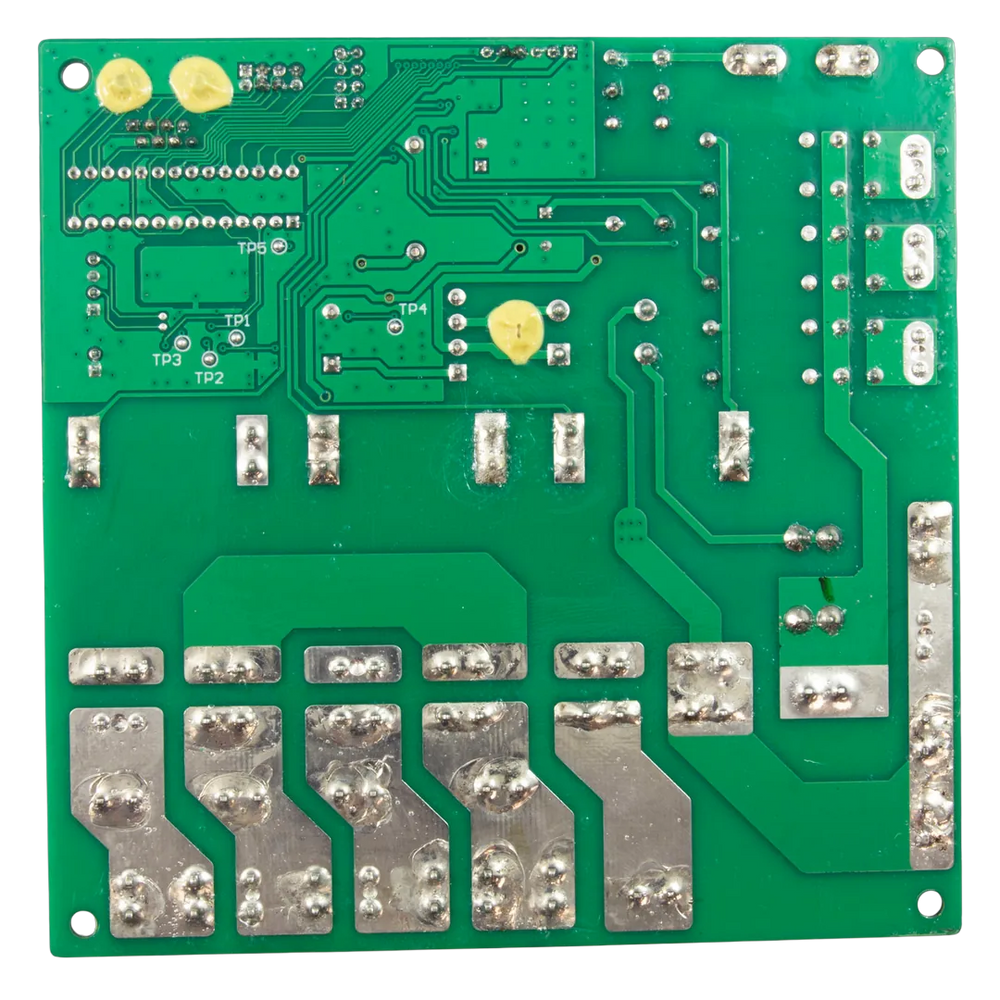

The Sundance Spas 6600-724 is an OEM printed circuit board for Sundance/Jacuzzi LX-10 control systems used in 1-pump spas with a dedicated circulation pump. It is a 120/240-V convertible LED logic board (Rev 3.60+) configured for one 120-V jet pump plus a 120-V circulation pump, with setup via labeled jumpers. Compatible with 780 Series models such as 2008+ Dover (1-pump) and 2007+ Metro and Solo, and select LED-series units including Caprio/Caprio ST, Tango, and Lagunas; cross-references 6600-044, 6600-085, 6600-086, and 6600-286.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Sundance Spas 6600-724 Circuit Board |
| Part Number | 6600-724 |
| Part Type | Circuit Board |
| Compatibility | Compatible with Sundance Spas models: 2008-03/2017 780 Dover (1 pump) with circulation pump, 2007+ 780 1-Pump Metro and Solo with circulation pump, 2005-2006+ 780/850E 1-pump Lagunas, Caprio, Metro, Solo with circulation pump, 2004 Portofino Series 2-Speed Caprio, Metro and Solo with circulation pump, 2002-2003 Caprio, Caprio ST, Tango and Solo with circulation pump, 2003-2005 Sweetwater 2-Speed Lagunas with circulation pump, 06/00-2001 Portofino 1-Speed/2-Speed Board (Caprio, Caprio ST, Tango, and Solo) with circulation pump. Also compatible with Jacuzzi Spas models: 2002+ J-300 Series LED Circuit Board, 2002-2006 J-310, J-315 Series, 2004 J-325 Series, 2007+ J-315 Series, 2008+ J-325 Series. |
| Substitute Part Numbers | 6600-044, 6600-085, 6600-086, 6600-286 |
| Includes | Circuit board only |
| Certifications | OEM replacement part |
| Material | Electronic components |
| Shipping Dimensions | 12 x 10 x 2 inch |
| Product Weight | 1.5 pound |
Features:
- Designed for circulation pump systems
- Series 3.56 chip
- Works with software chip that begins with a 3
- Replaces multiple part numbers for compatibility.
