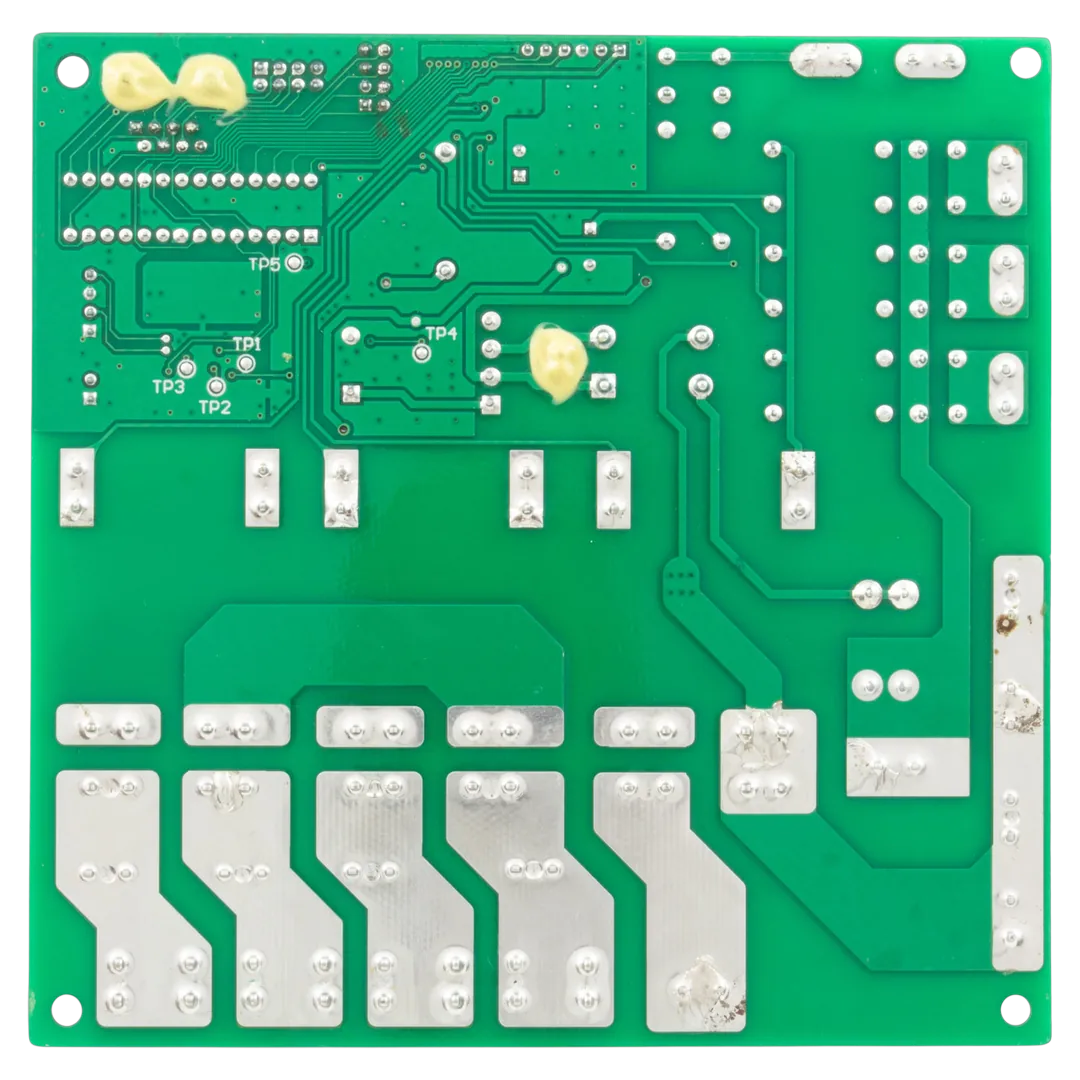

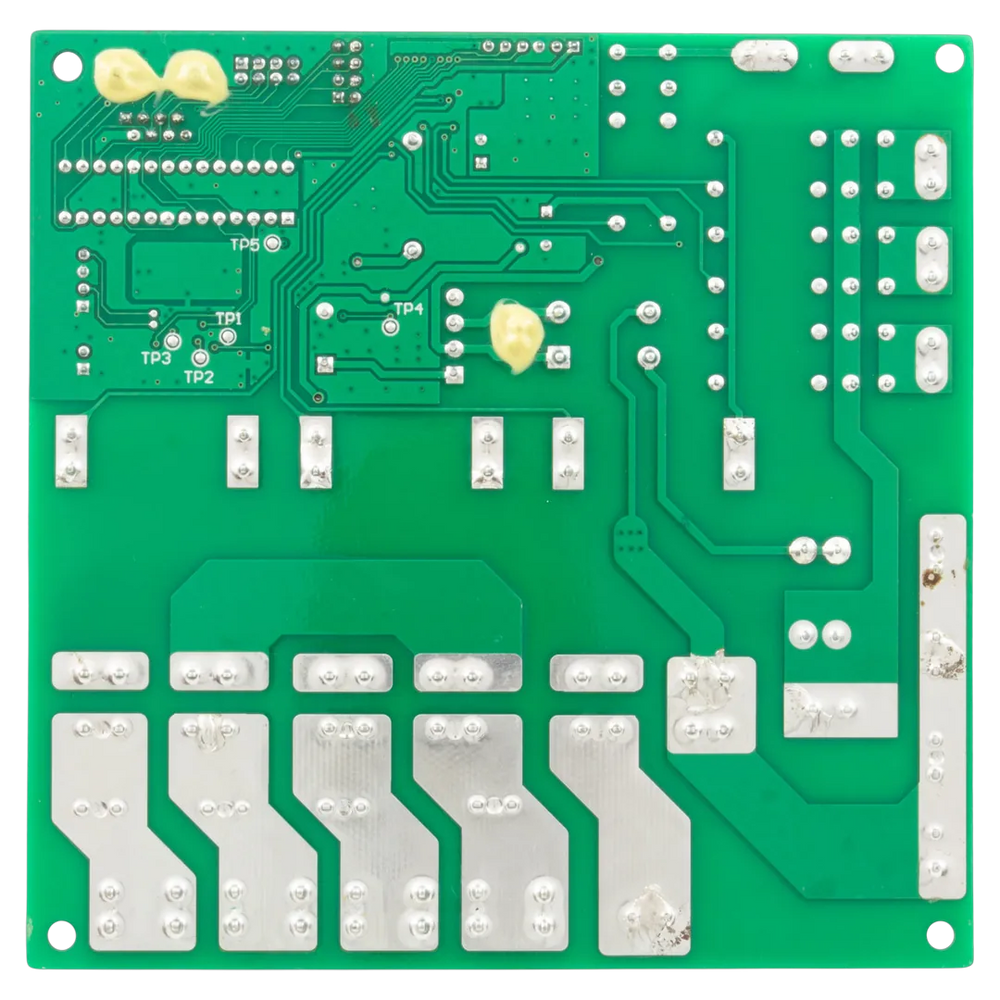

Sundance Spas LX-10 Circuit Board
Sundance Spas LX-10 Circuit Board is backordered and will ship as soon as it is back in stock.
10 In Stock
Description
Description

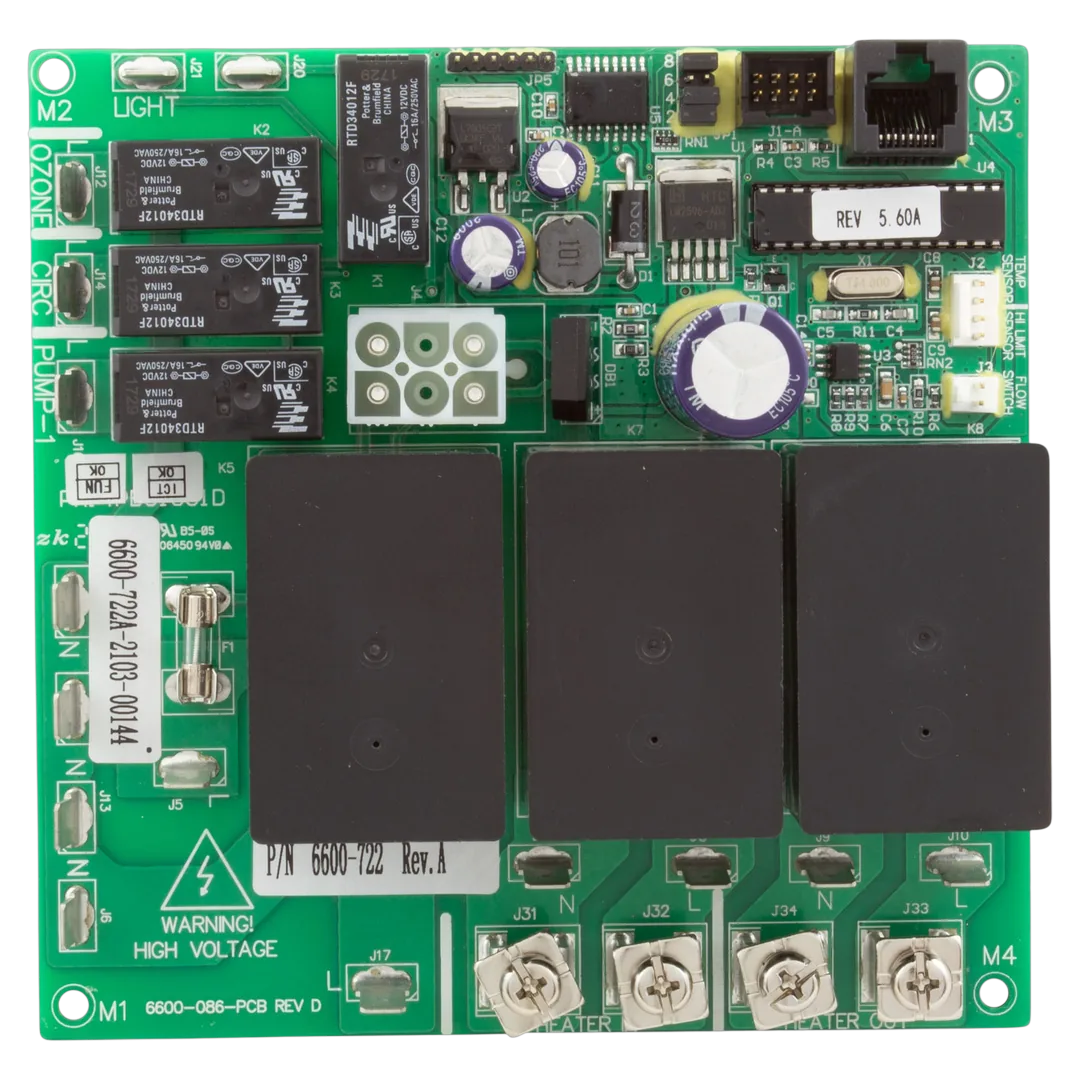

The Jacuzzi/Sundance 6600-722 is a control circuit board for LX-10/LX-10L spa systems used across the 680 Series, Sweetwater/Del Sol, and J-200 platforms. It is a dual-voltage (115/120 and 220/240 VAC) PCB with three power relays for 1-pump, no-circulation-pump configurations; common chip revisions include Rev 5.03+ and Rev 5.57, some versions use surface-mount heater terminals, and it supersedes 6600-042, 6600-089, and 6600-289. Compatible units include Jacuzzi J-210 and J-220 (circa 2005-2006) and Sundance 680 Series Denali and Tacoma (2006+), as well as Del Sol/Sweetwater models such as Redondo and Hermosa (2003-2005).
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | SmartTub® System |
| Part Number | 6600-722 |
| Part Type | System |
| Compatibility | Compatible with 2016 or newer Jacuzzi® hot tub models |
| Substitute Part Numbers | 6600-042, 6600-089, 6600-289 |
| Includes | SmartTub® hardware module |
| Certifications | FCC, CE |
| Material | Plastic |
| Shipping Dimensions | 10 x 6 x 6 inch |
| Product Weight | 1.5 pound |
Features:
- Allows remote monitoring and control of hot tub settings
- Provides maintenance and diagnostic information
- Requires cellular service for operation
