Sta-Rite Max-E-Glas Dura-Glas I Seal Plate Assembly
Pentair | SKU:
C103-193PZ
$11200/ea
Unit price
/
Unavailable
Sta-Rite Max-E-Glas Dura-Glas I Seal Plate Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

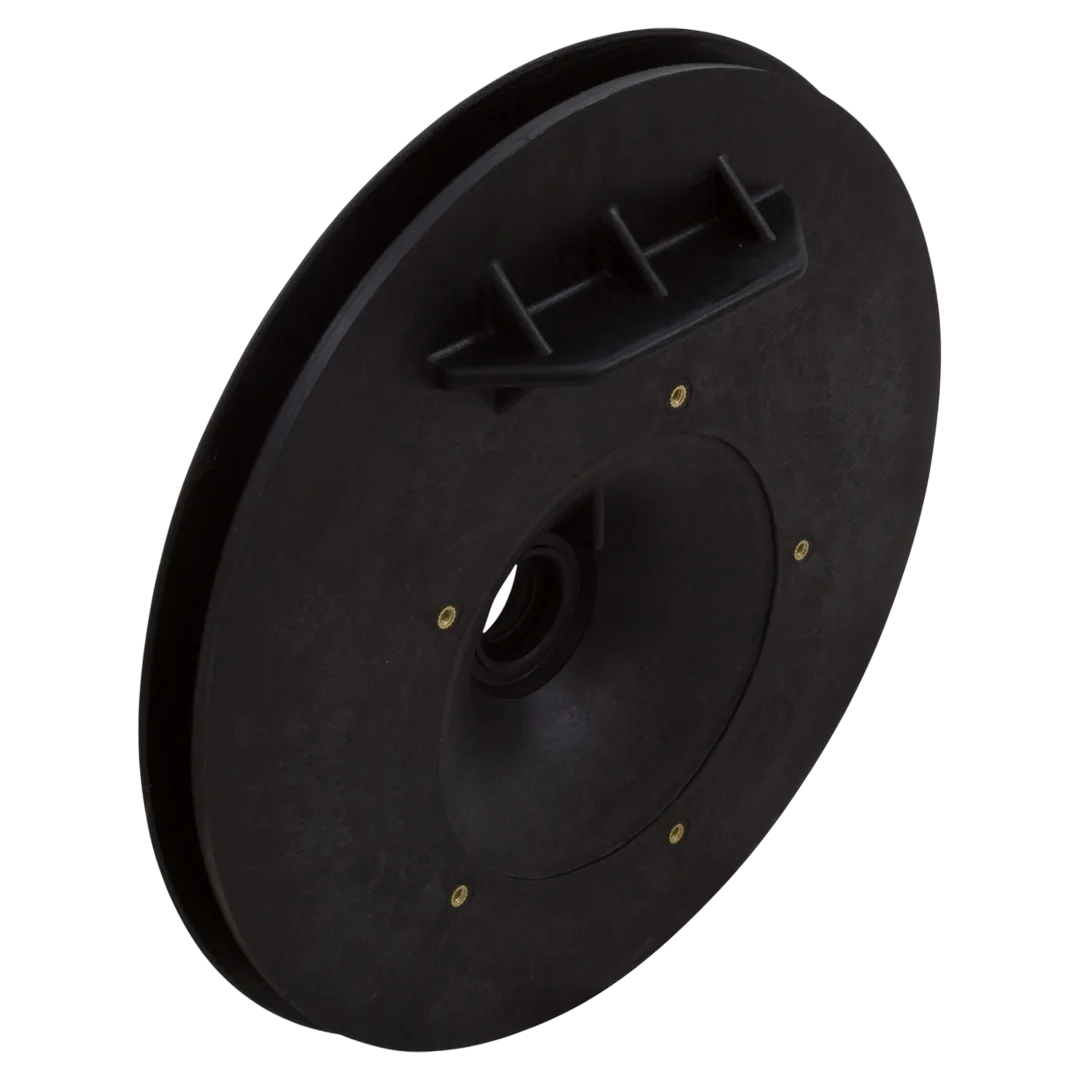

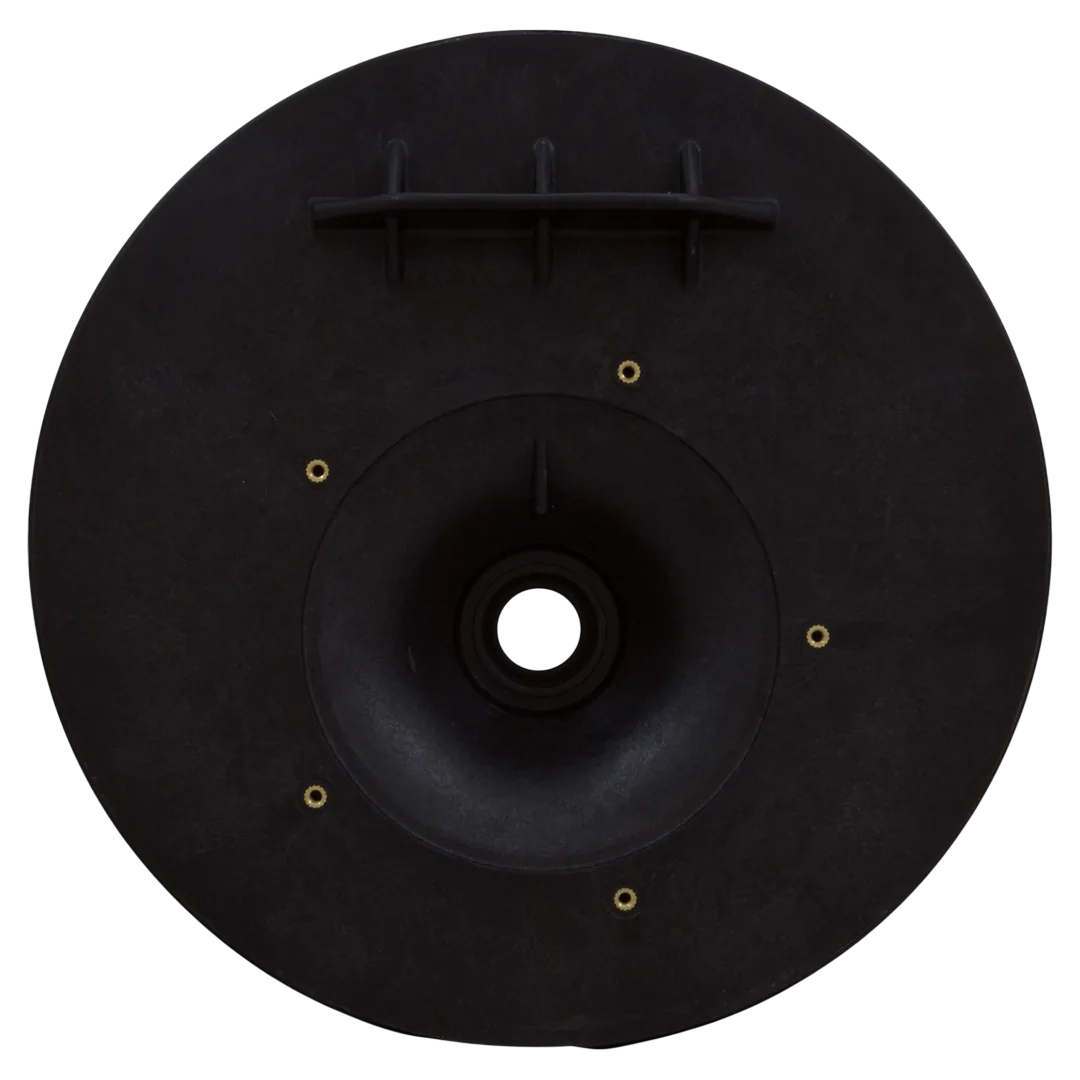

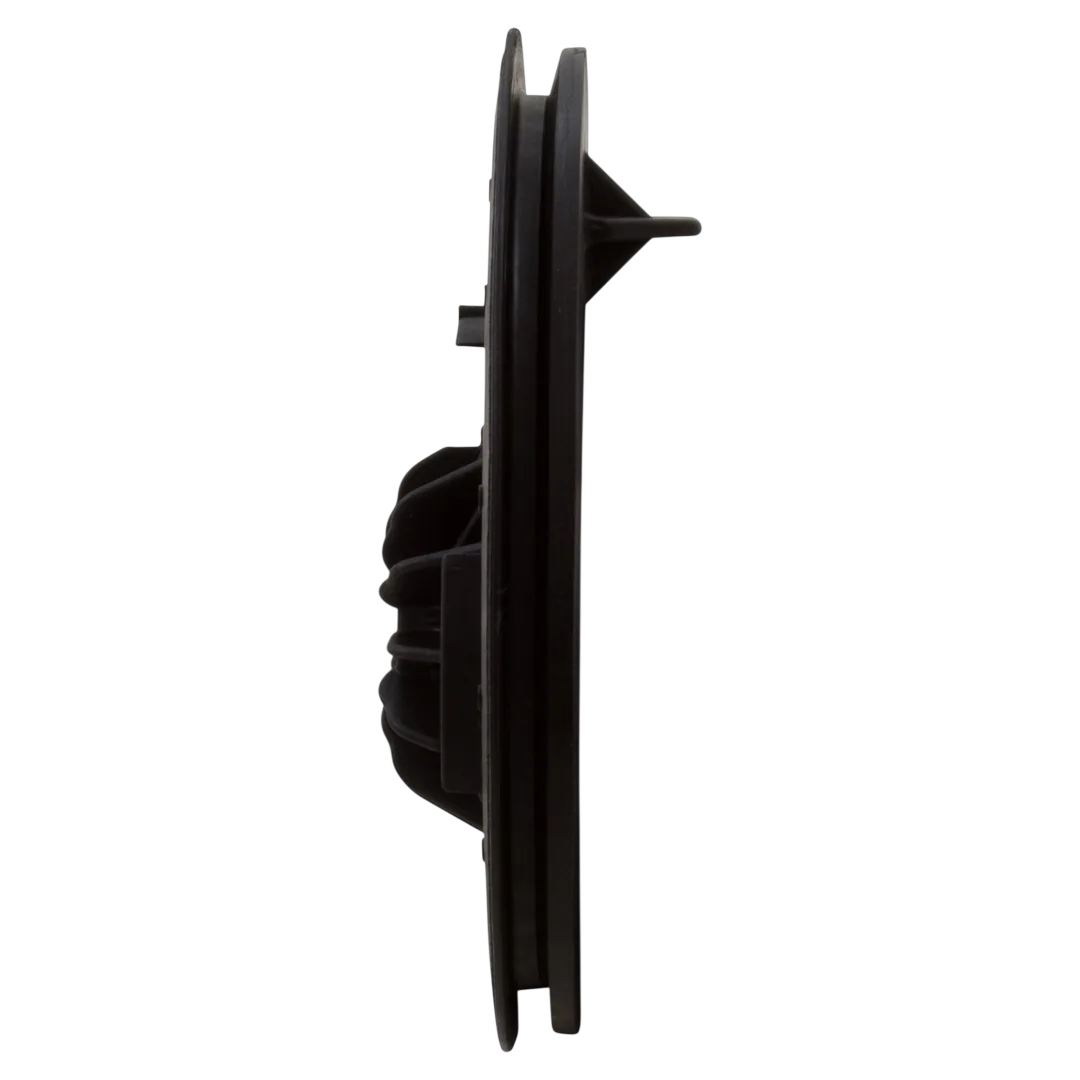

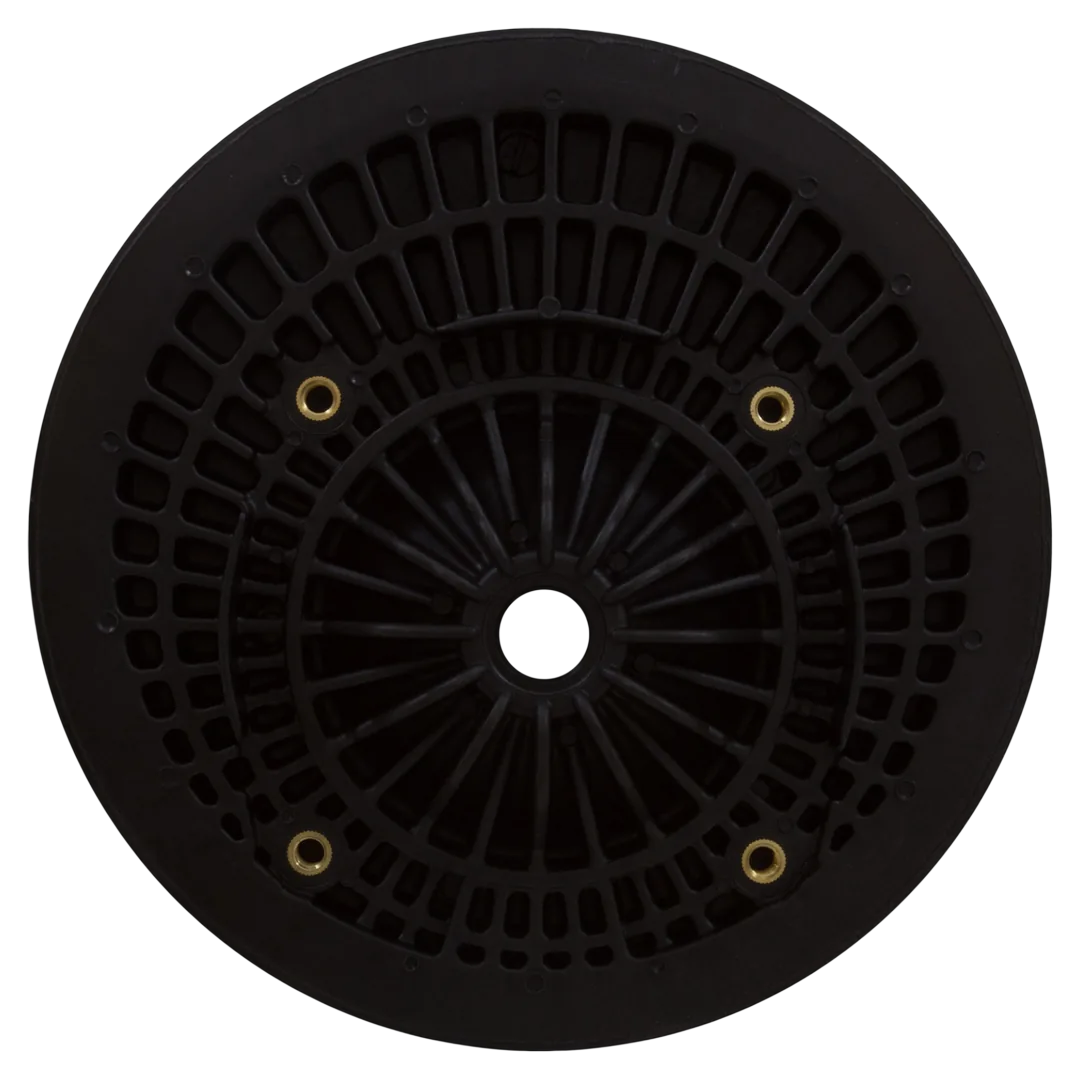

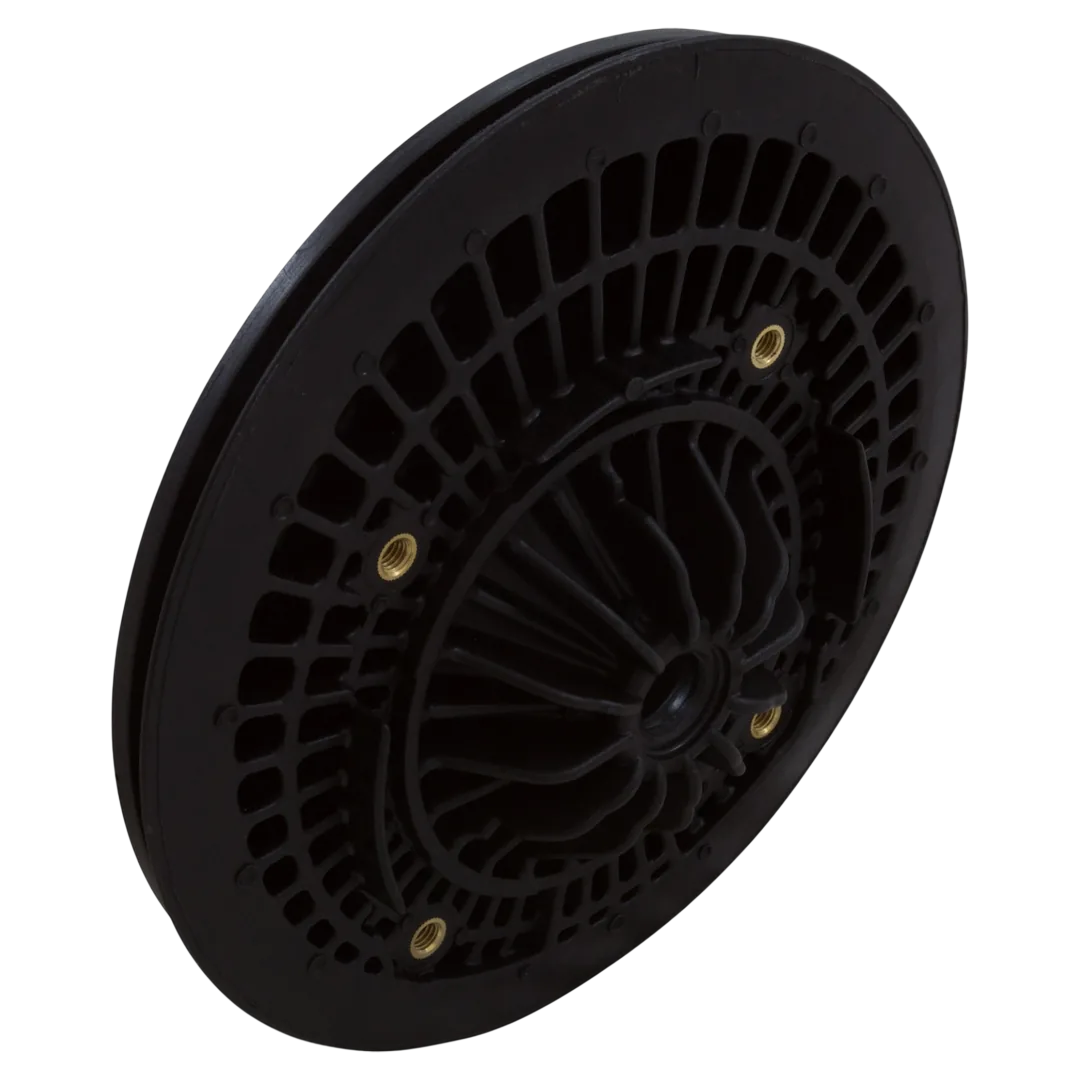

The Pentair C103-193PZ is a seal plate assembly for Sta-Rite Max-E-Glas and Dura-Glas I pool pumps. It is constructed from plastic and connects the pump volute to the motor using a 4-screw mounting system. This assembly is specifically designed for compatibility with 0.5-3.0 HP models within the Sta-Rite Max-E-Glas and Dura-Glas I series.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Pentair C103-193PZ Seal Plate Assembly |
| Part Number | C103-193PZ |
| Part Type | Pump Part |
| Compatibility | Pentair Max-E-Glas and Dura-Glas pumps |
| Material | Plastic |
| Volute to Seal Plate Mounting Type | 4 Screws |
| Volute to Seal Plate Hole Spacing | 3-9/16 inches |
| Seal Plate to Motor Mounting Type | Square Flange |
| Seal Plate to Motor Hole Spacing | 5 inches |
| Impeller Space Diameter | 5-1/8 inches |
| Horsepower Compatibility | 0.5hp-3.0hp |
| Product Weight | 2 pounds |
