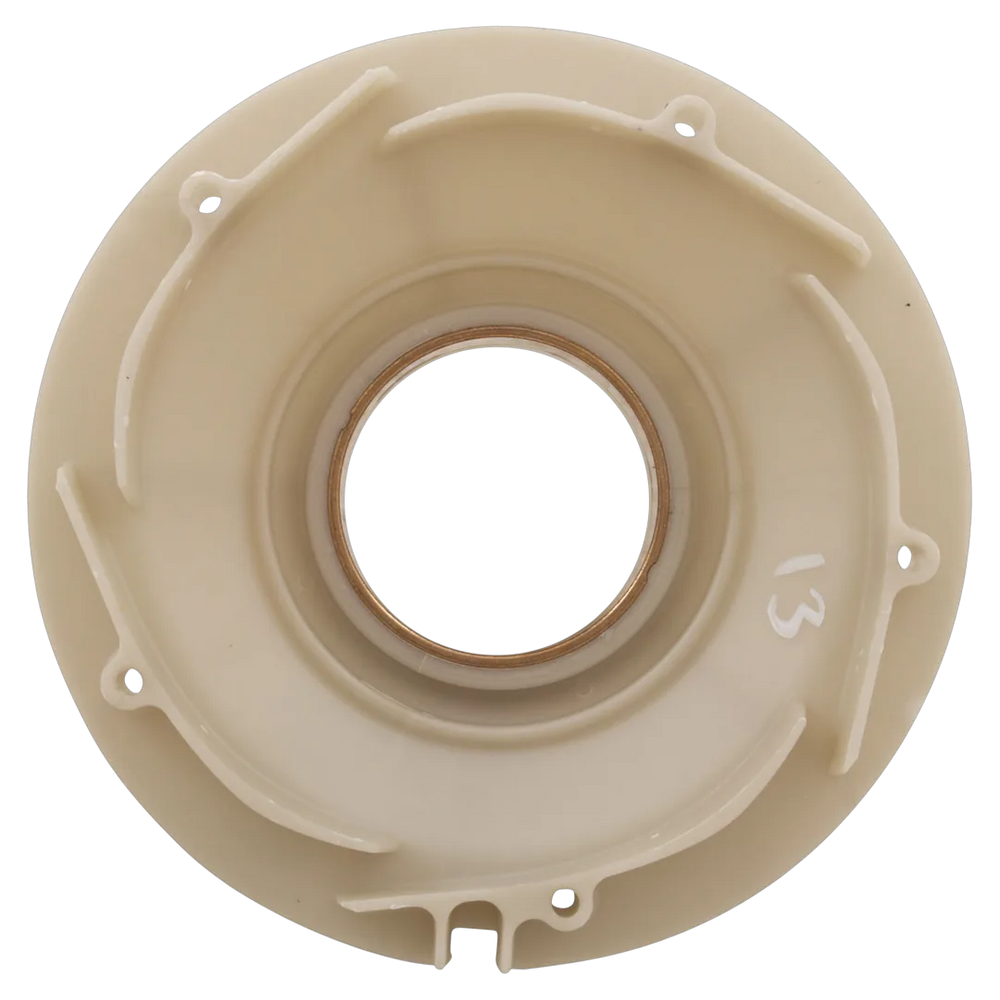

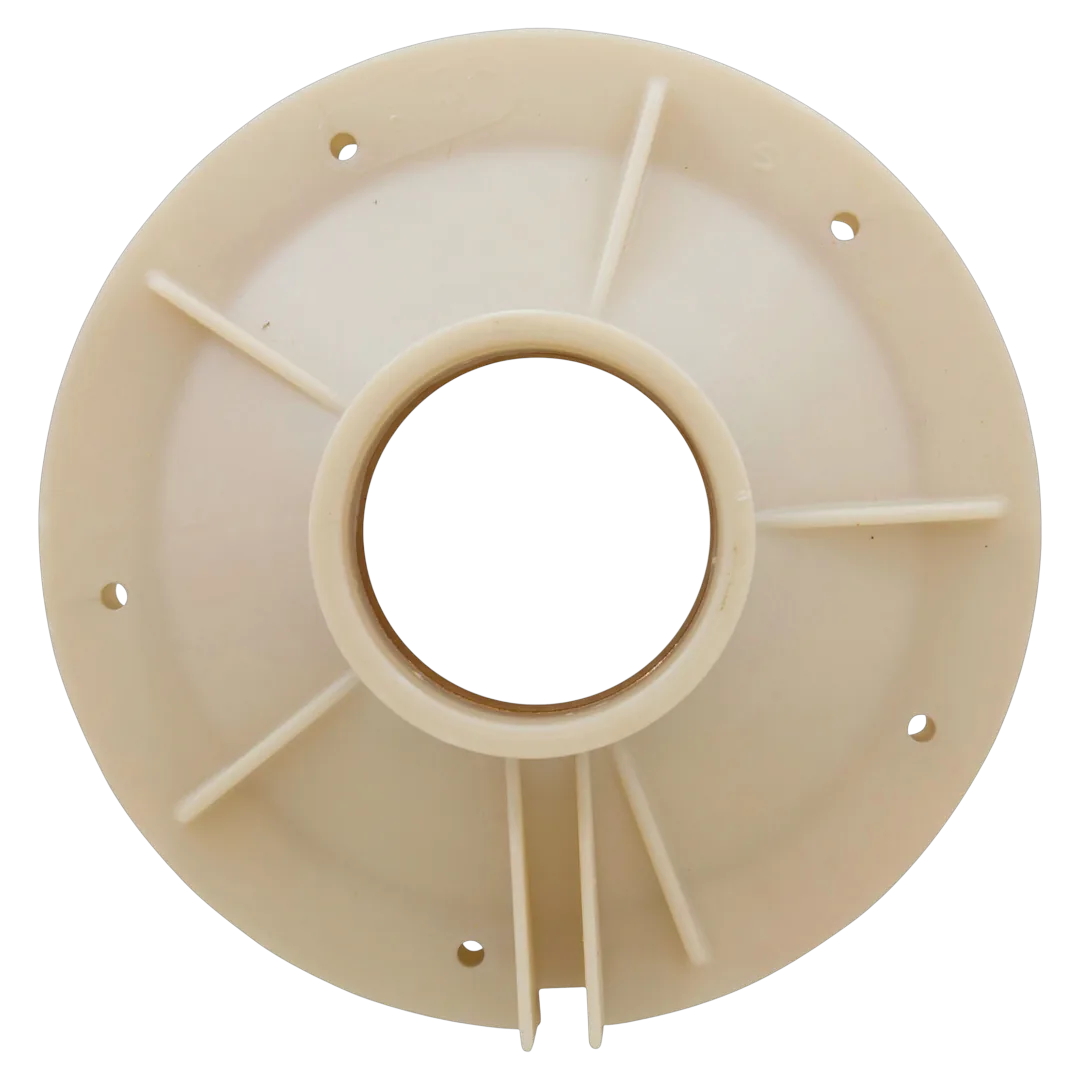

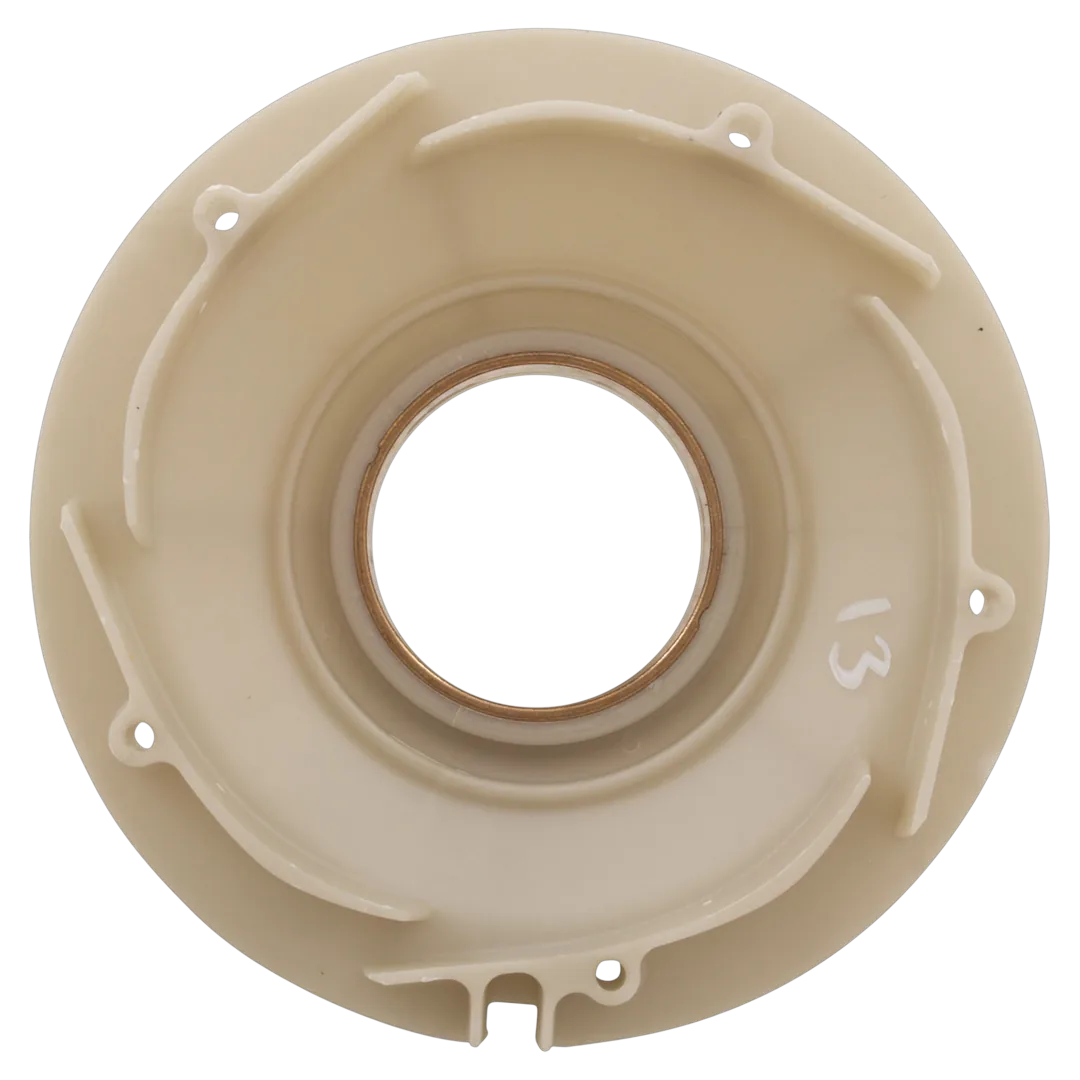

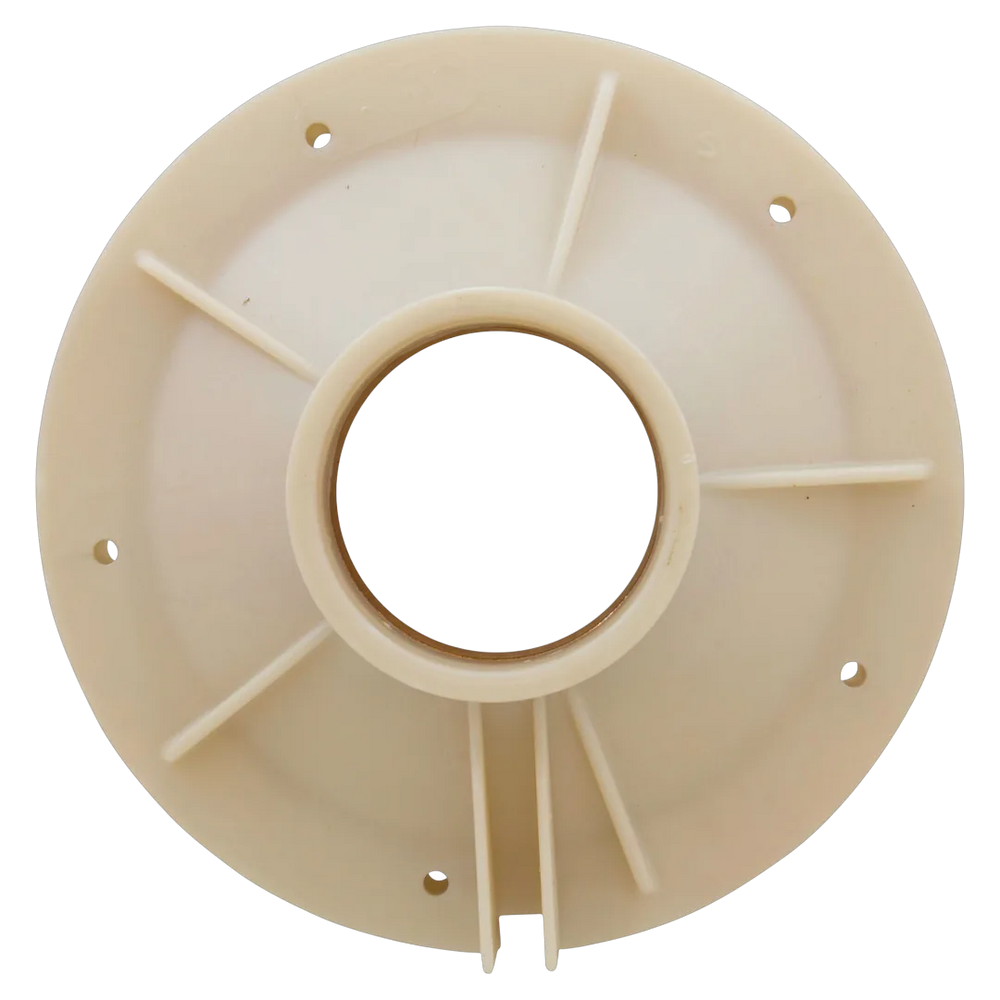

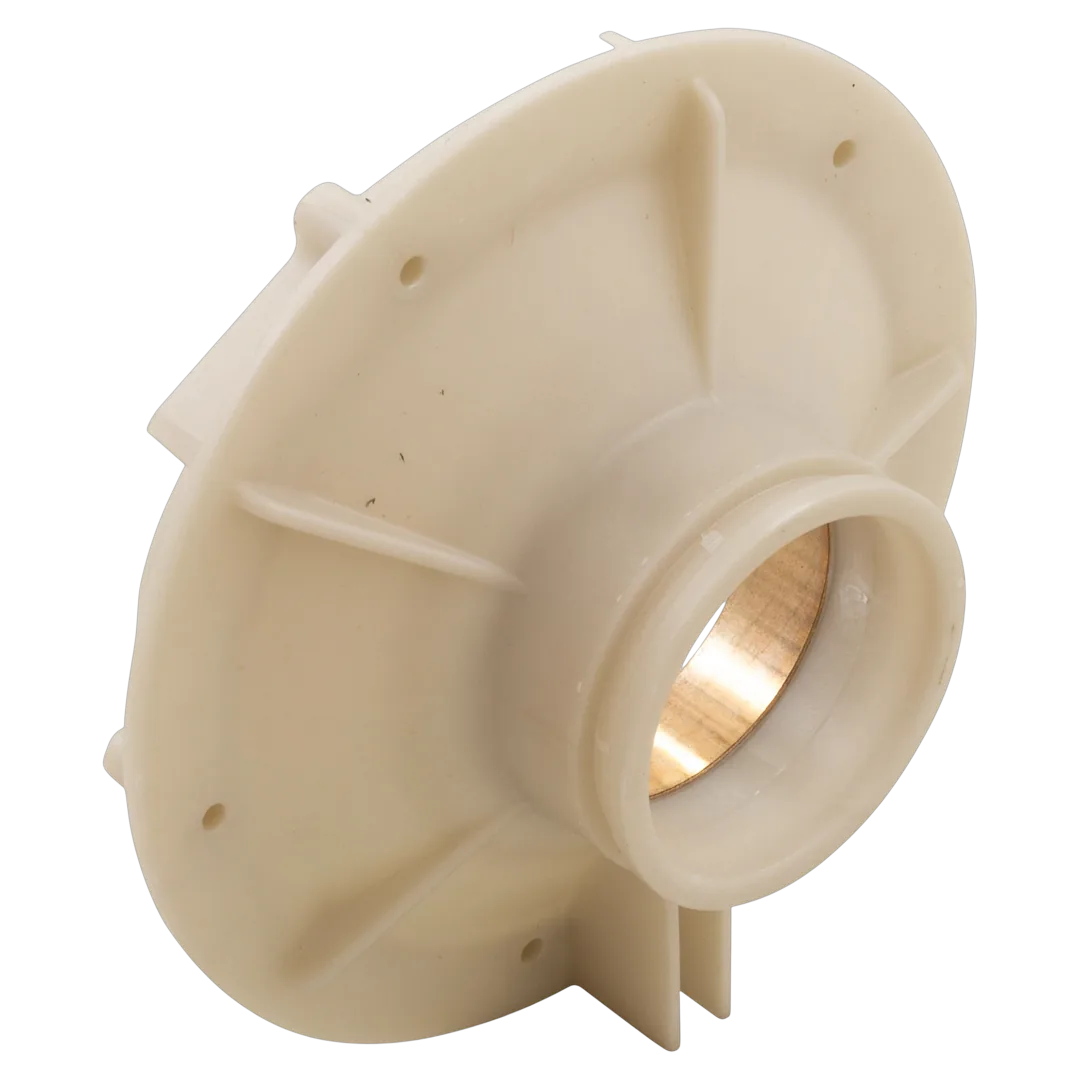

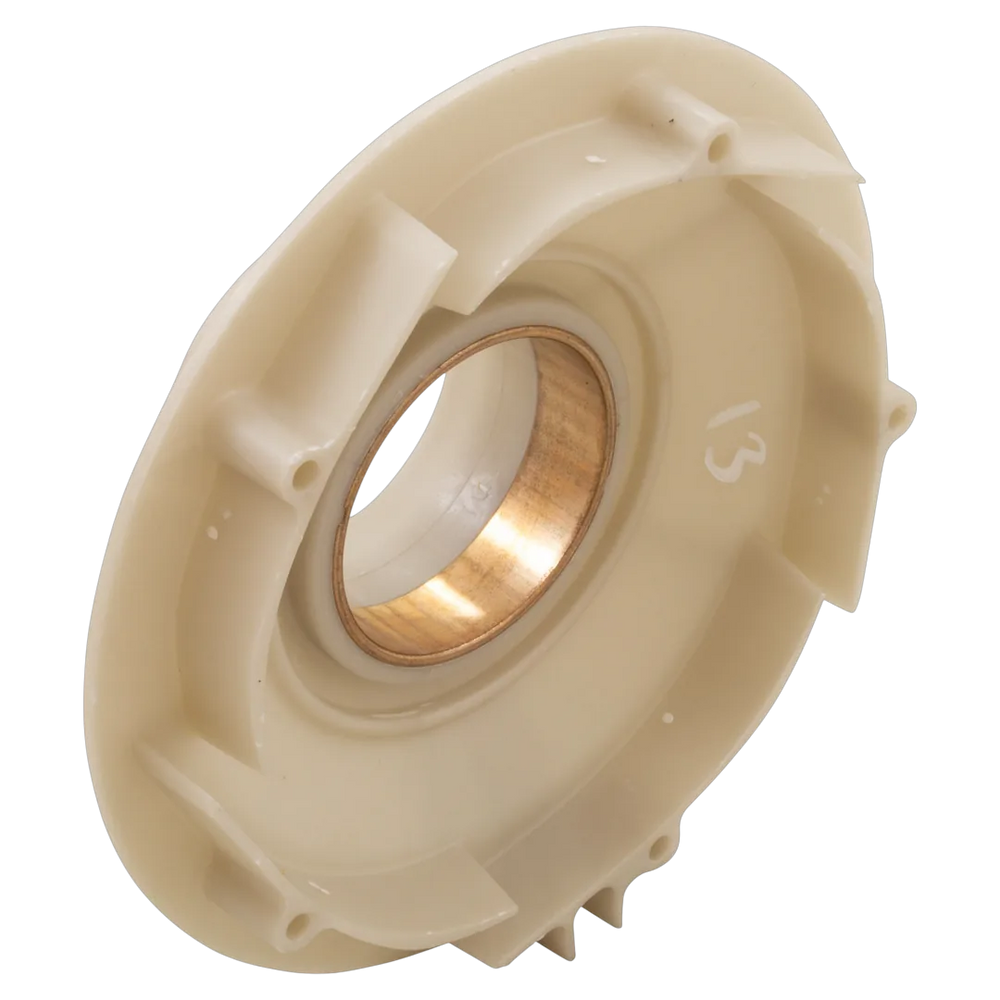

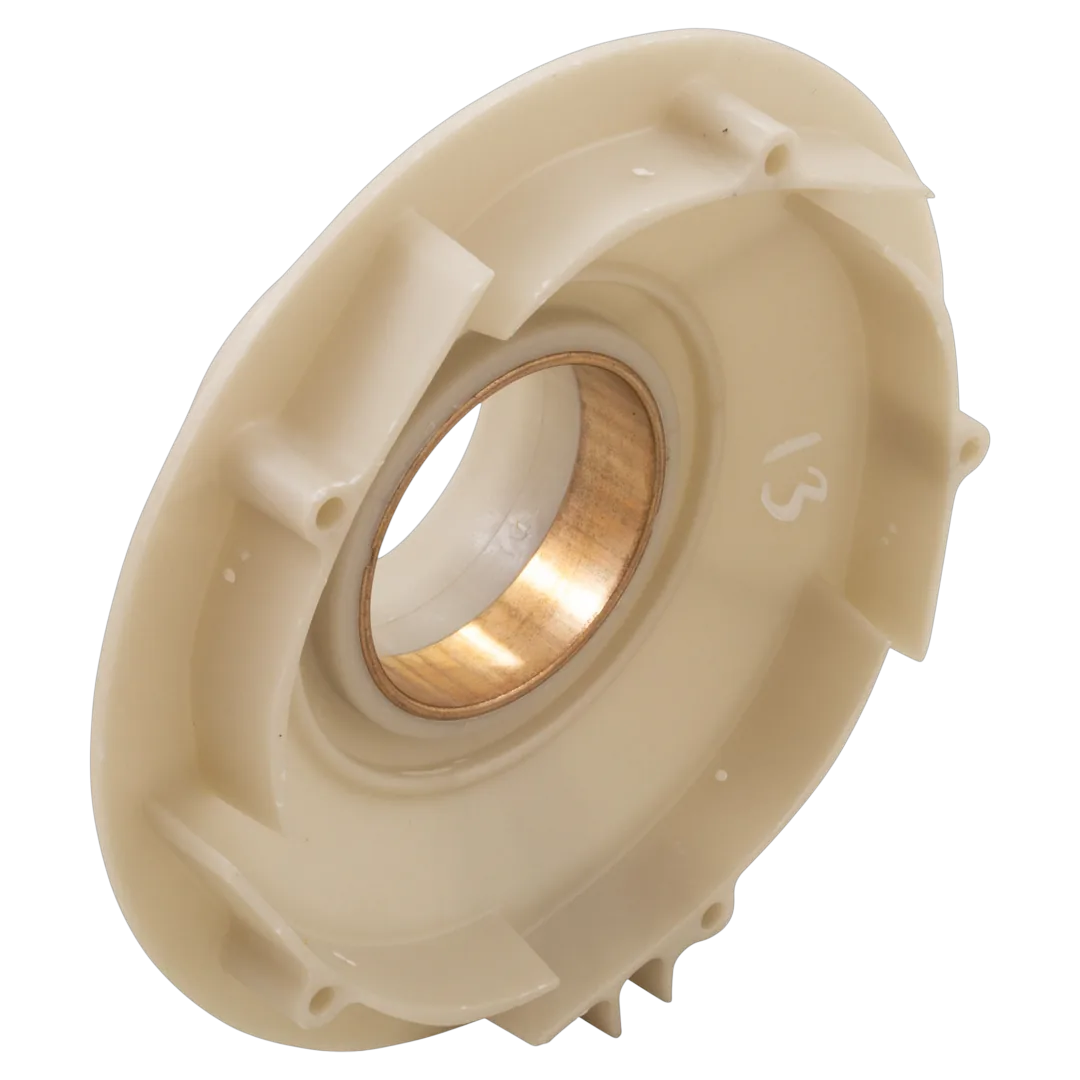

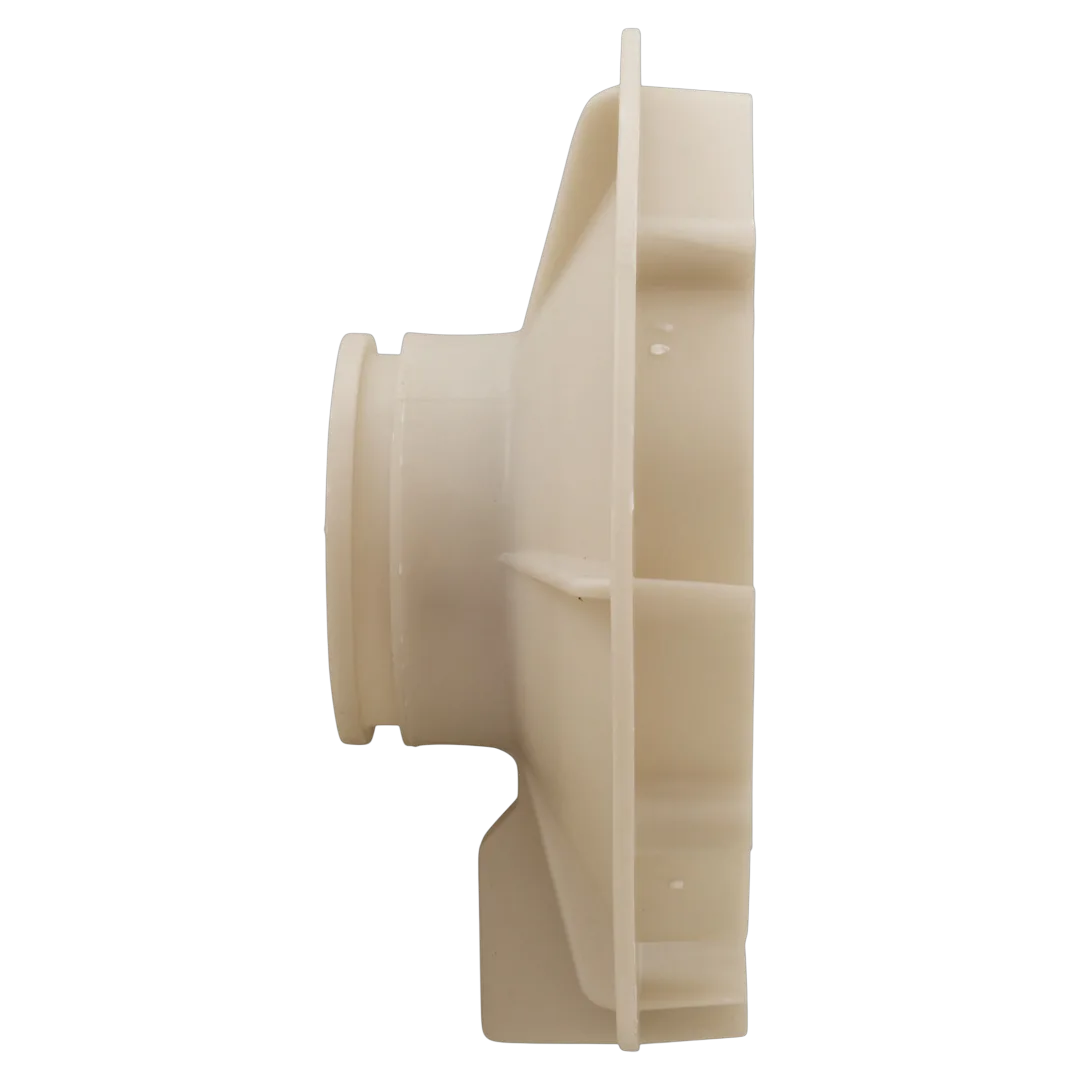

Sta-Rite Max-E-Pro Diffuser
Pentair | SKU:
C1-271PZ
$6600/ea
Unit price
/
Unavailable
Sta-Rite Max-E-Pro Diffuser is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Pentair C1-271PZ replacement diffuser for 1.5-3 HP Sta-Rite Max-E-Pro, Max-E-Glas II/Dura-Glas II, and IntelliPro VS 3050 pumps. It channels water from the impeller to the volute to restore prime and maintain pressure and flow. This genuine OEM assembly also cross-references C1-271P.
Includes: Diffuser only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | C1-271PZ |
| Part Number | C1-271PZ |
| Part Type | Diffuser |
| Compatibility | 1.5 HP to 3 HP Max-E-Pro, Max-E-Glas II/Dura-Glas II, and IntelliPro VS 3050 Pumps |
| Substitute Part Numbers | C1-271P |
| Includes | Diffuser only |
| Material | Plastic |
| Number of Vanes | 5 |
| Diffuser Base Outer Diameter | 7 inches |
| Diffuser Eye Outer Diameter | 2.875 inches |
| Diffuser Height | 2.5 inches |
| Diffuser Mounting Type | 5 Screws |
| Impeller Space Inner Diameter | 5.375 inches |
| Shipping Dimensions | 7 x 7 x 3 inch |
| Product Weight | 0.54 pound |
