Speck 95-IX Impeller 5 HP
Speck Pumps | SKU:
2923223025
$13400/ea
Unit price
/
Unavailable
Speck 95-IX Impeller 5 HP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

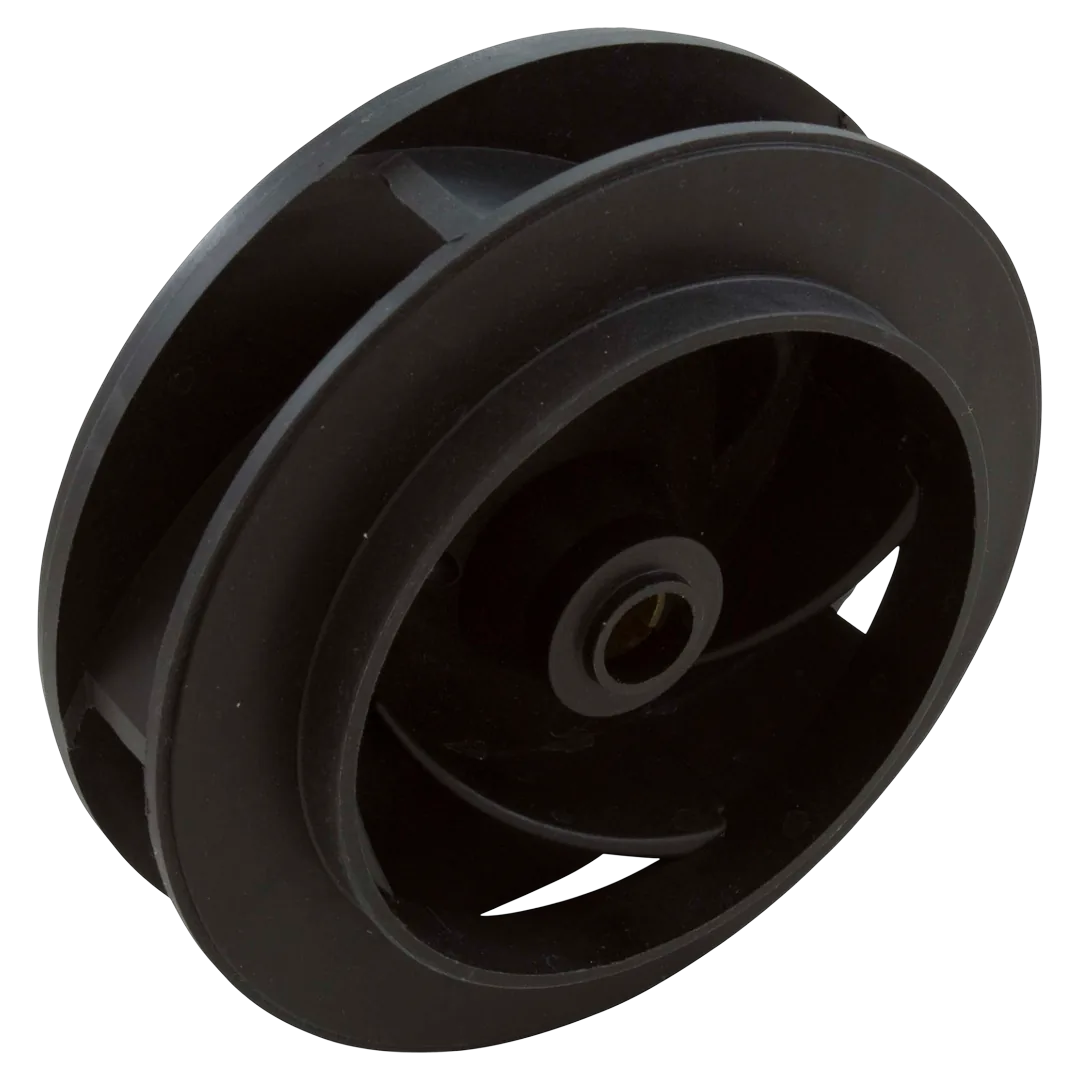

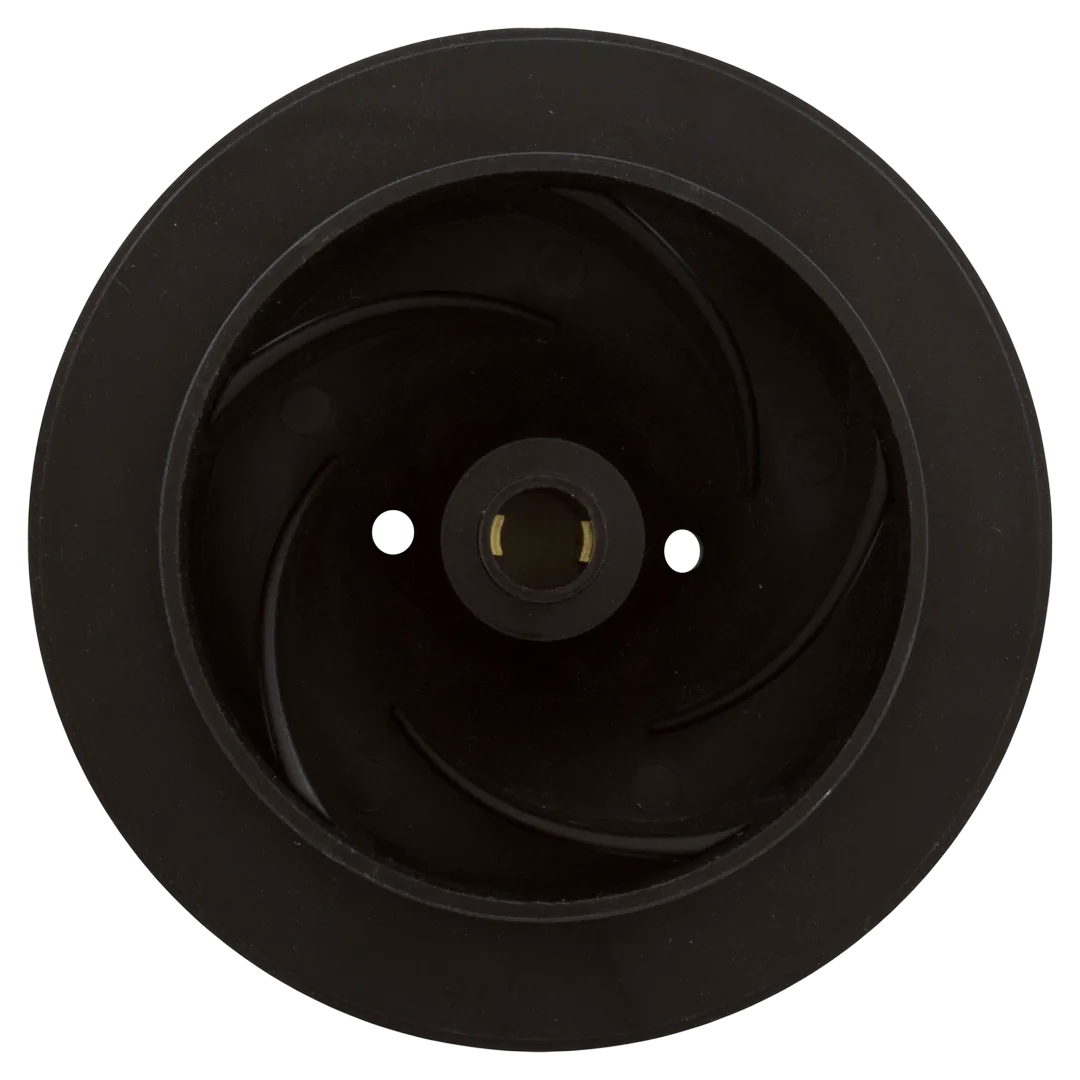

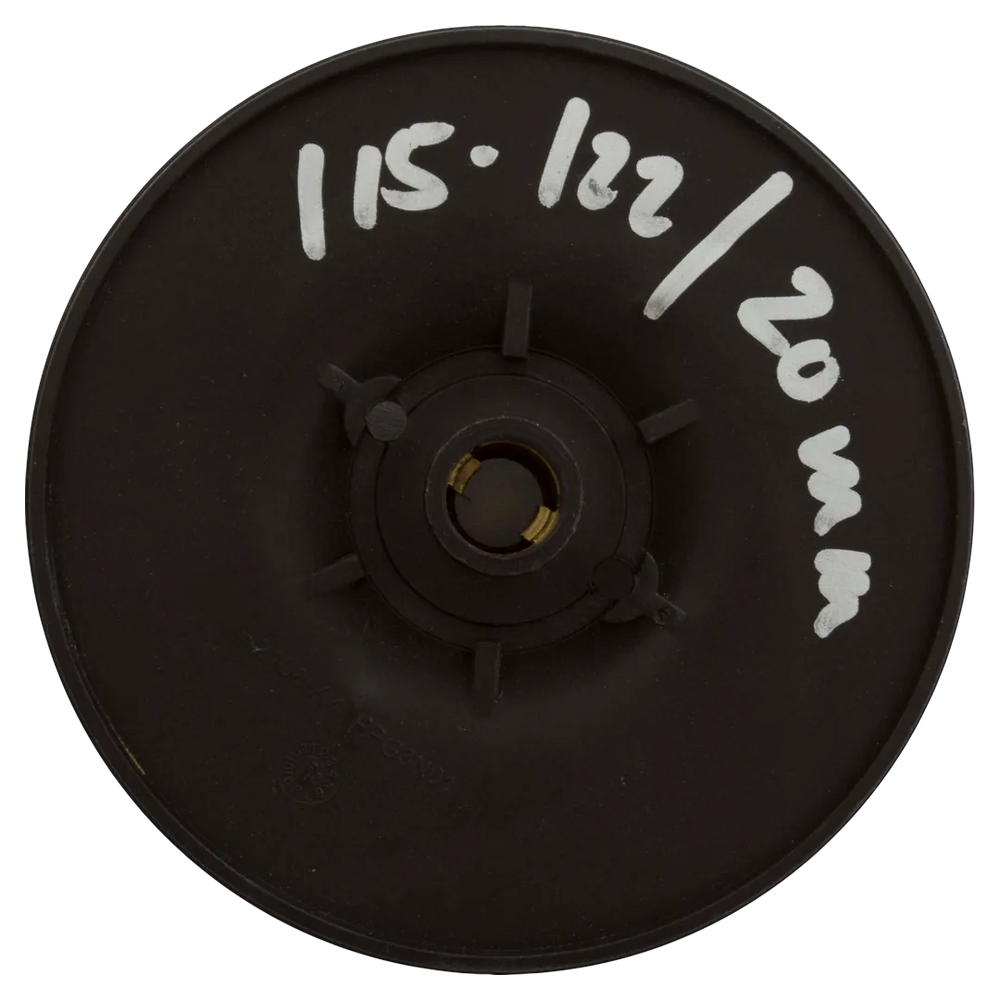

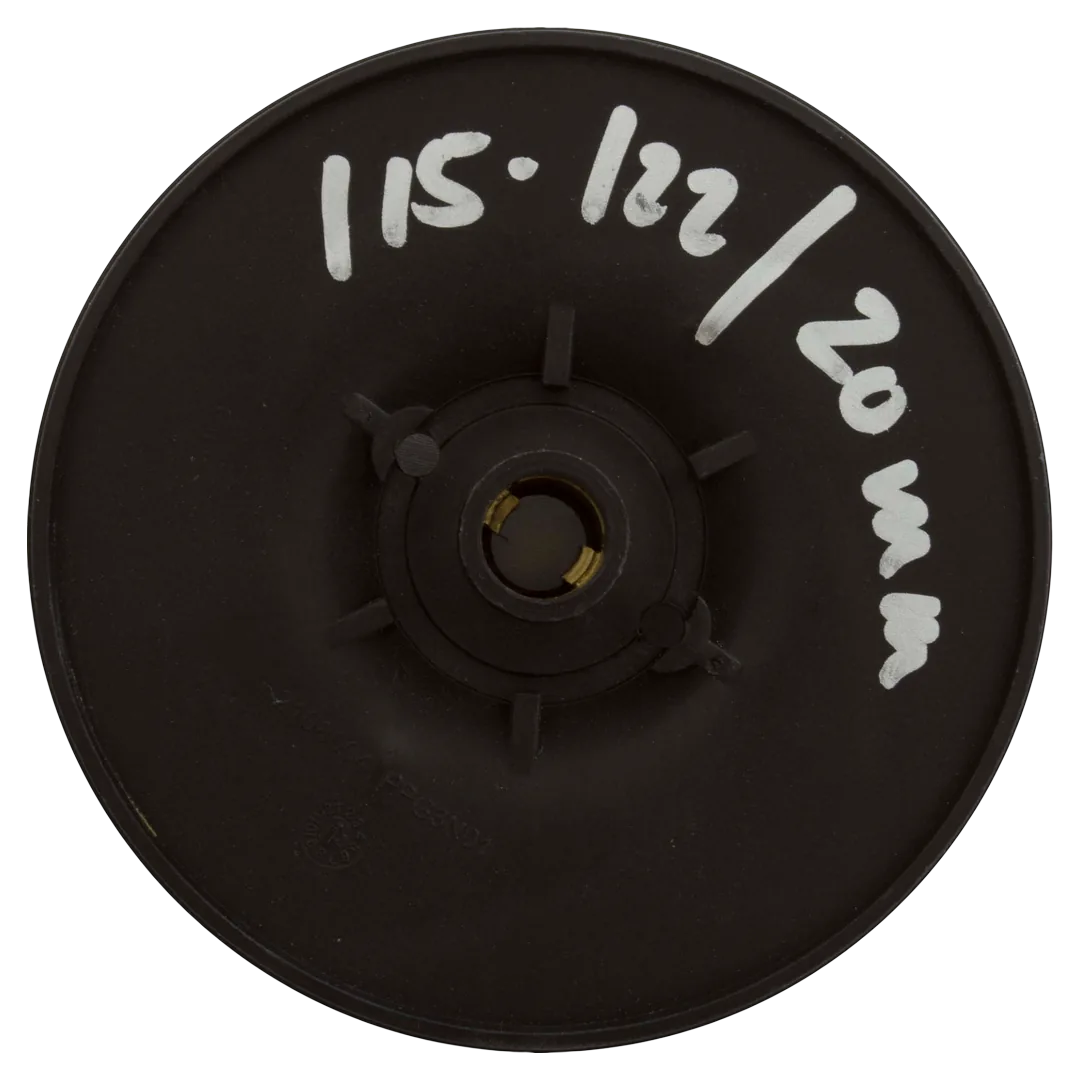

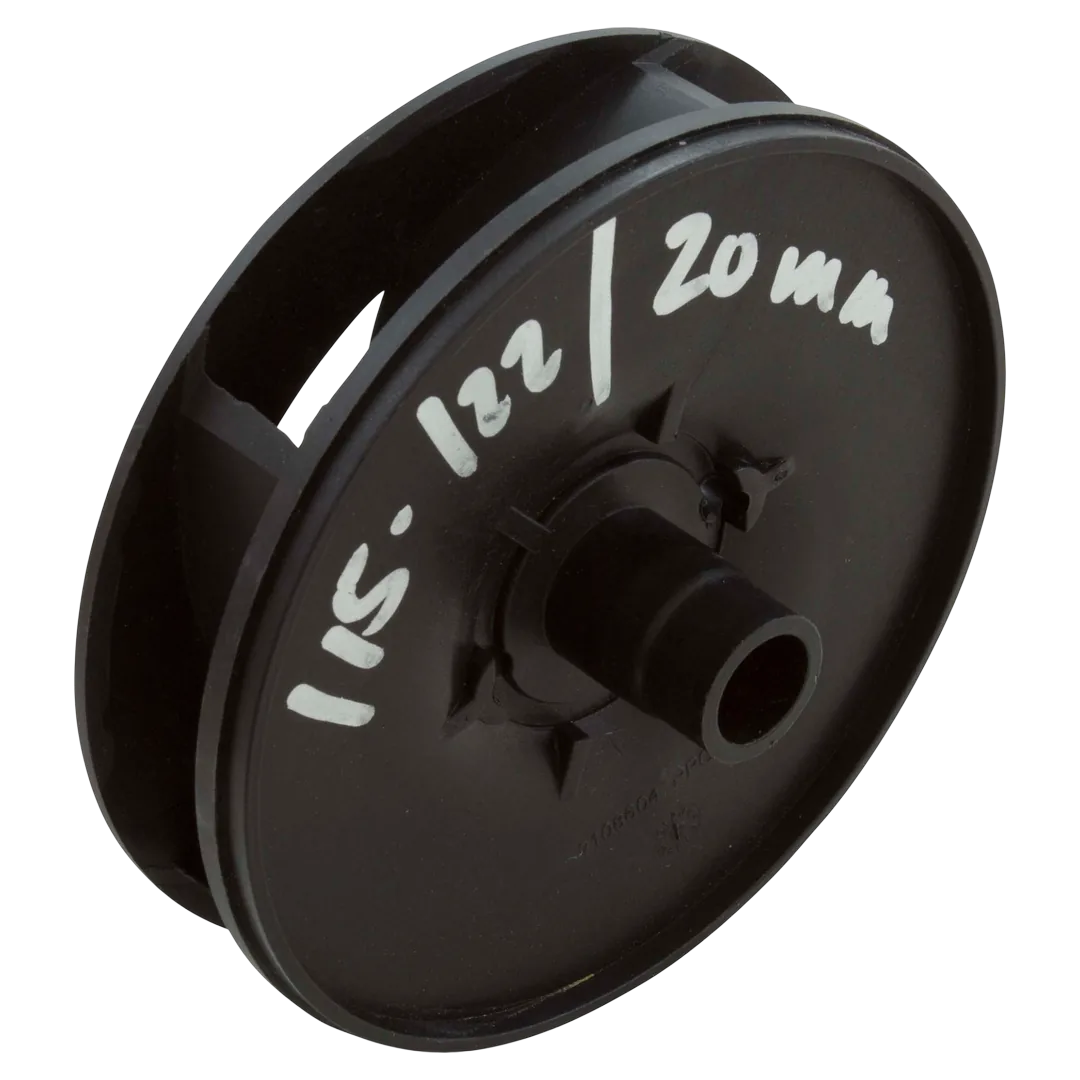

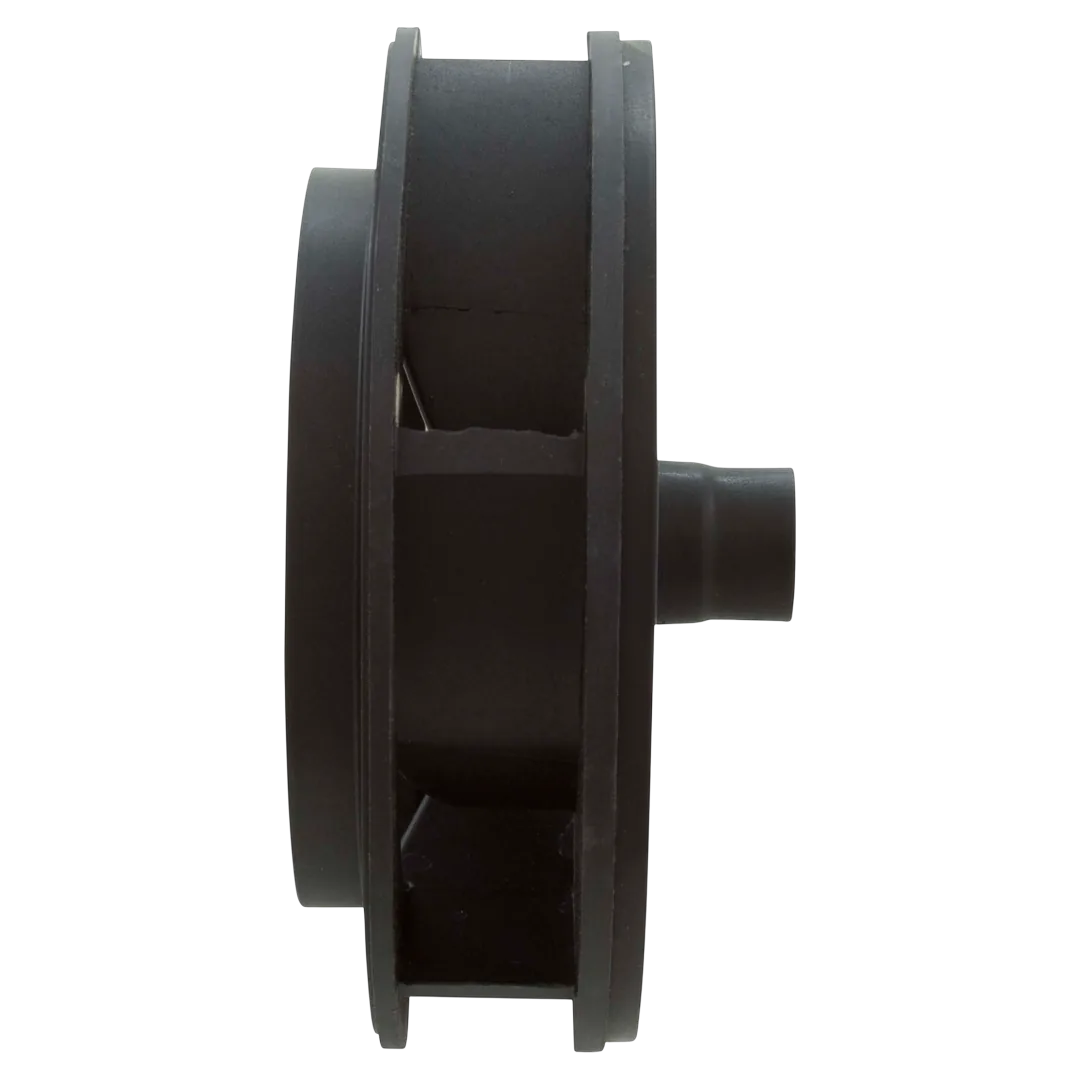

The Speck Pumps 2923223025 is an impeller designed for the Speck Model 95-IX and 95-X commercial pool pumps. This closed face impeller is constructed to fit a 5.0 horsepower motor, with a trim size of 115-122 mm and a bore size of 20 mm. It is specifically compatible with the Speck 95-IX and 95-X pump models, ensuring proper function within these systems.
Includes: Impeller only shaft seal sold separately
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller (-IX) 5.0 HP S.F. 1.15 - 115-122 x 20mm |
| Part Number | 2923223025 |
| Part Type | Impeller |
| Compatibility | Speck Pumps Model 95-IX and 95-X 5 HP 1.15 SF Pool Pumps |
| Includes | Impeller only shaft seal sold separately |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.75 inch |
| Vane Width ID | 0.75 inch |
| Eye Diameter OD | 3.5 inch |
| Eye Length | 0.3125 inch |
| Impeller Width OD | 1.1875 inch |
| Seal Seat Depth | 0.0625 inch |
| Shaft Length | 1 inch |
| Shaft Diameter OD | 0.75 inch |
| Seal Seat Diameter OD | 1.25 inch |
| Shipping Dimensions | 10 x 7 x 4 inch |
| Product Weight | 1 pound |
