Spa Components B24055SD Heater
Spa Components Inc | SKU:
B24055SD
$15800/ea
Unit price
/
Unavailable
Spa Components B24055SD Heater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

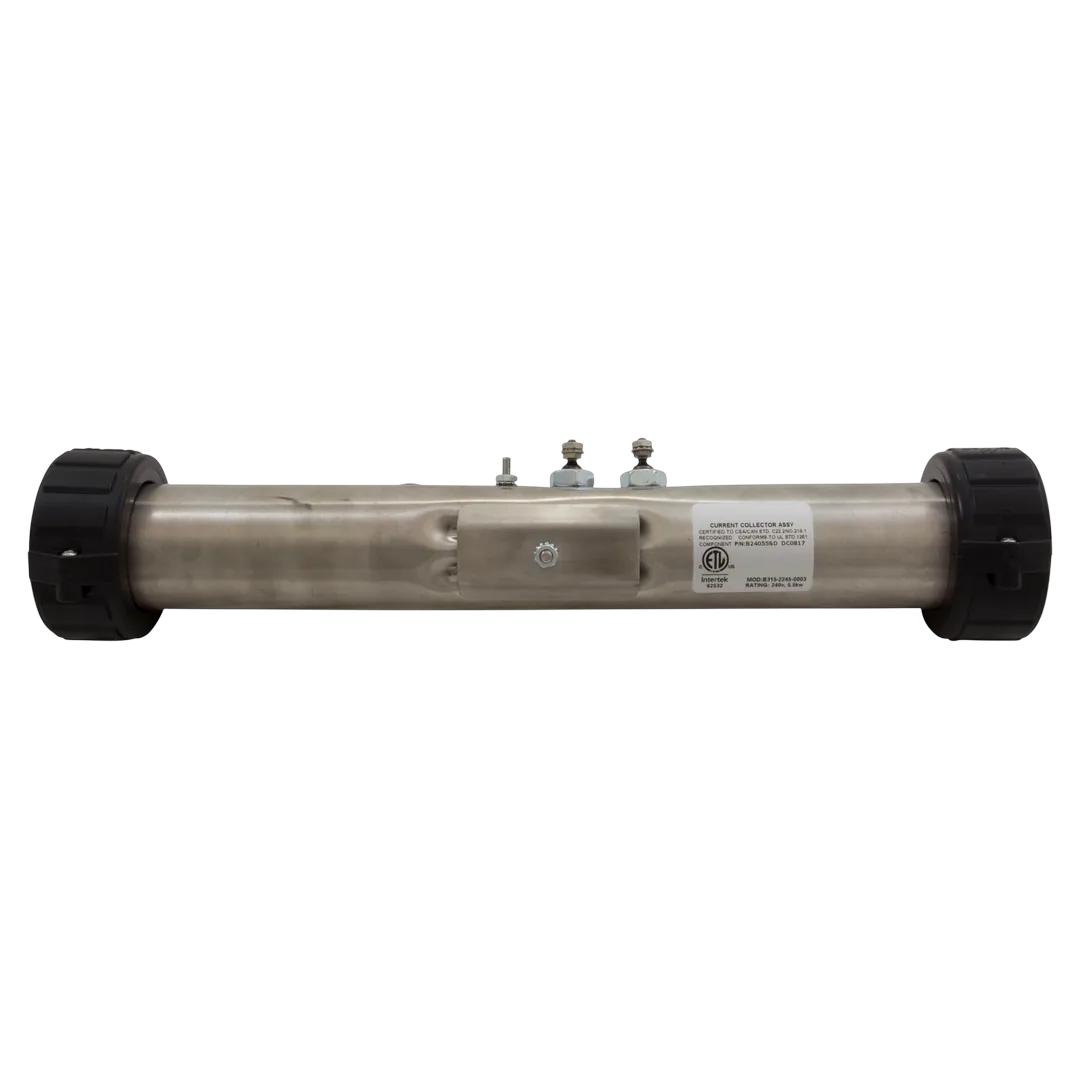

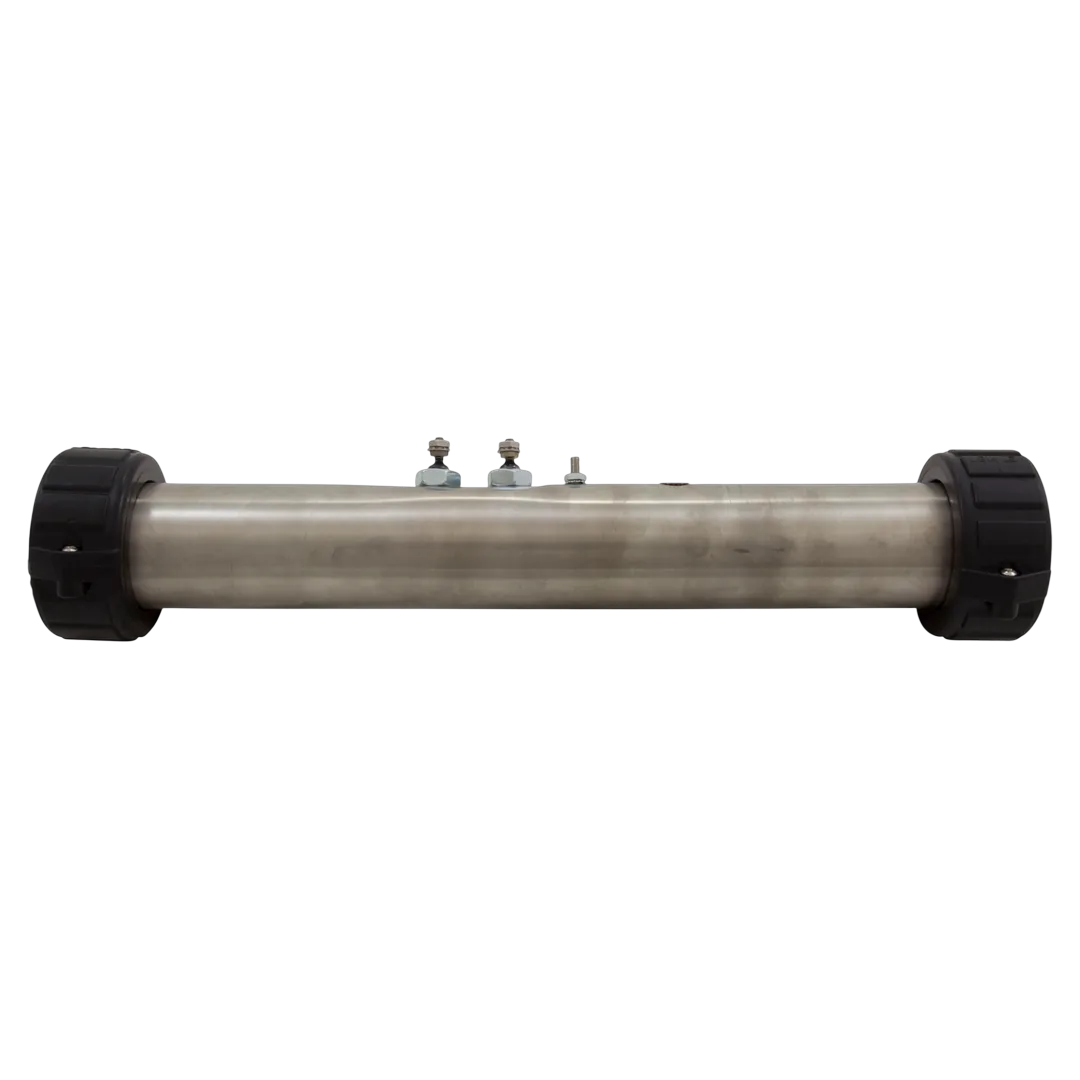

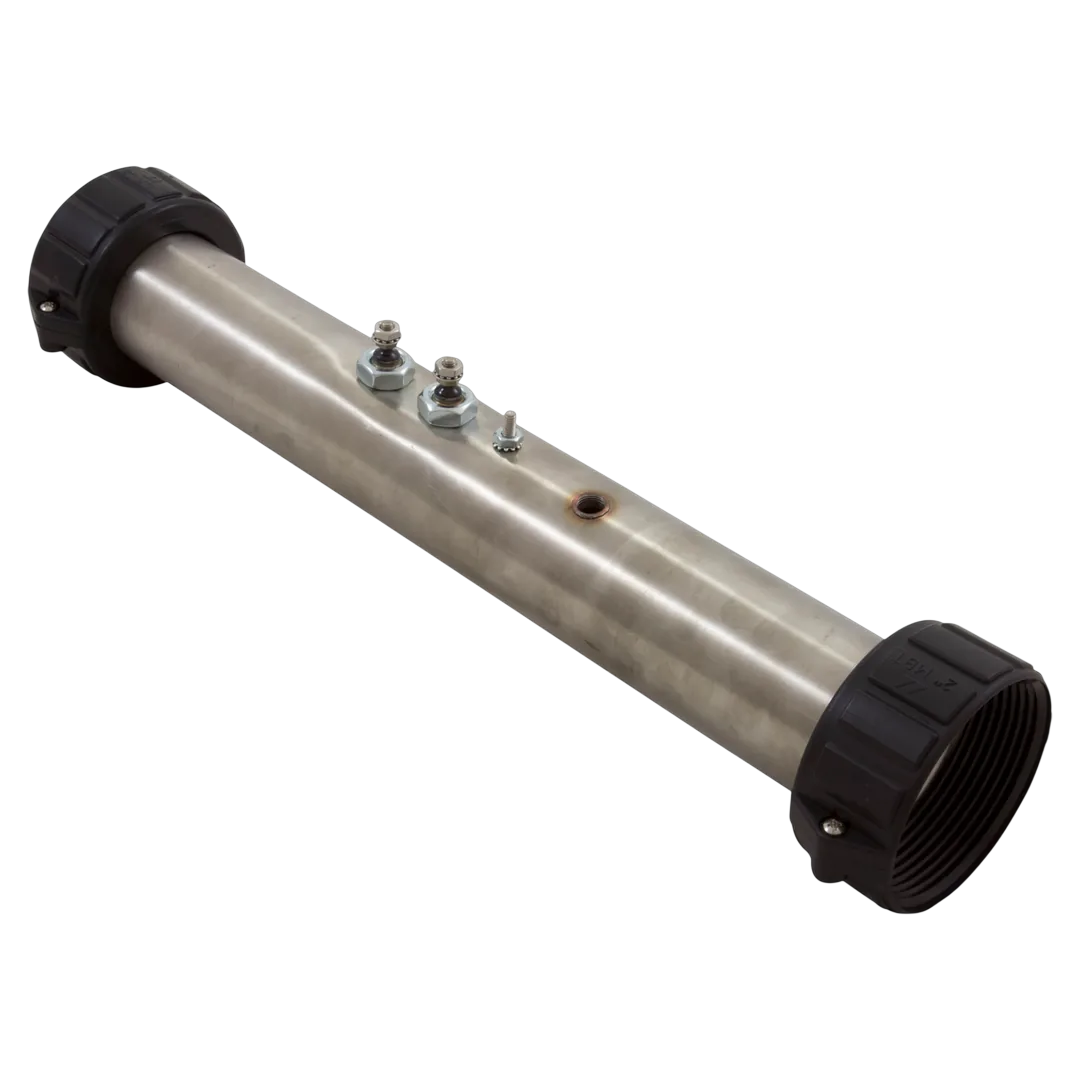

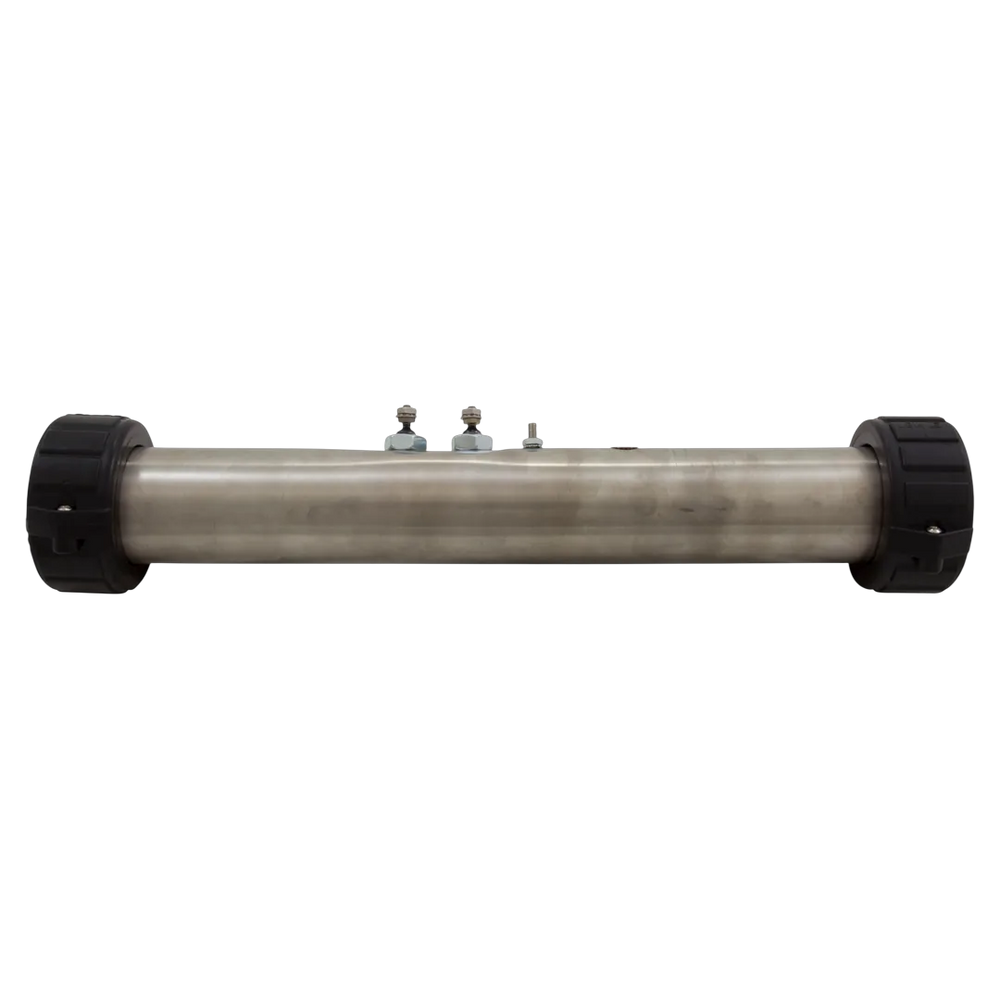

The Spa Components Inc B24055SD is a replacement flow-thru heater, specifically designed for the Gecko S-Class series. This unit features a stainless steel construction, measuring 15 inches in length and accommodating a 2-inch inner diameter plumbing connection. It operates at 230 volts with a 5.5 kW power rating and includes a 1/8-inch NPT pressure switch tap with two split nuts.
Includes: Heater assembly only pressure switch, gaskets, and tailpieces not included
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | B24055SD Spa Heater |
| Part Number | B24055SD |
| Part Type | Spa Heater |
| Compatibility | Artesian Spas with Gecko S-Class Spa Controls |
| Substitute Part Numbers | 28-B24055SD-SC |
| Includes | Heater assembly only pressure switch, gaskets, and tailpieces not included |
| Material | Stainless Steel |
| Voltage | 230V |
| Kilowatts | 5.5kW |
| Pressure Switch Port | 1/8" NPT |
| Connection Type | 2" Split Nuts |
| Shipping Dimensions | 20.65 x 4.30 x 4.35 inch |
| Product Weight | 2.7 pound |
