Sloan 400372-W-FRST Bullet Lens Flange
SloanLED | SKU:
400372-W-FRST
$2300/ea
Unit price
/
Unavailable
Sloan 400372-W-FRST Bullet Lens Flange is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

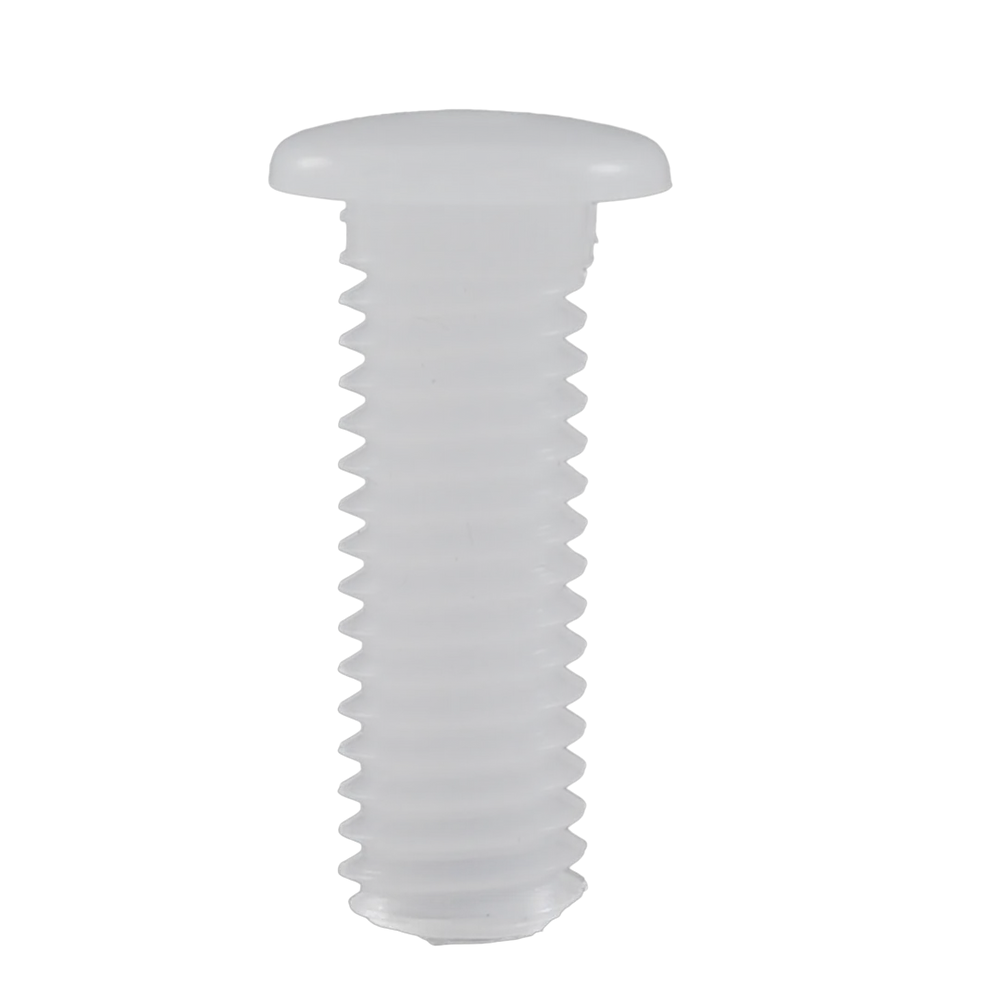

The SloanLED 400372-W-FRST is a bullet lens featuring a wide flange and frosted polycarbonate construction. It measures 0.6 inches and is a suitable replacement for part number 5-30-0516, making it applicable for use in spa lighting systems.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Bullet Lens, polycarbonate, UV stable, wide flange, faceted |
| Part Number | 400372-W-FRST |
| Part Type | Bullet Light Lens |
| Material | Polycarbonate |
| Flange Diameter | 0.600 inch |
| Mounting Method | Nut on threaded and/or press fit using ribs on shaft |
| Drill Size | 0.386 inch |
| Length (bottom of flange to end of threads) | 1.127 inch |
| Length of Non-threaded Ribbed Section (below flange) | 0.125 inch |
| Nut | 400388 |
| O-Ring | 400510 |
| Shipping Dimensions | 1.25 x 0.6 x 1.25 inch |
| Product Weight | 0.1 pound |
