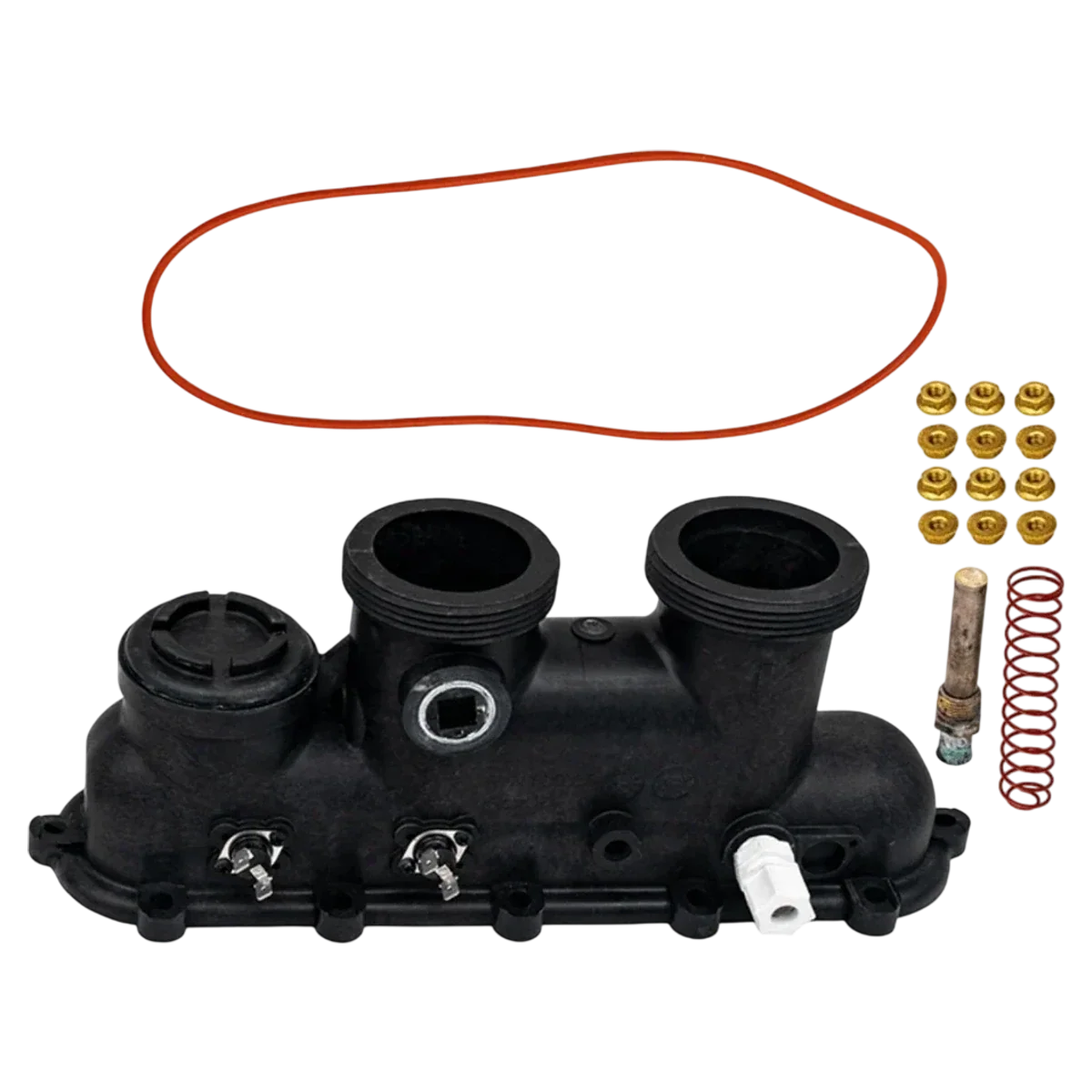

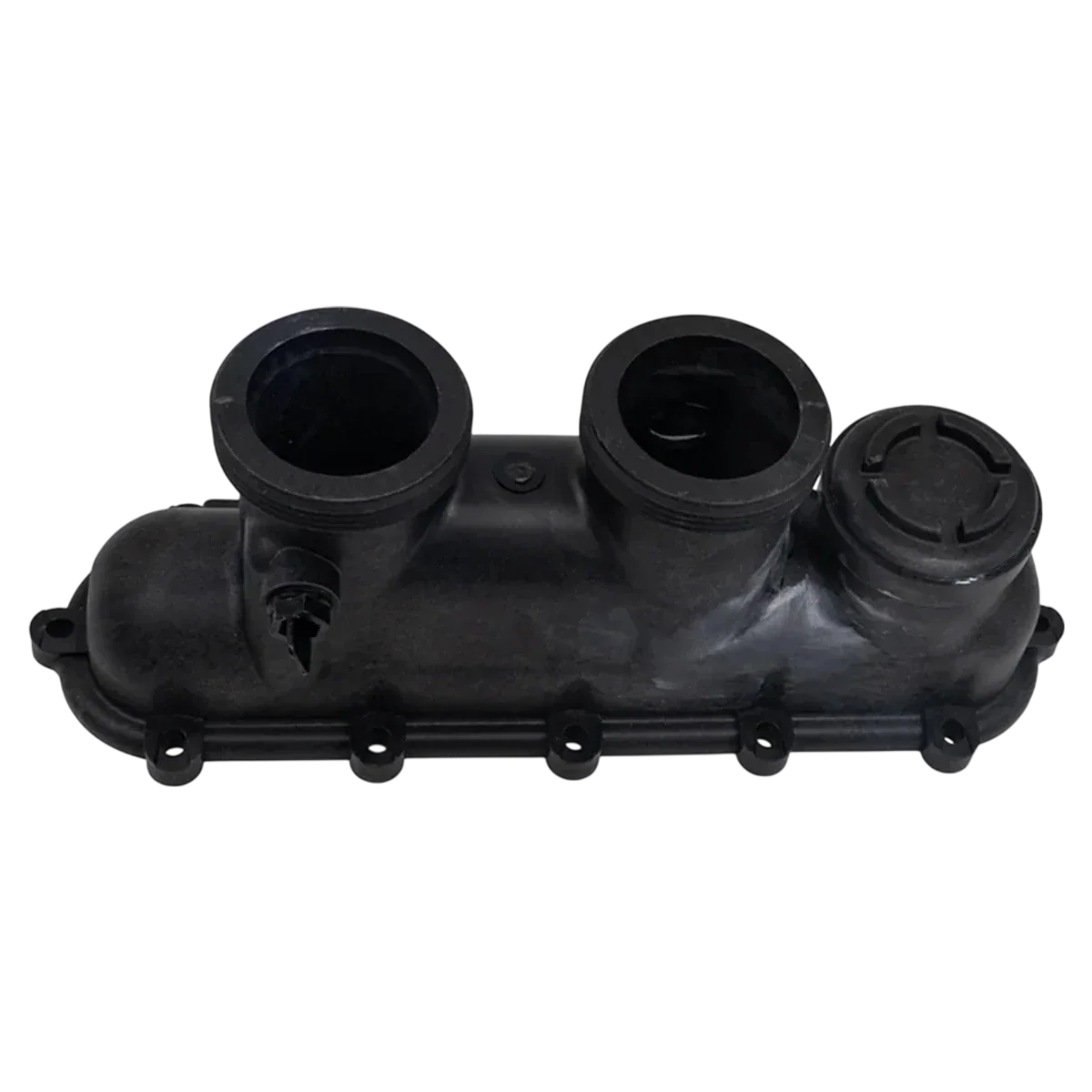

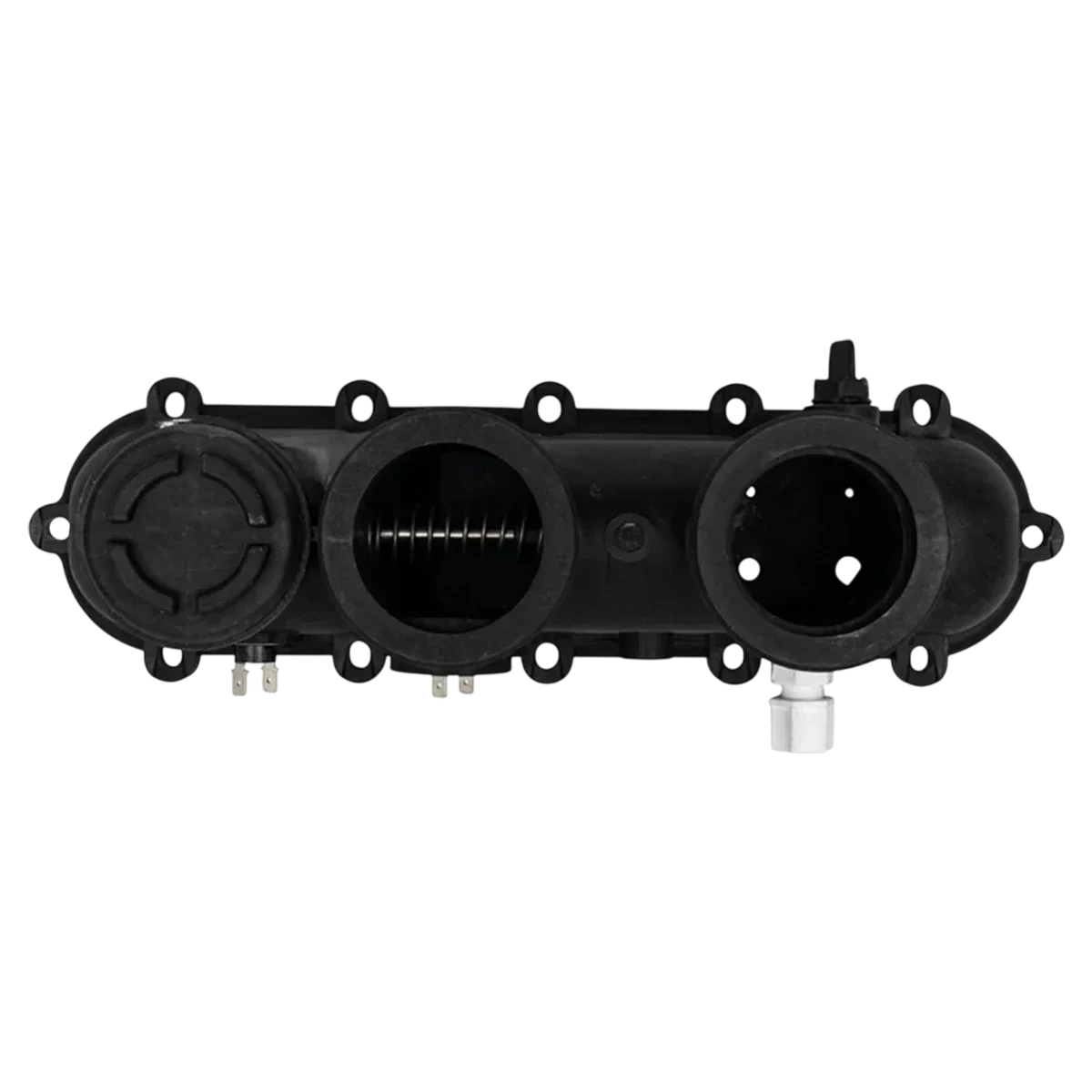

ProTek Shield Inlet/Outlet Header

This complete polymer inlet/outlet header assembly connects the plumbing to the heat exchanger on Raypak digital gas pool/spa heaters, with the ProTek Shield and a sacrificial anode pre-installed.

Key Features

• High-strength polymer construction
• Built-in sacrificial anode
• ProTek Shield pre-installed

Compatibility

• Raypak 206A, 266A, 336A, 406A Digital Heaters
• Raypak Low NOx 207A, 267A, 337A, 407A Digital Heaters
• Raypak/Rheem P-R206A through P-R406A series, EN-C, EN-X, MN-C and Low NOx variants
• Does not fit Raypak 206-407 series heaters manufactured before October 2019

The current design runs about 2 inches longer on the inlet side than the older 006827F header to clear the ProTek Shield, so existing plumbing may need modification when retrofitting.

This header is not compatible with earlier-production 206-407 units that used the older 006827F header design.
