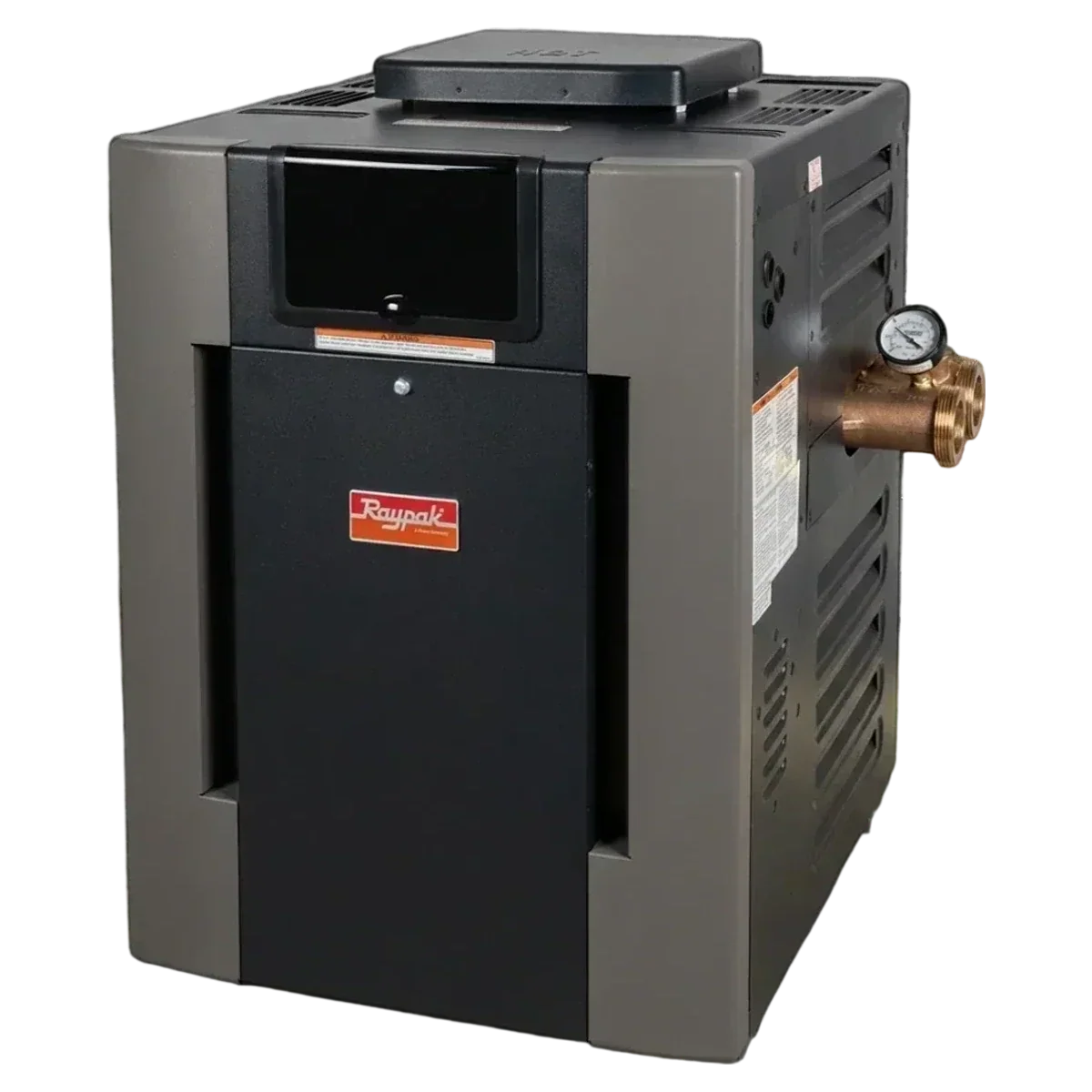

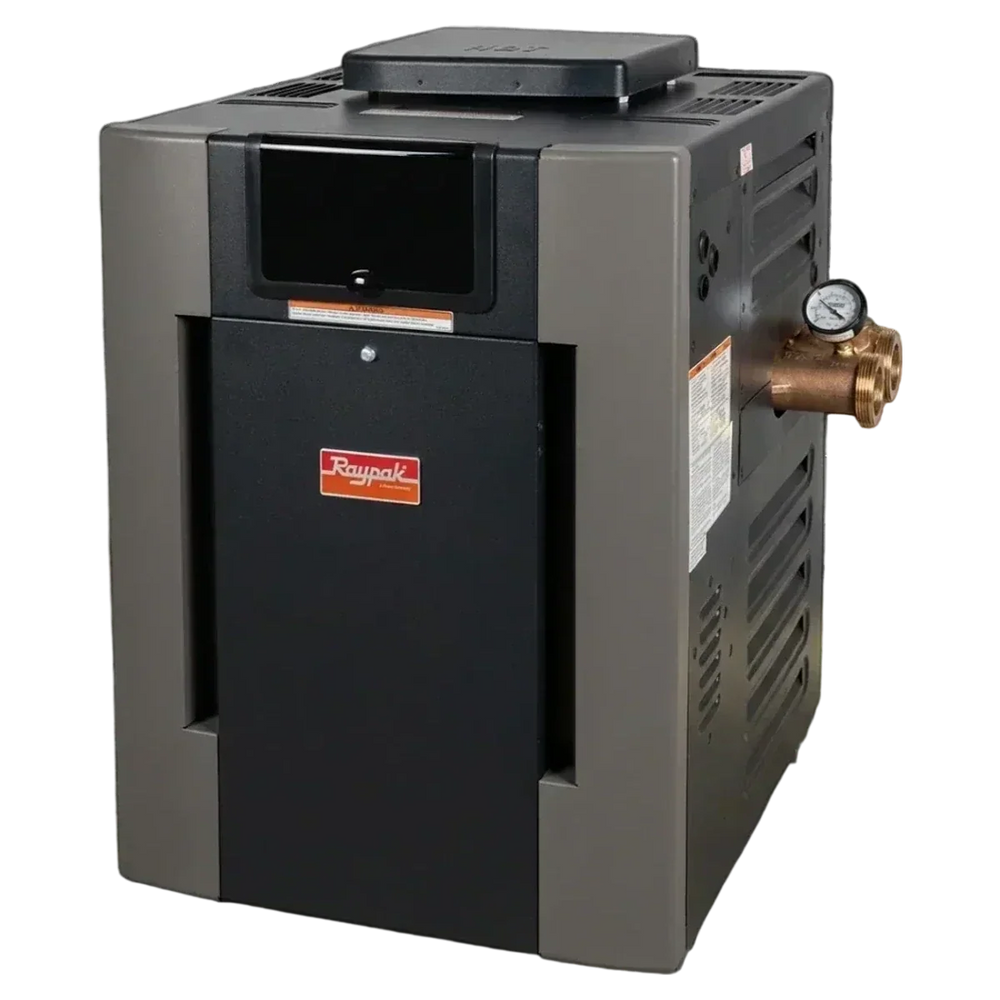

Digital ASME Natural Gas Heater 206K BTU

This commercial-grade natural gas pool heater pairs a copper fin-tube heat exchanger with bronze headers and digital electronic ignition, built to ASME code for public, condo, hotel and multi-family pool applications.

Key Features

• ProTek Shield heat exchanger protection
• Unitherm governor keeps water above 105°F
• .065" wall copper fin-tube exchanger
• Internal bypass rated to 125 GPM
• Digital LCD control with diagnostics

Compatibility

• Commercial, public and multi-family pools requiring ASME-certified heat exchangers (hotels, condos, HOAs, municipal/school/YMCA pools, water parks)
• Rated for 0-2,000 ft elevation
• Does not fit installations above 2,000 ft elevation

What's Included

• 125# pressure relief valve
• 2" CPVC water unions/connections

Run this heater on the high speed of a dual-speed pump — gas heaters shut off at low flow to protect the heat exchanger from overheating.
