Raypak 006733F Tube Bundle
Raypak | SKU:
006733F
$1,14000/ea
Unit price
/
Unavailable
Raypak 006733F Tube Bundle is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

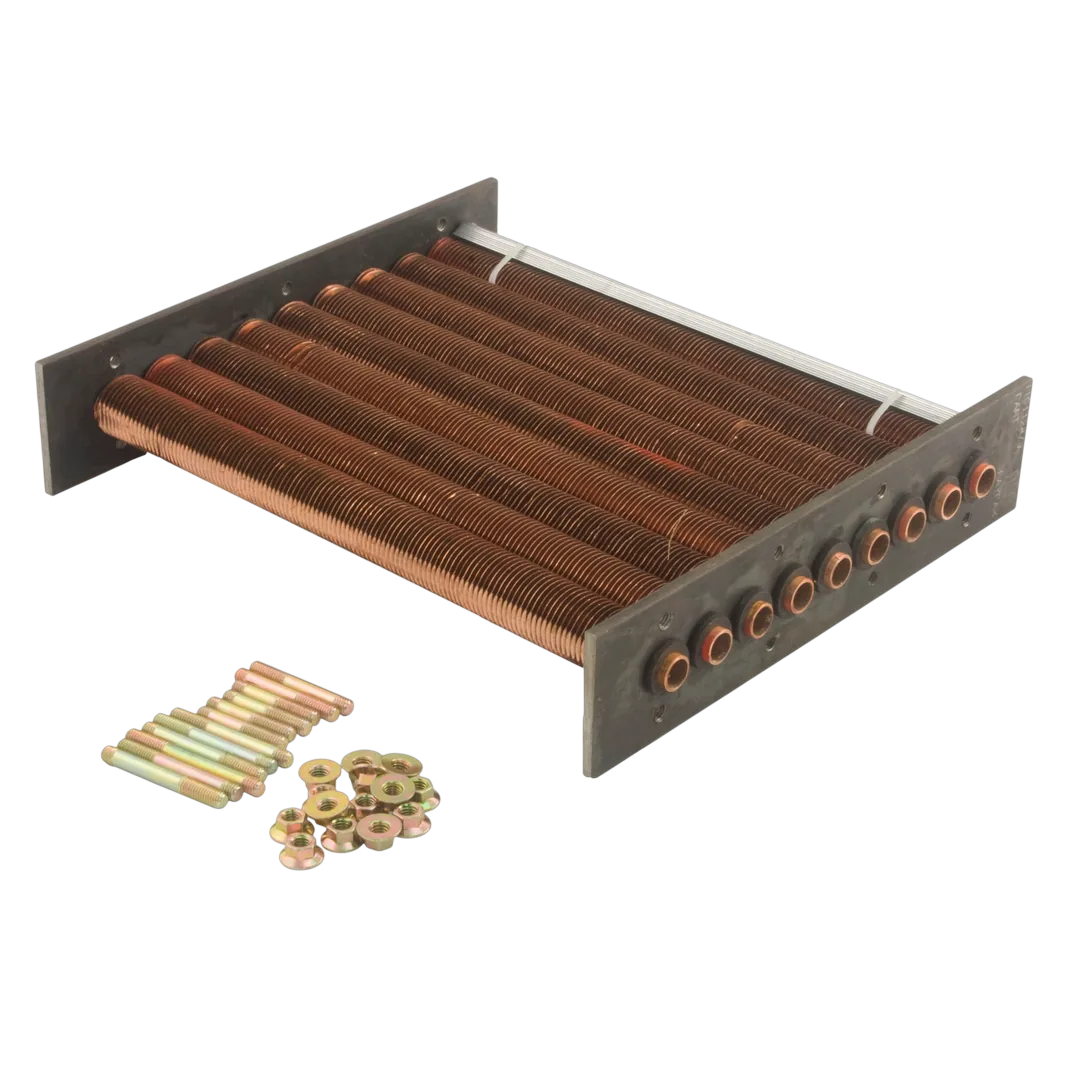

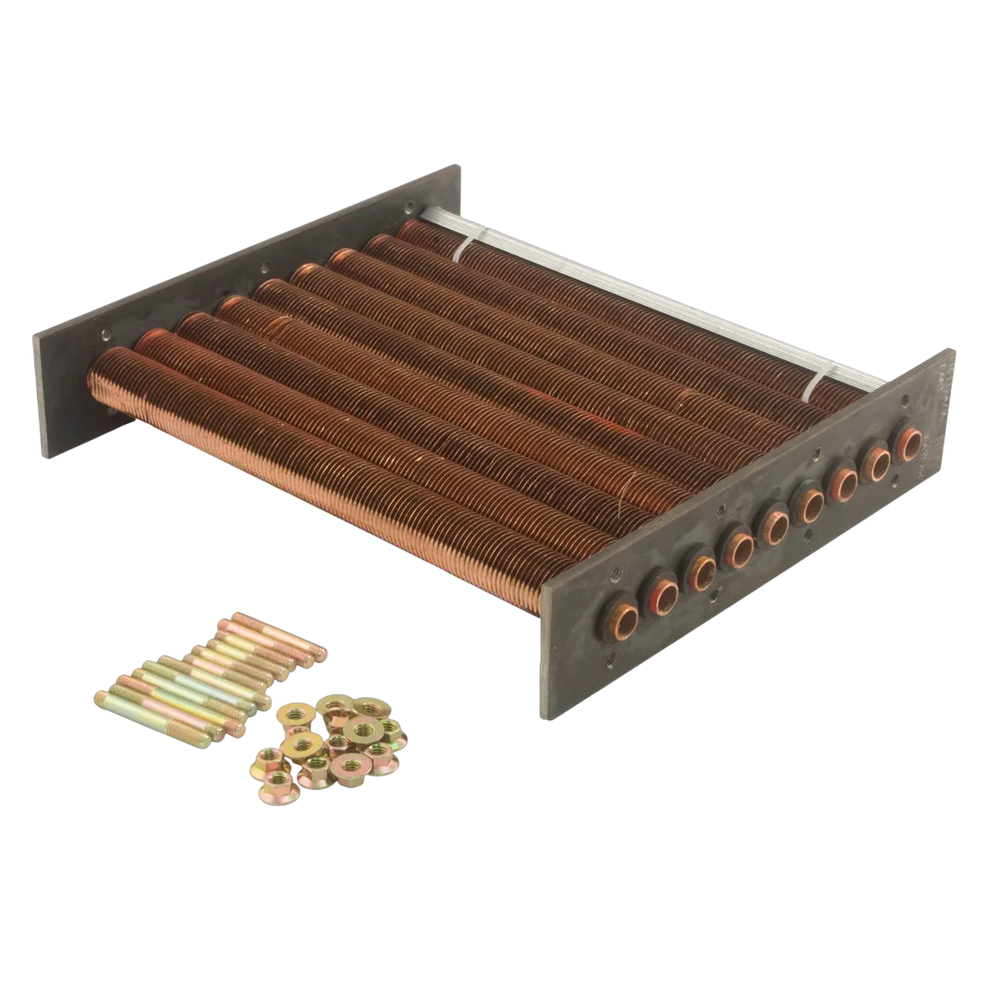

The Raypak 006733F is a tube bundle designed for metal heat exchangers. It features an ASME cast iron header and copper tubing construction, providing the necessary components for heat transfer. This tube bundle is compatible with Raypak pool heater models R265A, R265B, 266A, and 267A.
Includes: (9) Tubes, (8) Baffle Kit, Bolt Kit, Stud Bolt Kit, (9) Header Gaskets
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Raypak 006733F Tube Bundle |
| Part Number | 006733F |
| Part Type | Heat Exchanger Part |
| Compatibility | Fits Raypak Model R265A, R265B Digital Pool Heaters |
| Includes | (9) Tubes, (8) Baffle Kit, Bolt Kit, Stud Bolt Kit, (9) Header Gaskets |
| Material | Cast Iron, Copper |
| Shipping Dimensions | 20.75 x 18.25 x 7.75 inch |
| Product Weight | 34.8 pound |
