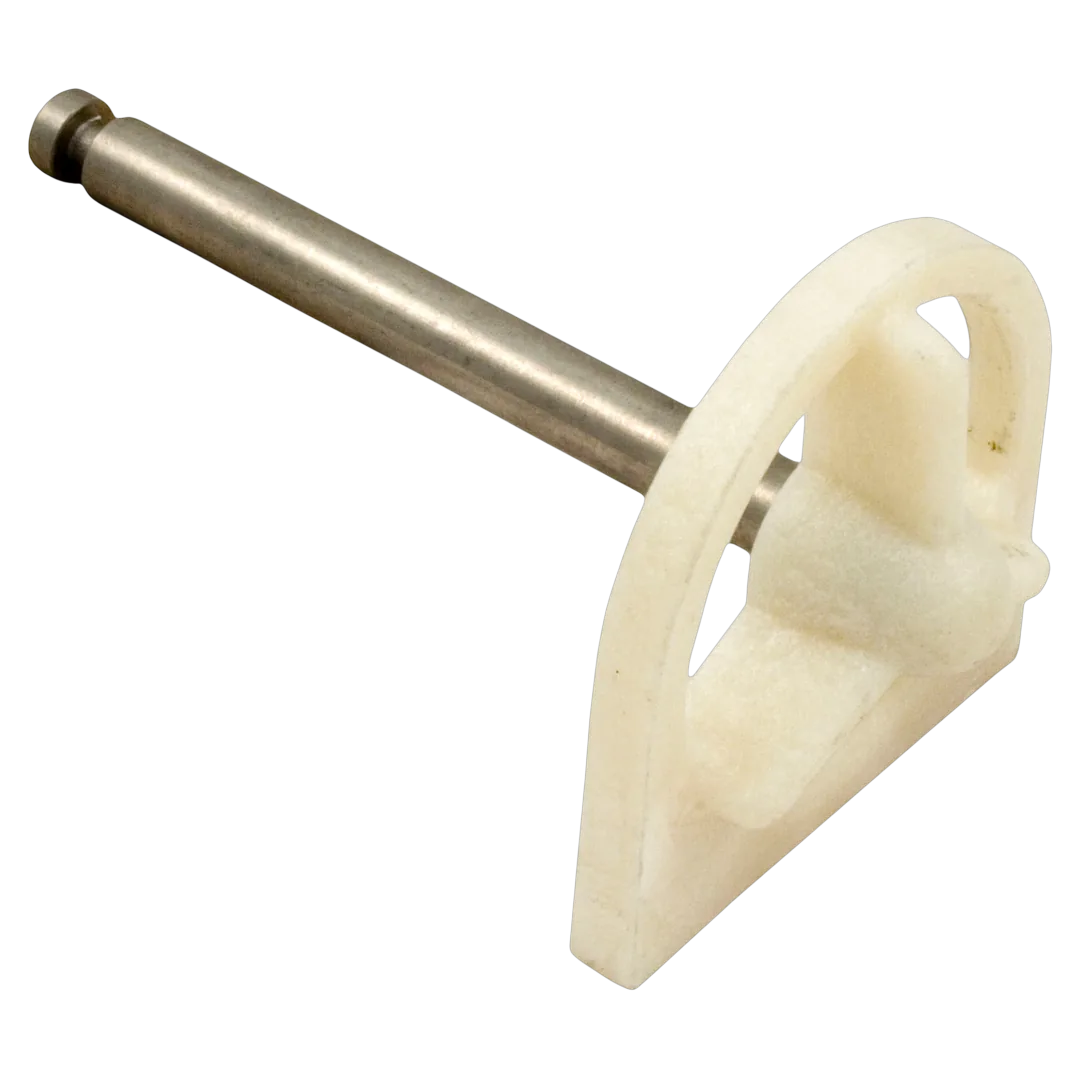

Raypak 006717F Bypass Dam/Shaft Kit

Raypak  |  SKU: 006717F
$6100/ea
5-digit zip required

Description

Replacement bypass damper and shaft for Raypak RP2100 pool heaters (006717F), fitting R185A, R265A, R335A, R405A as well as R206A, R266A, R336A, R406A digital models. It regulates the internal bypass to maintain proper flow and outlet temperature and helps protect the heat exchanger. OEM Capron plastic component for a direct fit in the bypass assembly.


Includes: By-Pass Dam/Shaft Kit

Technical Specifications

Specification Details
Part Name Raypak 006717F Capron By-Pass Dam/Shaft
Part Number 006717F
Part Type By-Pass Dam/Shaft
Compatibility Raypak Digital Heaters: R185A, R265A, R335A, R405A, R206A, R266A, R336A, R406A, R106A, R156A, R130A, R185B, R265B, R335B, R405B, R207A, R267A, R337A, R407A
Includes By-Pass Dam/Shaft Kit
Shipping Dimensions 5 x 4.95 x 2 inch
Product Weight 0.145 pound

Schematics:

Raypak 106/156a Heater Parts Diagram
Raypak 106/156a Heater Parts Diagram

P-R106A-AP-C, P-R156A-EP-C, P-R106A-AP-C, P-R156A-EN-C

View in Raypak 106/156a Heater Parts Diagram
