185-405 IID 2-Wire Temp Sensor
Raypak | SKU:
006701F
$8099/ea
Unit price
/
Unavailable
185-405 IID 2-Wire Temp Sensor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
185-405 IID 2-Wire Temp Sensor

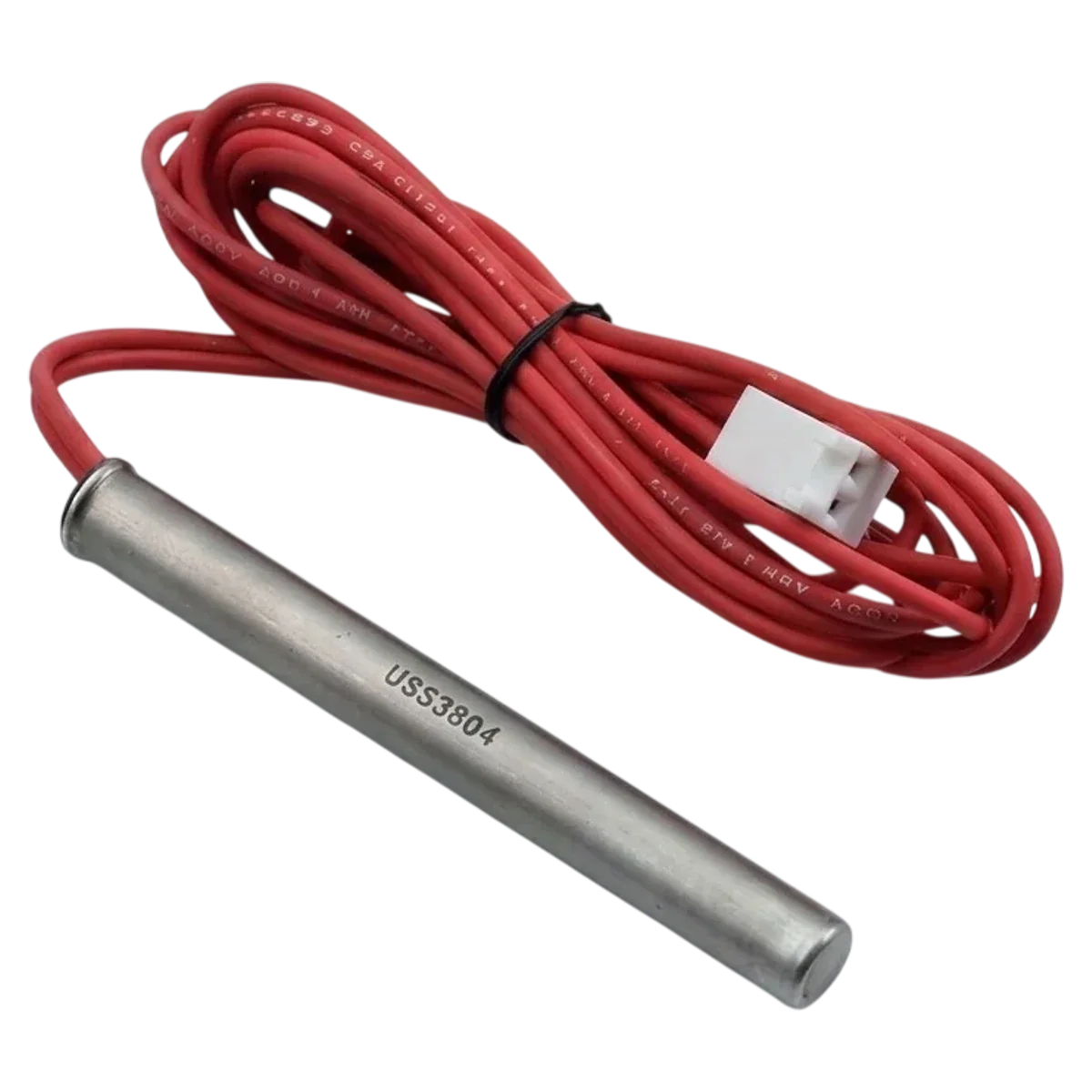

This stainless-steel sensor bulb reports water temperature to the control board on Raypak R185A, R265A, R335A, and R405A IID digital pool heaters, replacing a failed or inaccurate sensor that trips the high-limit or throws a control error.
Key Features
- Stainless steel sensing bulb
- 3/8" diameter x 3" long bulb
- Approximately 60" lead wire
- 2-pin white circuit board connector
Compatibility
- Raypak R185A IID Digital Pool Heater
- Raypak R265A IID Digital Pool Heater
- Raypak R335A IID Digital Pool Heater
- Raypak R405A IID Digital Pool Heater
- RP2100 digital heaters built 11-1-98 to current
- Does not fit earlier RP2100 digital heaters (pre 11-1-98), which use a 3-wire sensor
This 2-wire sensor works only with the original green PCB control board; a later or different control board revision uses a different sensor design.
For use with
Model R185A, R265A, R335A, R405A IID Digital Pool Heater
Supercedes
006701F, RAY006701F, 16071020, RY006701F, 840891003335, 52515, J1582, 197-006701F
Shipping Dimensions
1.5 x 2 x 4 inch
Weight
0.1 pound
This product ships free via FedEx Home Delivery.
