Perma-Cast PF-3119-A Aluminum Slide Deck Flange
Perma-Cast LLC | SKU:
PF-3119-A
$5200/ea
Unit price
/
Unavailable
Perma-Cast PF-3119-A Aluminum Slide Deck Flange is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

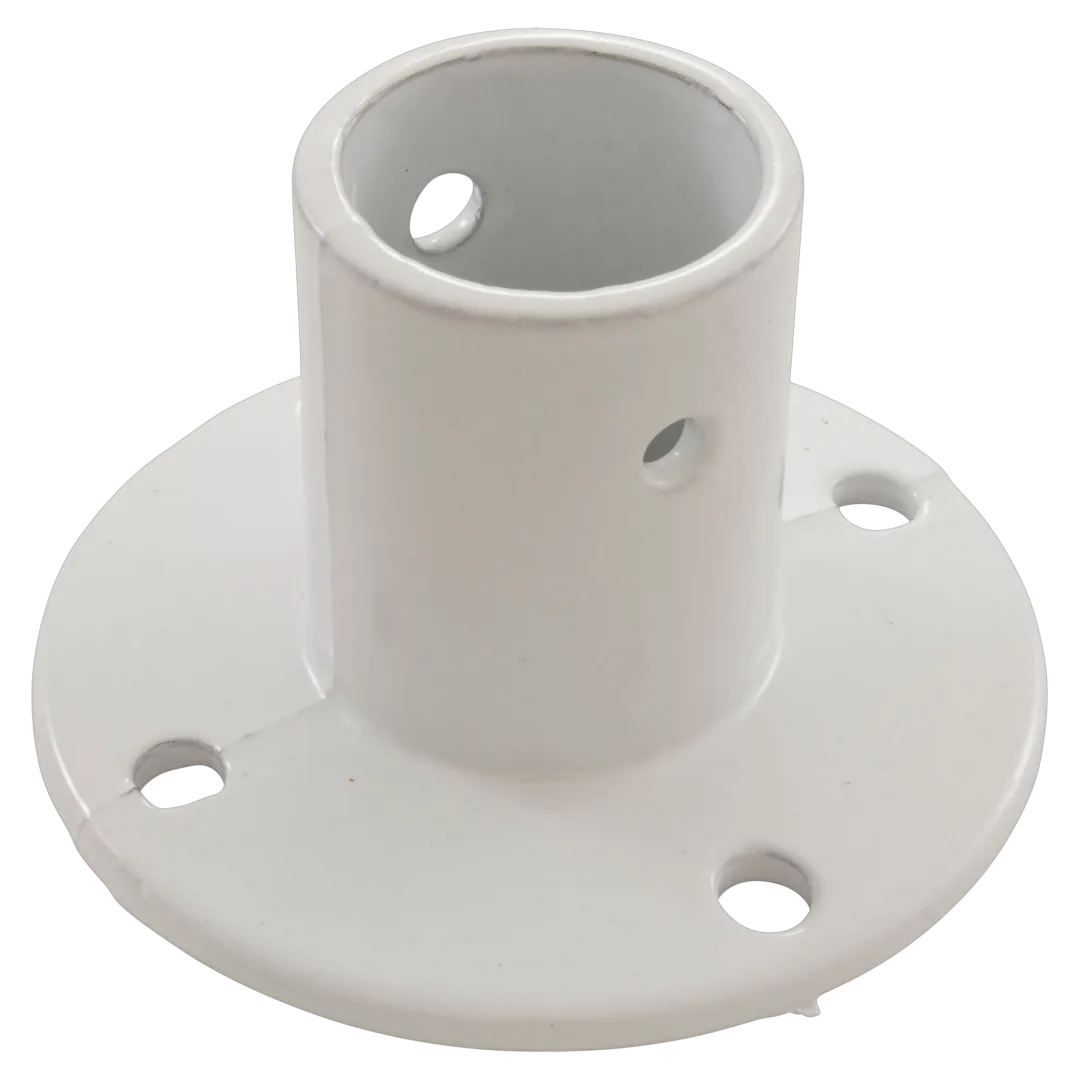

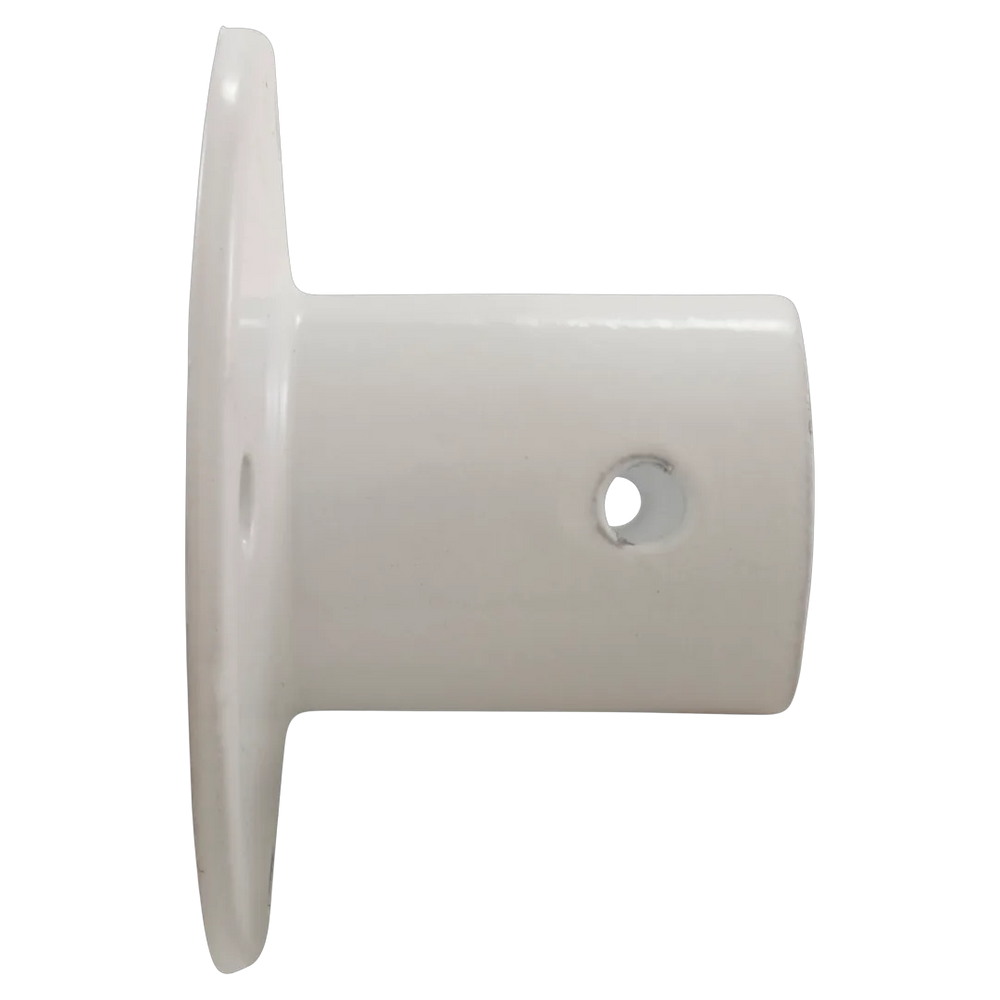

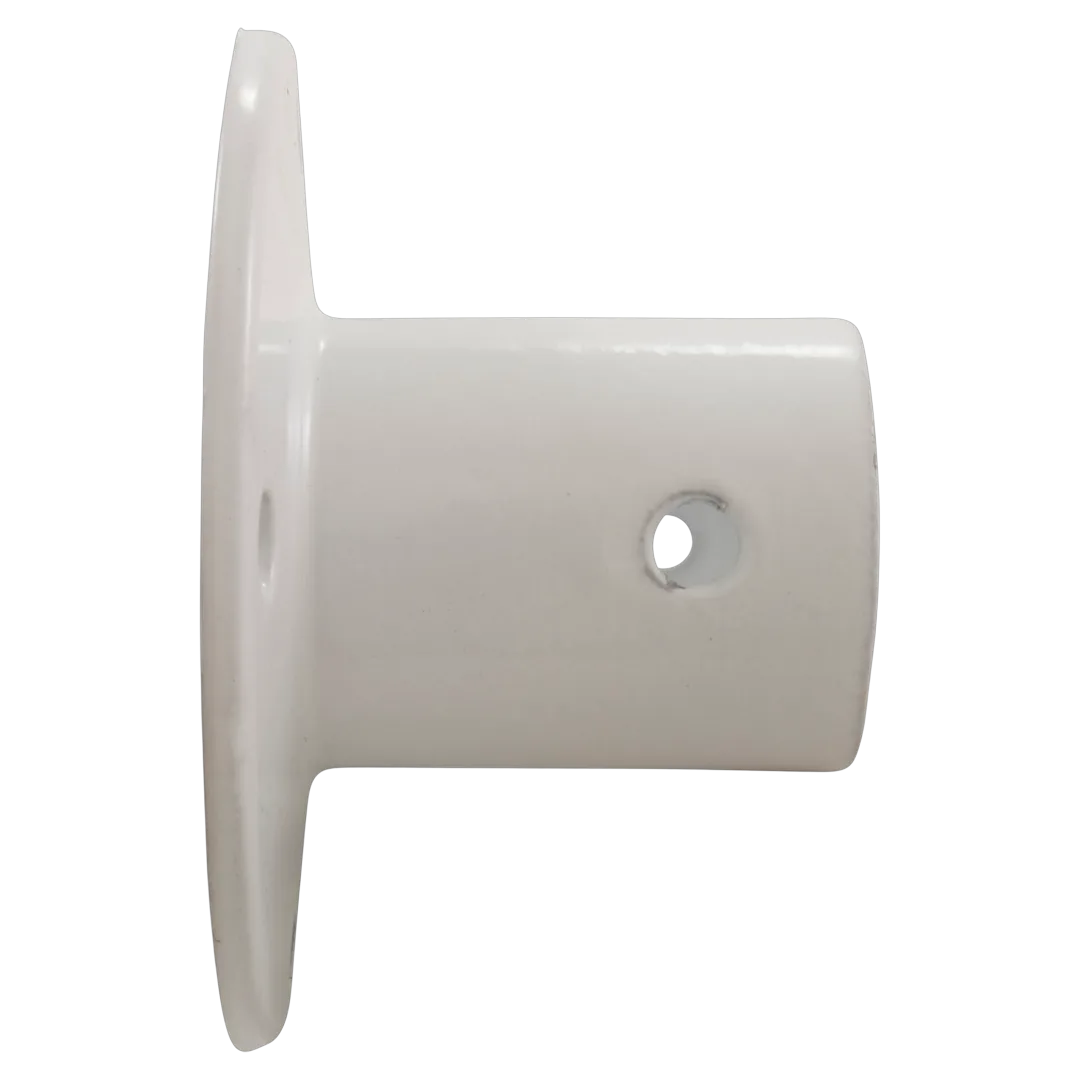

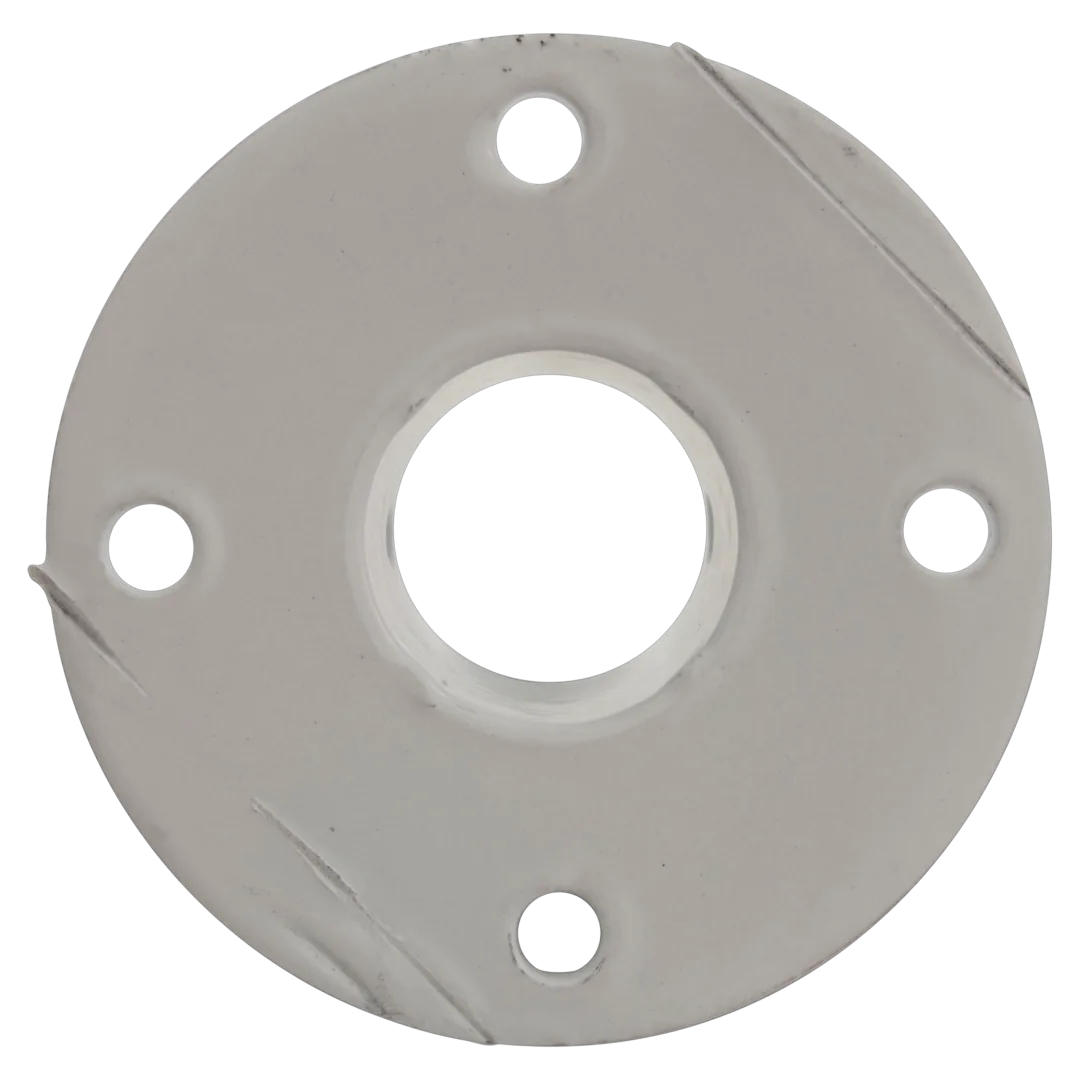

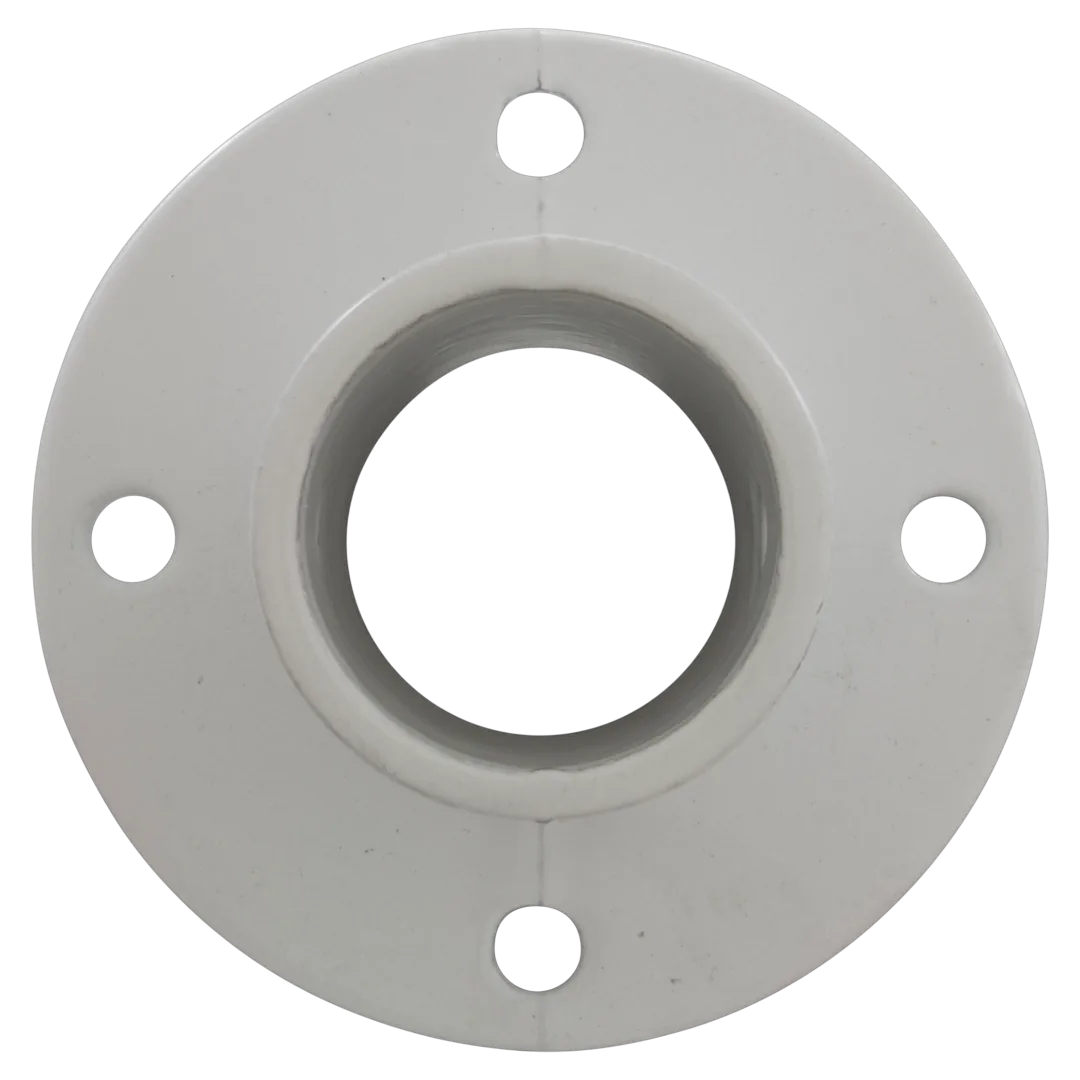

The Perma-Cast PF-3119-A is a slide deck flange designed in white powder-coated aluminum and includes mounting hardware. It accommodates tubing with an outer diameter of 1.9 inches and incorporates a stainless steel through bolt for securing slide legs. This component is typically used for in-ground pool ladders, rails, and slides, ensuring proper deck attachment.

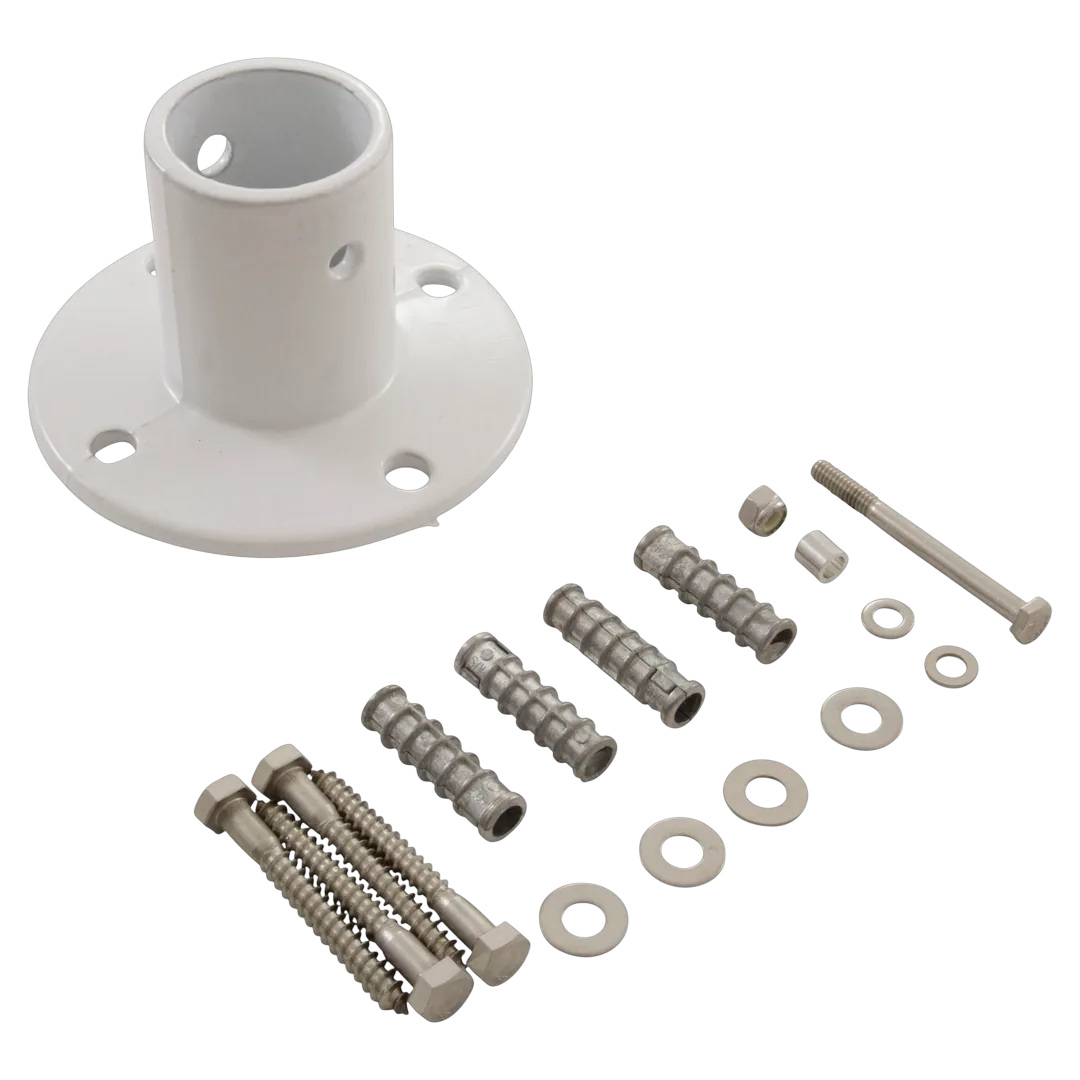

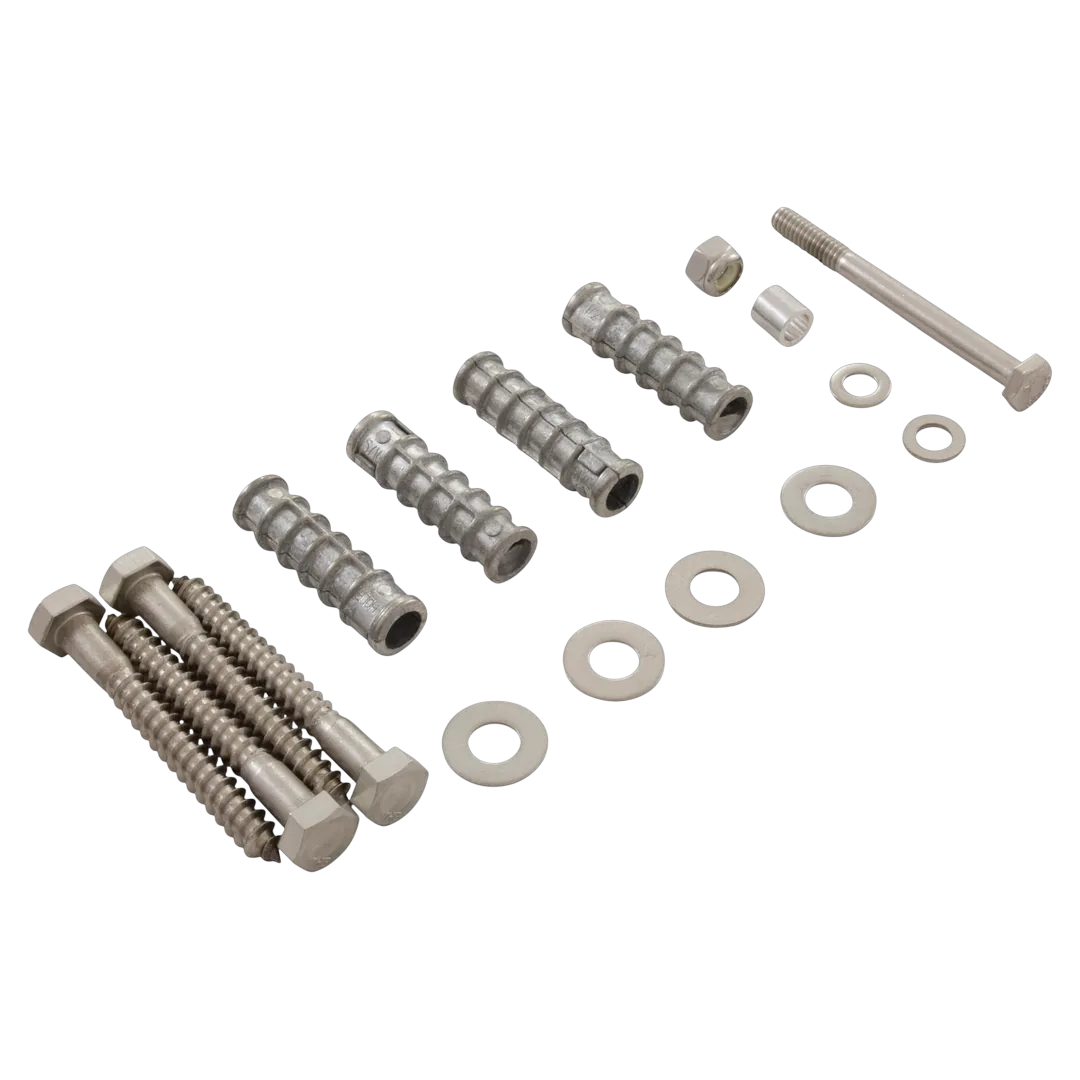

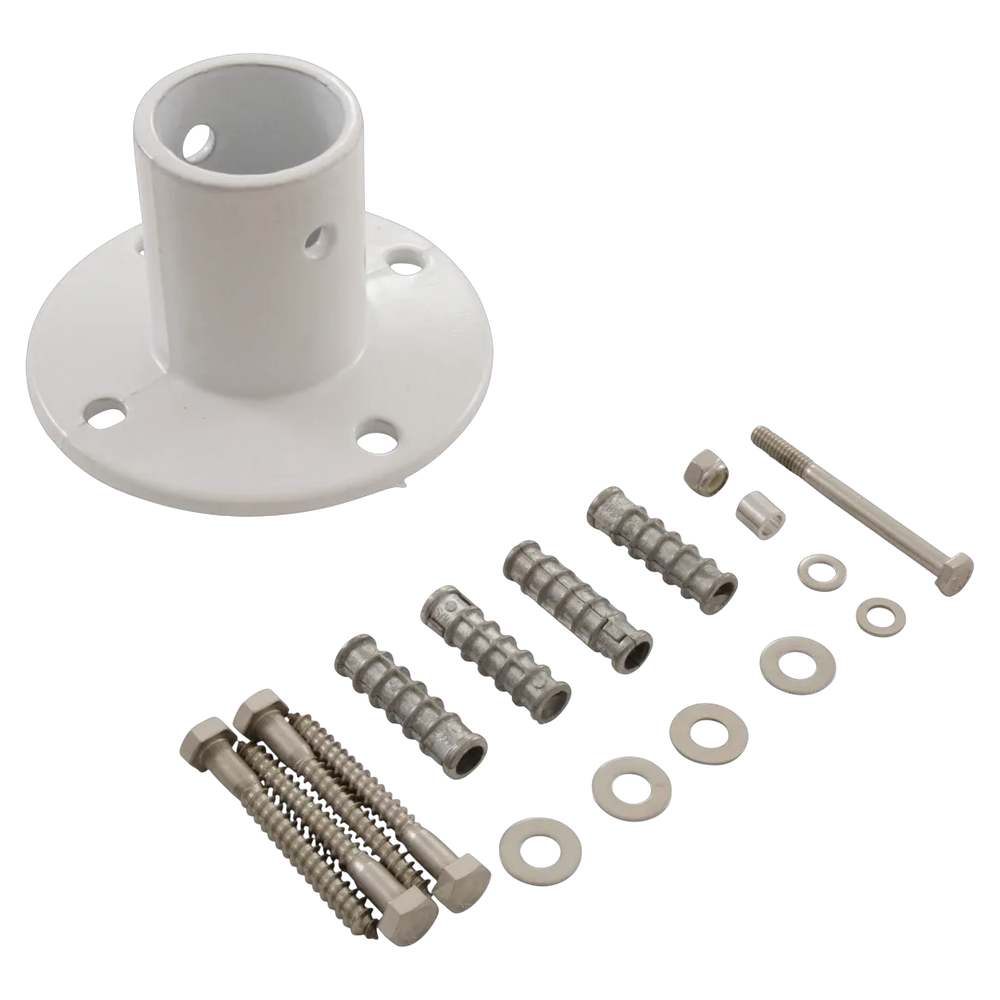

Includes: Mounting hardware: (1) 1/4 inch-20 x 2-3/4 inch stainless steel bolt, (2) 1/4 inch stainless steel washers, (1) 1/4 inch aluminum bushing, (1) 1/4 inch-20 stainless steel lock nut, (4) 5/16 inch stainless steel washers, (4) 5/16 inch x 2-1/2 inch stainless steel lag bolts
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Perma-Cast PF-3119-A 1.9" Aluminum Slide Deck Flange with Mounting Hardware |
| Part Number | PF-3119-A |
| Part Type | Deck Flange |
| Compatibility | For use with 1.9 inch OD tubing rails |
| Includes | Mounting hardware: (1) 1/4 inch-20 x 2-3/4 inch stainless steel bolt, (2) 1/4 inch stainless steel washers, (1) 1/4 inch aluminum bushing, (1) 1/4 inch-20 stainless steel lock nut, (4) 5/16 inch stainless steel washers, (4) 5/16 inch x 2-1/2 inch stainless steel lag bolts |
| Material | Aluminum |
| Shipping Dimensions | 3.75 x 4.75 x 5 inch |
| Product Weight | 1.2 pound |
