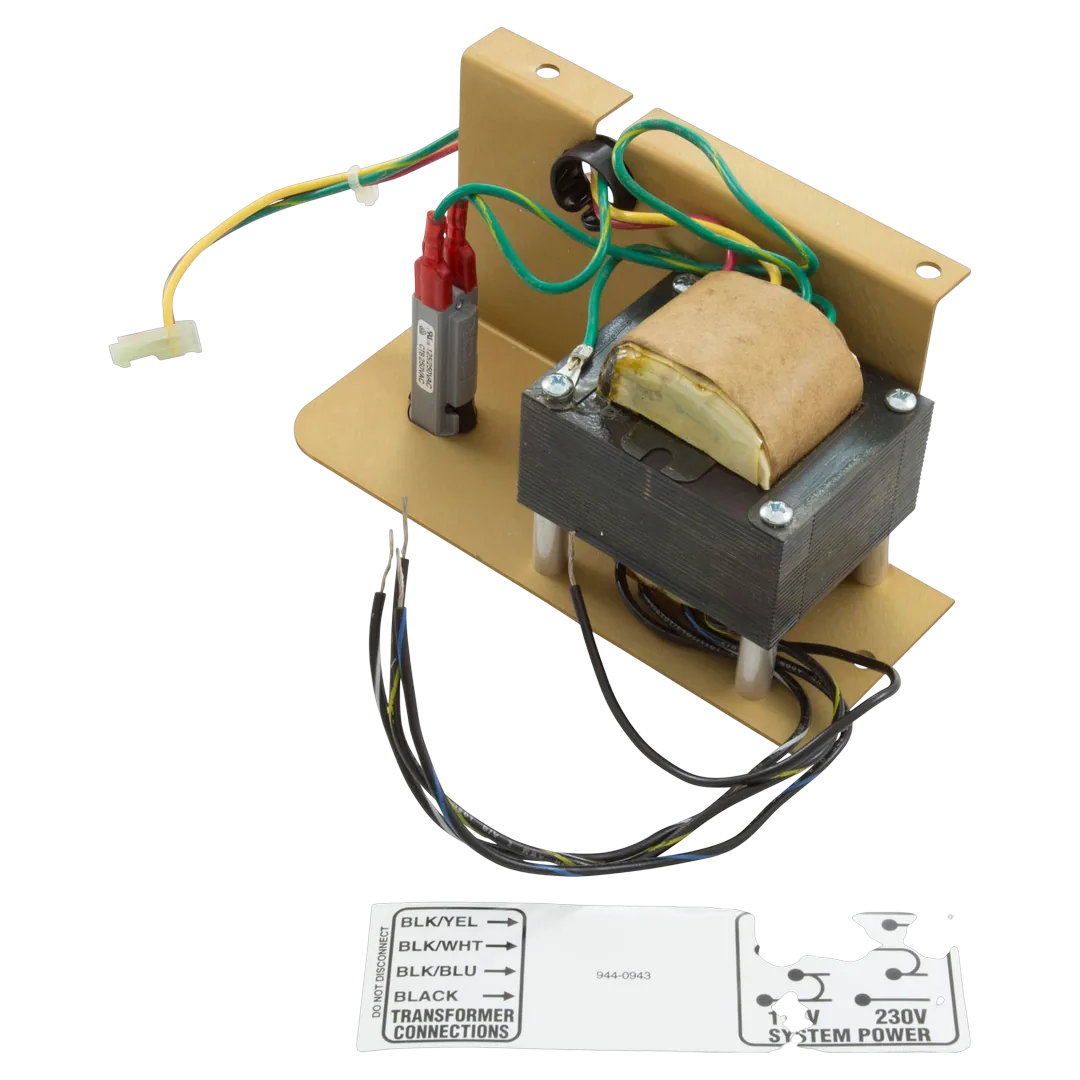

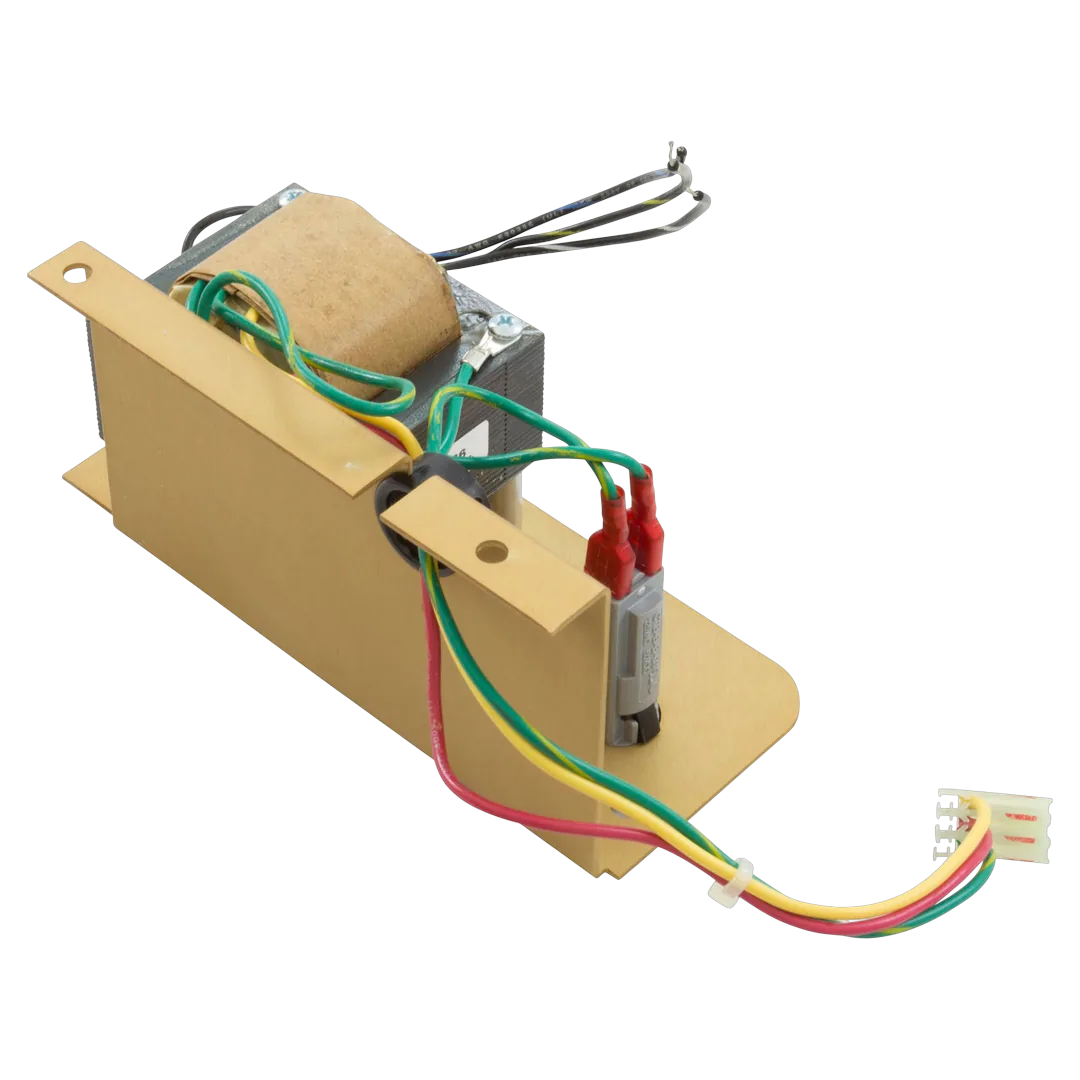

Pentair XFM1BK Transformer Assembly
Pentair | SKU:
XFM1BK
$33100/ea
Unit price
/
Unavailable
Pentair XFM1BK Transformer Assembly is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

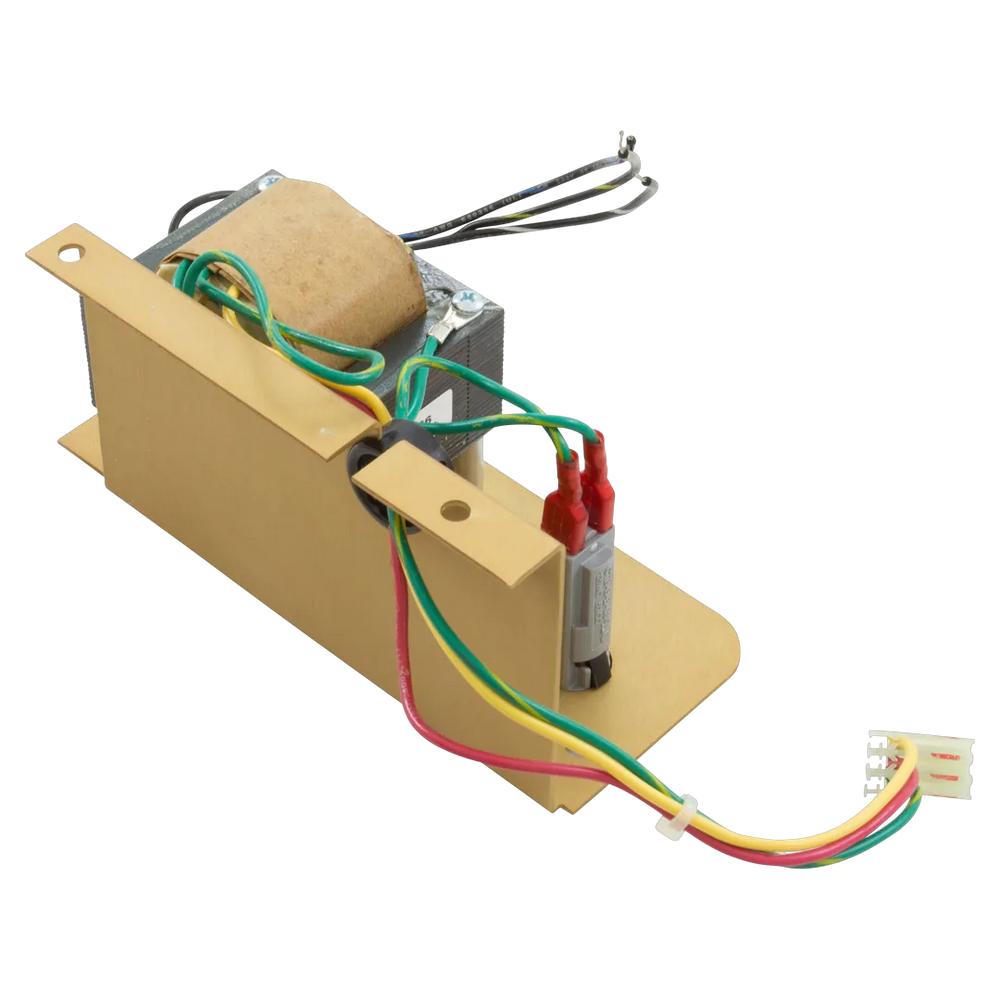

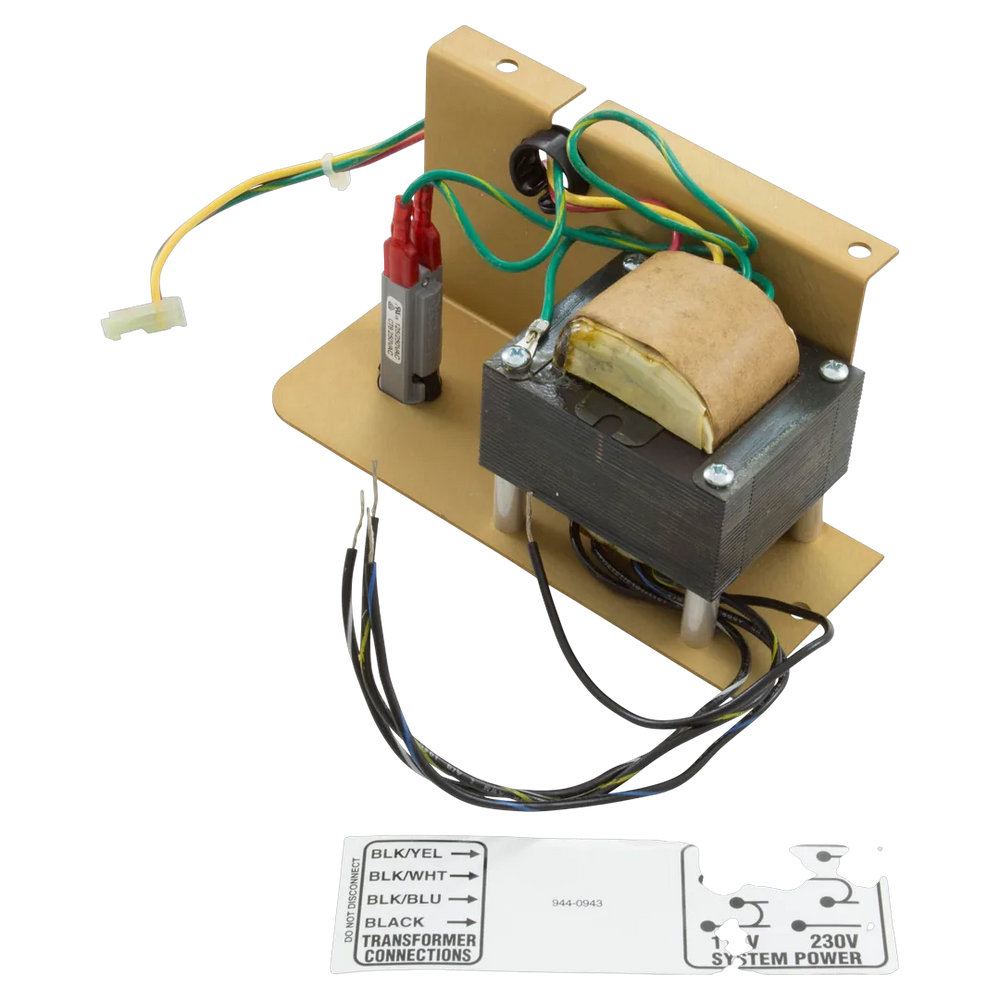

Replacement transformer assembly for Pentair Compool LX20, LX30, LX36, and LX80 control systems (XFM1BK). It converts incoming line voltage to the low-voltage power used by the automation electronics in the power center. Ships as a complete OEM assembly with aluminum mounting bezel, wiring harness, and a 3-amp reset switch for a drop-in swap.
Includes: Transformer assembly
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | XFM1BK |
| Part Number | XFM1BK |
| Part Type | Transformer Assembly |
| Compatibility | ComPool LX20, LX30, LX36, LX80, LX-10S, LX-28, LX-36S, LX-42, LX-46, LX-100, LX-1000, LX-2020 |
| Substitute Part Numbers | 315904, 4020348, 9237-301, COM-30-702 |
| Includes | Transformer assembly |
| Material | Transformer core, molded housing, wiring harness |
| Shipping Dimensions | 5 x 2 x 1 inch |
| Product Weight | 0.2 pound |
