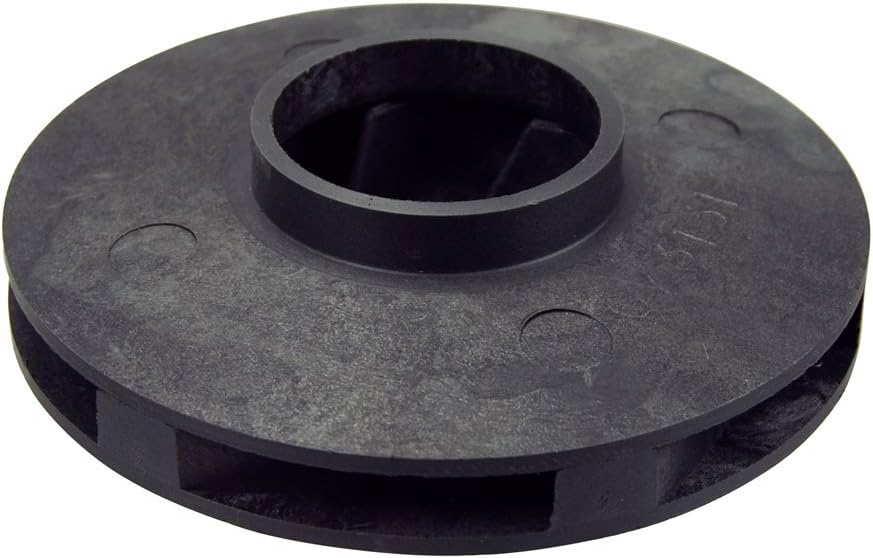

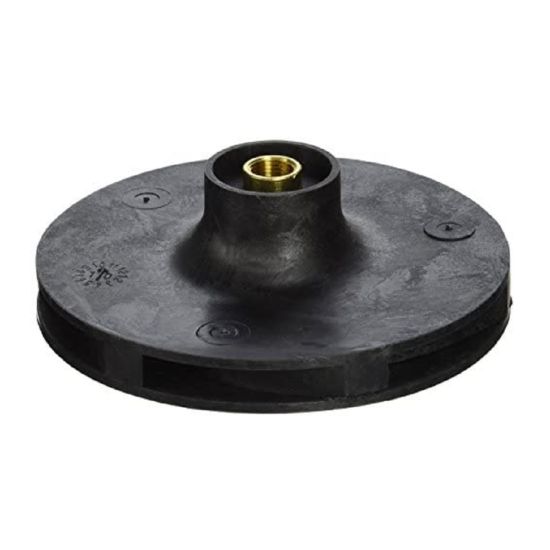

Pentair WhisperFlo 3HP Pump Impeller
Pentair | SKU:
073131
$8999
/ea
Unit price
/
Unavailable
Pentair WhisperFlo 3HP Pump Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Pentair 073131 is a replacement impeller designed for use with 3 HP WhisperFlo pumps, including models WFE-12, WF-12, and WFK-12, as well as various IntelliFlo models. This is an OEM impeller from Pentair.
Includes: Impeller (shaft seal sold separately)
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Pentair 073131 Impeller |
| Part Number | 073131 |
| Compatibility | Pentair WhisperFlo 3.0 HP Pumps, IntelliFlo VF and VS Pumps |
| Substitute Part Numbers | 5074-27E, 25305-131-000, 35-110-2118, 73131, PEN073131, PUR1012757, S17099, V20-206 |
| Part Type | Impeller |
| Includes | Impeller (shaft seal sold separately) |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter | 5 inch |
| Vane Width | 3/8 inch |
| Eye Diameter | 2-1/8 inch |
| Eye Length | 3/8 inch |
| Impeller Width | 5/8 inch |
| Seal Seat Depth | 1 inch |
| Shaft Diameter | 5/8 inch |
| Seal Seat Diameter | 1-7/16 inch |
| Shipping Dimensions | 5.25 x 2.6 x 5.6 inch |
| Product Weight | 0.5 pound |
Schematics:
|
Pentair IntelliFlo VS + SVRS Parts Diagram - After 2016
Pentair IntelliFlo VS + SVRS Parts Diagram - After 2016
|
