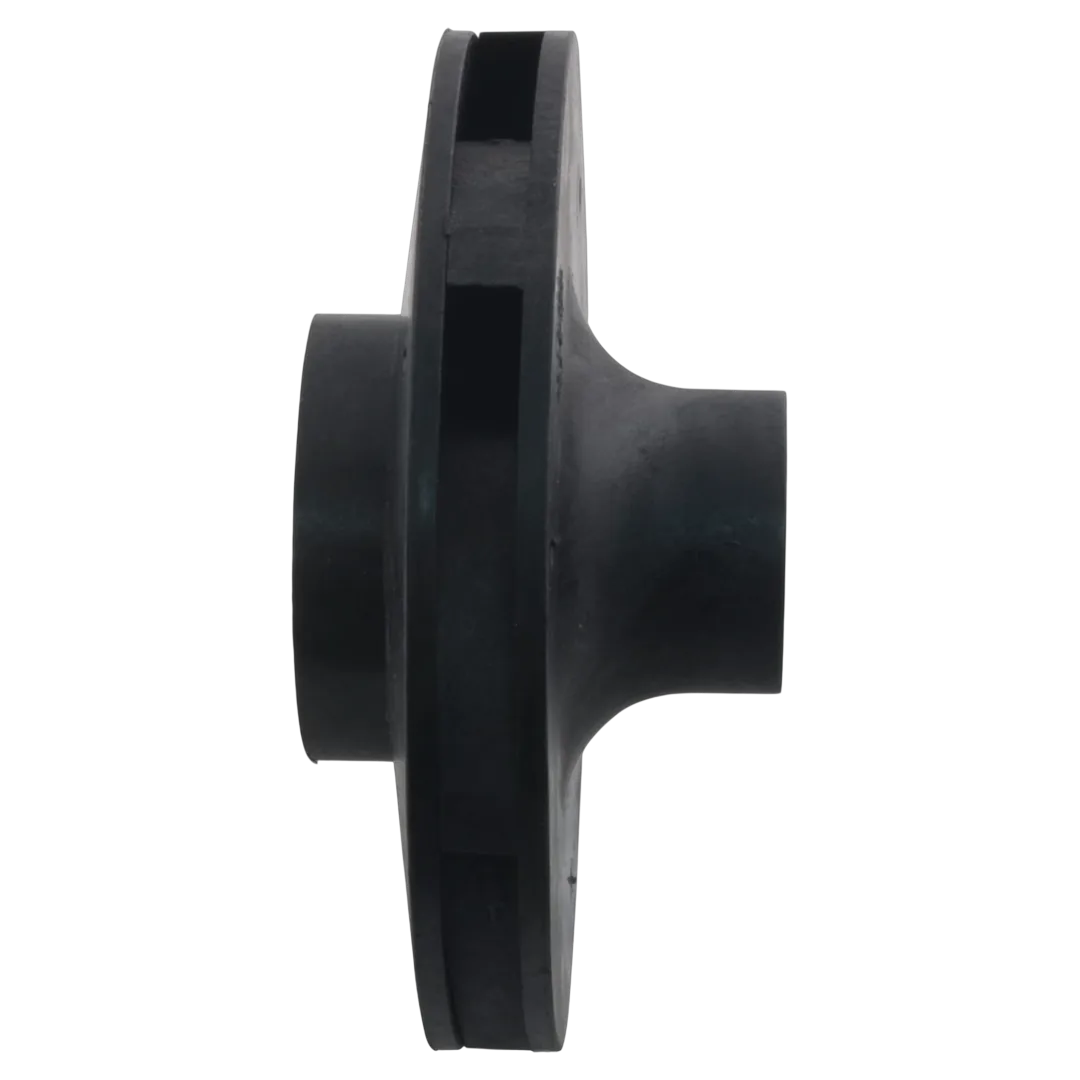

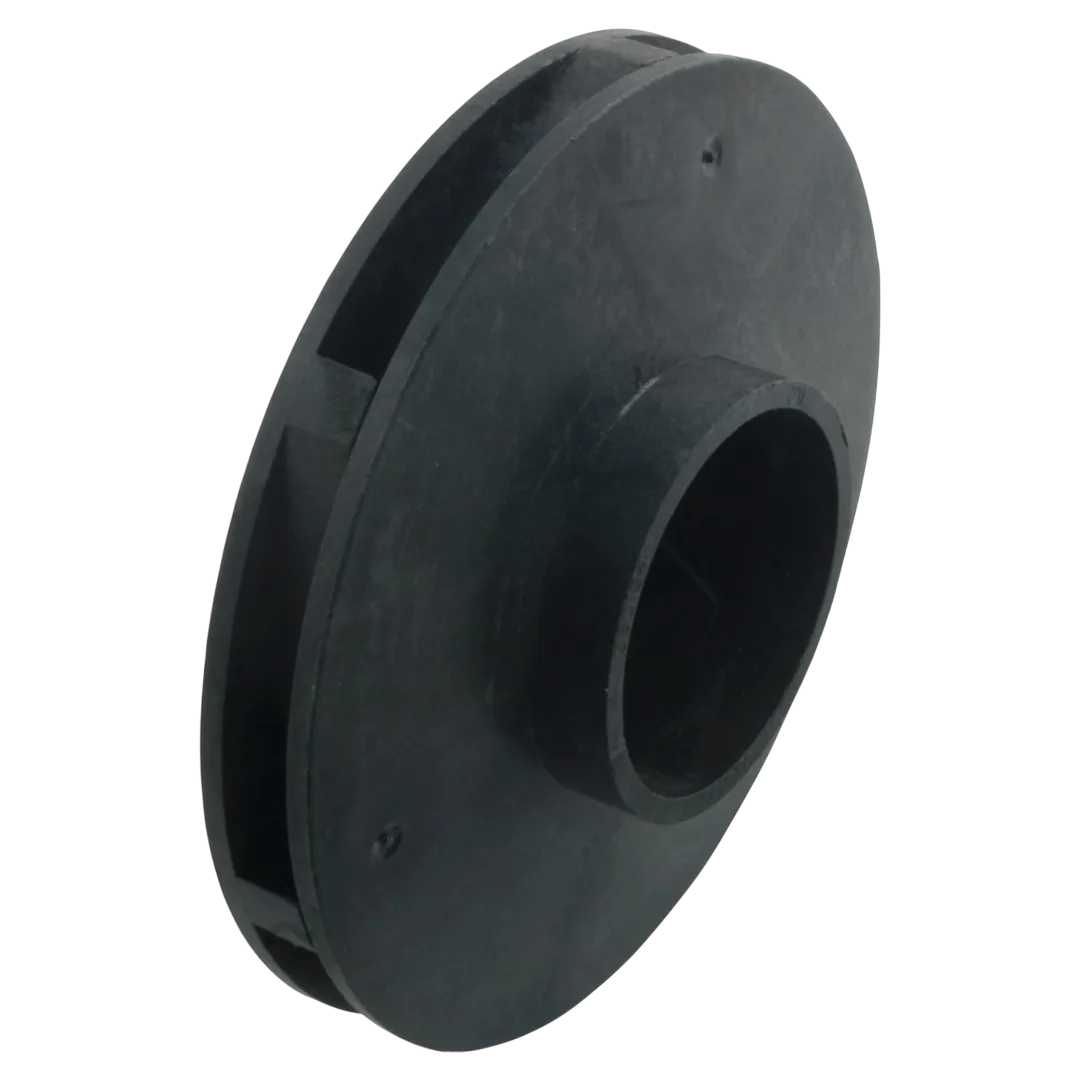

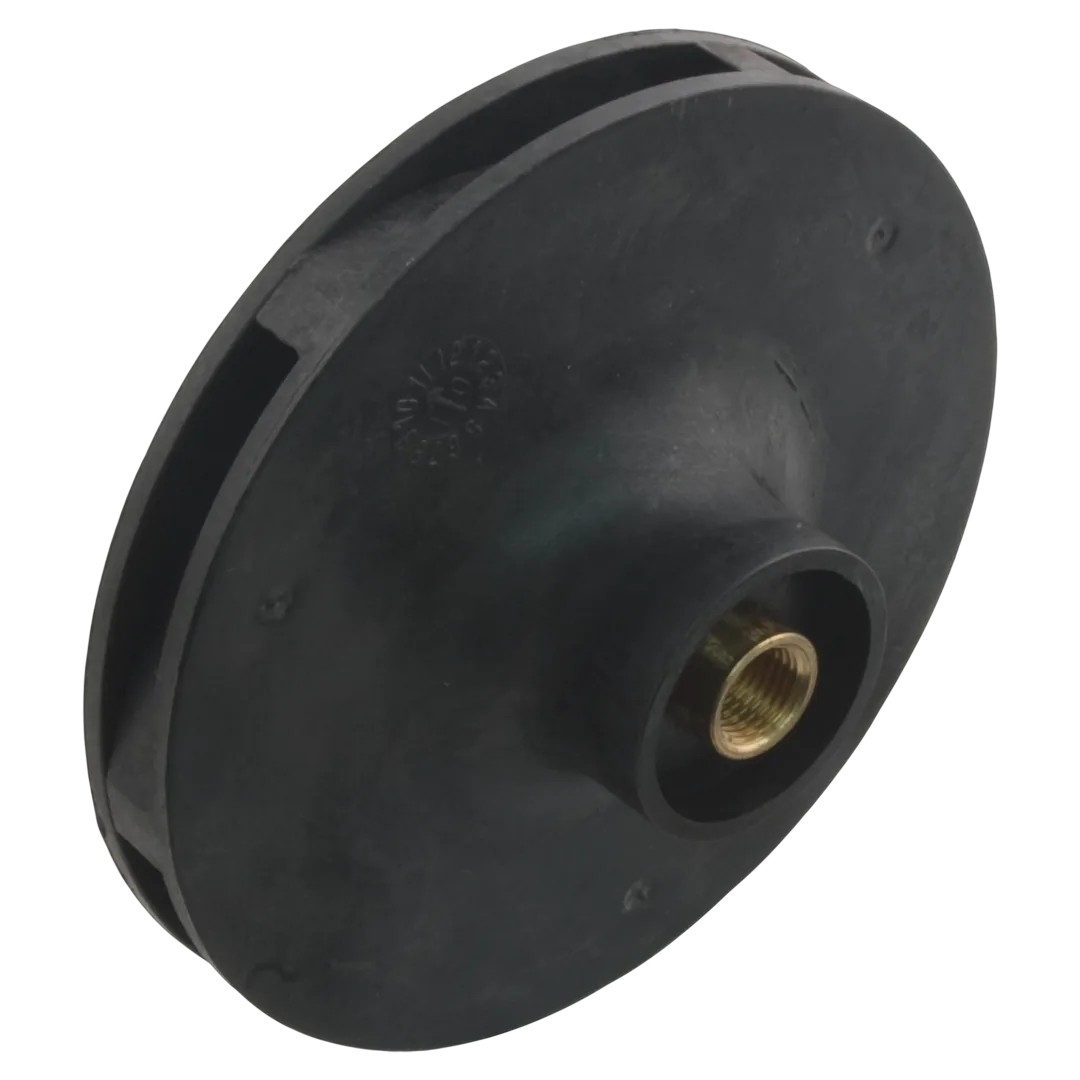

Pentair WhisperFlo 073130Z Impeller
Pentair | SKU:
073130Z
$14800/ea
Unit price
/
Unavailable
Pentair WhisperFlo 073130Z Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Pentair 073130Z is a closed-face impeller specifically designed for the WhisperFlo 1000 Series inground pool and spa pumps. It is engineered for 2 horsepower full-rated and compatible with 2.5 horsepower up-rated applications. This impeller fits models such as the WhisperFlo WFE-8, WF-8, WFDS-8, WFDS-30, and WFE-30.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller (WF-8, WF-30, WFE-8, WFE-30, WFK-8, WFDS-8, WFDS-30) |
| Part Number | 073130Z |
| Compatibility | WhisperFlo® WFE-8, WF-8, WF-30, WFDS-8, WFDS-30, WFE-30 High Performance Pumps |
| Substitute Part Numbers | 073130, 25305-130-000, 73130, PUR1013465, S17098, V20-205, 073130Z, 35-102-2412, PEN073130, PEN073130Z, PUR-101-3465 |
| Part Type | Impeller |
| Includes | Impeller only |
| Material | Reinforced Thermoplastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4.88 inches |
| Vane Width ID | 0.31 inches |
| Eye Diameter OD | 2.25 inches |
| Eye Length | 0.5 inches |
| Impeller Width OD | 0.5 inches |
| Seal Seat Depth | 1 inch |
| Shaft Diameter OD | 0.625 inches |
| Seal Seat Diameter OD | 1.4375 inches |
| Shipping Dimensions | 5.25 x 5.25 x 2.25 inch |
| Product Weight | 0.44 pound |
Schematics:
|
Pentair WhisperFlo VST Pump Replacement Parts
View in Pentair WhisperFlo VST Pump Replacement Parts
|
