Pentair TMRLX 24-Hour Mechanical Timer
Pentair | SKU:
TMRLX
$15100/ea
Unit price
/
Unavailable
Pentair TMRLX 24-Hour Mechanical Timer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

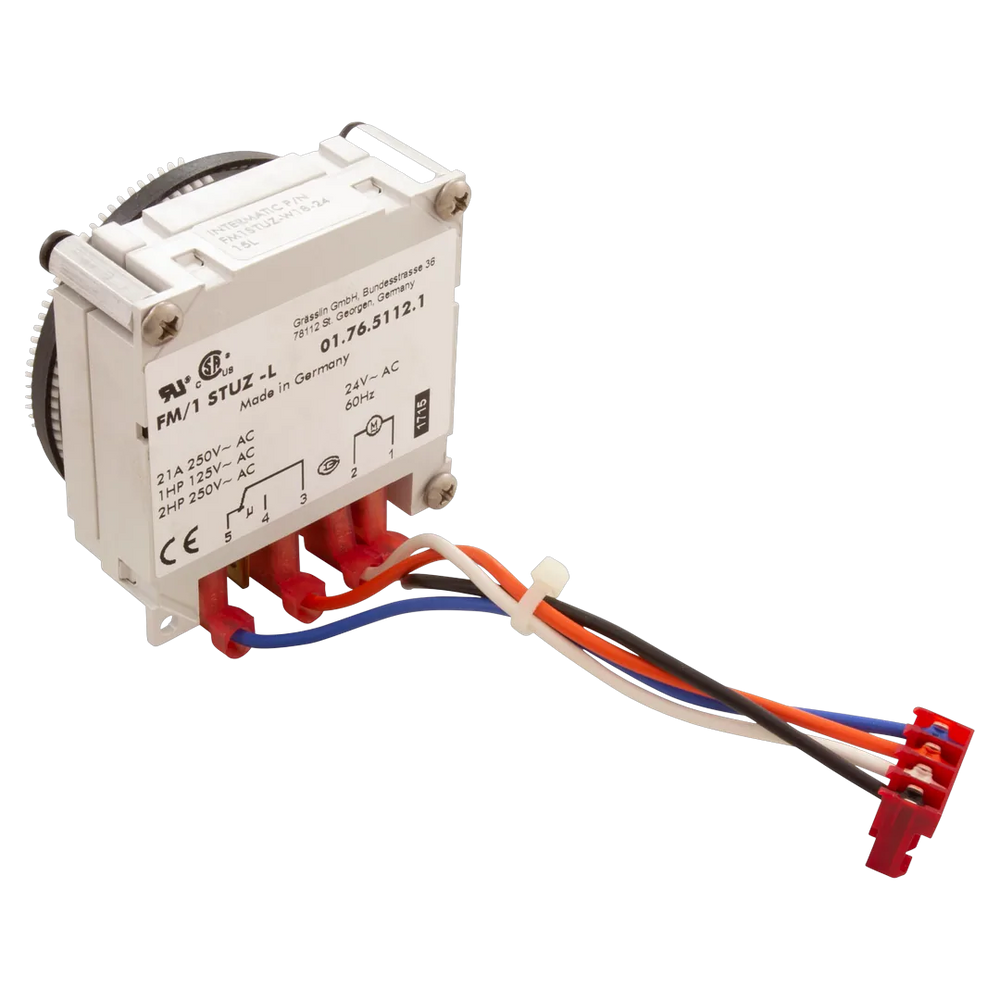

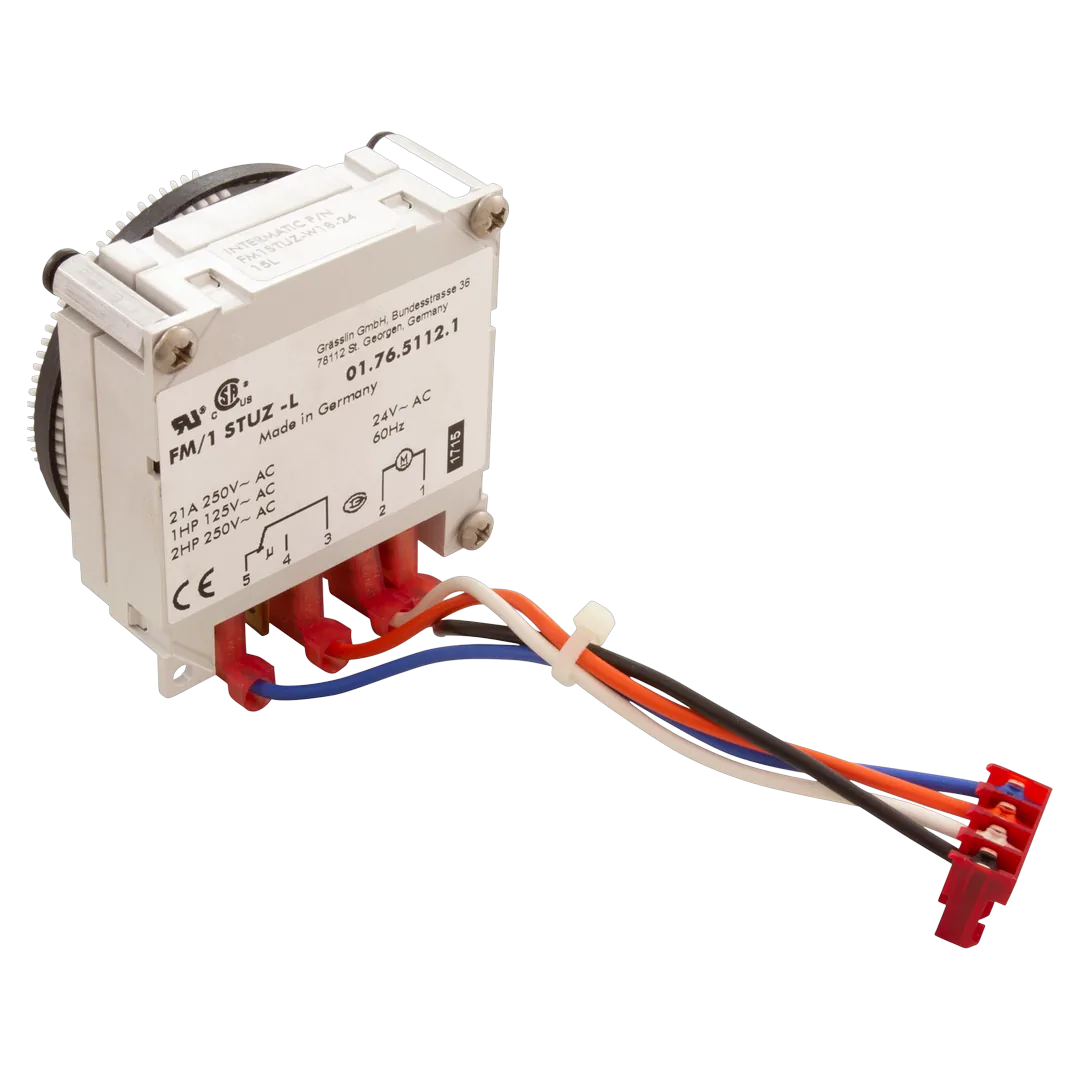

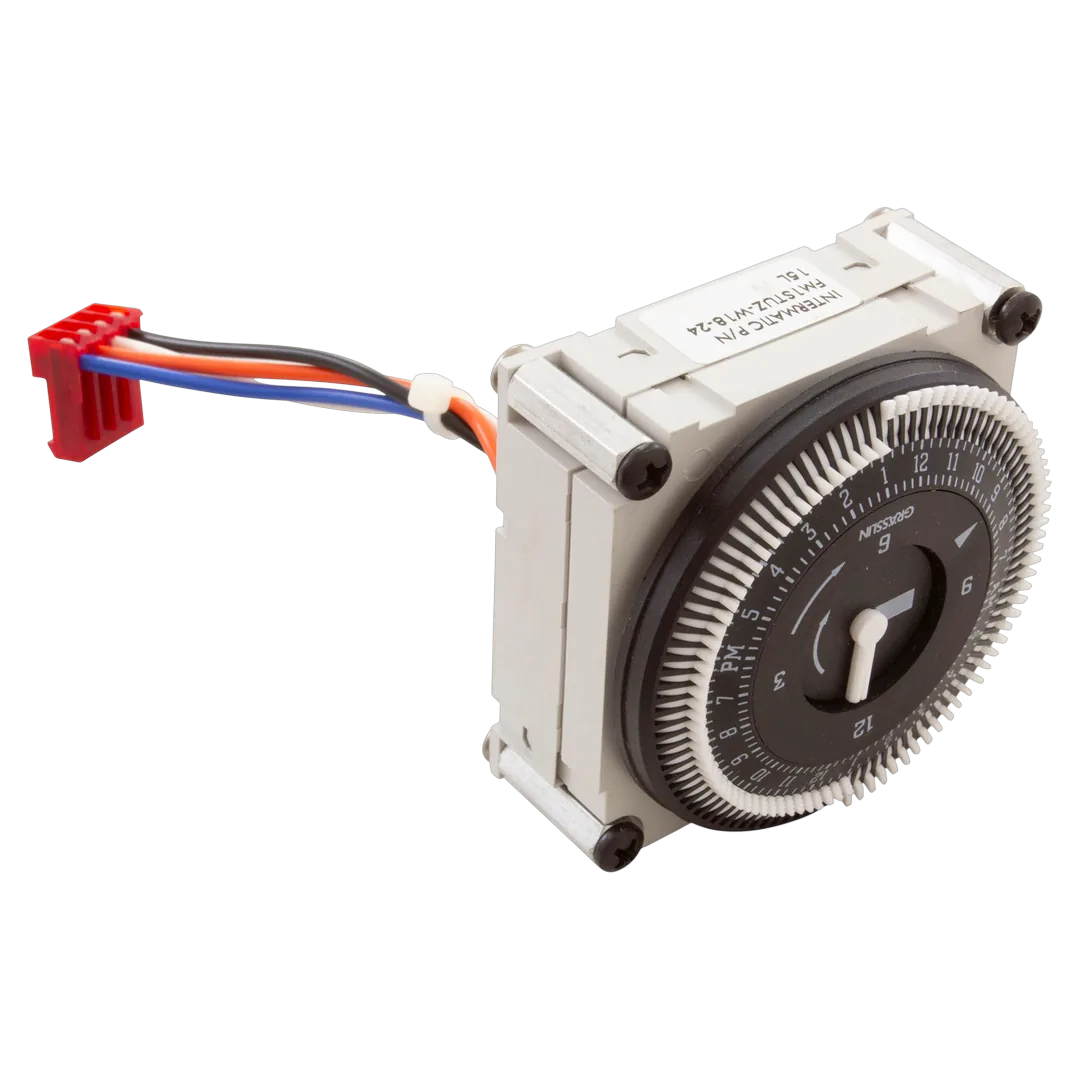

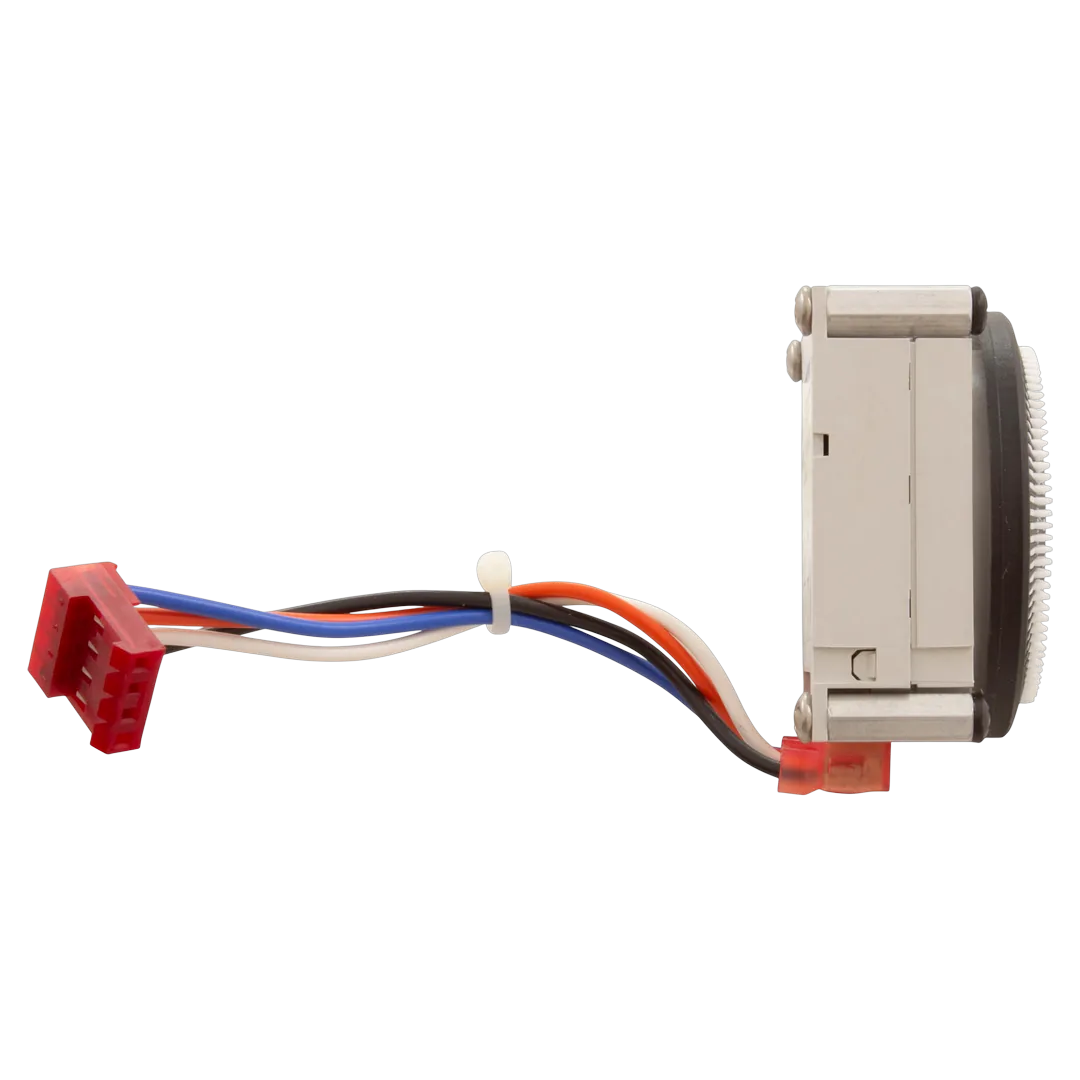

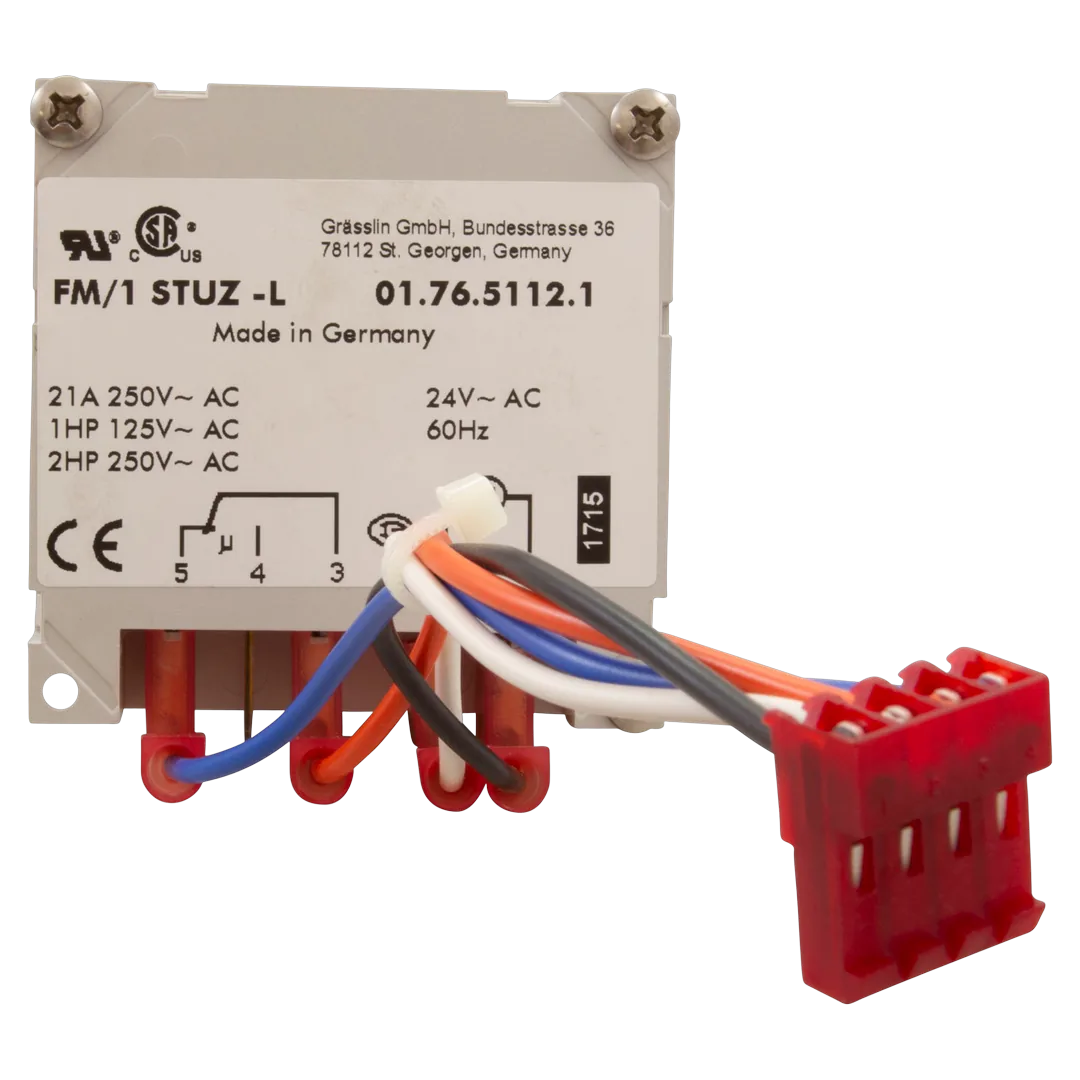

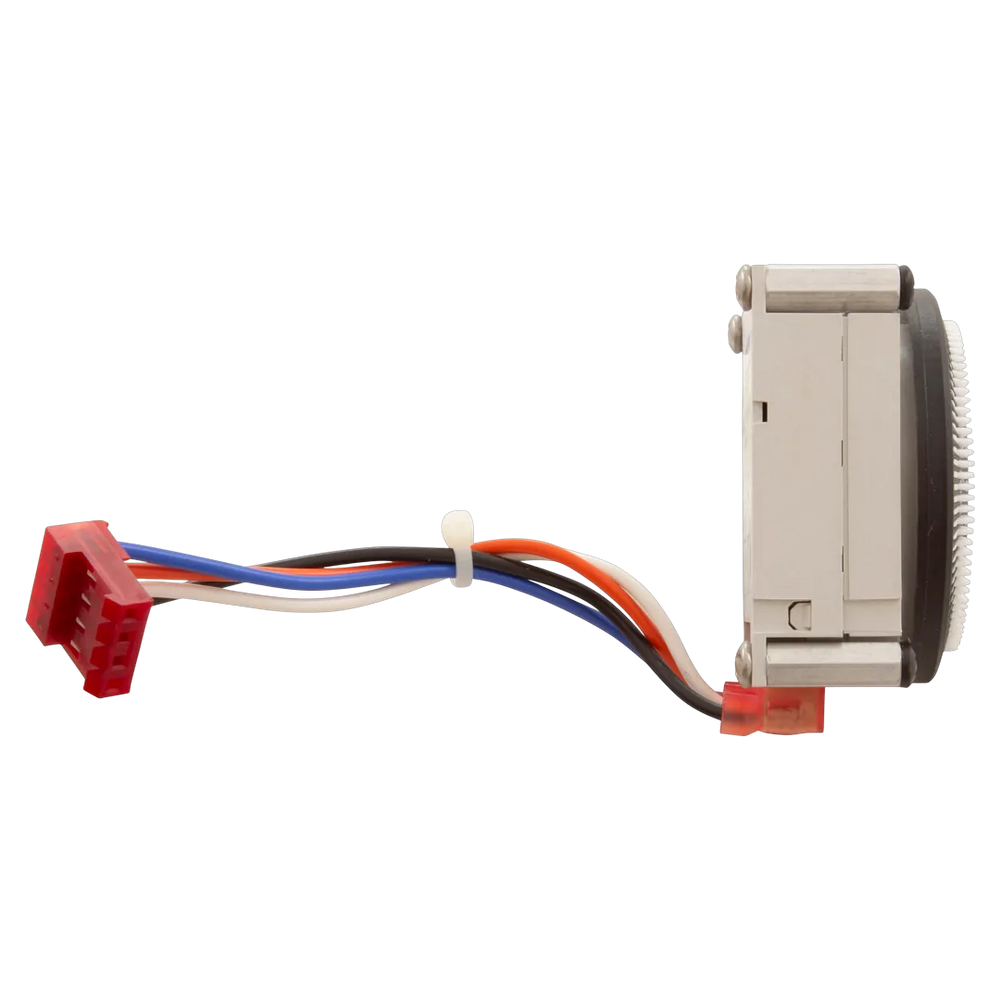

Replacement 24-hour mechanical time clock for Pentair/Compool automation panels (TMRLX), compatible with CP100/T, CP30/T, LX120/2T, LX420/2T, LX80/2 and related systems. It mounts in the panel and uses 96 dial trippers to set 15-minute on/off intervals for pumps, lights, or other loads. Includes the 24 VAC plug-in harness; SPDT output ties into standard Compool relays.
Includes: Timer with wiring harness and mounting hardware
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Timer, 24 Hour Mechanical |
| Part Number | TMRLX |
| Part Type | Timer |
| Compatibility | Comtrol, SwimMaster, and ComPool Pool and Spa Automation Control Systems |
| Substitute Part Numbers | 01.76.0049.1, 017600491, COM30715, 59-102-1558, COM-30-715, PENTMRLX |
| Includes | Timer with wiring harness and mounting hardware |
| Shipping Dimensions | 4.25 x 3 x 3.5 inch |
| Product Weight | 0.25 pound |
