Pentair StarGuard 500130 Main Drain
Pentair | SKU:
500130
$23500/ea
Unit price
/
Unavailable
Pentair StarGuard 500130 Main Drain is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

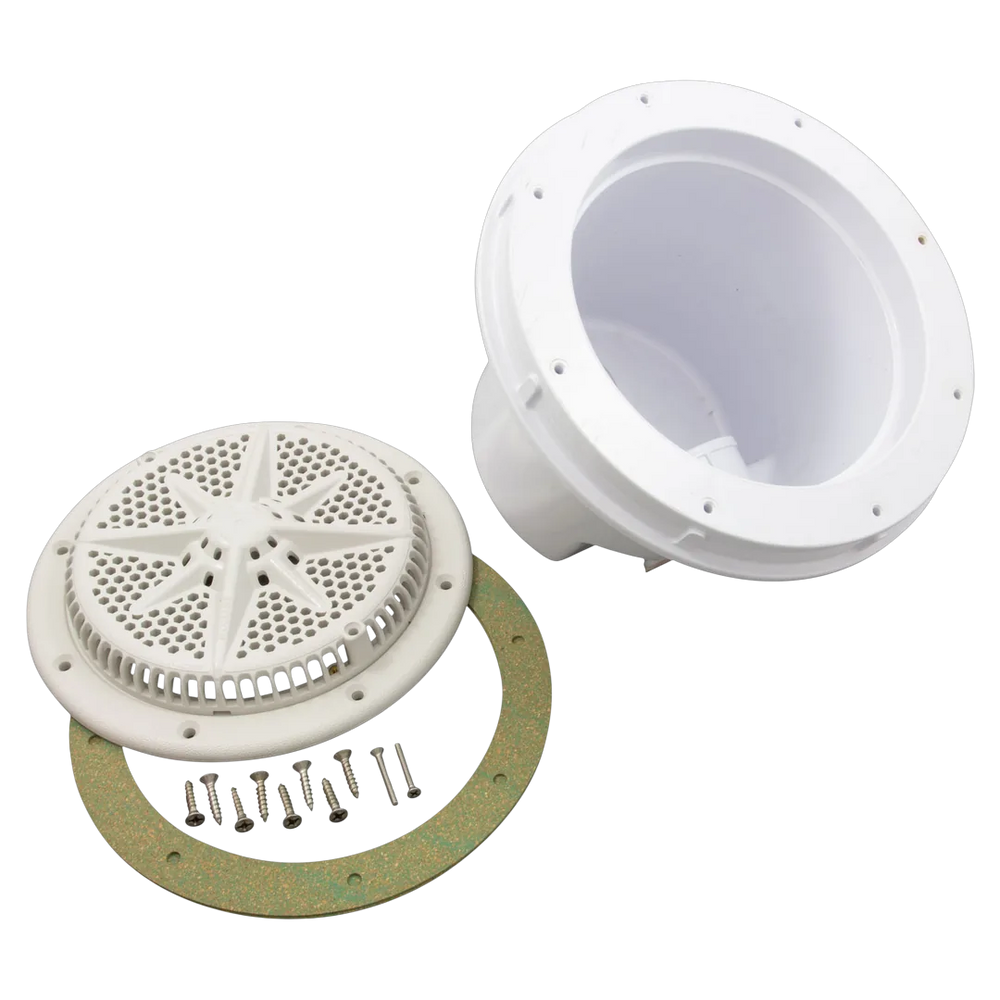

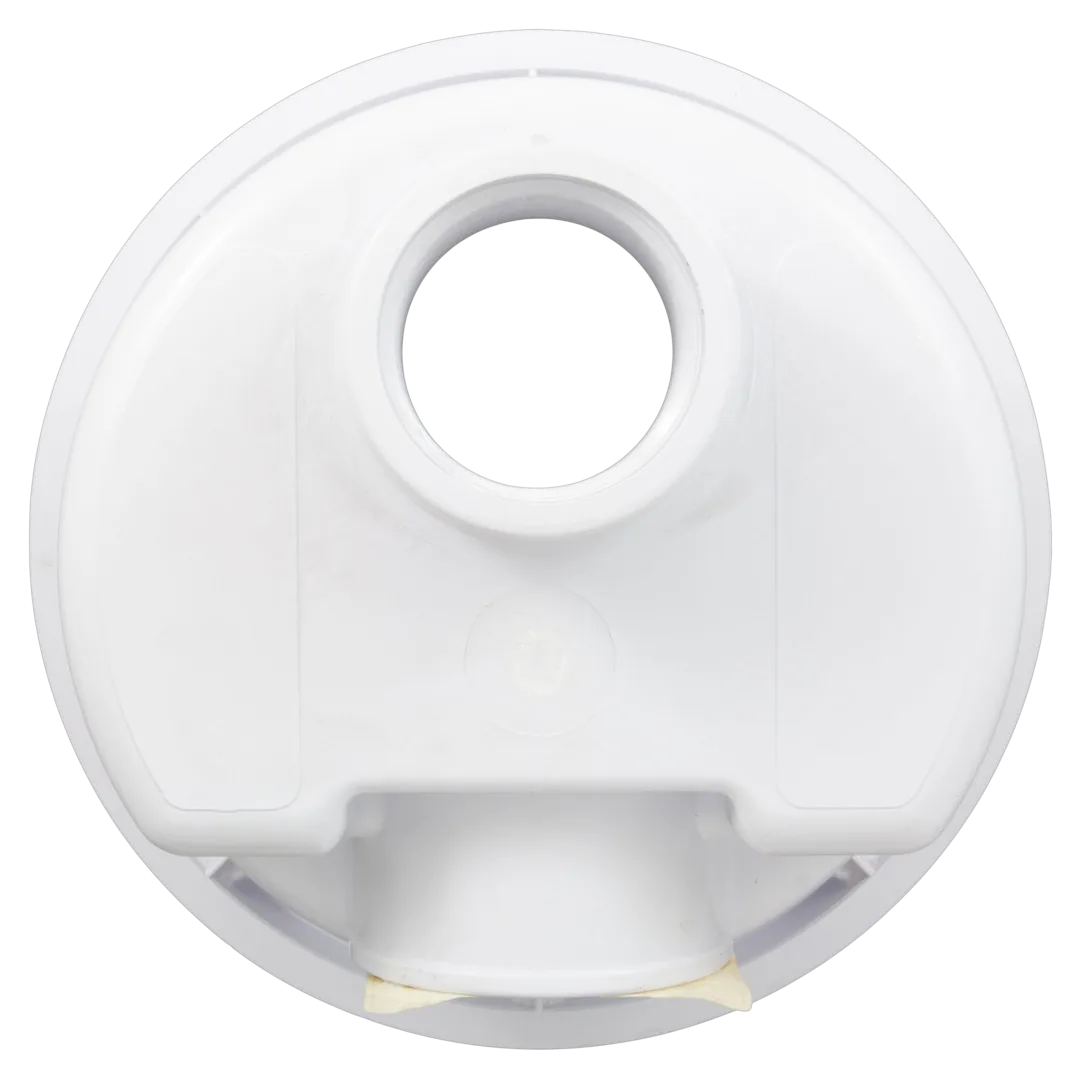

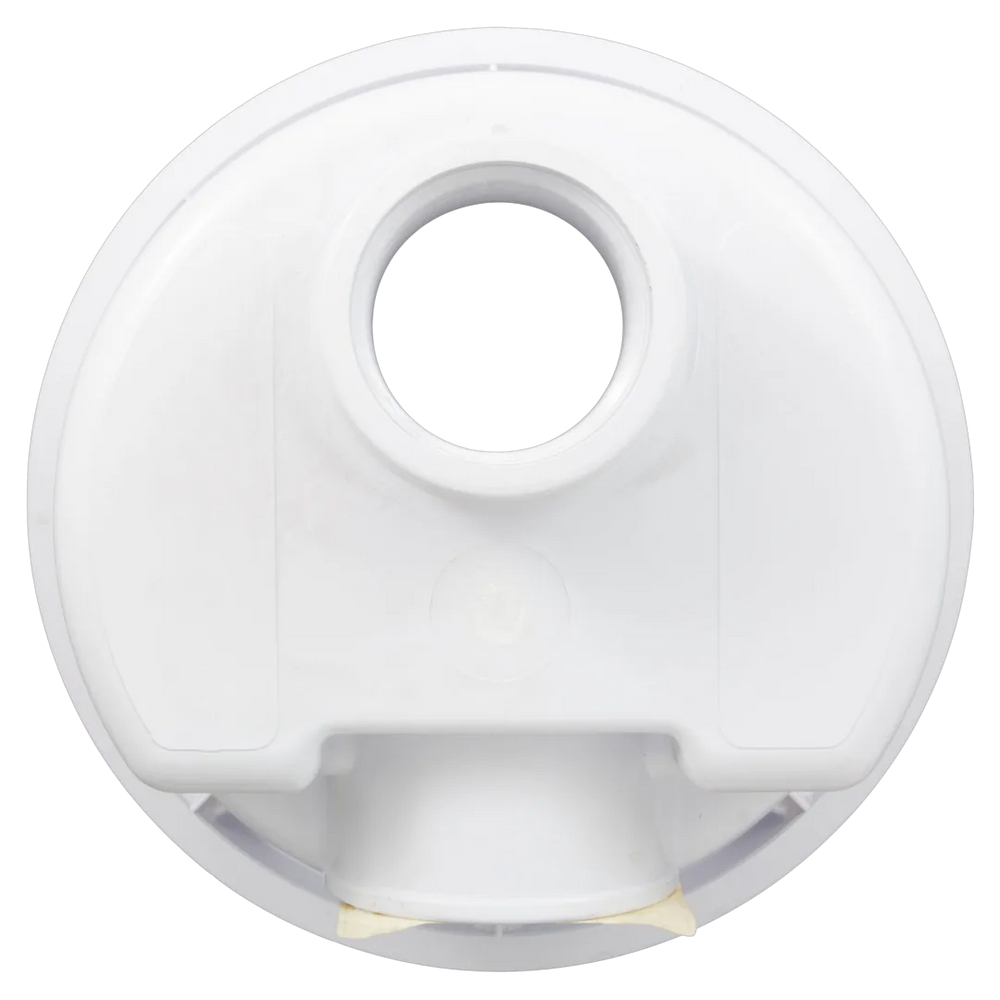

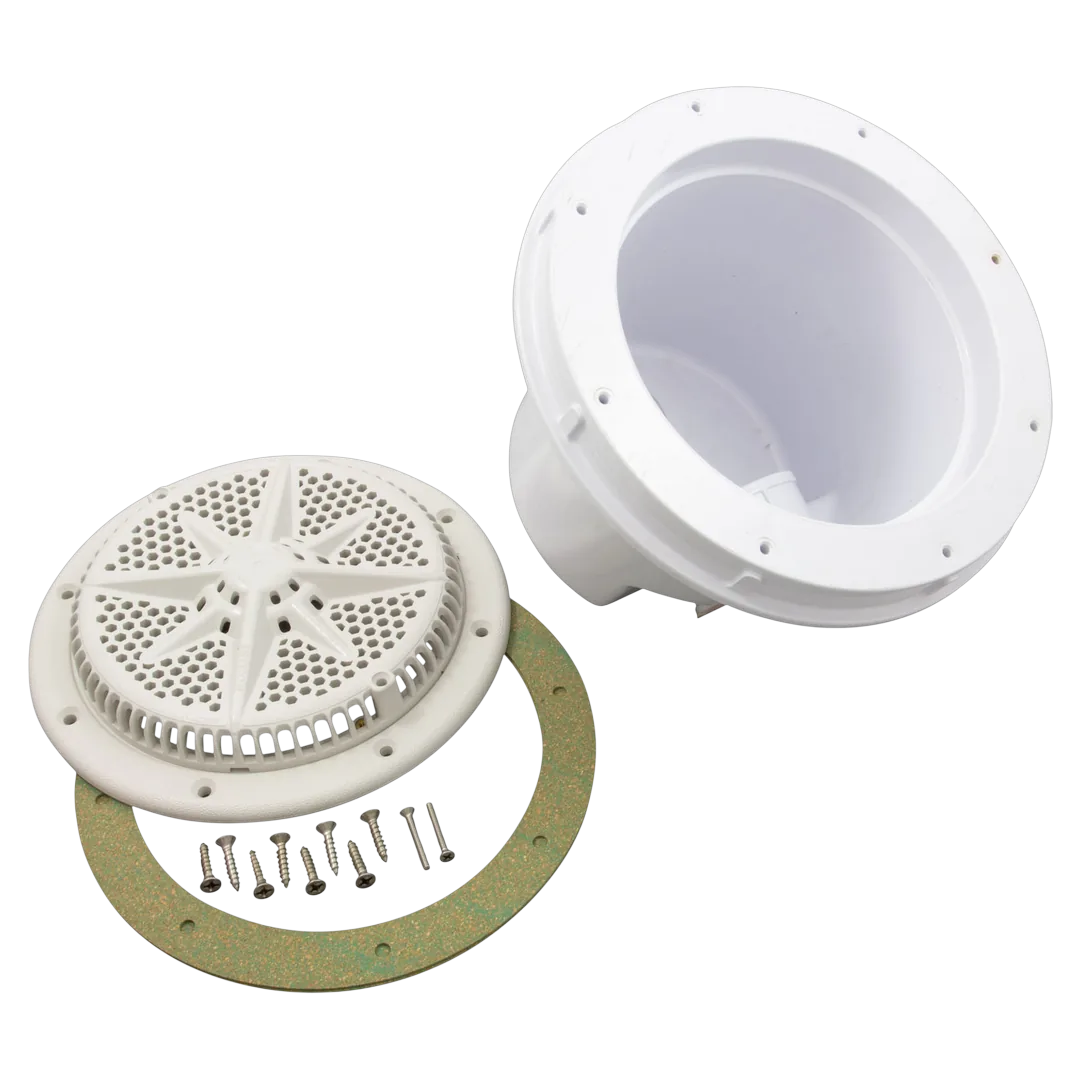

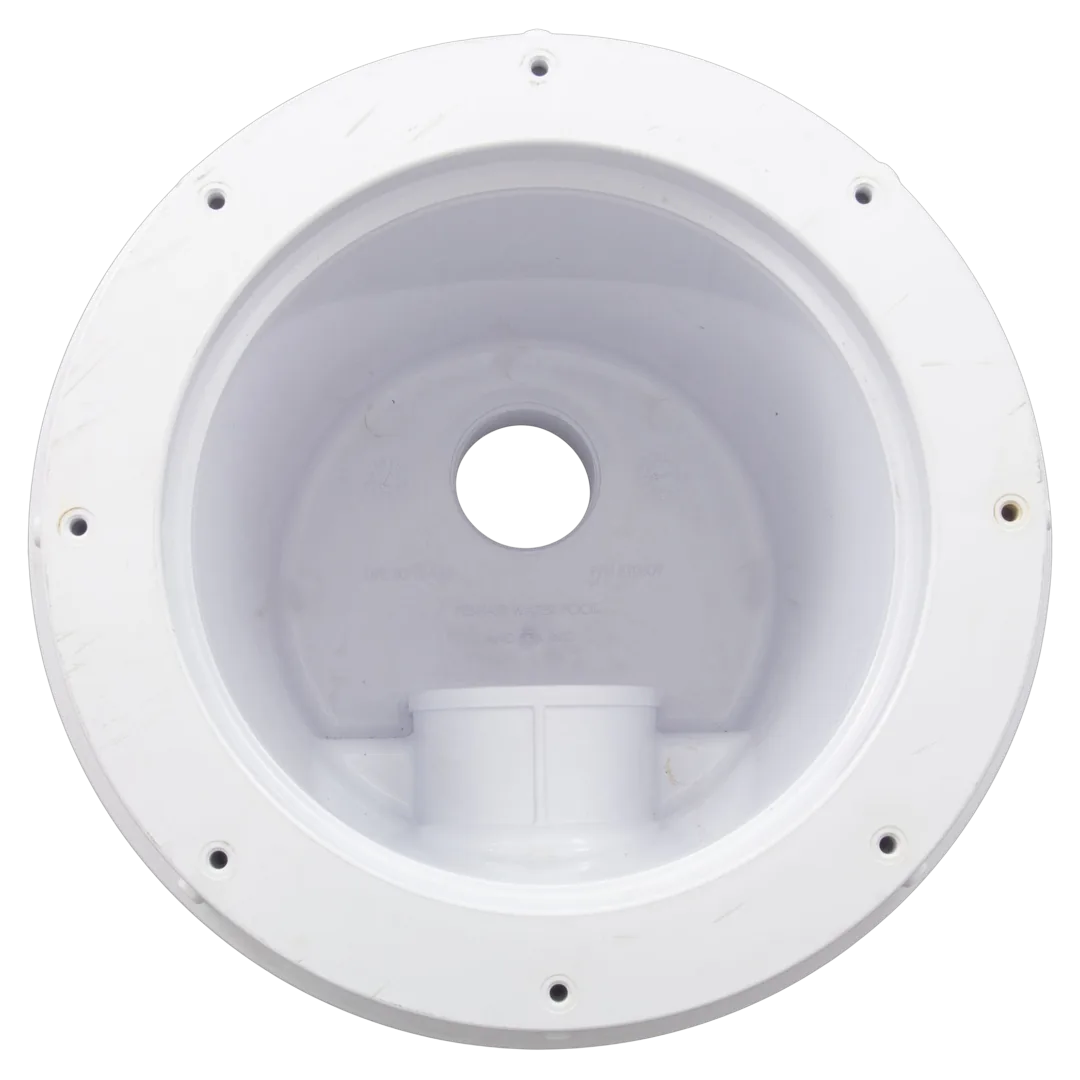

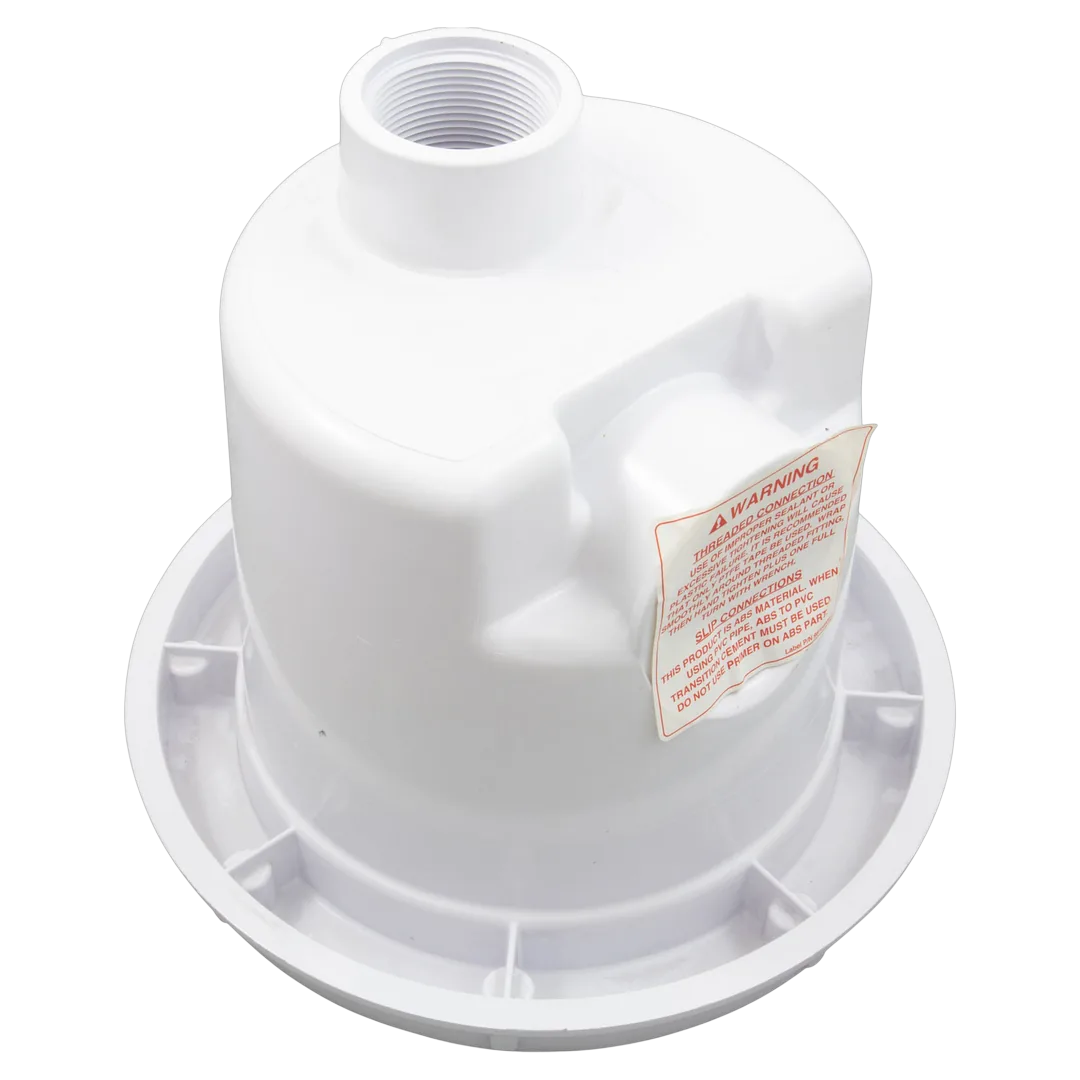

The Pentair 500130 is an 8-inch StarGuard main drain specifically designed for pool systems. It is constructed from ABS material and includes a sump and cover suitable for vinyl liner installations. The drain features a 2-inch side port and a 1.5-inch bottom port, allowing for versatile plumbing connections.

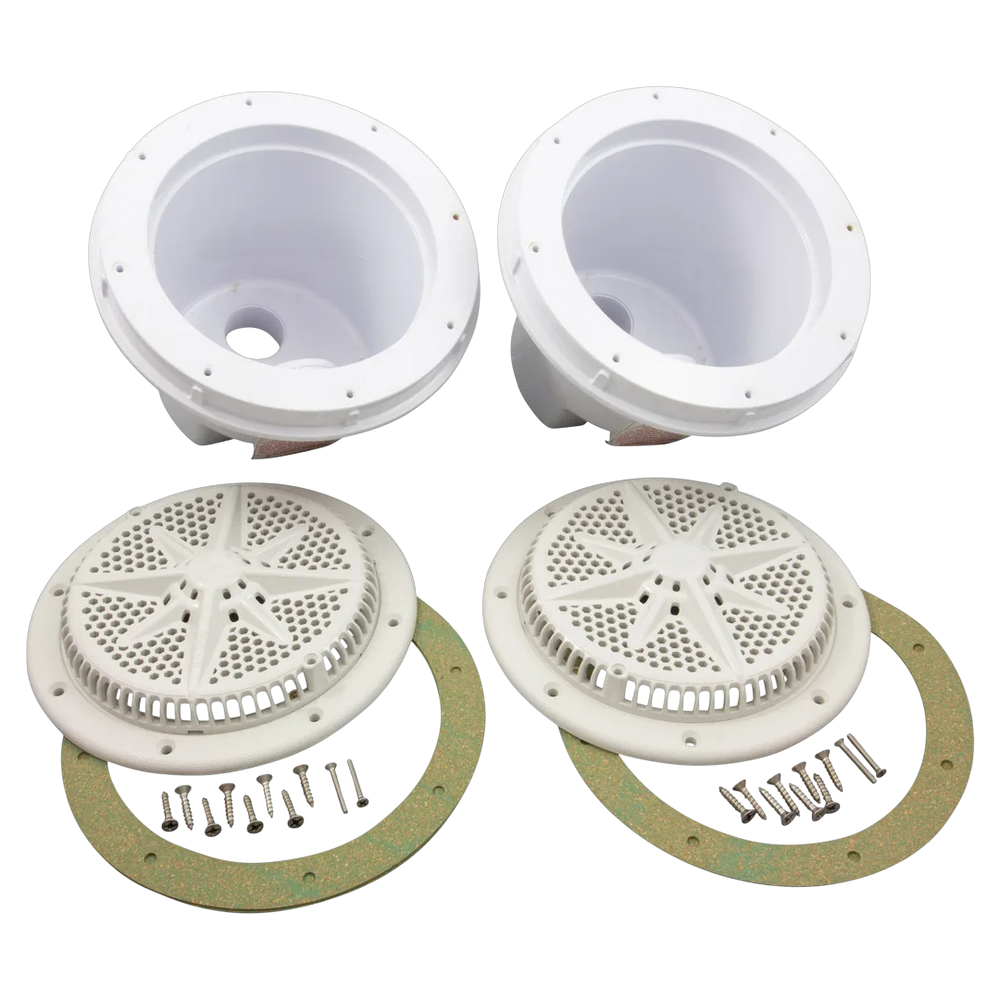

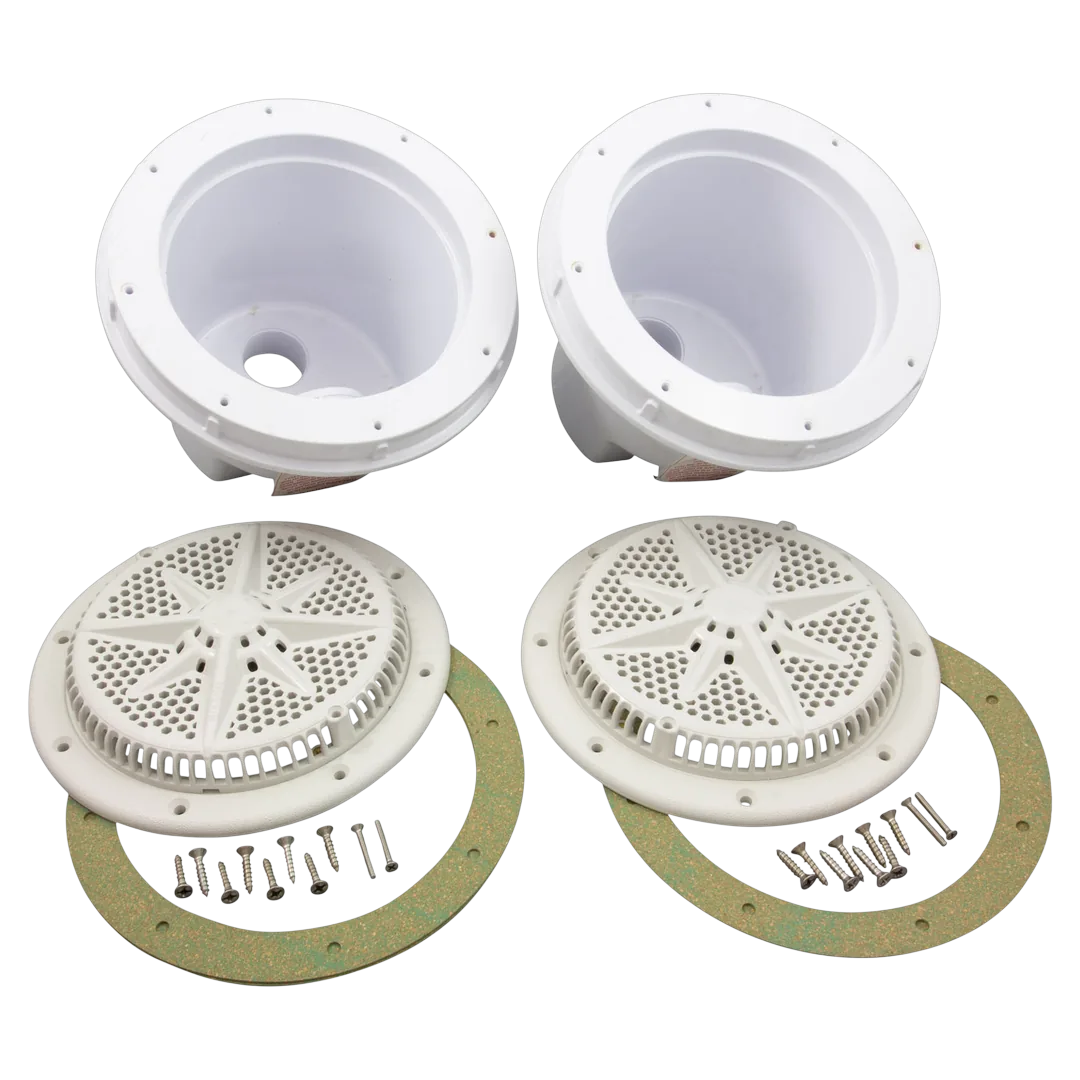

Includes: 2 Inch Side and 1.5 Inch Bottom Vinyl Liner ABS Sump (2 Pack)
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 8" StarGuard Drain with 2" Side and 1.5" Bottom Vinyl Liner ABS Sump (2 Pack), White |
| Part Number | 500130 |
| Part Type | Main Drain |
| Compatibility | For use in commercial installations, fits any residential inground pool or spa installation |
| Substitute Part Numbers | 07017-0126 |
| Includes | 2 Inch Side and 1.5 Inch Bottom Vinyl Liner ABS Sump (2 Pack) |
| Certifications | ANSI/ASME A112.19.8-2007, Compliant with the Virginia Graeme Baker Act, NSF Standard 50 |
| Material | ABS |
| Connection Size | 1.5 inch NPT bottom outlet, 2 inch NPT side outlet |
| Flow Paths | Bottom and side outlets |
| Shipping Dimensions | 15.3 x 13.8 x 9 inch |
| Product Weight | 6.25 pound |
