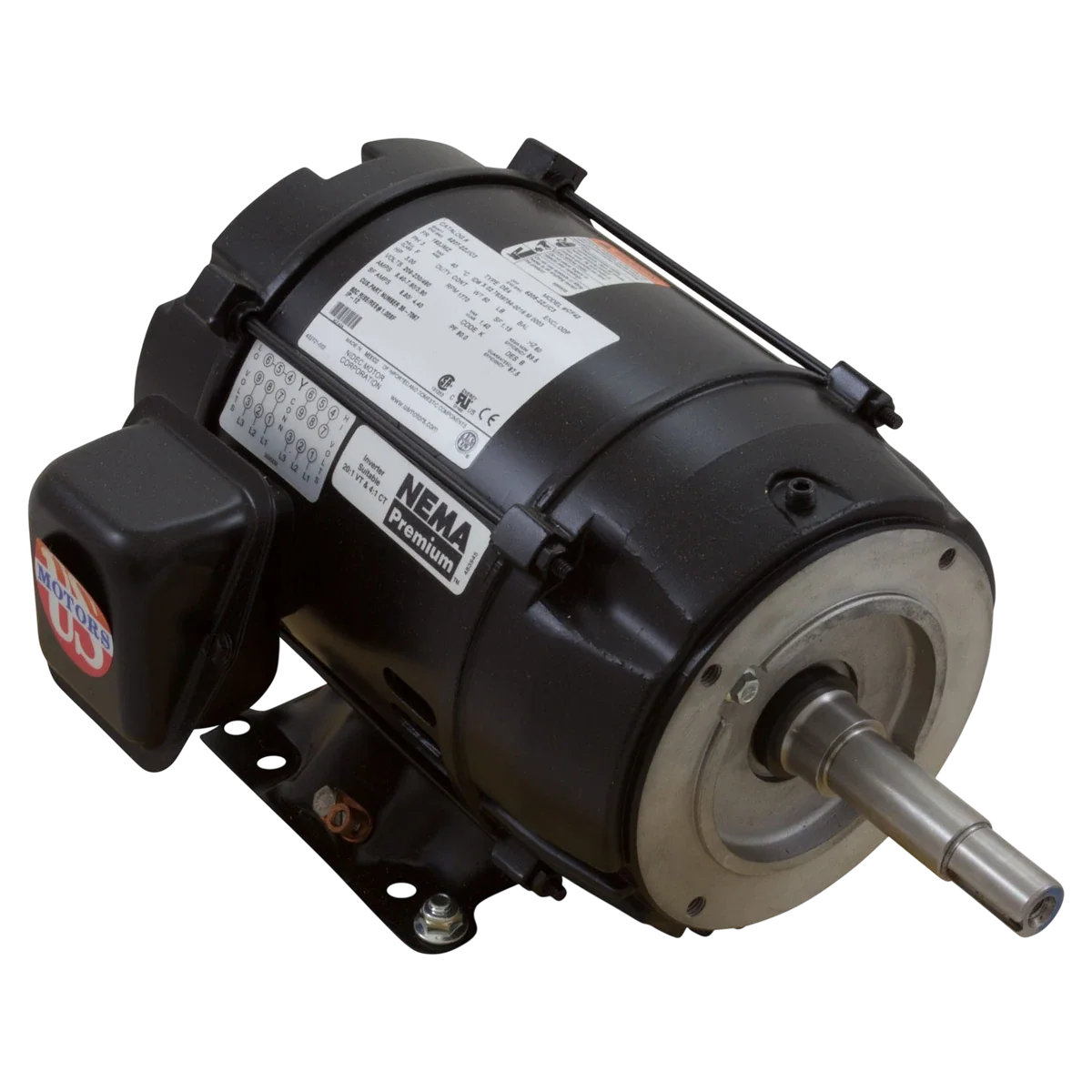

EQ Series 3HP Pump Motor

This 3 HP, 3-phase motor replaces the drive on Pentair EQ Series commercial plastic pool and spa pumps, sold as part of the EQW300/EQWK300 motor package.

Key Features

• 3.0 HP, 3-phase
• 208-230V/460V, 60 Hz
• 1750 RPM, single speed
• Open Drip Proof (ODP) enclosure
• Square flange, keyed C-face shaft

Compatibility

• Pentair EQ Series Commercial Plastic Pool and Spa Pump (EQW300)
• Pentair EQWK300 Waterfall Pump
• Pentair EQ Series Pump with Hair & Lint Strainer option
• Does not fit the 7.5 HP (357069S) or 10 HP (357070S) EQ Series motors

Pentair 354812S is also a 3 HP, 3-phase, square flange motor but uses a TEFC enclosure instead of ODP and is a separate, non-interchangeable part number.
