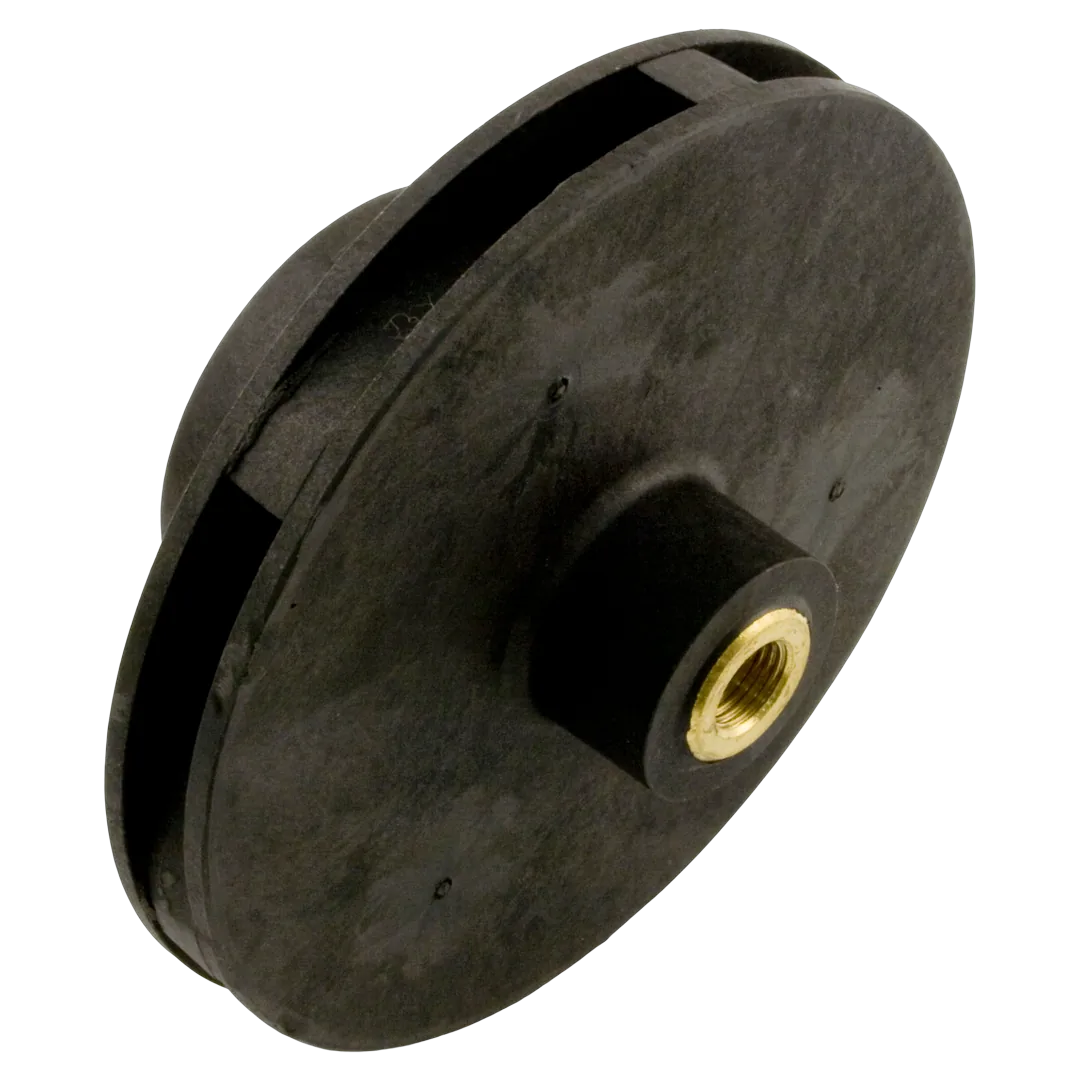

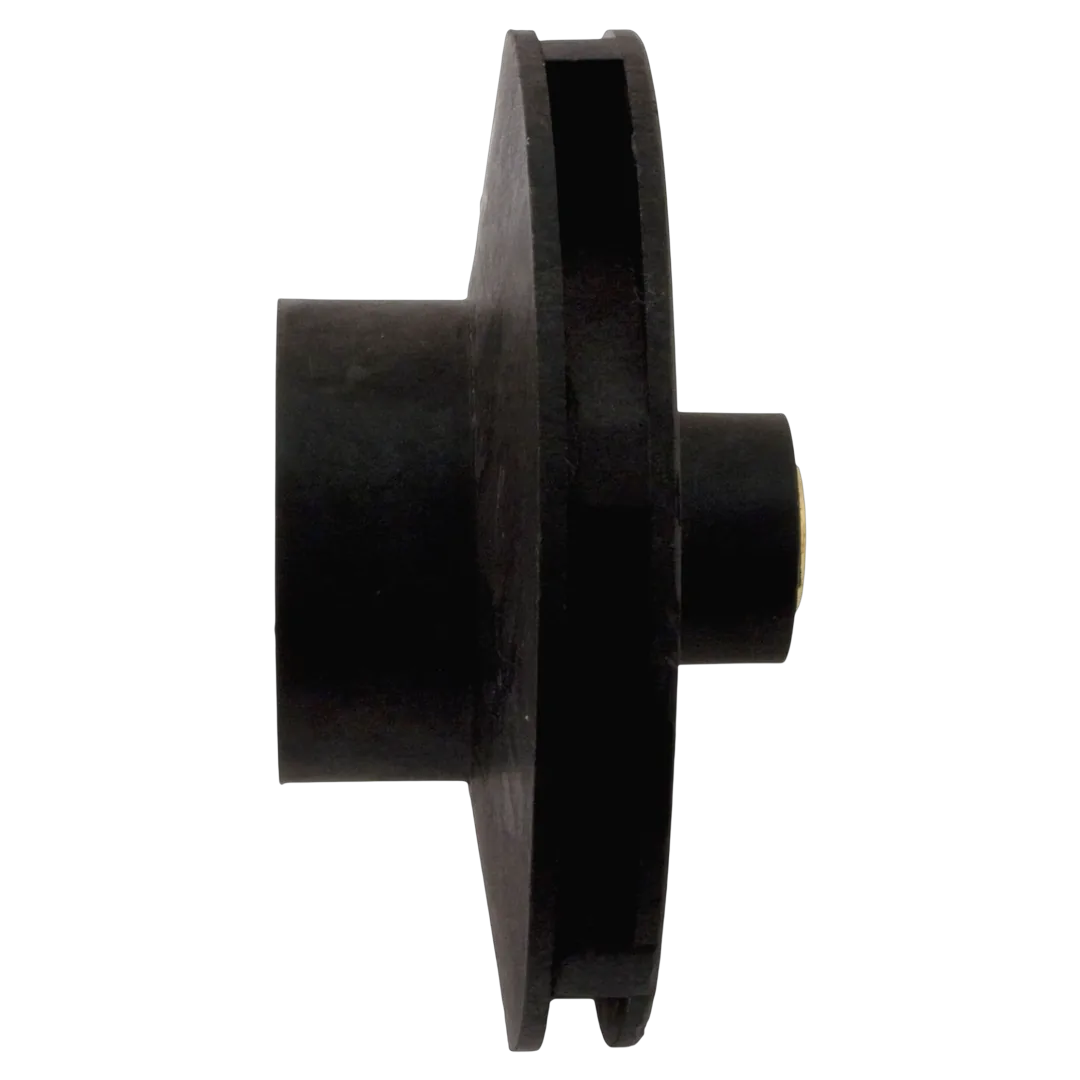

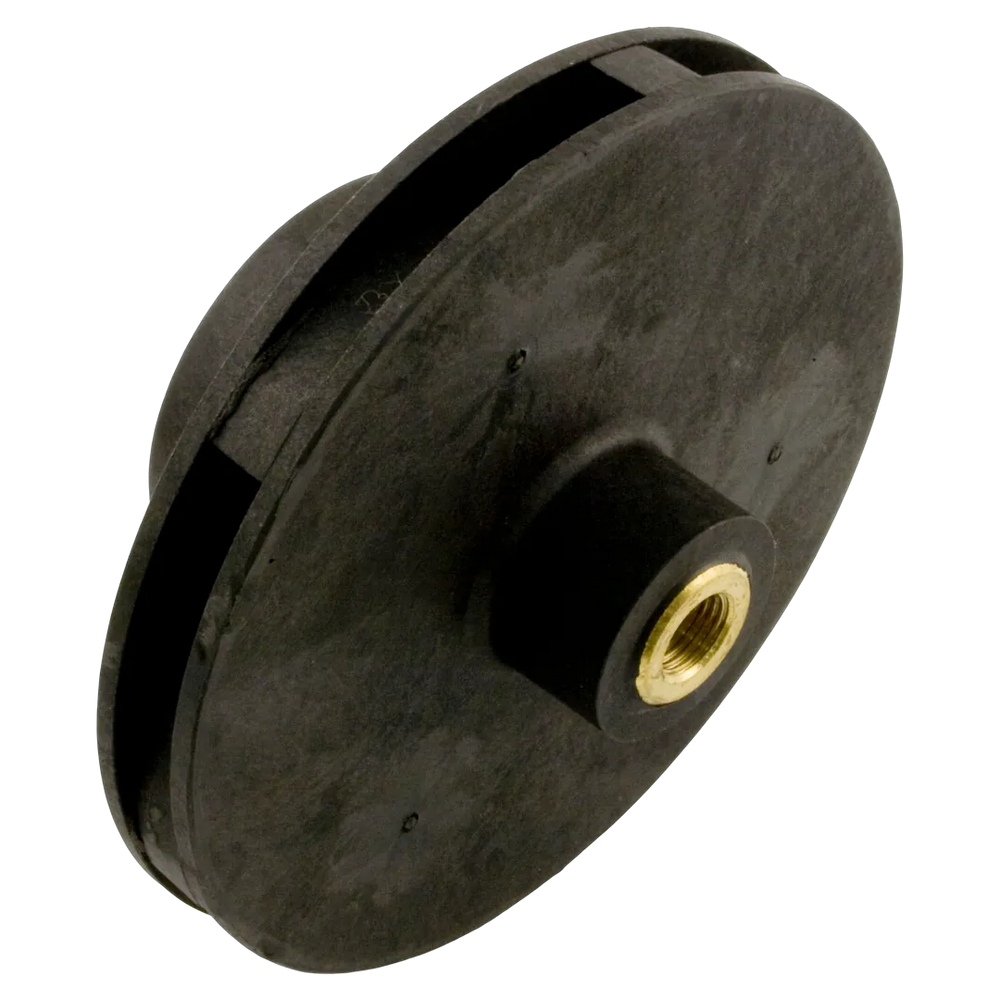

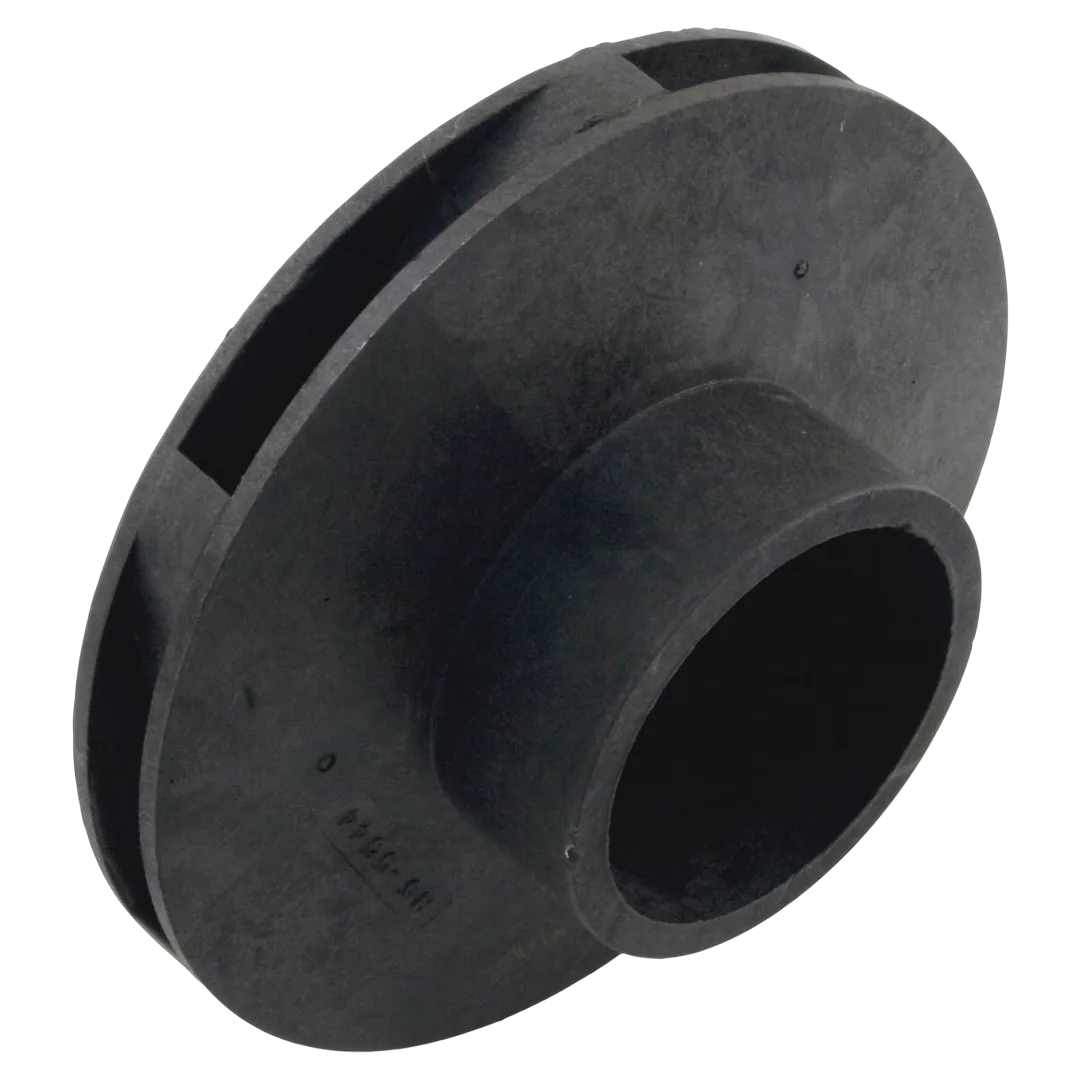

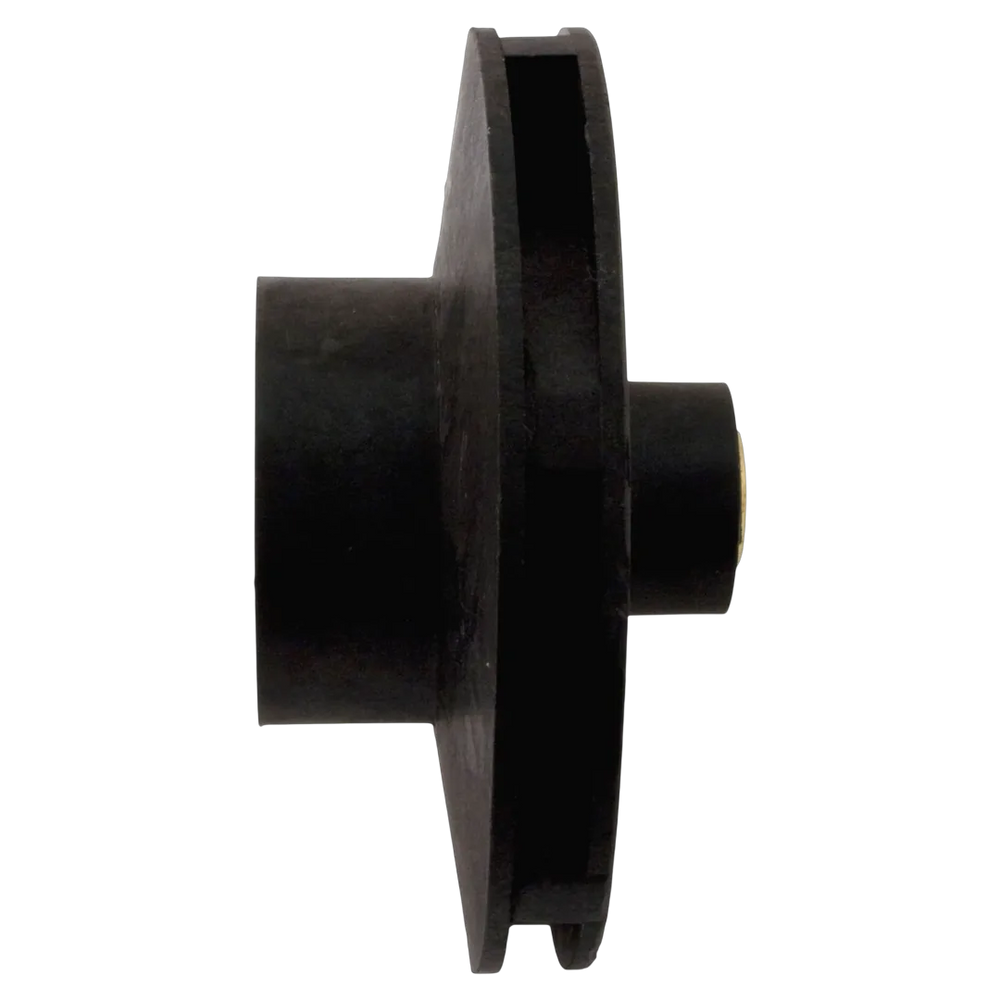

Pentair Challenger 355544 Impeller
Pentair | SKU:
355544
$8500/ea
Unit price
/
Unavailable
Pentair Challenger 355544 Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Pentair 355544 is a 3 horsepower closed face impeller designed for use with the Pentair Challenger high-pressure inground pumps. It is manufactured by Pentair and serves to provide efficient water circulation within the pump system. This model is compatible with Challenger High Pressure Pump models as well as the WaterFall pool and spa pump models AF-75 and AFP-75.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller, 3F |
| Part Number | 355544 |
| Part Type | Impeller |
| Compatibility | Pentair Challenger High Pressure Inground Pumps, Model AF-75, AFP-75 WaterFall Specialty Pumps |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 5.125 inch |
| Vane Width ID | 0.375 inch |
| Eye Diameter OD | 2.4375 inch |
| Eye Length | 0.9375 inch |
| Impeller Width OD | 0.625 inch |
| Seal Seat Depth | 0.75 inch |
| Seal Seat Diameter OD | 1.3125 inch |
| Shipping Dimensions | 5.5 x 5.5 x 2.5 inch |
| Product Weight | 0.46 pound |
