Pentair C5-247 Impeller 5HP Medium Head
Pentair | SKU:
C5-247
$73900/ea
Unit price
/
Unavailable
Pentair C5-247 Impeller 5HP Medium Head is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

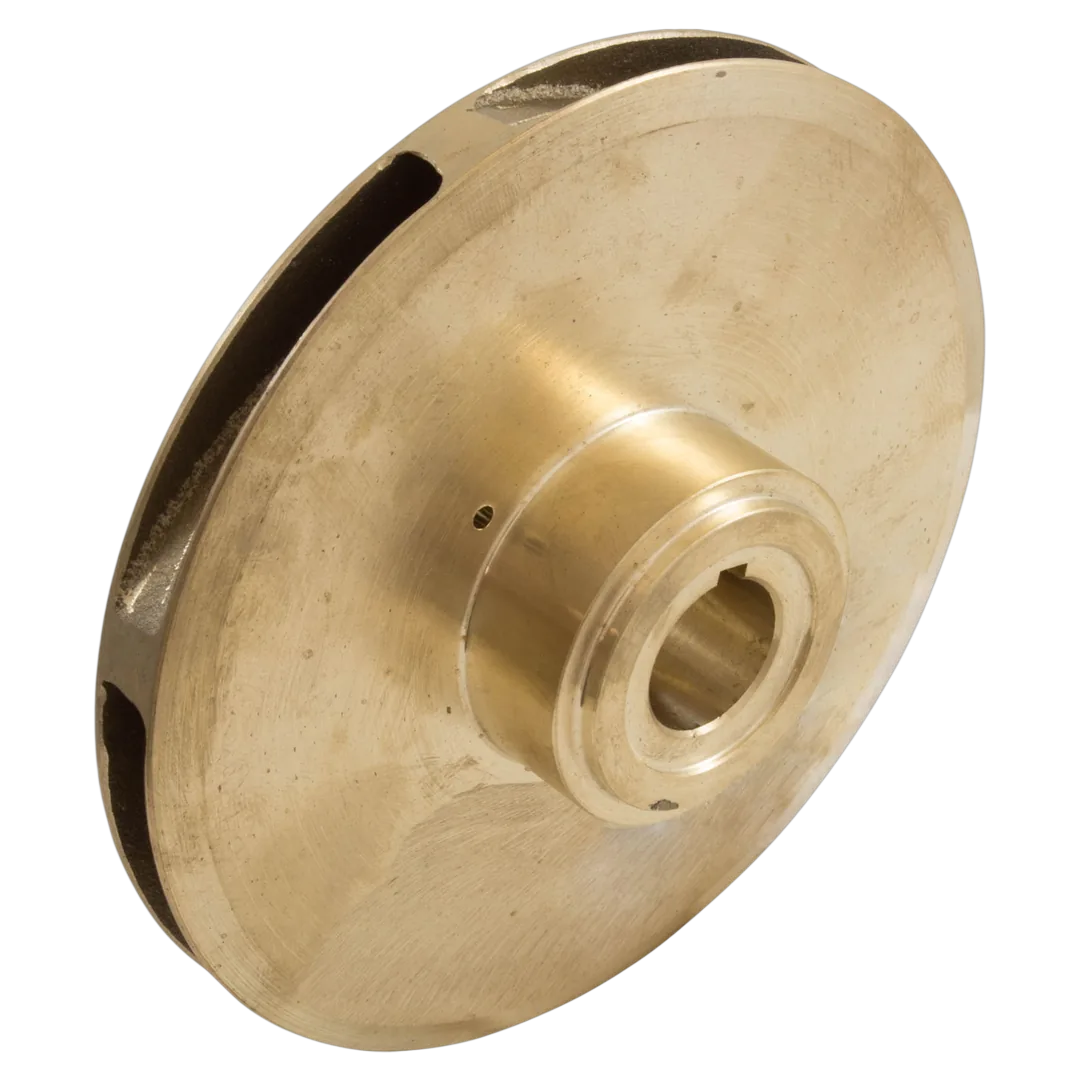

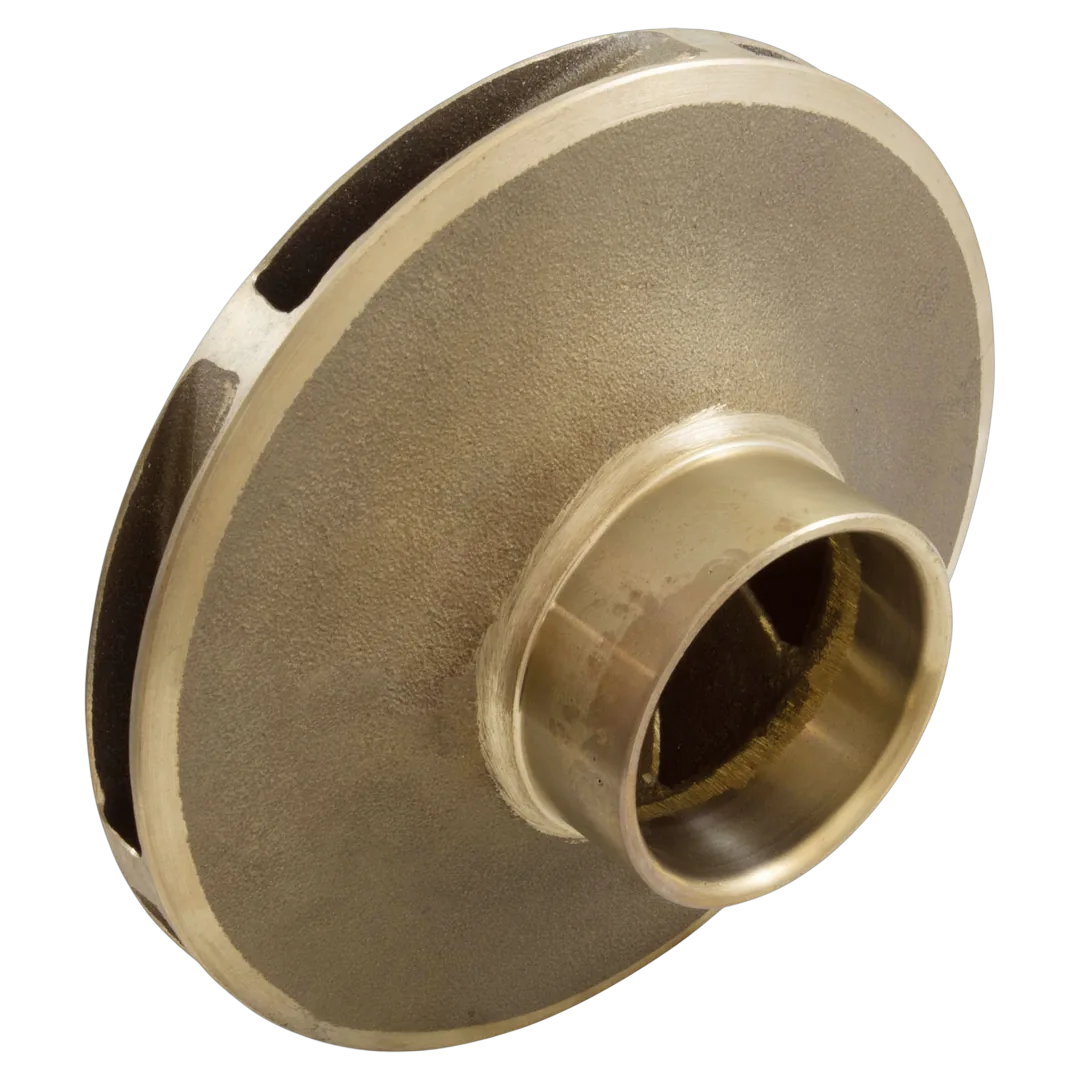

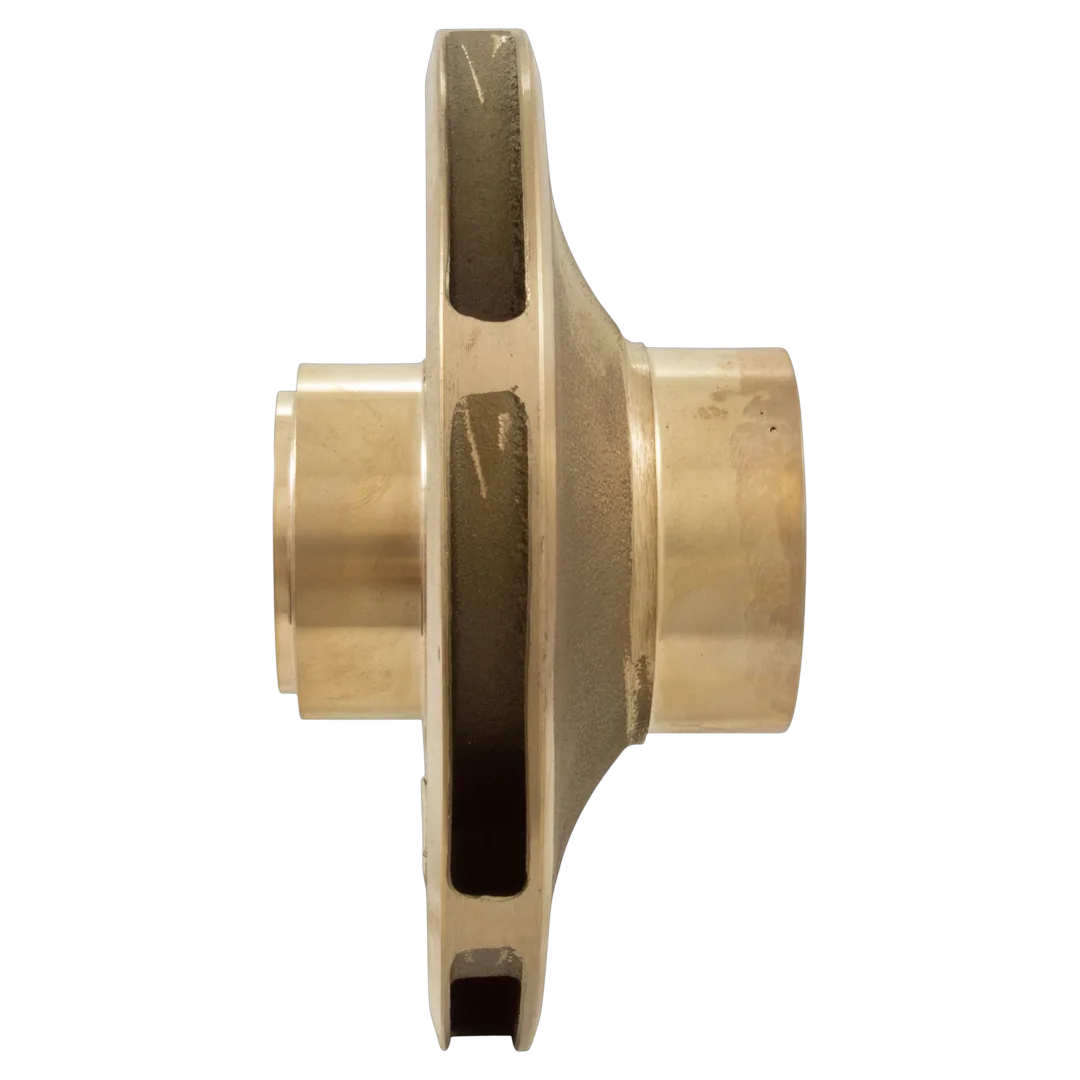

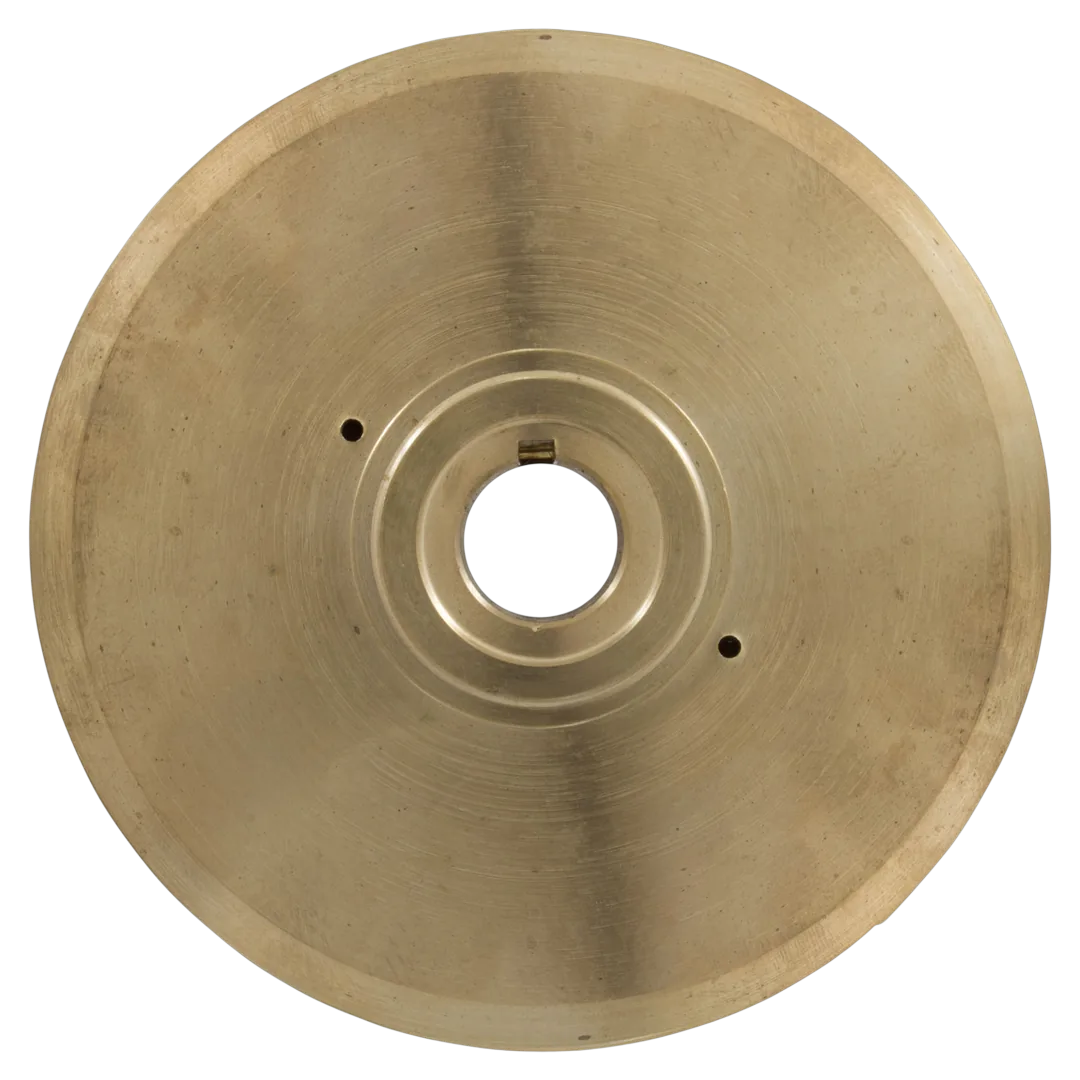

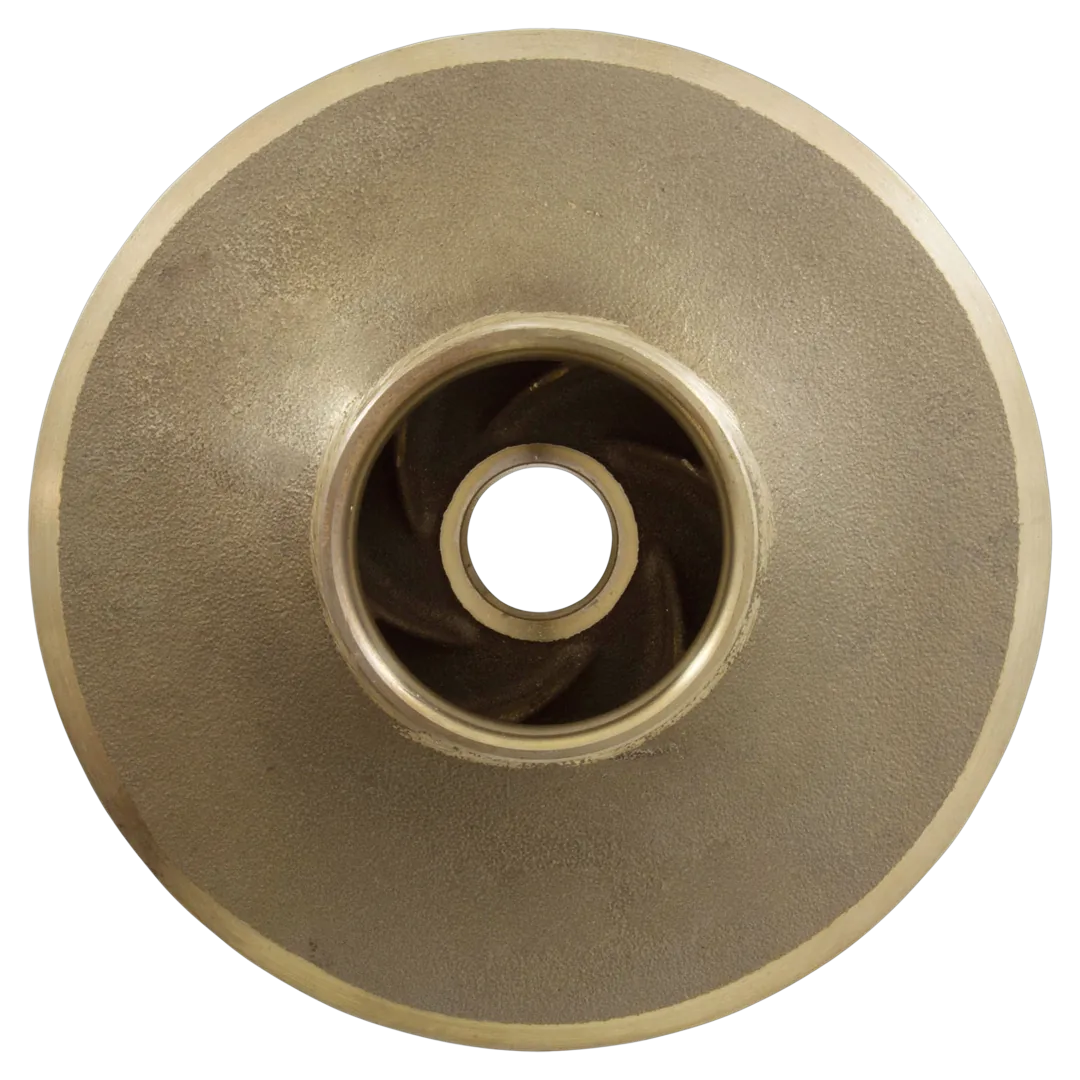

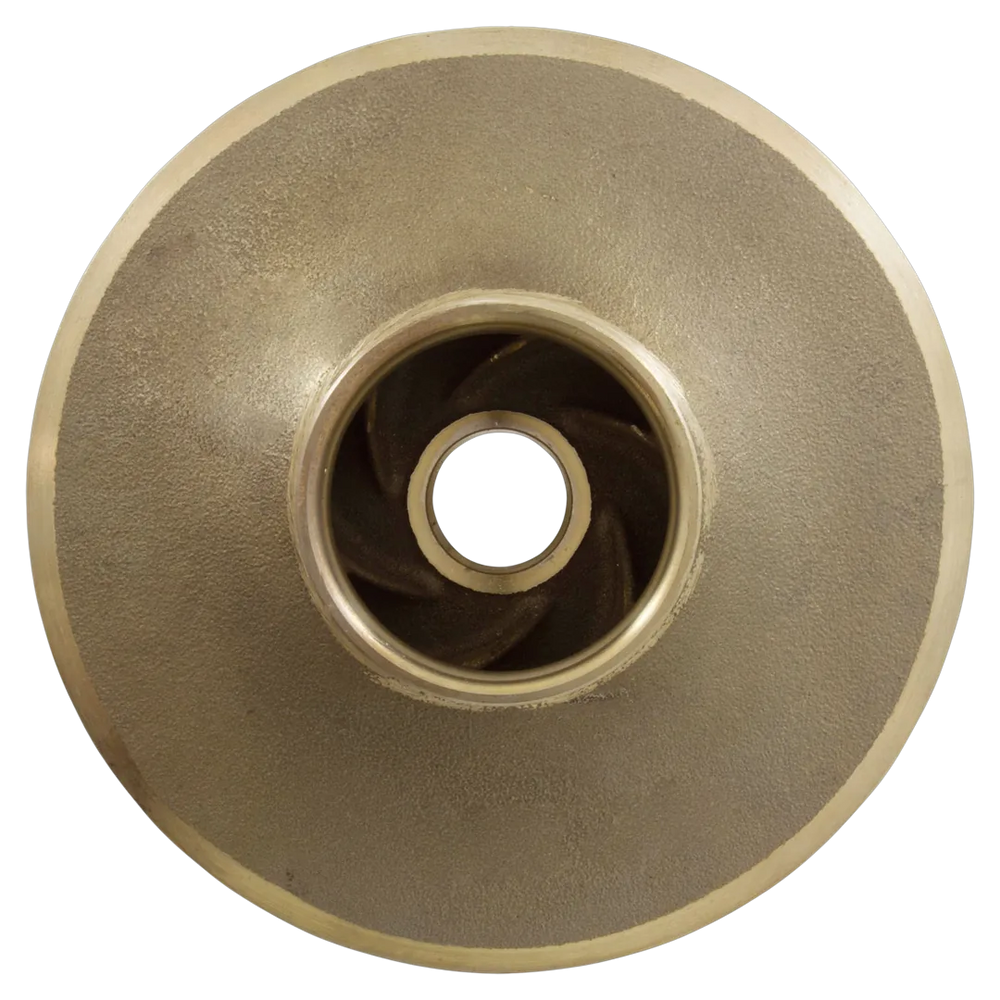

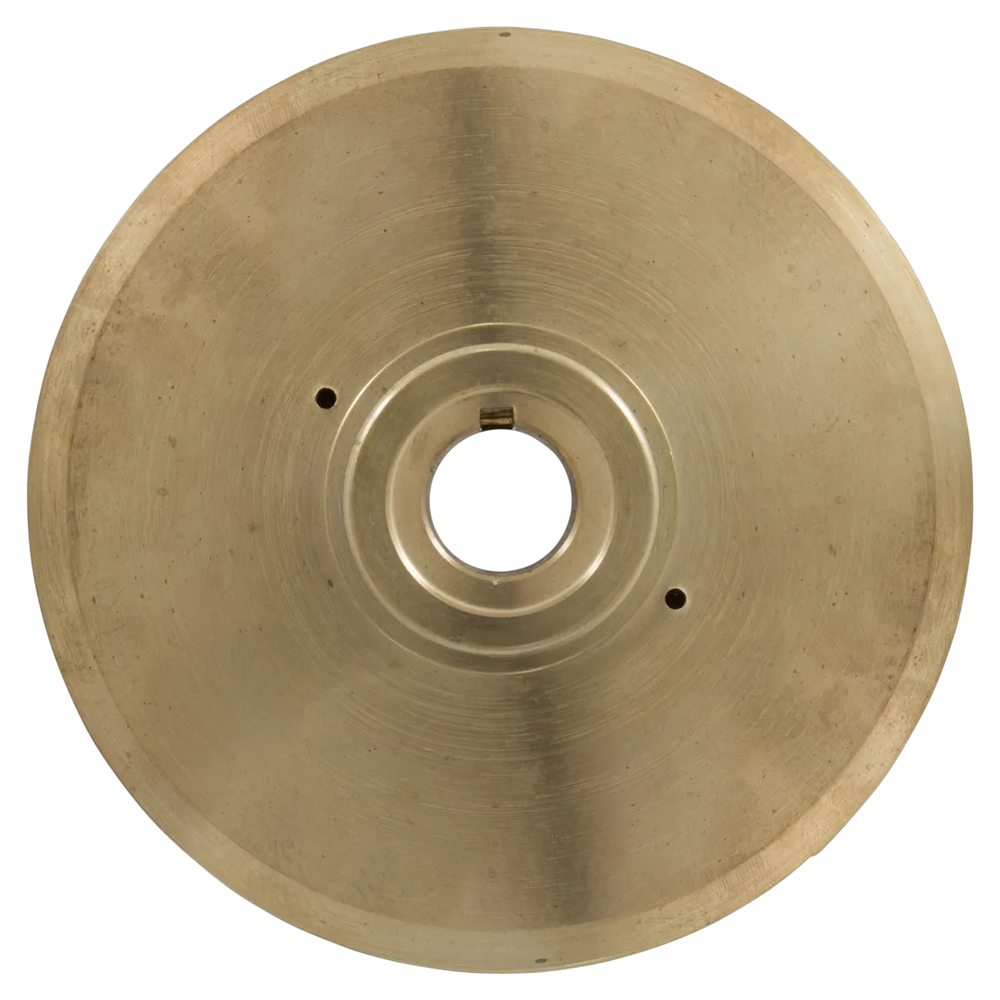

The Pentair C5-247 is a 5 horsepower medium head impeller for the D Series, commonly utilized in commercial centrifugal pool and spa pumps. It is constructed as a closed-face impeller with a significant diameter of 5-13/16 inches, and a thickness of 1/2 inch. This component is specific to and compatible with Pentair's D Series 5 HP self-priming pumps.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Impeller 2 - Medium Head: 5 HP |
| Part Number | C5-247 |
| Part Type | Impeller |
| Compatibility | Pentair Sta-Rite D Series Medium Head 5 HP Pumps |
| Substitute Part Numbers | C105207, C5247, 35-102-2062, PENC5-247, STA-101-1466 |
| Material | Bronze |
| Dimensions | 5.8125 x 0.5 x 5.8125 inches |
| Product Weight | 3.5 pounds |
