Pentair MasterTemp/Max-E-Therm 6-Button Control Board Kit
Pentair MasterTemp/Max-E-Therm 6-Button Control Board Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

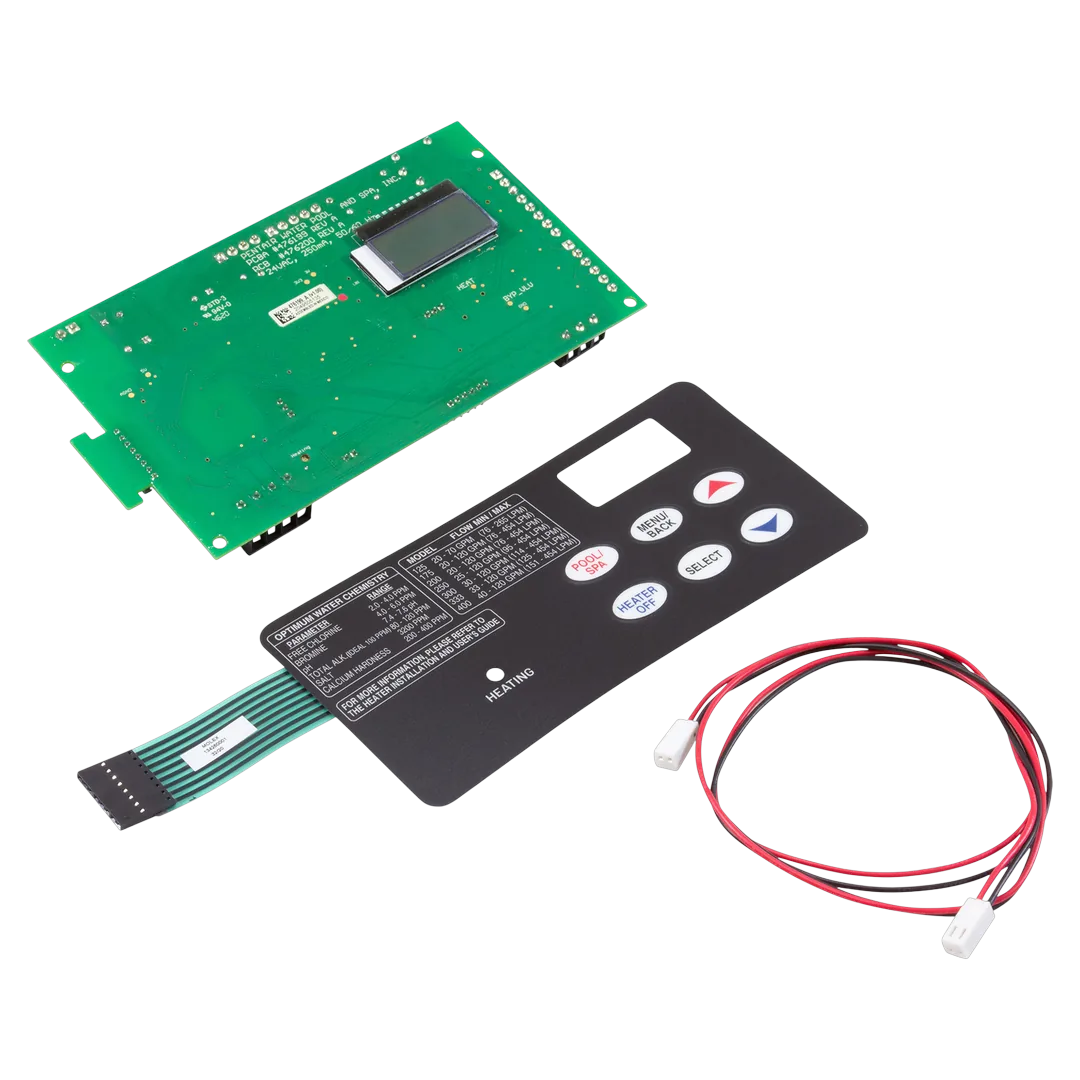

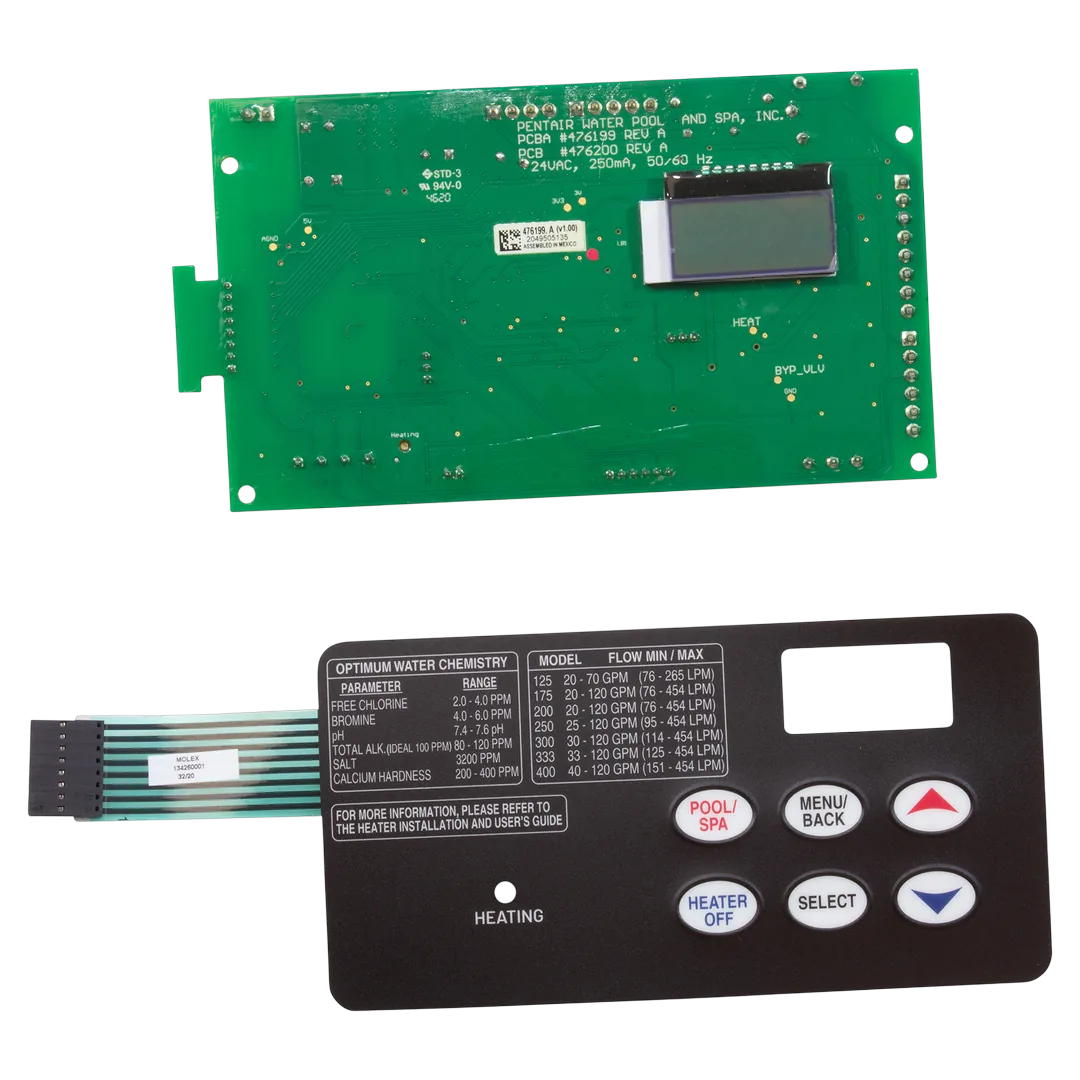

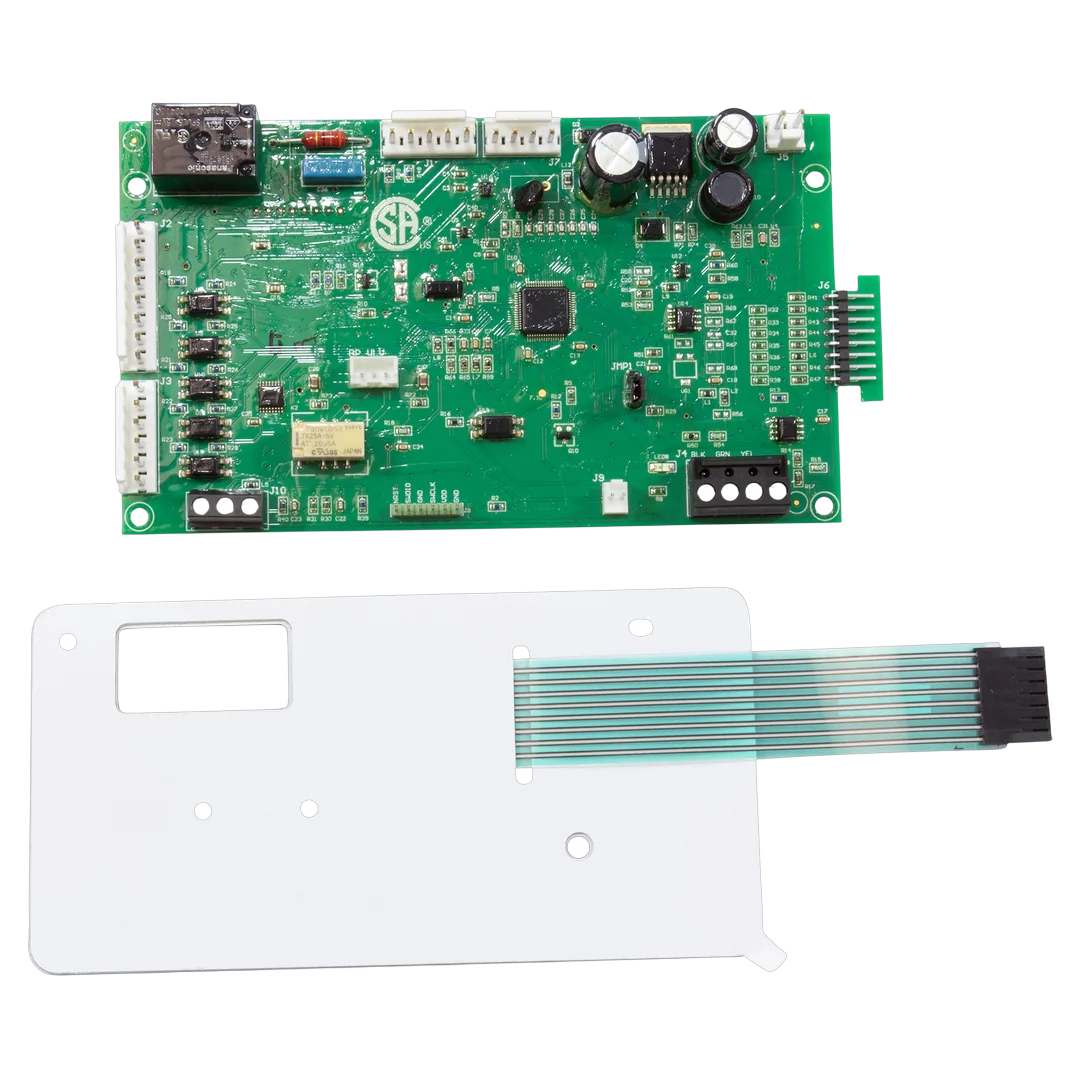

Replacement control board kit (Pentair 461105Z) for MasterTemp heaters-including 125-and Sta-Rite Max-E-Therm, replacing kit 42002-0007S. It restores heater logic, display, and communication functions with the updated 6-button interface. Kit includes the OEM PCBA, RS-485 communication assembly, and a new 6-button membrane pad; if your harness uses a 9-pin plug, seat the connector and leave the top three positions empty.
Includes: Control Board, 6-Button Membrane Pad, RS485 Assembly, Installation Instructions
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Control Board Kit |
| Part Number | 461105Z |
| Part Type | Control Board |
| Compatibility | Pentair MasterTemp and Sta-Rite Max-E-Therm heaters |
| Substitute Part Numbers | 42002-0007S |
| Includes | Control Board, 6-Button Membrane Pad, RS485 Assembly, Installation Instructions |
| Material | Plastic |
| Shipping Dimensions | 10 x 6 x 2 inch |
| Product Weight | 2 pound |
Schematics:
|
Sta-Rite Max-E-Therm Electrical System Parts
View in Sta-Rite Max-E-Therm Electrical System Parts
|
