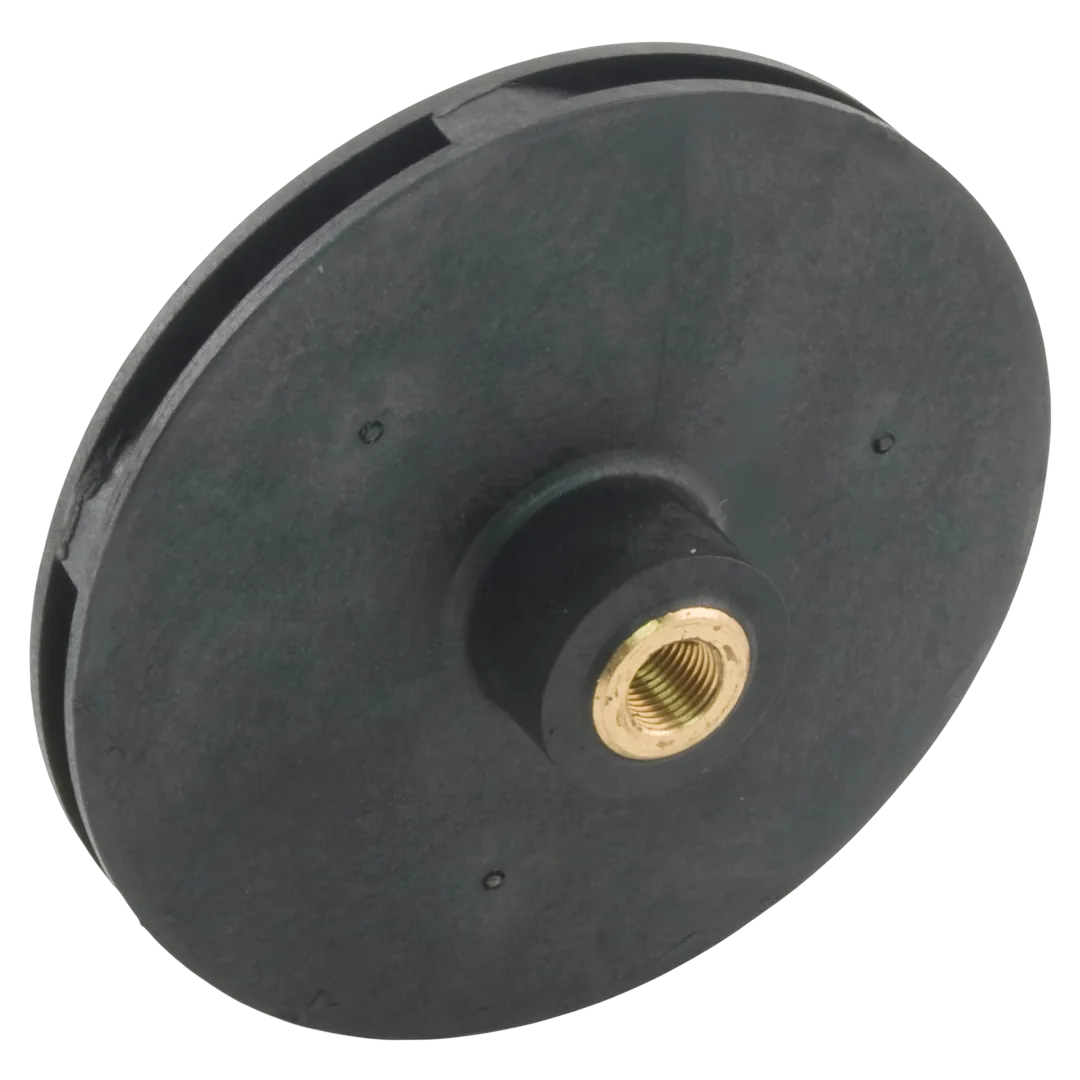

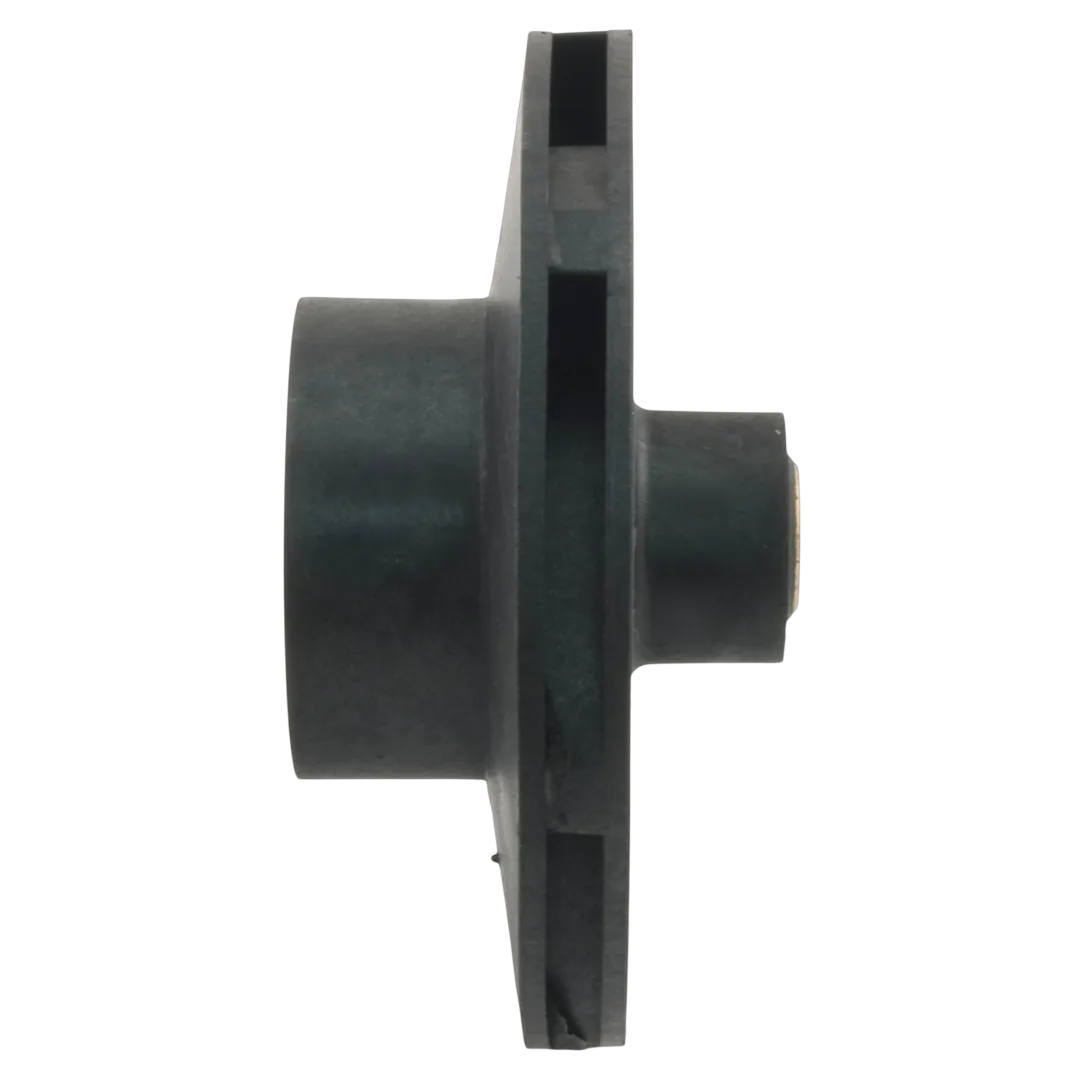

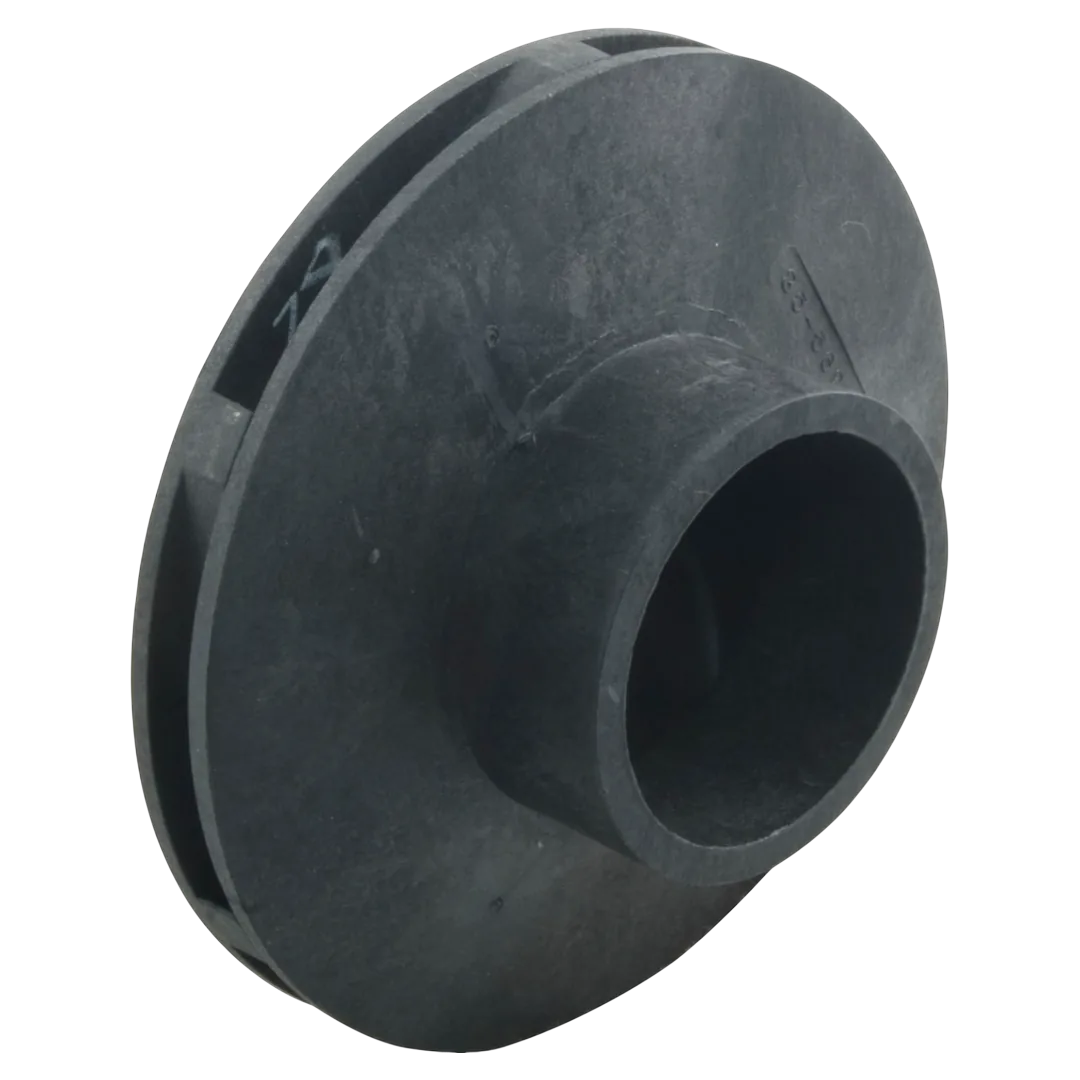

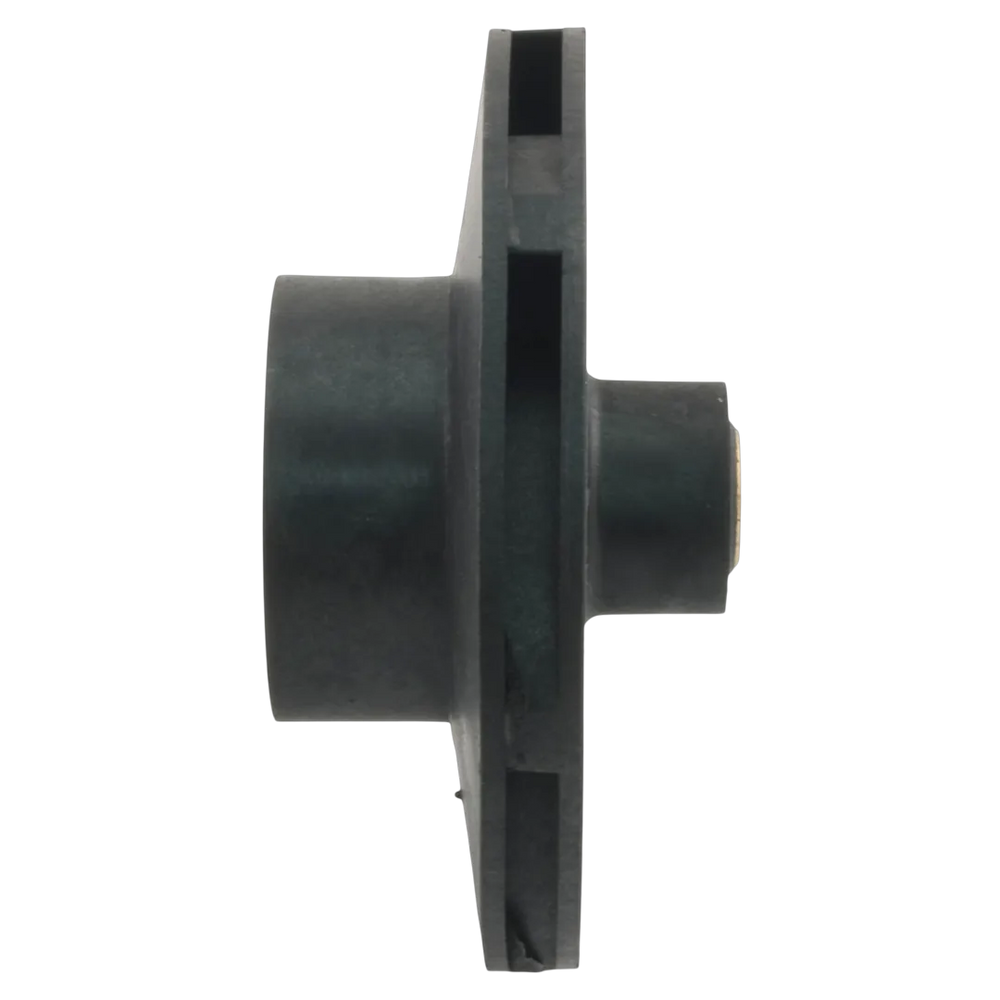

Pentair Challenger High Pressure Impeller
Pentair | SKU:
355604
$7000/ea
Unit price
/
Unavailable
Pentair Challenger High Pressure Impeller is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement impeller for Pentair Challenger high-pressure pumps, matched to 2 HP full-rated and 2.5 HP up-rated models. It restores proper flow and pressure by converting motor torque into water movement inside the high-head pump housing. OEM closed-face design; install on a compatible 2.0 HP or greater square-flange motor for correct performance.
Includes: Impeller only
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Pentair 355604 Impeller |
| Part Number | 355604 |
| Part Type | Pump Part |
| Compatibility | Pentair Challenger High Pressure Pumps, 2 HP Full-Rated and 2.5 HP Up-Rated models |
| Substitute Part Numbers | 40394, 5002-05D, 5002-05F, 5002-06C, 788379658915, PAC-101-1453 |
| Includes | Impeller only |
| Material | Plastic |
| Impeller Type | Closed Face |
| Impeller Diameter OD | 5.125 inch |
| Vane Width ID | 0.281 inch |
| Eye Diameter OD | 2.4375 inch |
| Eye Length | 0.9375 inch |
| Impeller Width OD | 0.5 inch |
| Seal Seat Depth | 0.8125 inch |
| Seal Seat Diameter OD | 1.3125 inch |
| Shipping Dimensions | 6 x 2 x 8 inch |
| Product Weight | 0.9375 pound |
