Pentair Challenger Front Housing
Pentair | SKU:
355468
$16200/ea
Unit price
/
Unavailable
Pentair Challenger Front Housing is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

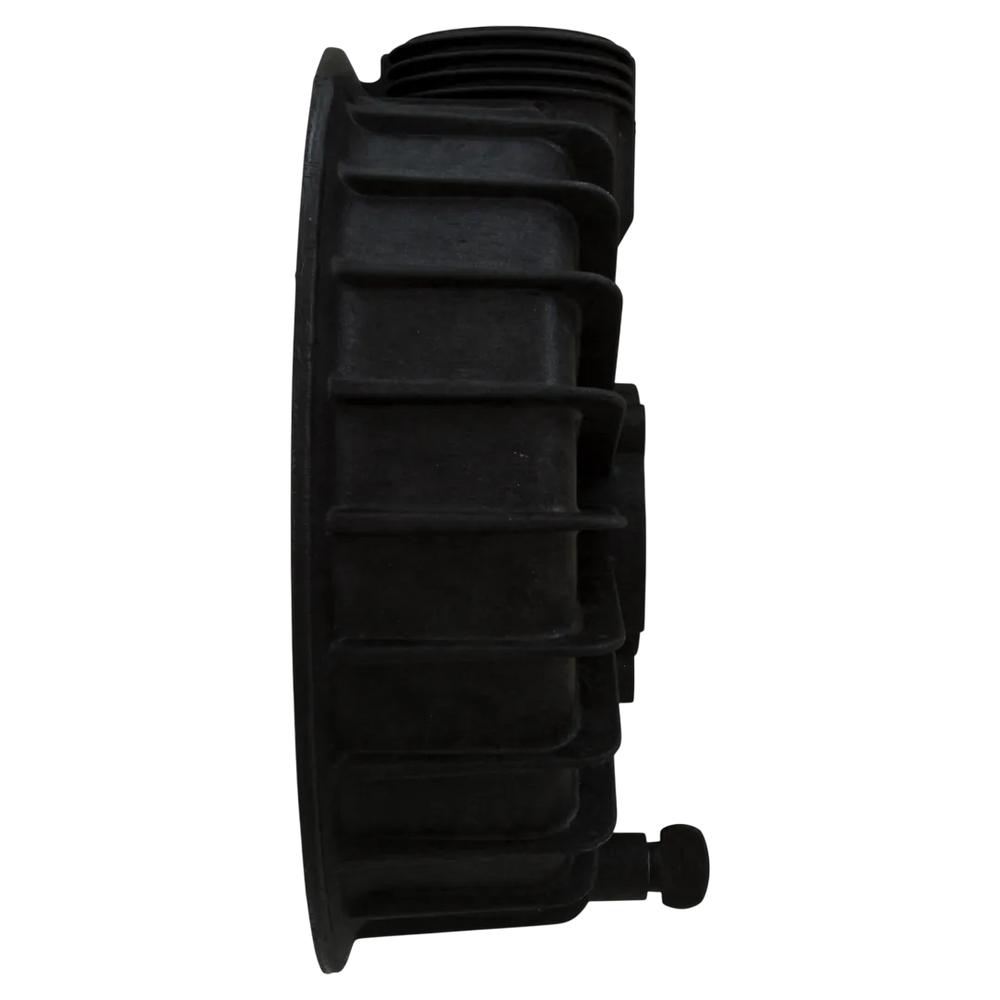

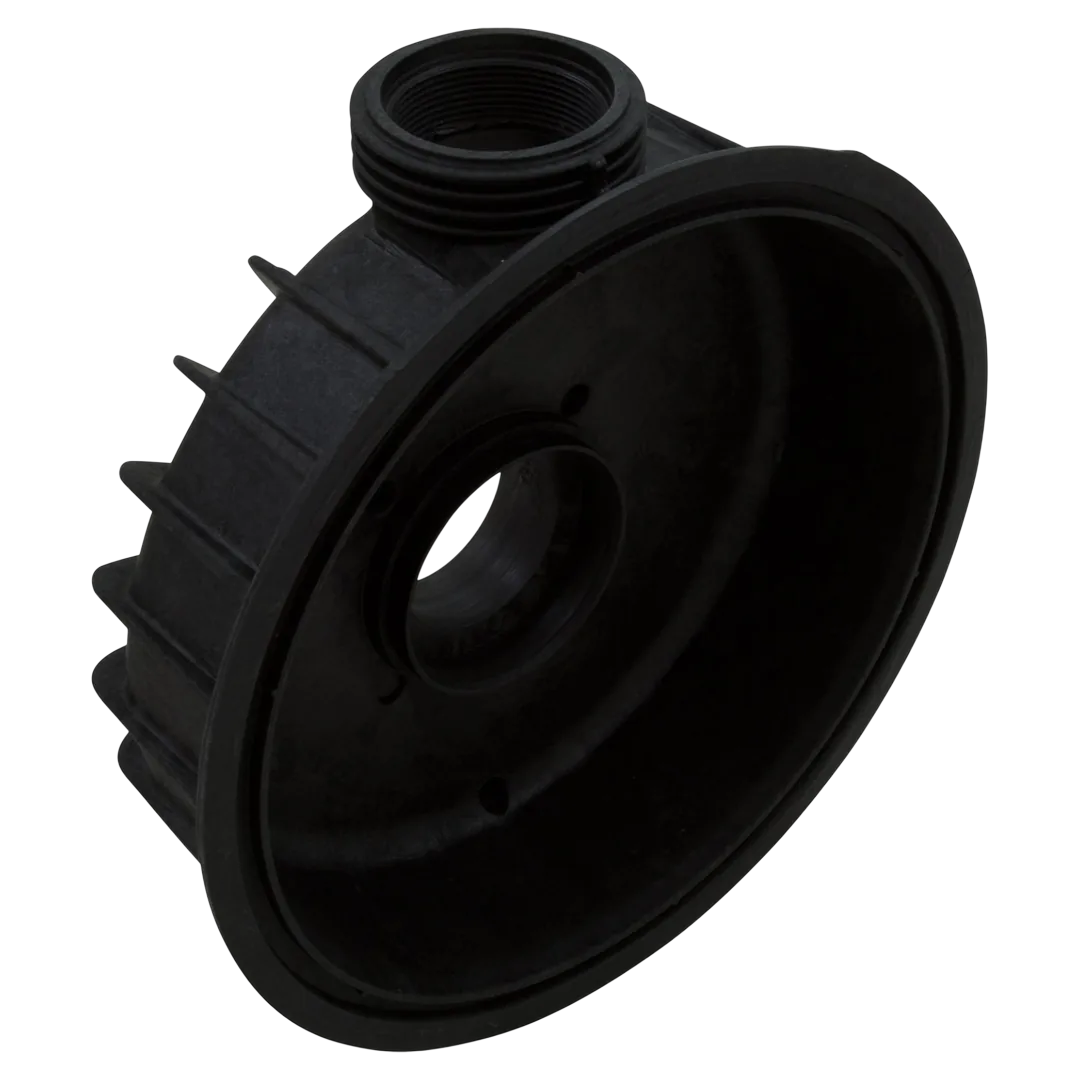

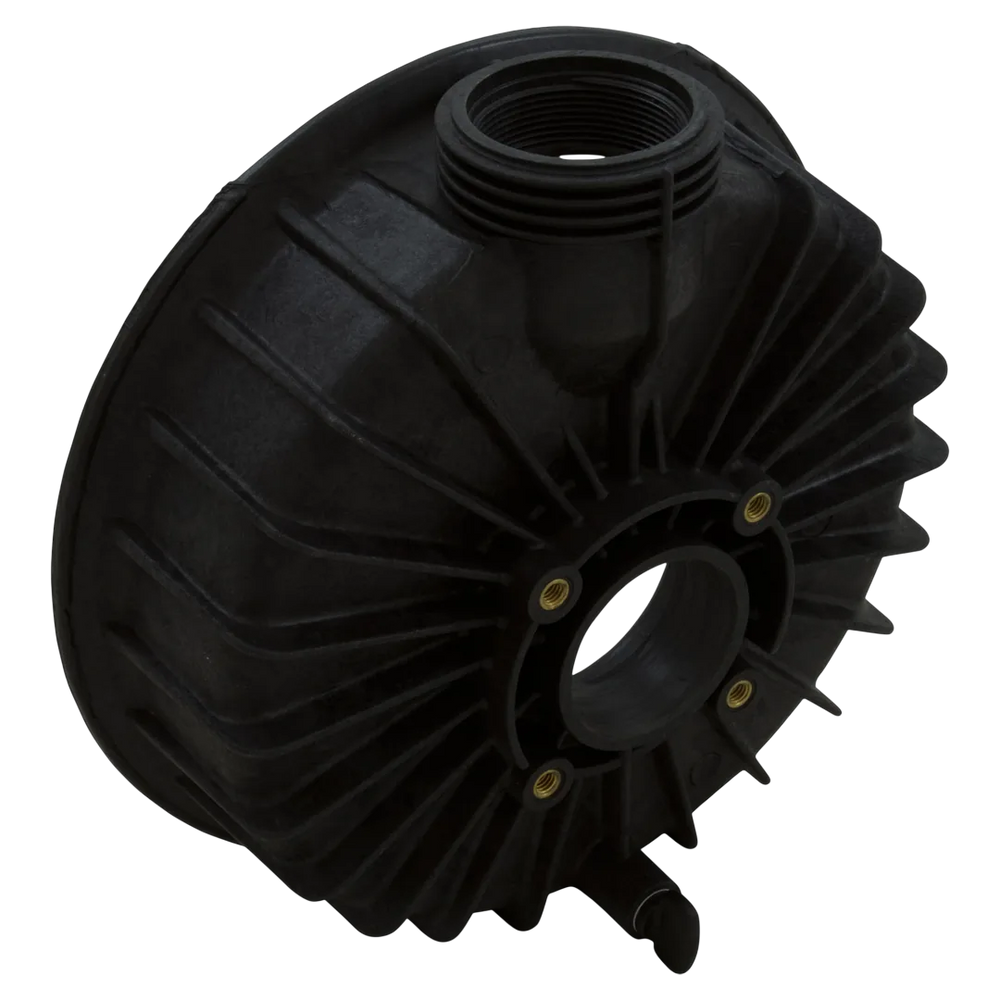

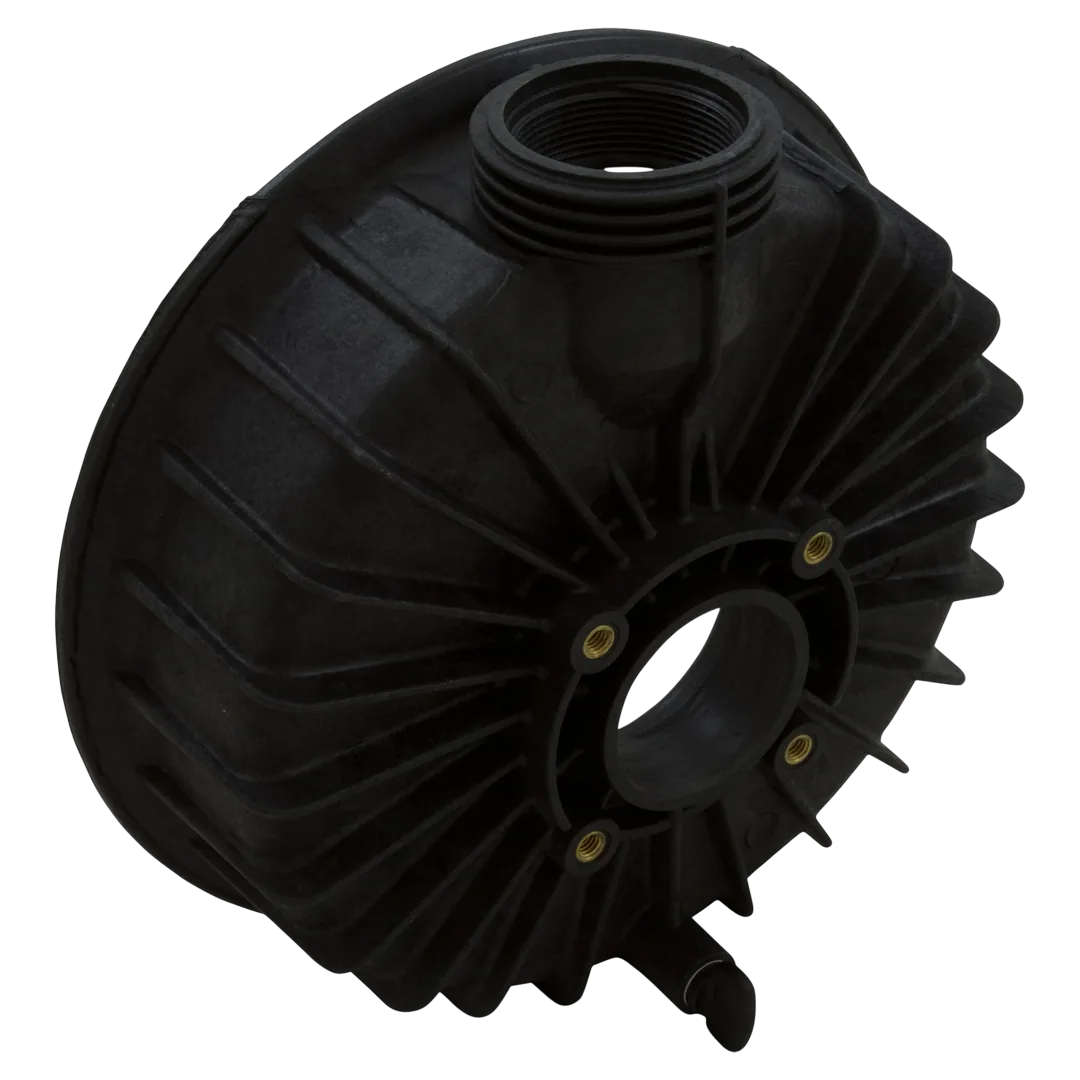

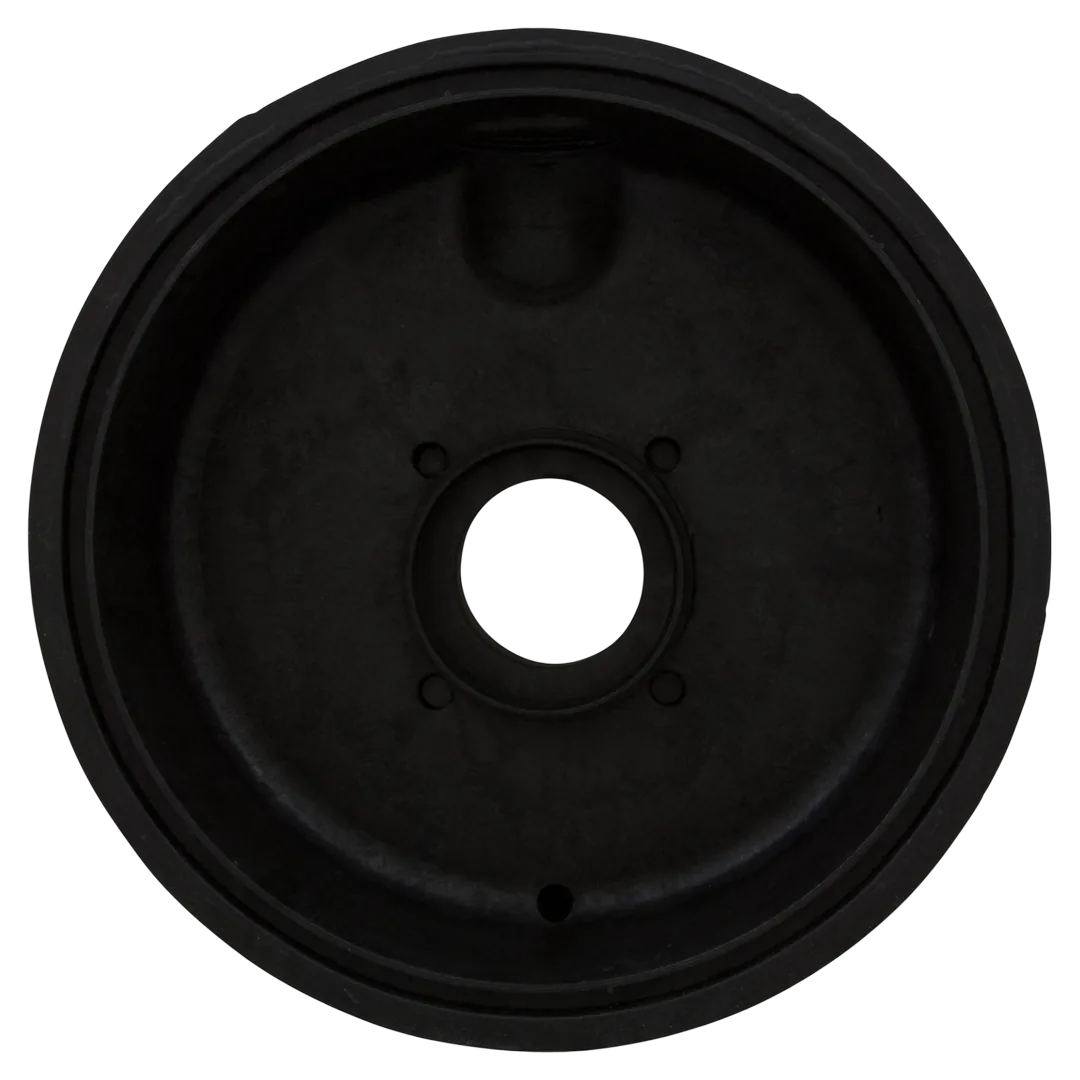

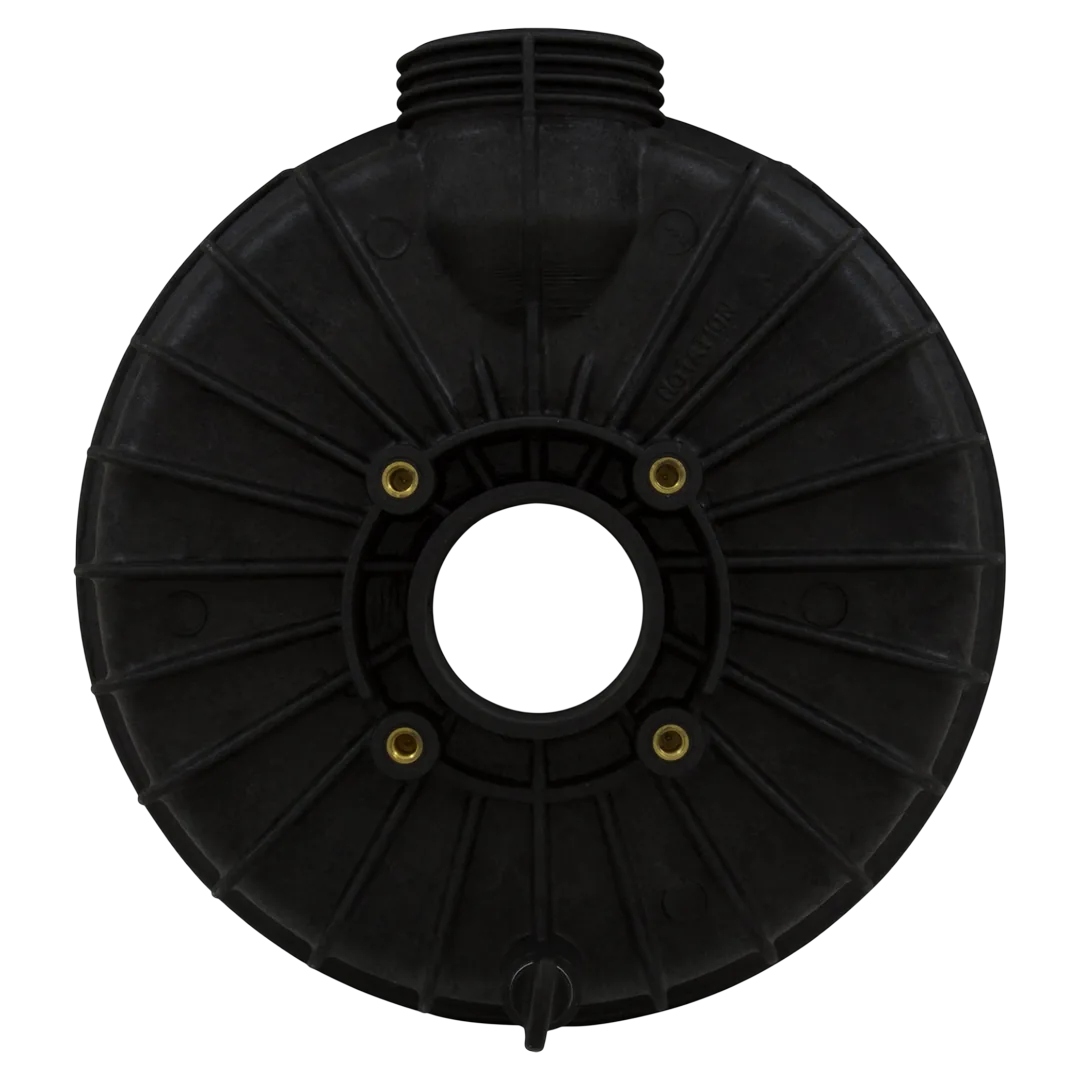

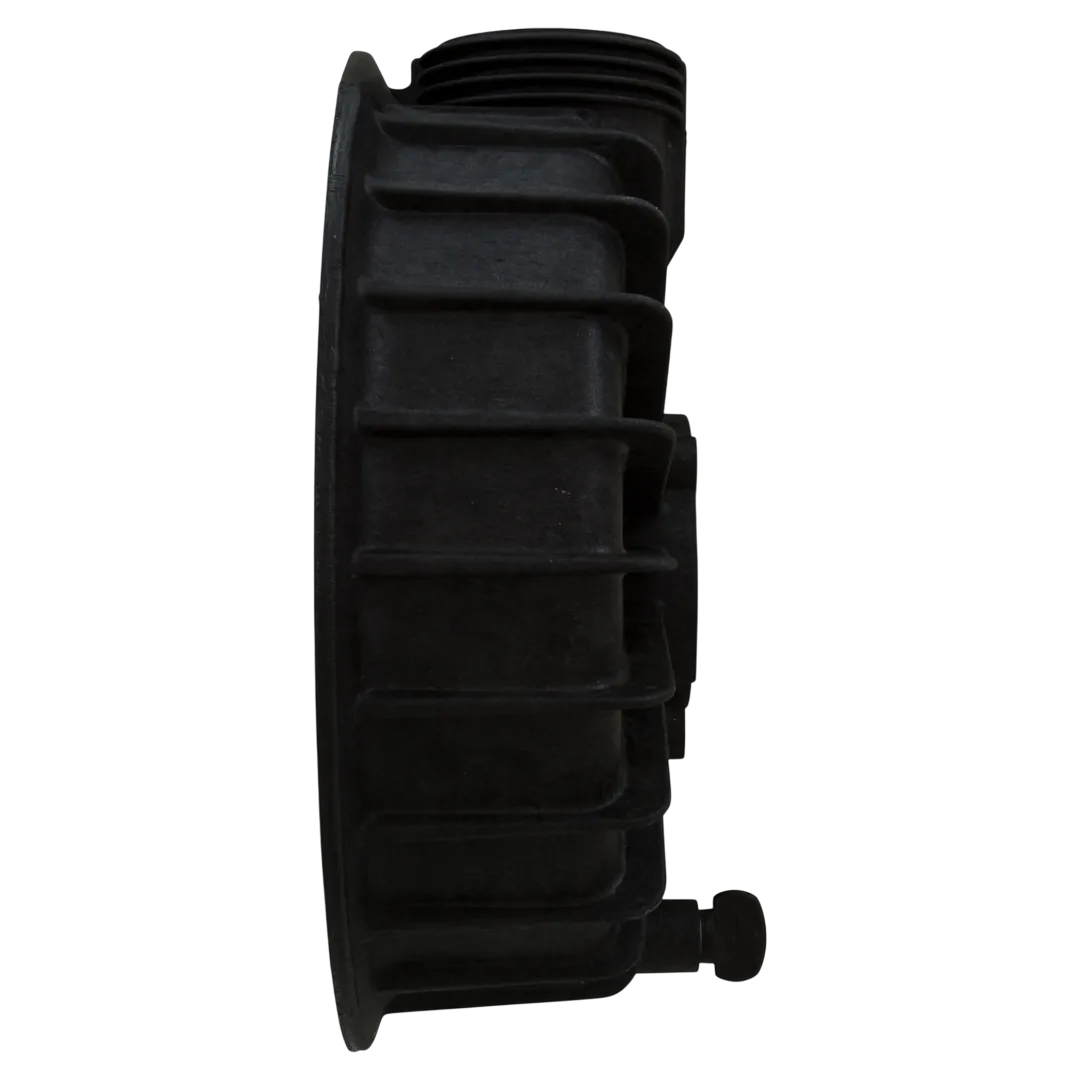

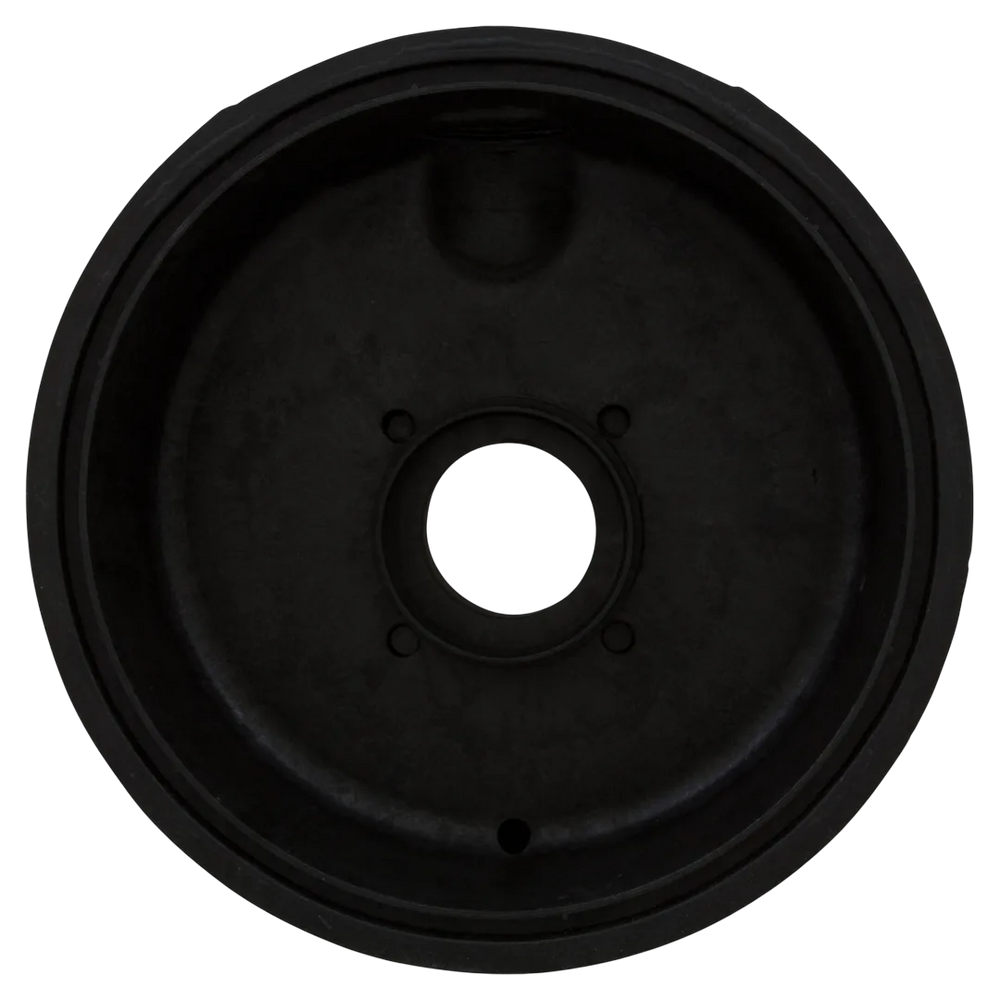

OEM replacement front housing/volute (Pentair 355468) for Pentair/PacFab Challenger High Flow and High Pressure inground pumps. It encloses the impeller to form the volute and clamps to the seal plate with the pump's stainless band clamp. Black slip-inlet style with a centered 2 in.
Includes: Drain Plug O-Ring and Drain Plug
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Pentair 355468 |
| Part Number | 355468 |
| Part Type | Pump Housing |
| Compatibility | Pentair Challenger High Flow and High Pressure Pumps |
| Substitute Part Numbers | 355469, 5002-08A, 600568 |
| Includes | Drain Plug O-Ring and Drain Plug |
| Material | Plastic |
| Connection Size | 1.5 inch Female Pipe Thread (FPT) discharge port |
| Mount Type | 4-Bolt connection to trap body Stainless Steel Band Clamp to seal plate |
| Shipping Dimensions | 12 x 12 x 5 inch |
| Product Weight | 2.62 pounds |
