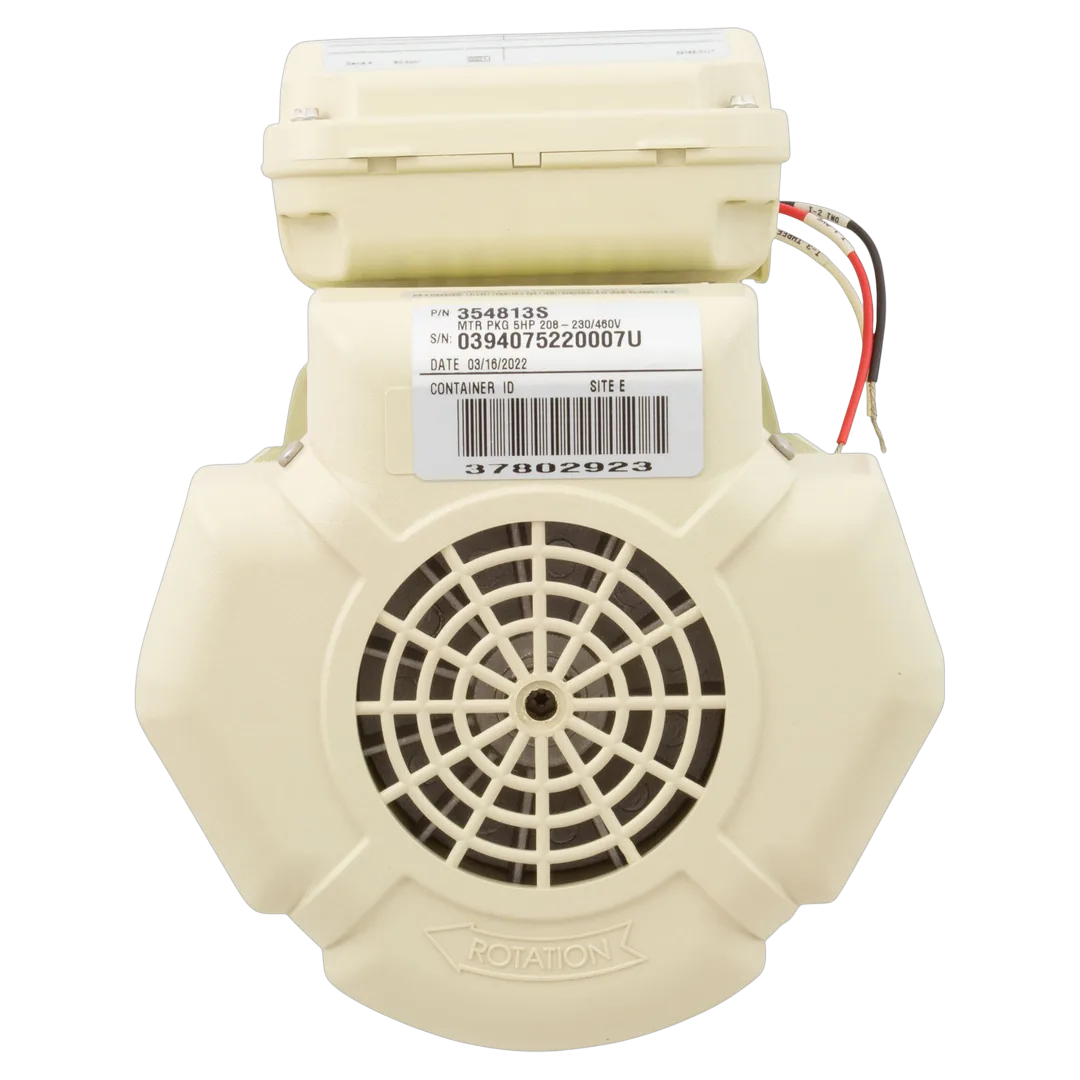

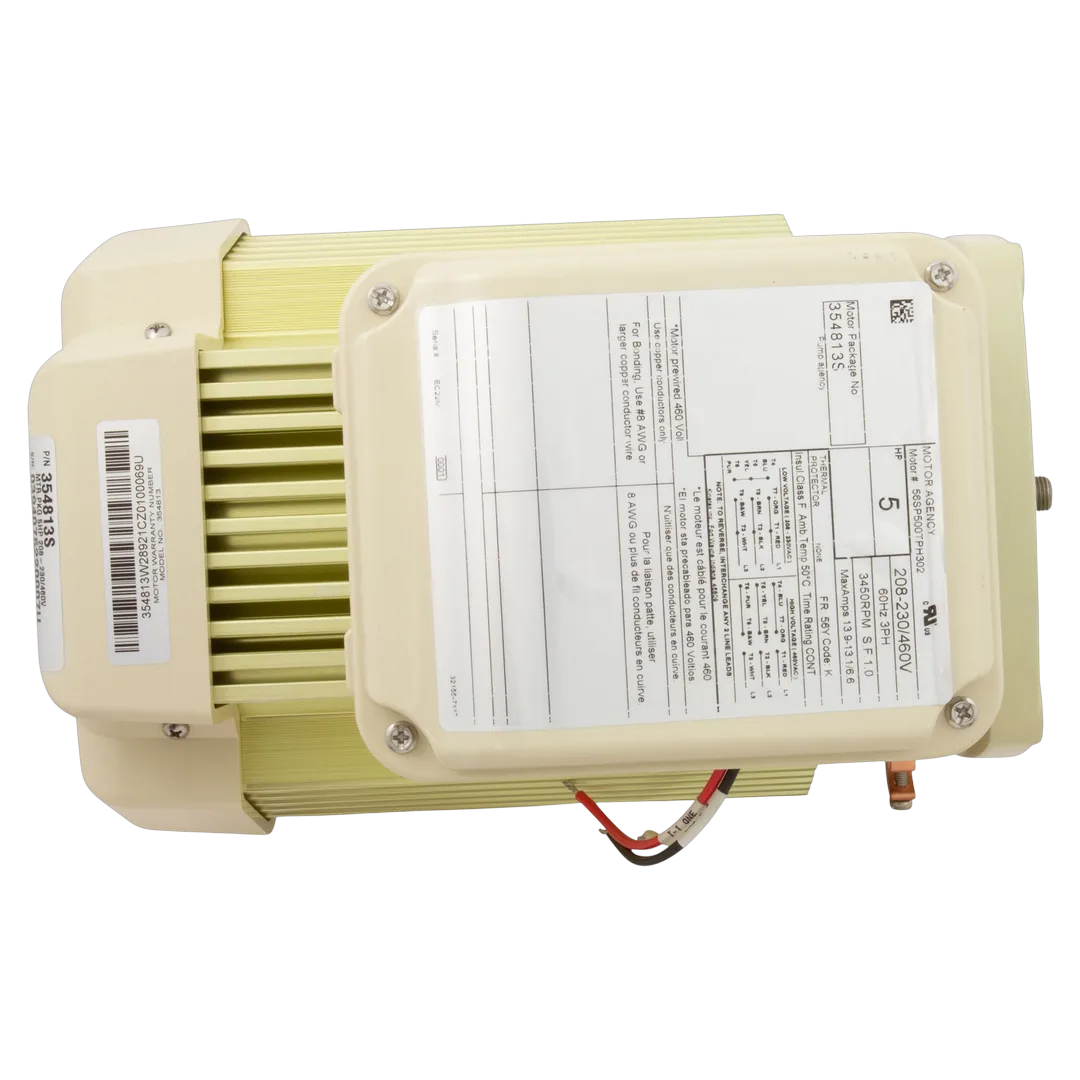

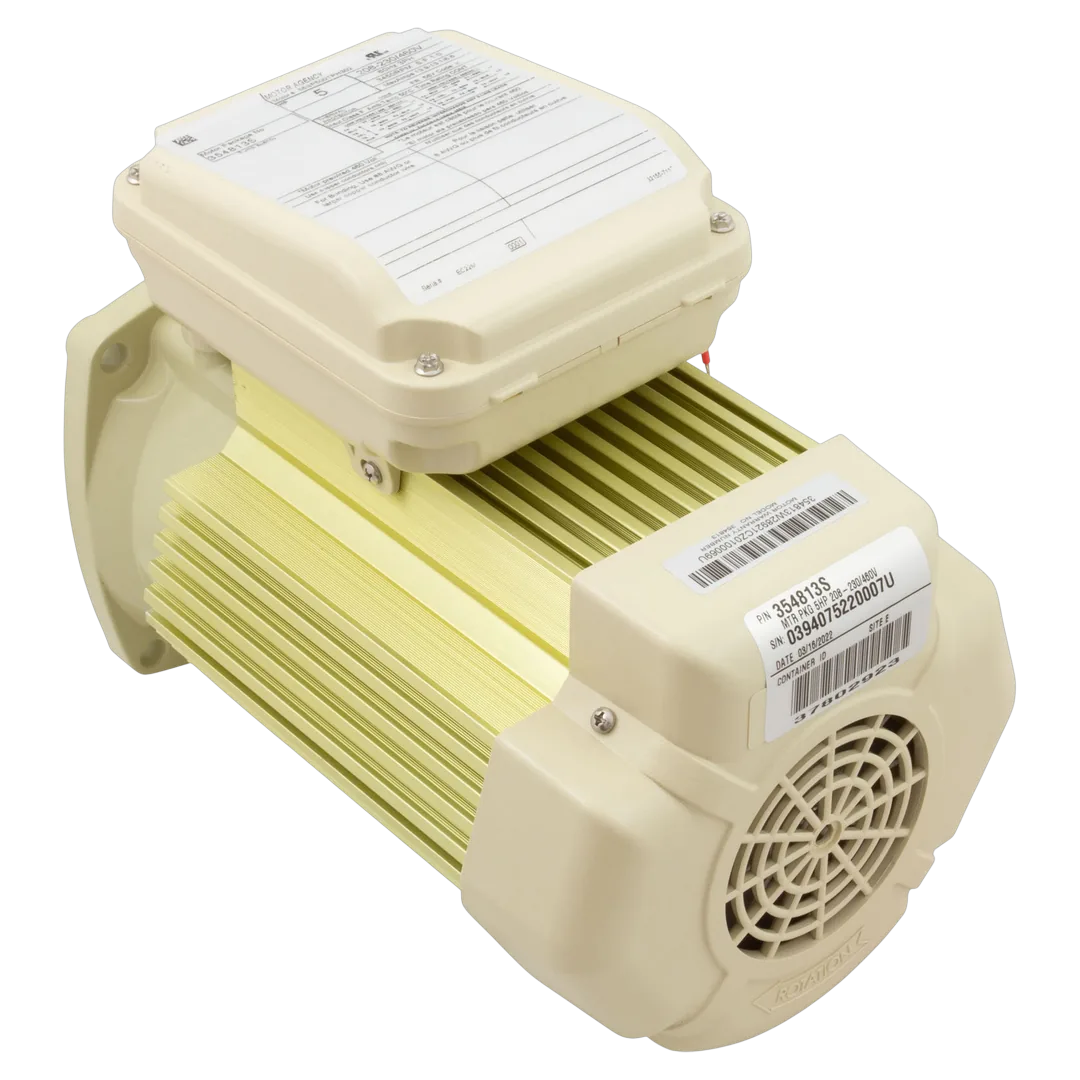

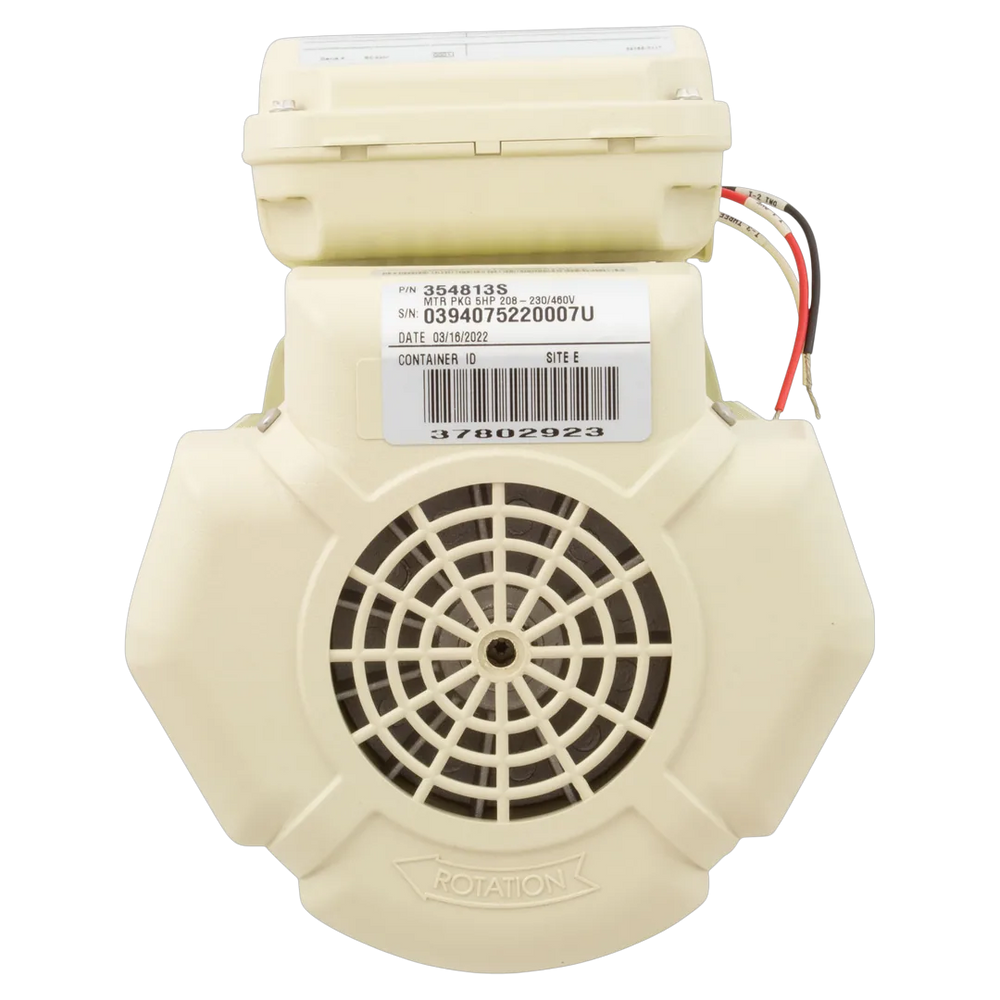

Pentair 354813S Pump Motor
Pentair | SKU:
354813S
$1,02300/ea
Unit price
/
Unavailable
Pentair 354813S Pump Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

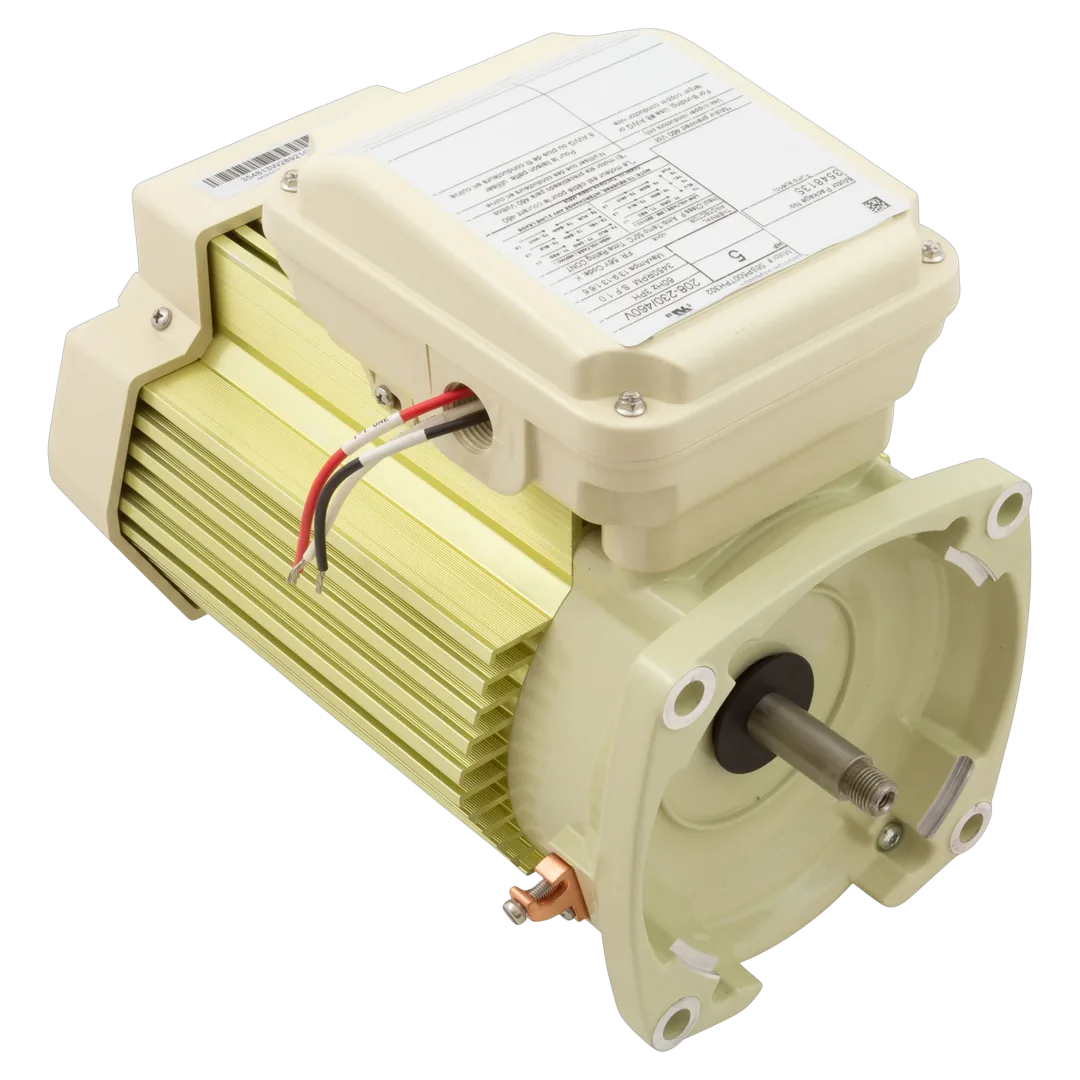

Replacement 5 HP square-flange pump motor for Pentair WhisperFlo XF systems. It's used to replace the original motor on compatible WhisperFlo XF pumps and delivers 3-phase operation for commercial pool circulation. This is a TEFC, Super Duty motor in almond with 208-230/460V, 60 Hz service.

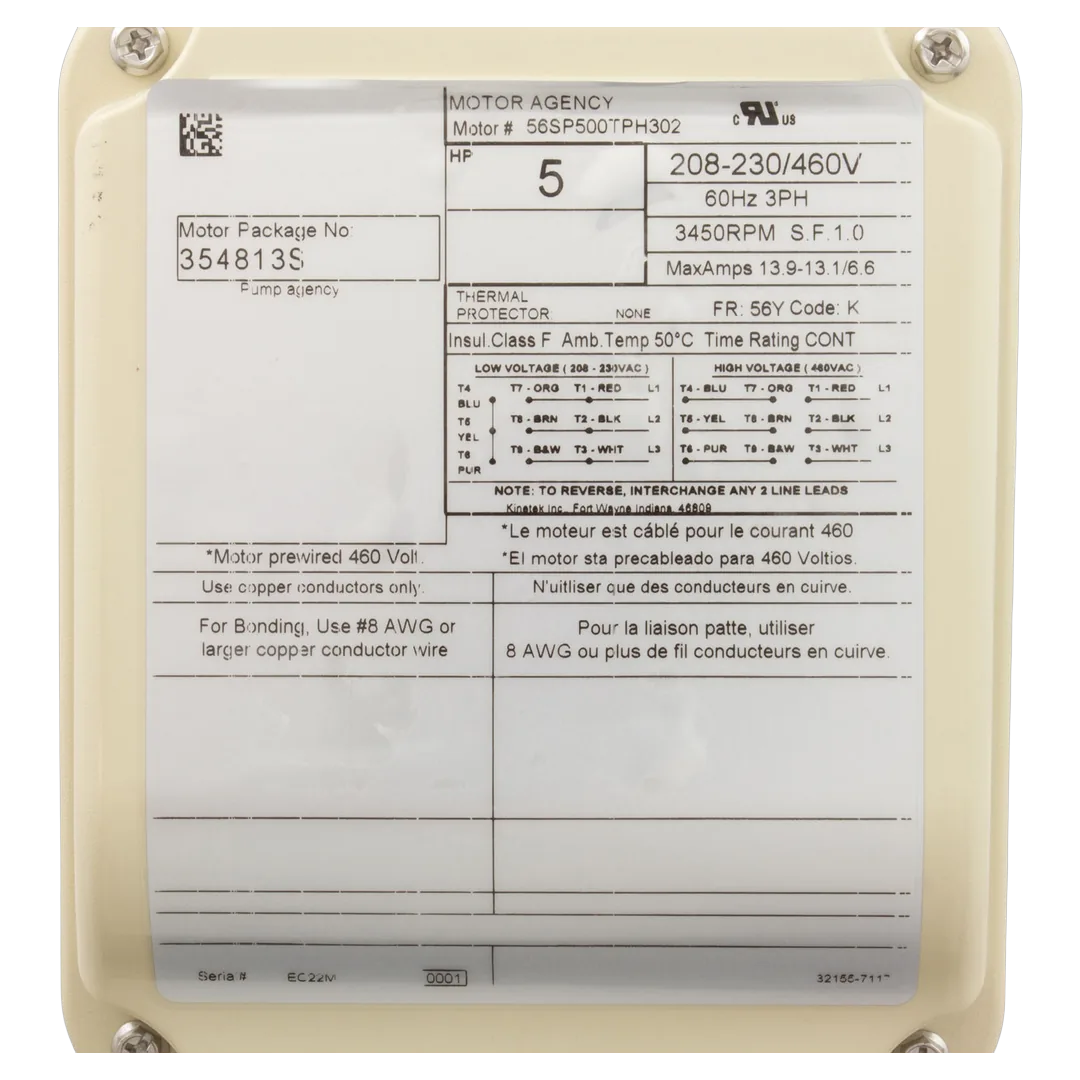

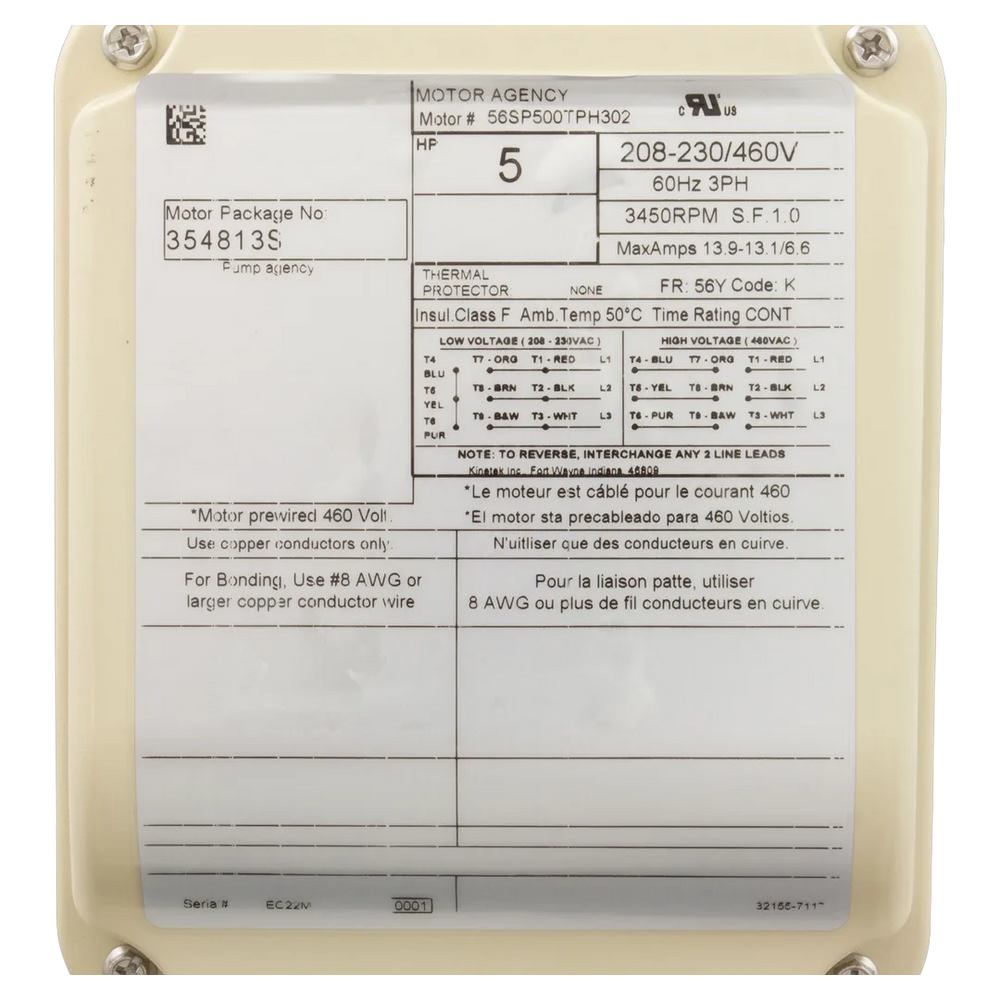

Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 5hp 3-Phase TEFC 208-230-460V Motor |
| Part Number | 354813S |
| Part Type | Motor |
| Compatibility | Pentair WhisperFloXF® Pump |
| Material | Almond finish |
| Voltage | 208-230/460V |
| Phase | 3-Phase |
| Horsepower | 5 HP |

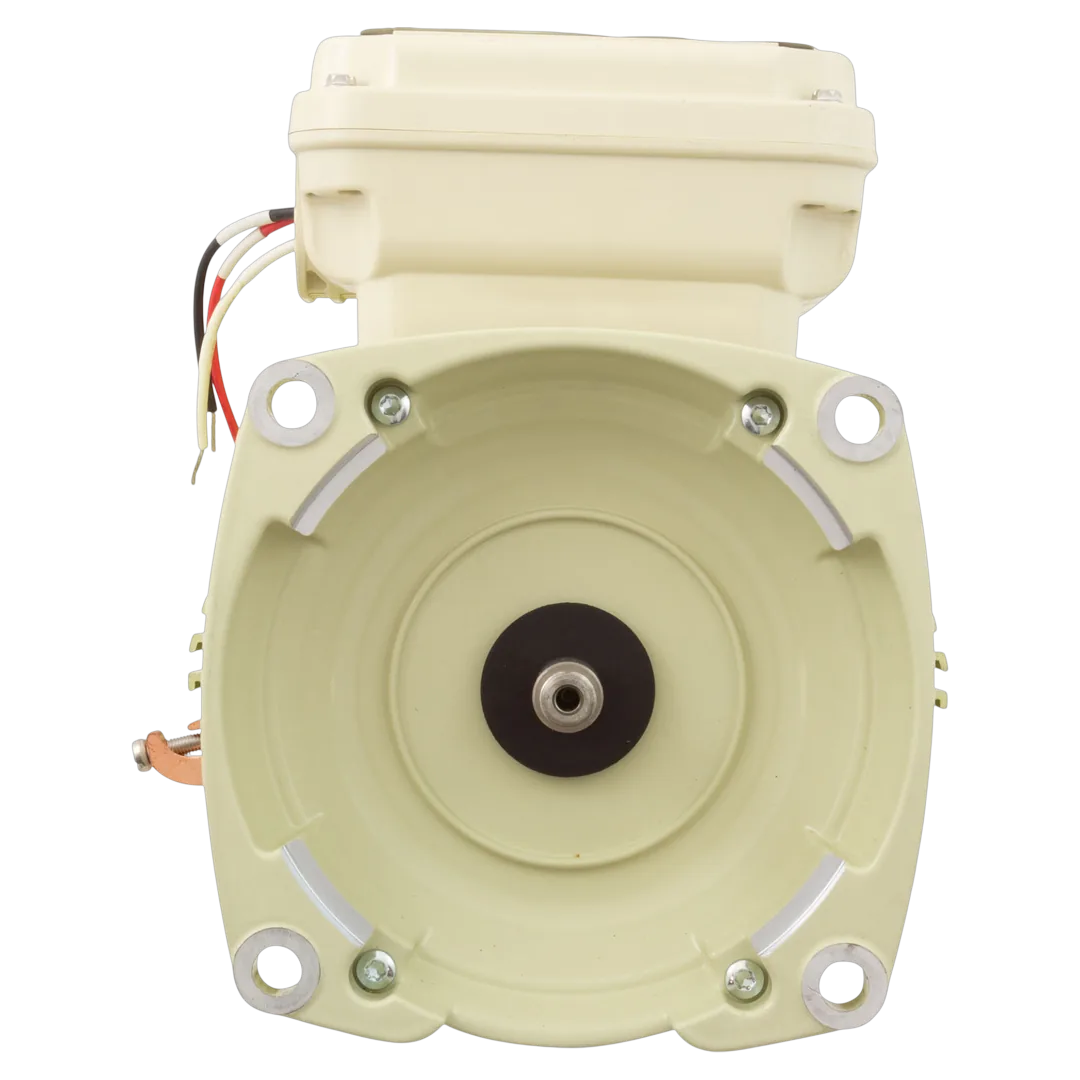

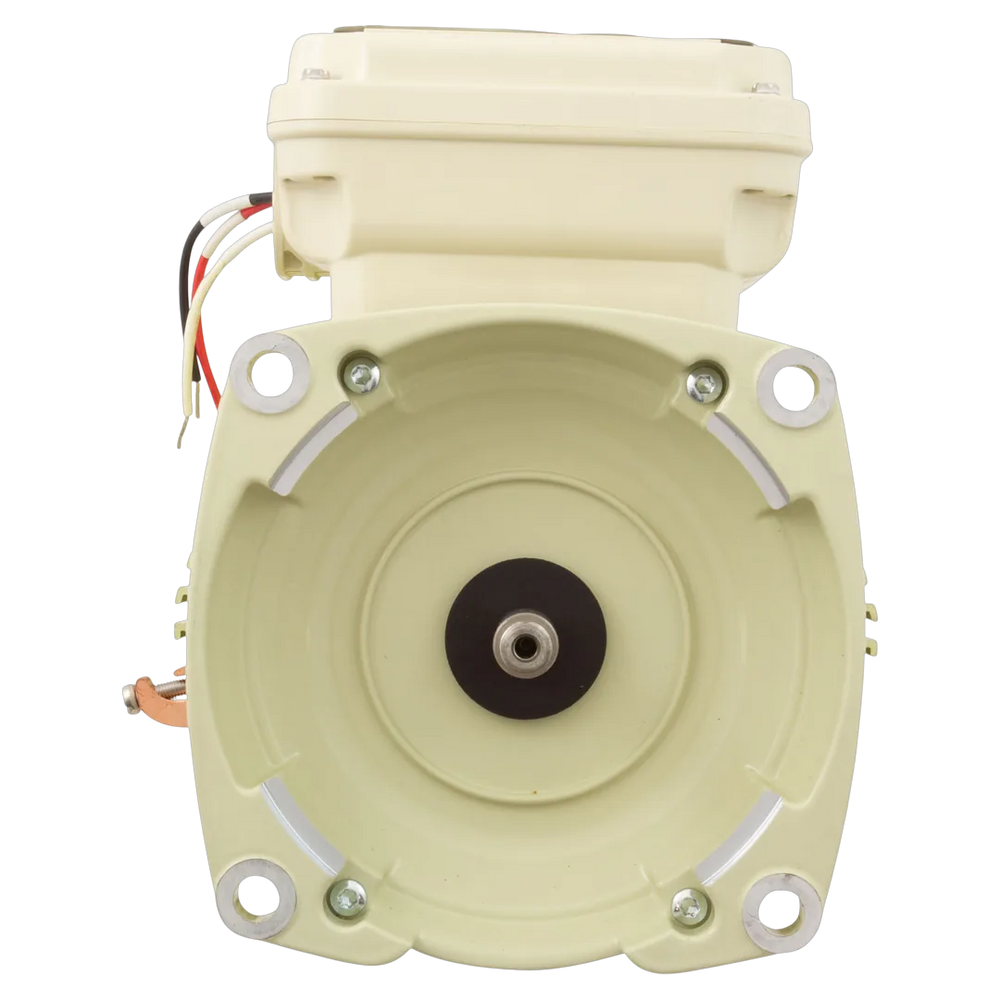

| Frame | 56Y Frame - Square Flange |
| Speed | 1-Speed |
| Amperage | 13.9A-13.1A/5.6A |
| Mount Type | Threaded |
| Shipping Dimensions | 22.5 x 9 x 11.5 inch |
| Product Weight | 44 pound |
