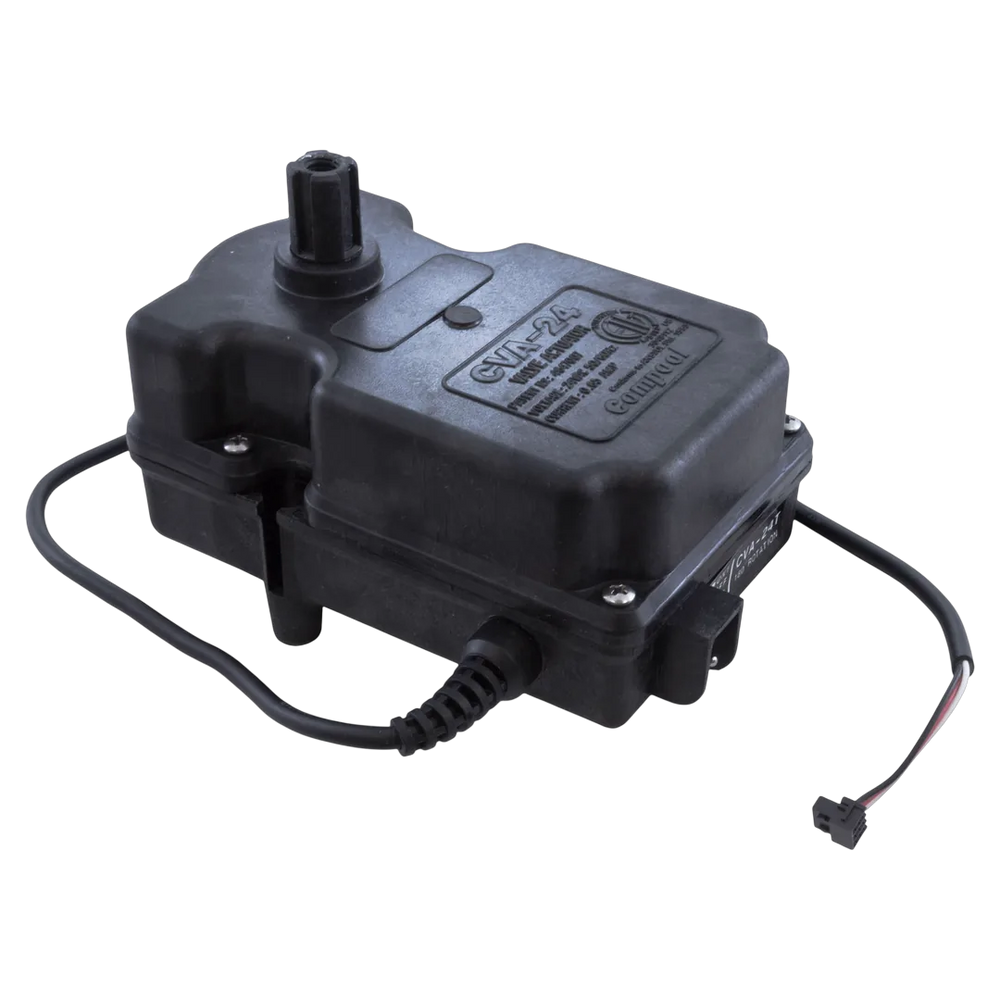

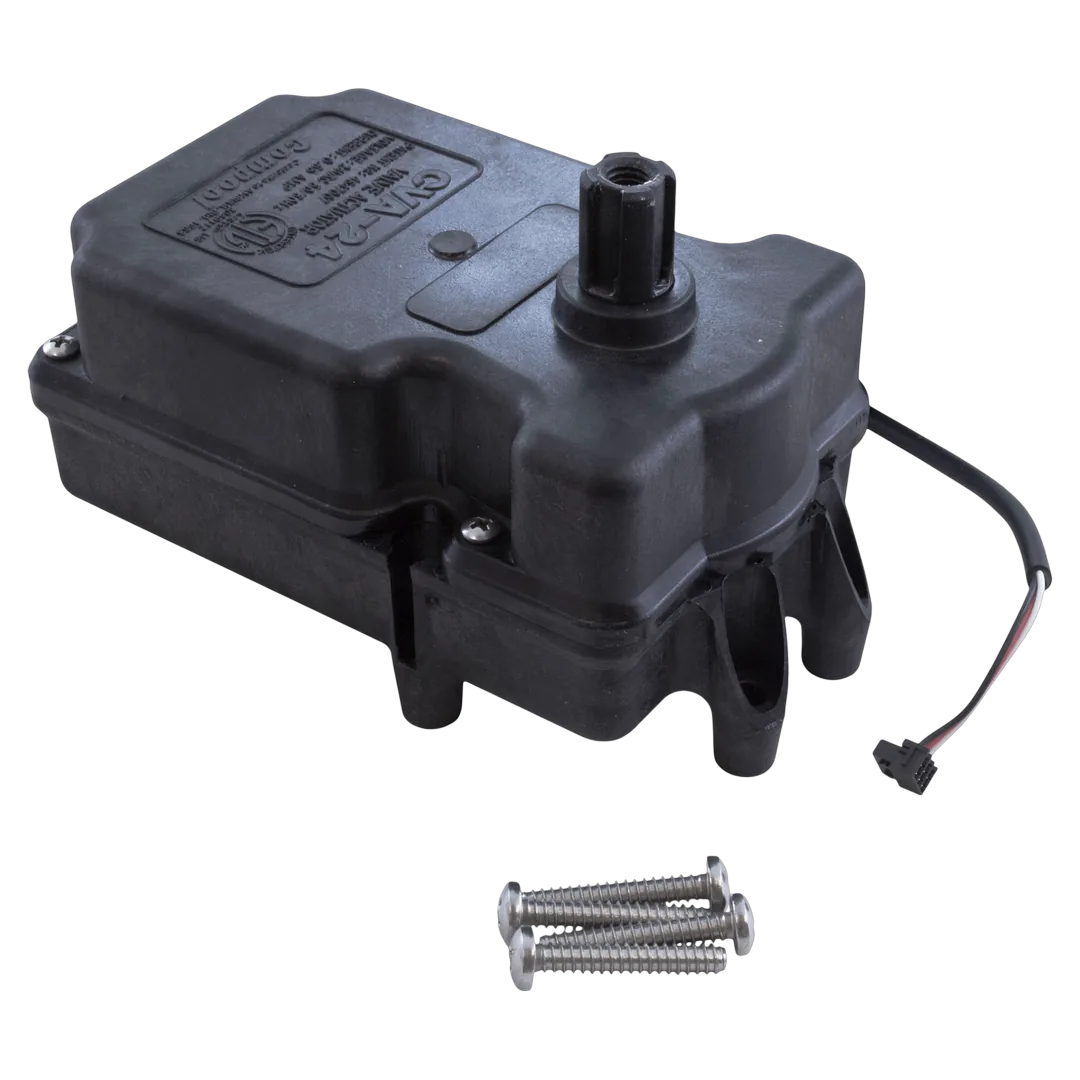

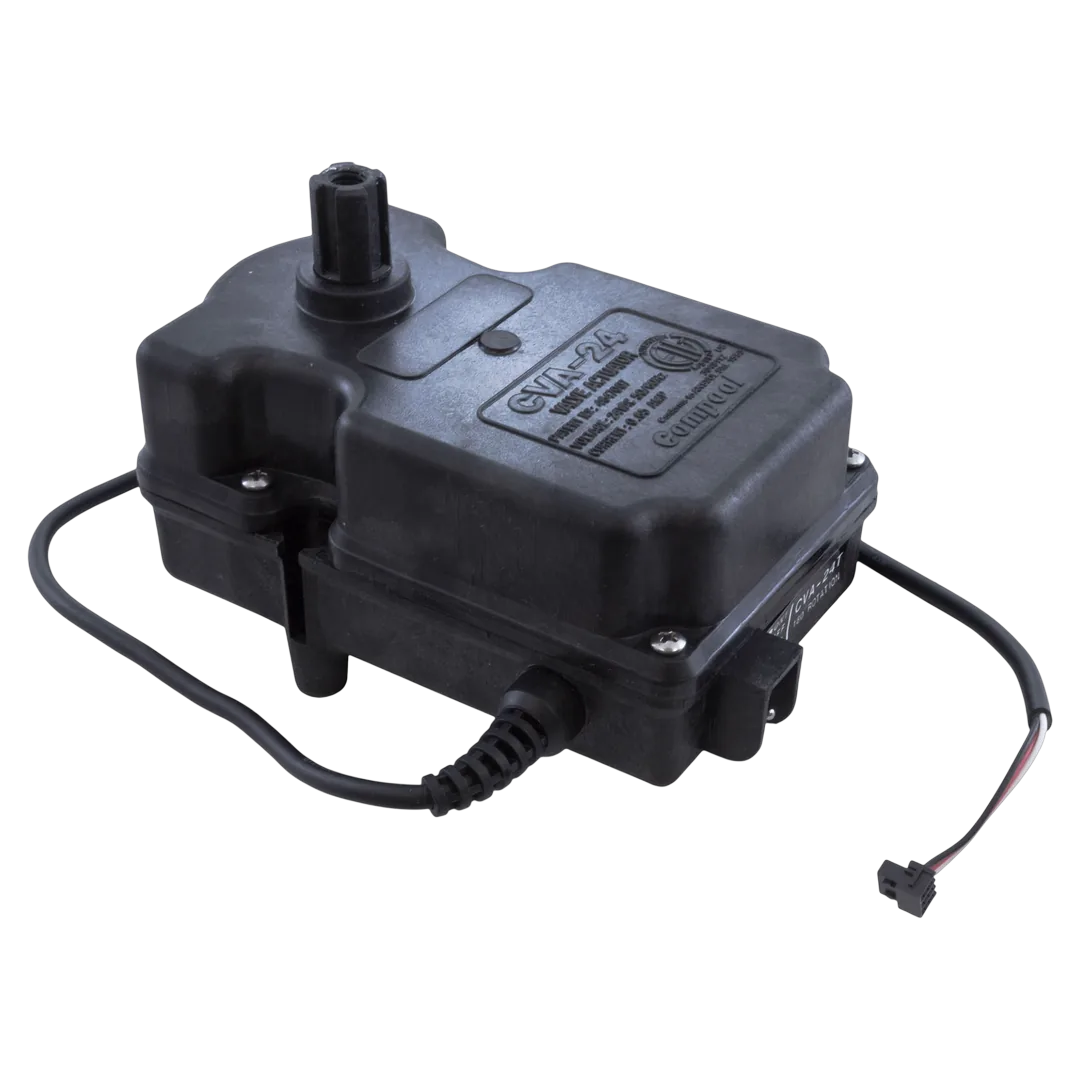

Pentair 263045 CVA24T 3-Port 180 Degree Valve Actuator
Pentair | SKU:
263045
$28000/ea
Unit price
/
Unavailable
Pentair 263045 CVA24T 3-Port 180 Degree Valve Actuator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 180° valve actuator for 3-port Compool, Ortega, and Jandy diverter valves (Pentair 263045 CVA24T). It uses a 24VAC bi-directional motor to work with standard 24V automation, switching valve positions for pool/spa or water features while preventing pump dead-heading. Includes a 25-ft cord and a corrosion-resistant housing, with adjustable stop cams to set the travel as needed.
Includes: 25-ft. cable
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | CVA24T Valve Actuator |
| Part Number | 263045 |
| Part Type | Valve Actuator |
| Compatibility | Compool®, Ortega®, and Jandy® Valves |
| Includes | 25-ft. cable |
| Certifications | ETL recognized UL listed |
| Valve Type | 3-port, 180 degree |
| Mount Type | Operates Compool®, Ortega®, or Jandy® Valves |
| Shipping Dimensions | 9 x 5 x 6 inch |
| Product Weight | 3 pound |
