Pentair 26" Sand Dollar® Top Mount Filter EC-145333
Pentair | SKU:
EC-145333
$629.00
Unit price /
Unavailable
Shipping calculated at checkout.
Pentair 26" Sand Dollar® Top Mount Filter EC-145333 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

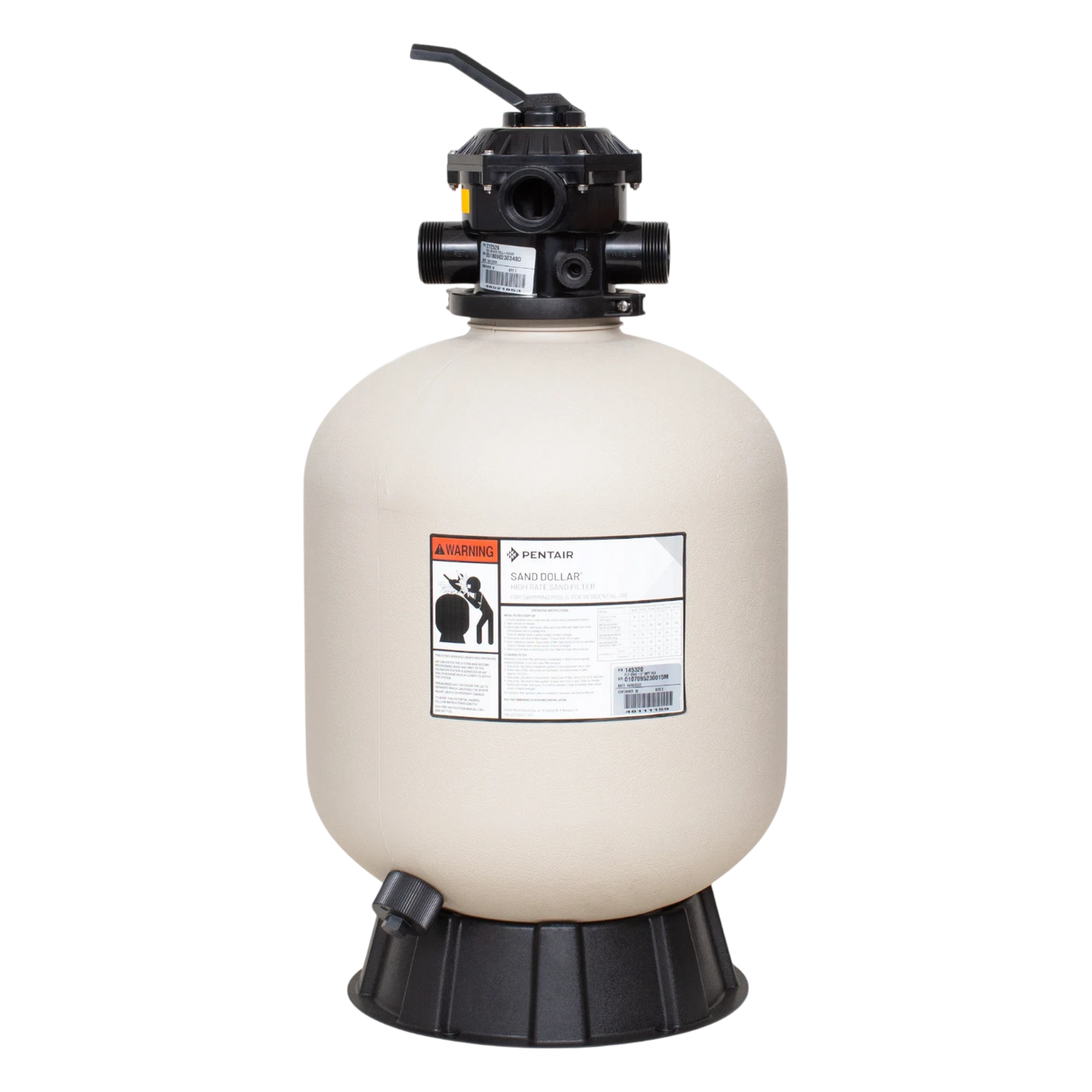

Pentair Sand Dollar® EC-145333 Top Mount Sand Filter 26" 1.5" MPV

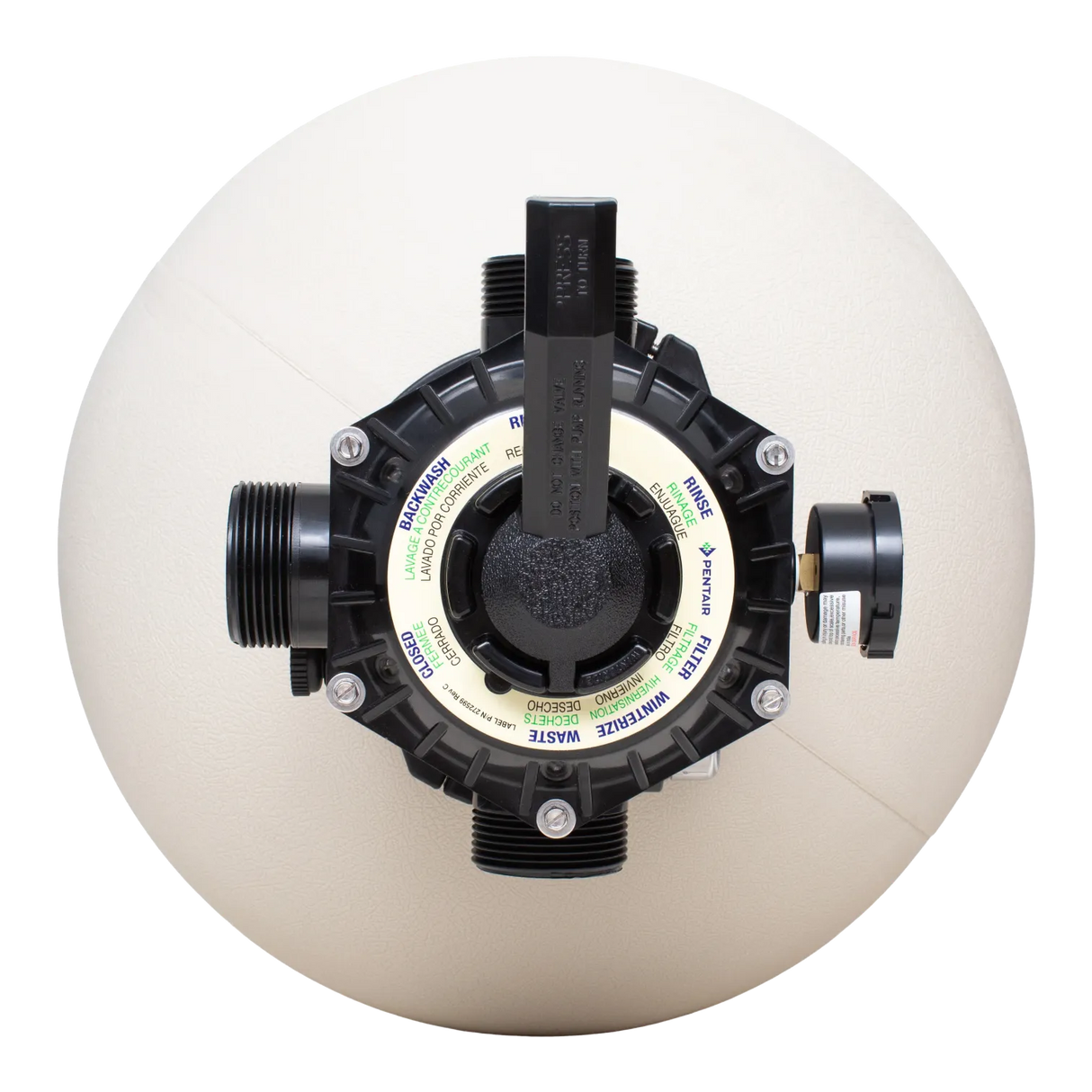

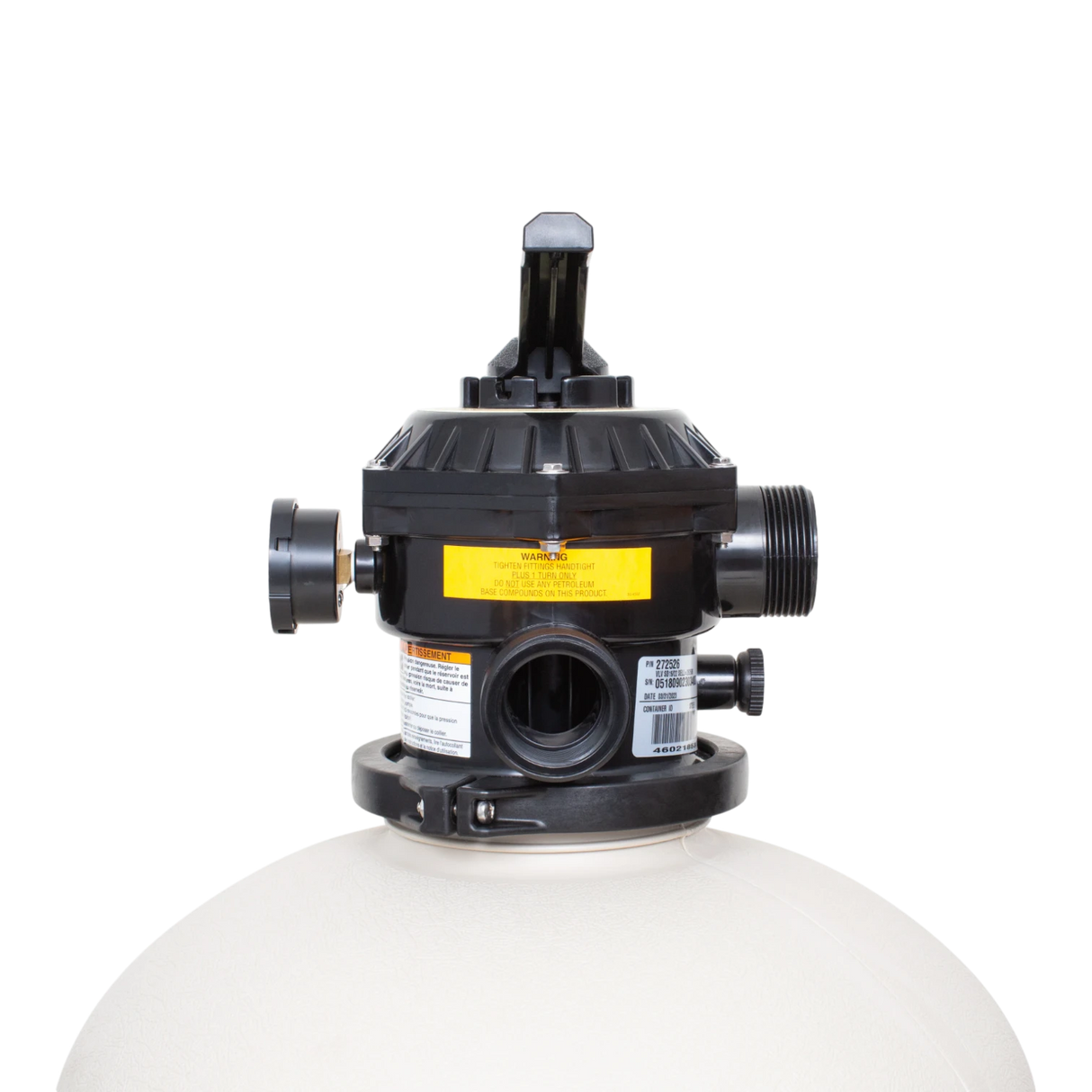

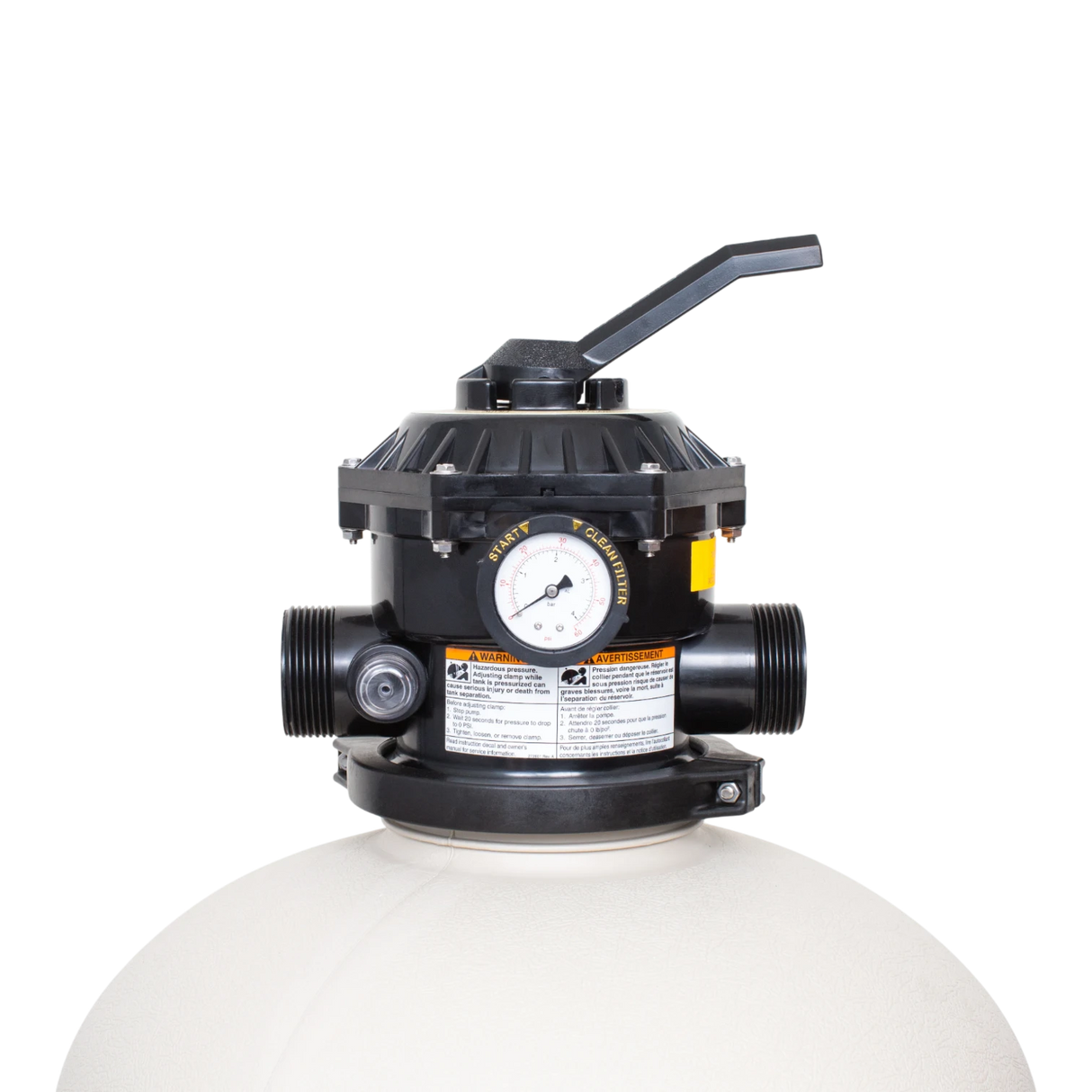

The Sand Dollar® Top Mount Filter features a clamp style, six-position multiport valve. Special lateral design provides superior flow characteristics and long filter cycles for economical operation.
26" Sand Dollar Specifications:
- Filtration Area: 3.5 square feet
- Material: Thermoplastic
- Maximum Flow Rate: 75 gal/min
- Maximum Working Pressure:, 50 pounds per square inch
- Product Height: 48.75 inch
- Product Width: 26 inch
- Sand Required: 350 pound
- Tank Material: Thermoplastic
- Turnover 10hrs: 45000 gallon
- Turnover 12hrs: 54000 gallon
- Turnover 8hrs: 36000 gallon
-
Vertical Clearance: 74 inch
Specifications
Specifications
Filter Size:
Flow-Rate: GPM
Plumbing Connections:
Flow-Rate: GPM
Plumbing Connections:
Genuine Parts Schematic
Genuine Parts Schematic
There is currently no parts schematic on-file for this product.
