Neptune Variable Speed Motor
Nidec Motor Corp/US Motors | SKU:
NPTQ270
$80999/ea
Unit price
/
Unavailable
Neptune Variable Speed Motor is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Neptune Variable Speed Motor

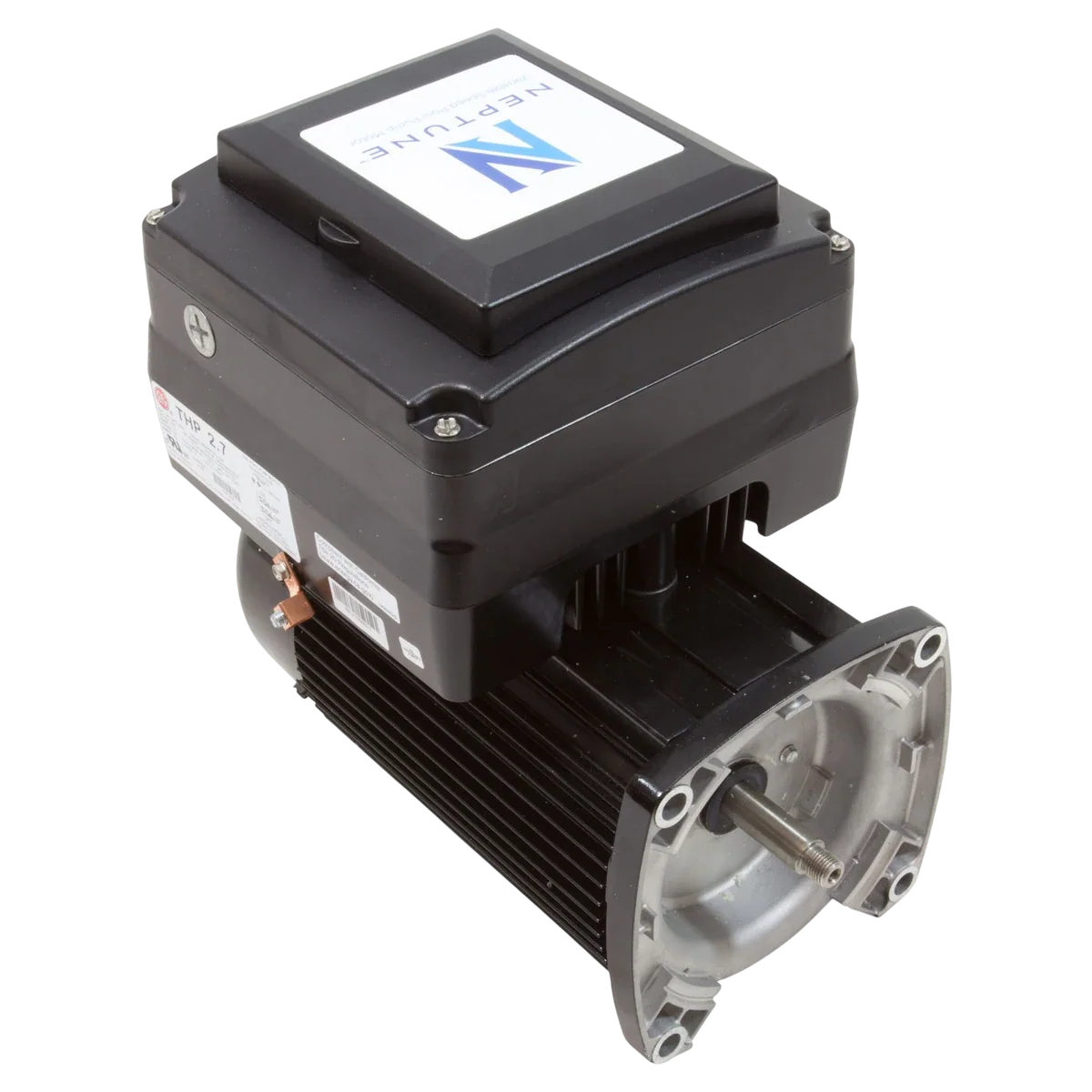

The NPTQ270 is a fully integrated variable speed motor with onboard control and digital display, built to replace worn single-speed motors on inground pool pumps rated 230V, square flange, 48Y frame.
Key Features
- 600-3450 RPM range, 7 programmable schedules

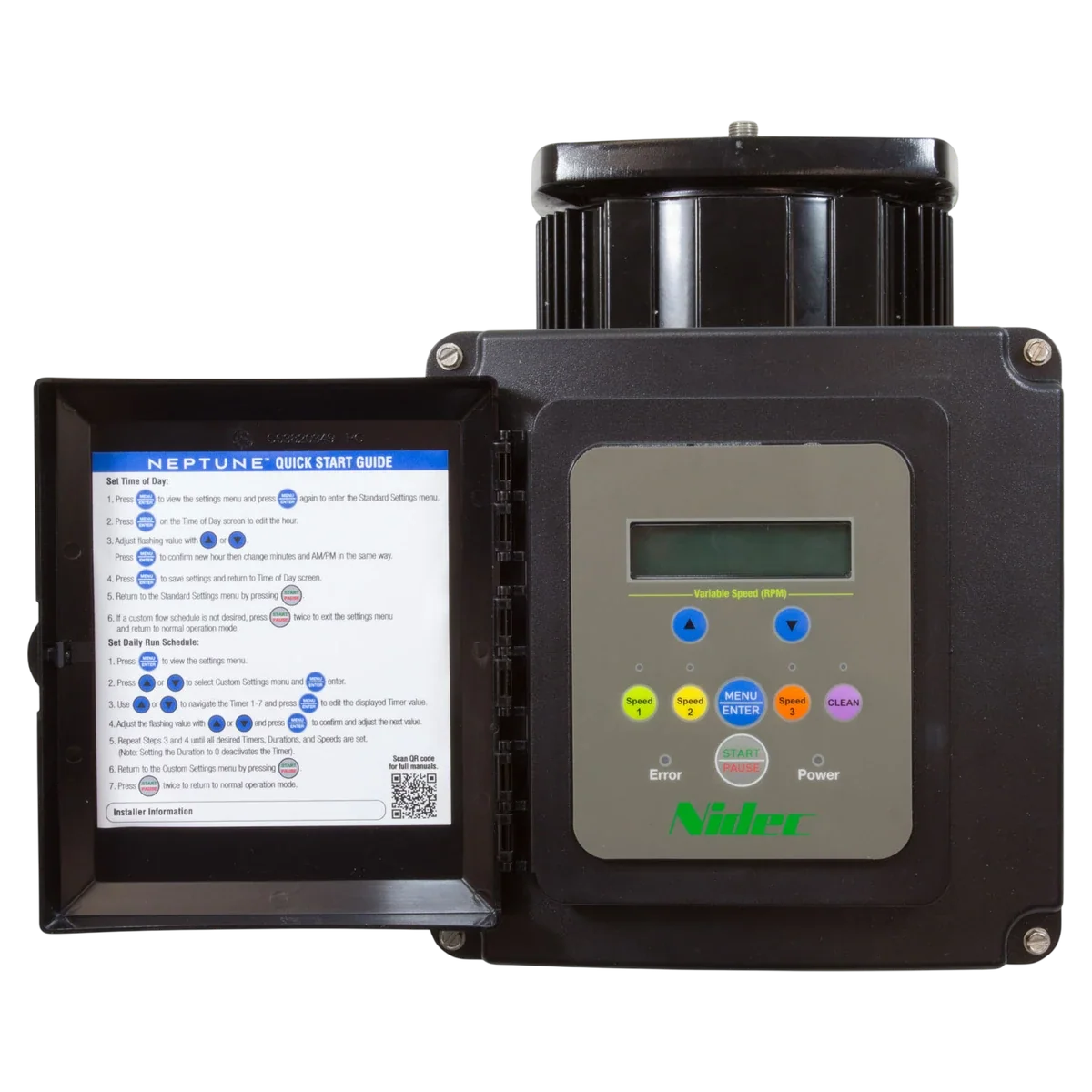

- Integrated motor, control, and keypad in one unit
- Low temperature freeze protection
- One-Touch Clean Cycle, 30-minute max RPM
- RS-485 Modbus RTU port
Compatibility
- Pentair WhisperFlo, WhisperFlo VST, SuperFlo, Challenger
- Jandy Stealth SHPF & SHPM (2008-current)
- Sta-Rite Max-E-Pro, Dura-Glas, Max-E-Glas, Dyna-Glas, Dyna-Max
- Hayward TriStar SP3200X
- Jandy iAquaLink, AquaLink RS, iAquaLink 3.1, TCX via RS-485 Modbus RTU
What's Included
- Rubber motor-support spacer, if required for mounting
Match Total Horsepower (THP), not standard HP, when selecting this as a replacement, and replace the shaft seal or tune-up kit for your specific pump model at the same time to prevent leaks.
Find it on the parts diagram
Hayward Northstar SP4000/SP4000X Pump, w/mhbt Unions, 2008+ Replacement Parts
View the diagram →
