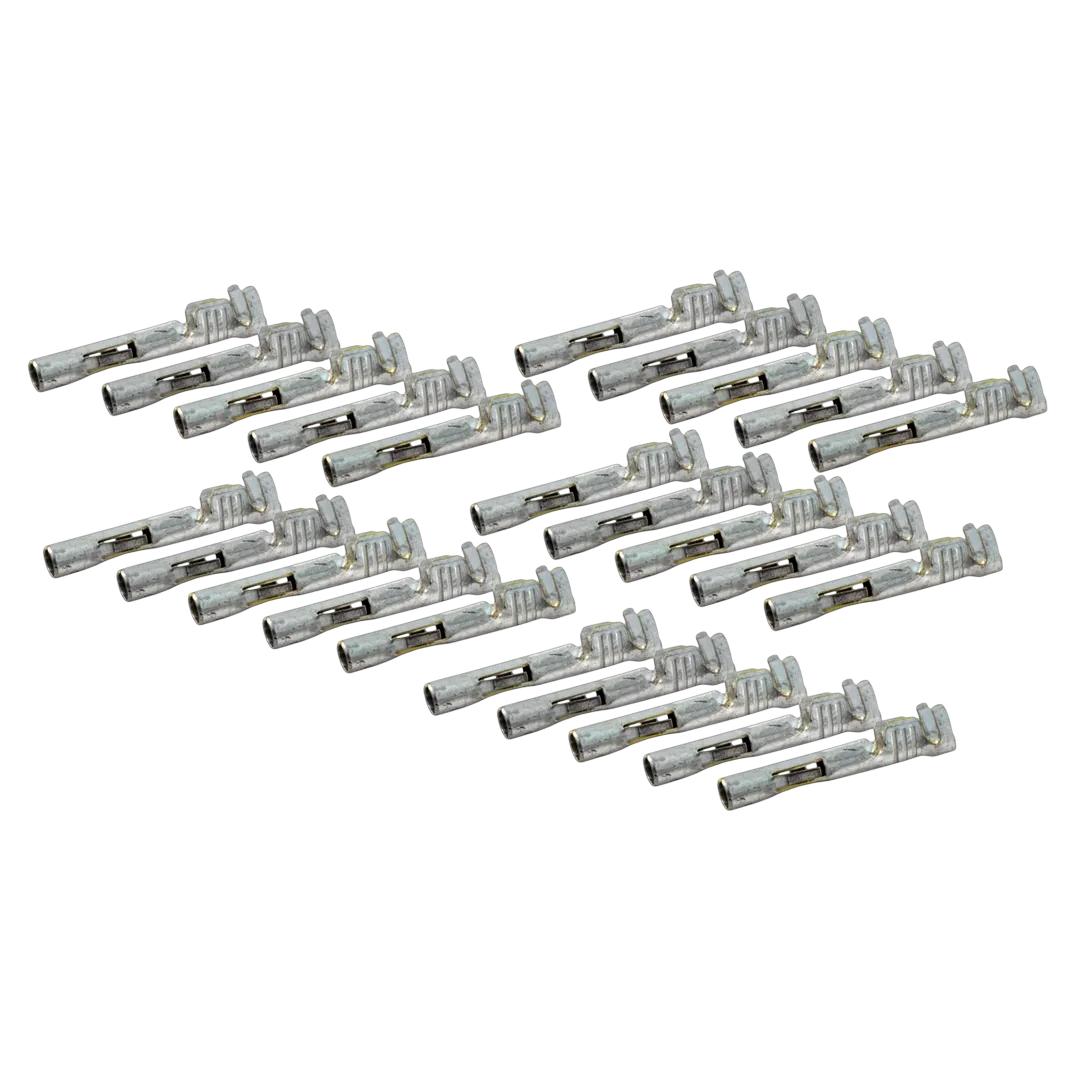

Molex 02-08-1002 Female Pin, 14-20 AWG (25 Pack)
AMP | SKU:
MOL02-08-1002
$2600/ea
Unit price
/
Unavailable
Molex 02-08-1002 Female Pin, 14-20 AWG (25 Pack) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

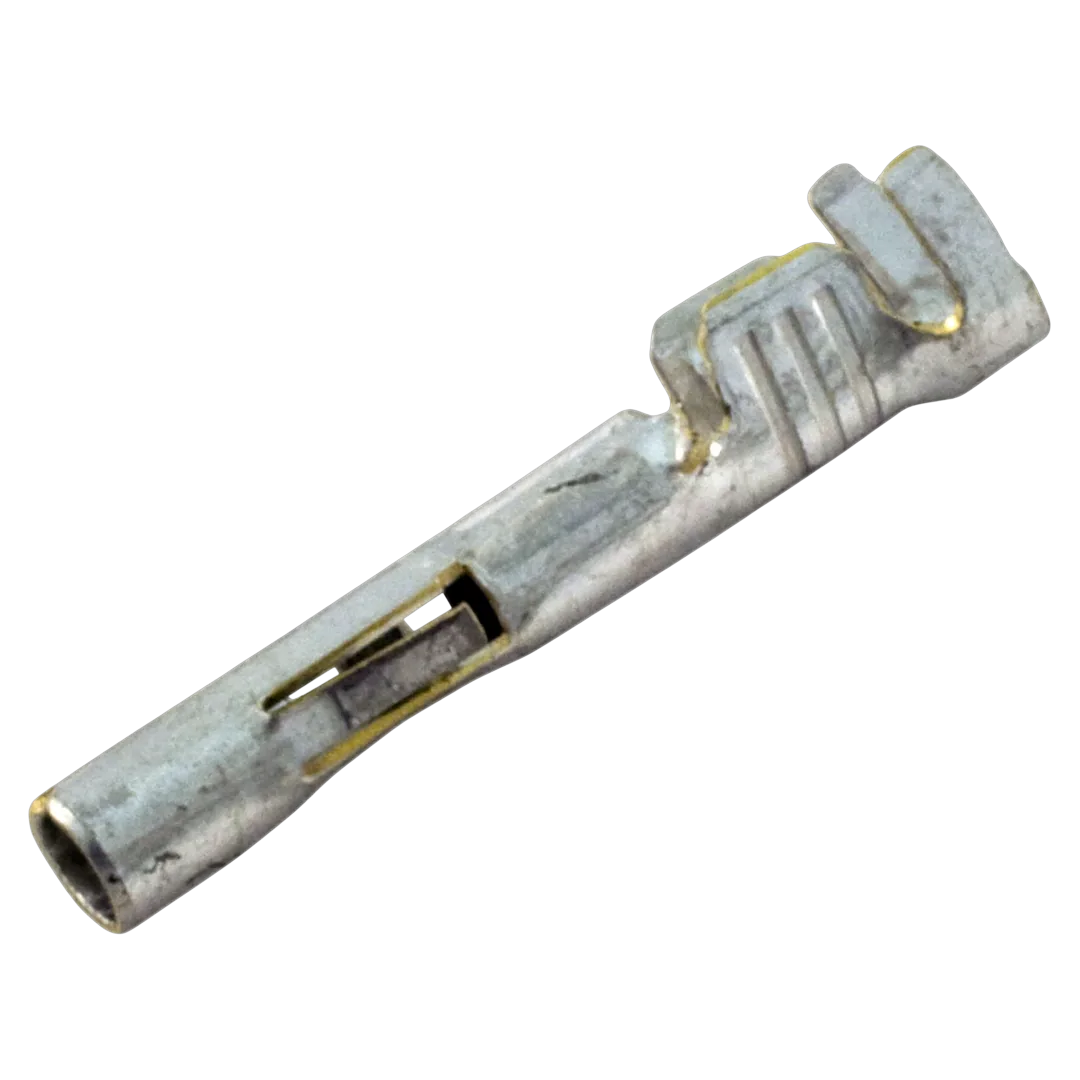

Replacement female crimp contact for MLX 42024-series connector housings (AMP MOL02-08-1002). It crimps onto 14-20 AWG conductors and locks into the housing to complete a socket rated to 20A. Tin-plated brass; pack of 25.
Includes: Bag of terminals
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | MLX Crimp Terminal 42024 |
| Part Number | 02-08-1002 |
| Part Type | Female Crimp Terminal |
| Compatibility | MLX Series Connectors |
| Substitute Part Numbers | 0002081002, 42024-1A1L |
| Includes | Bag of terminals |
| Material | Brass with Tin Plating |
| Wire Size | 14-20 AWG |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Contact Resistance | 3.5 milliohms |
| Operating Temperature Range | -55 to 105 degrees Celsius |
| Shipping Dimensions | 6 x 6 x 6 inch |
| Product Weight | 0.38 pound |
