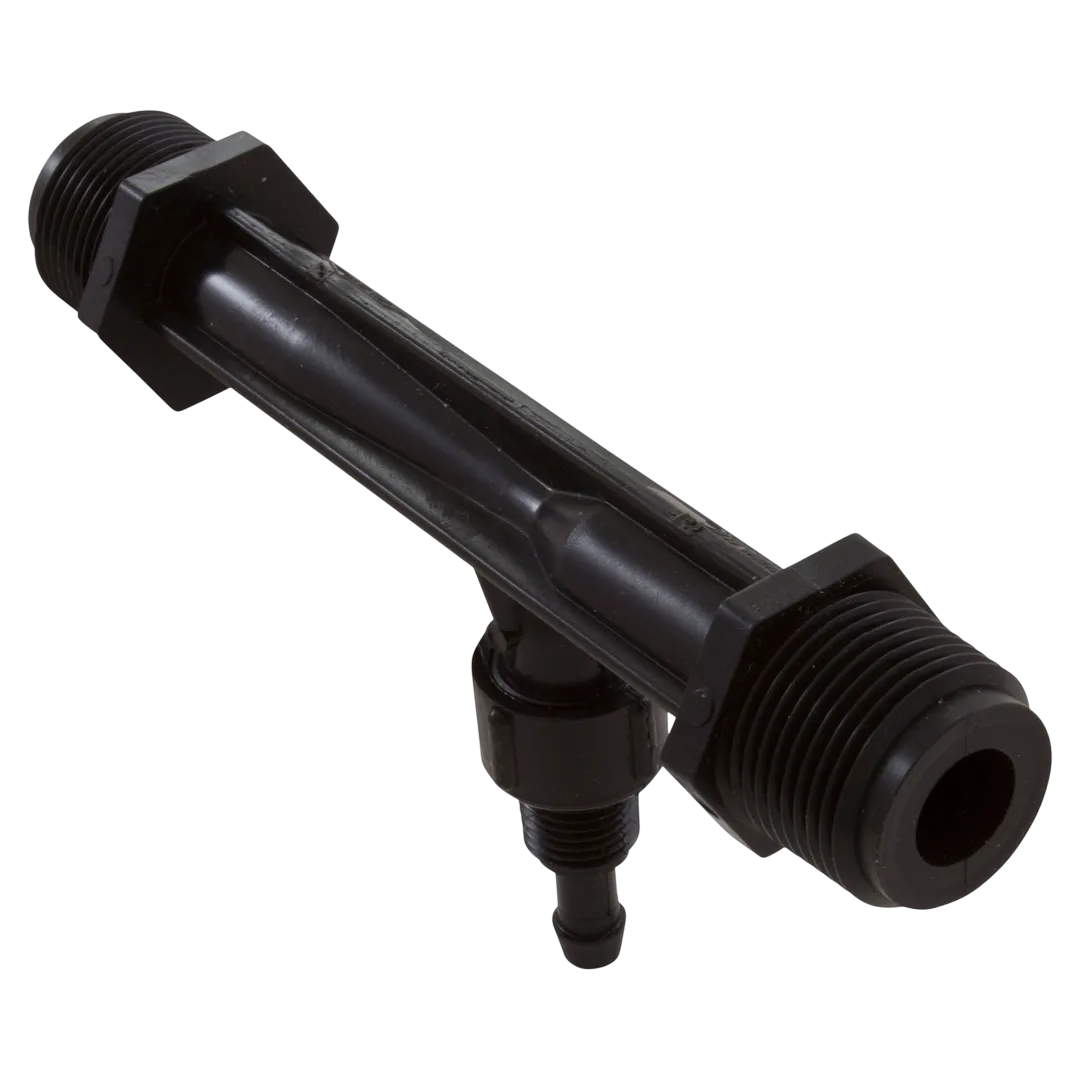

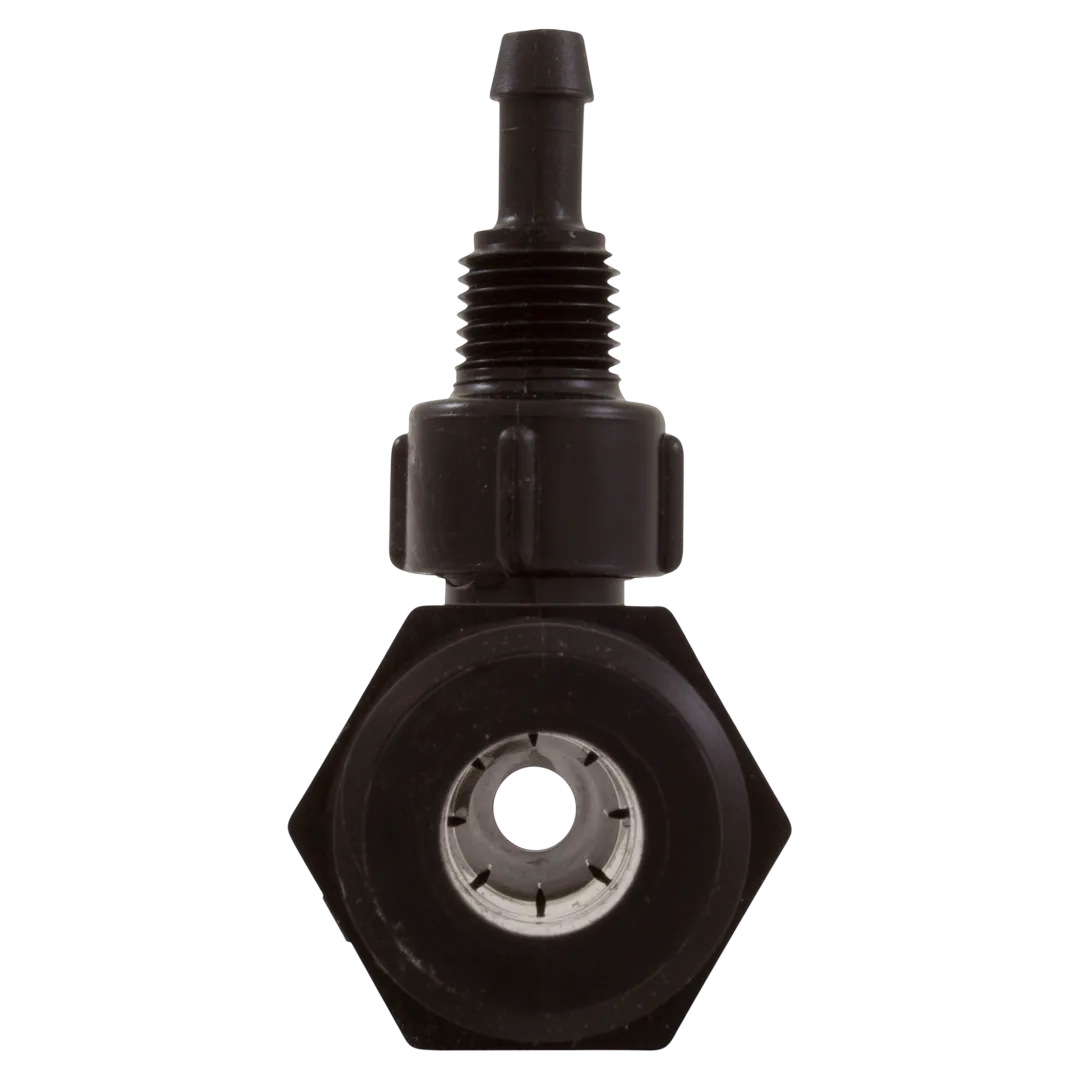

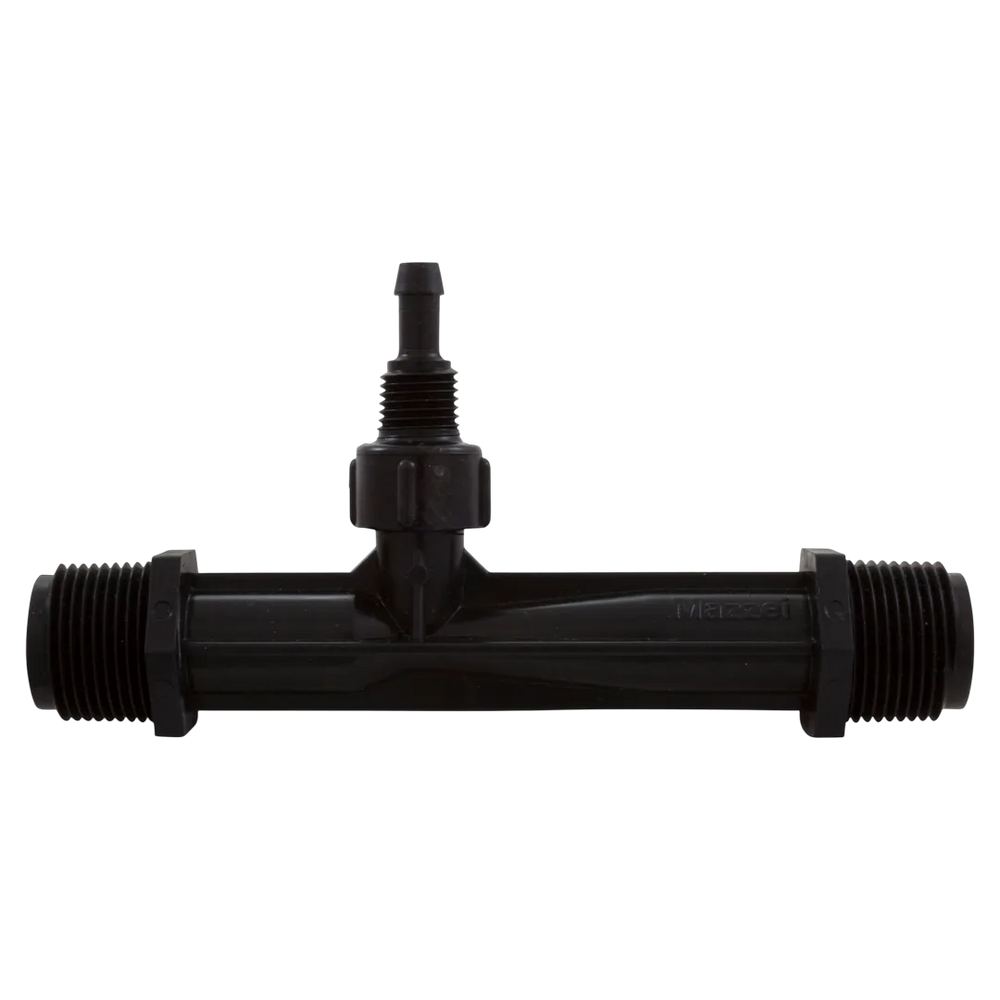

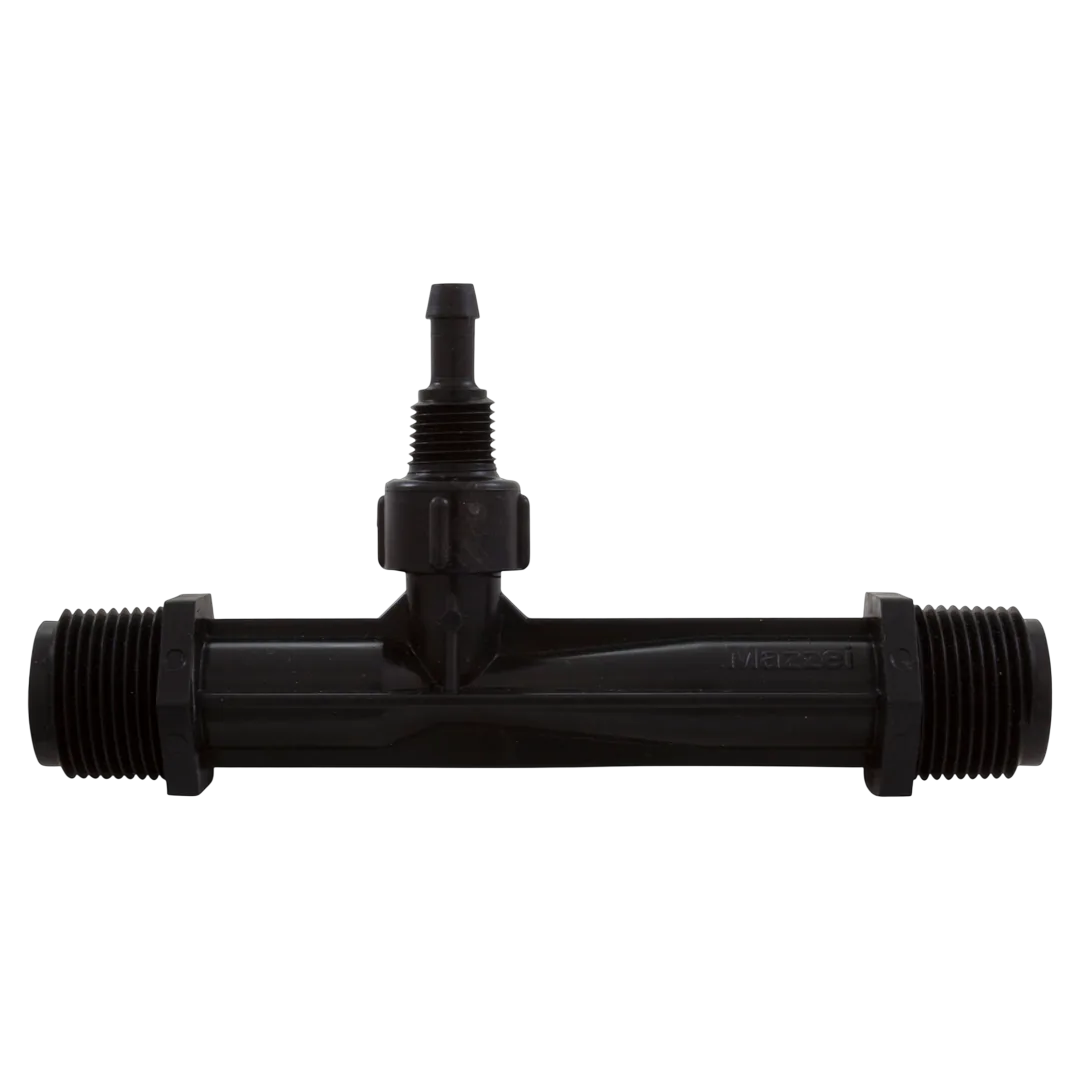

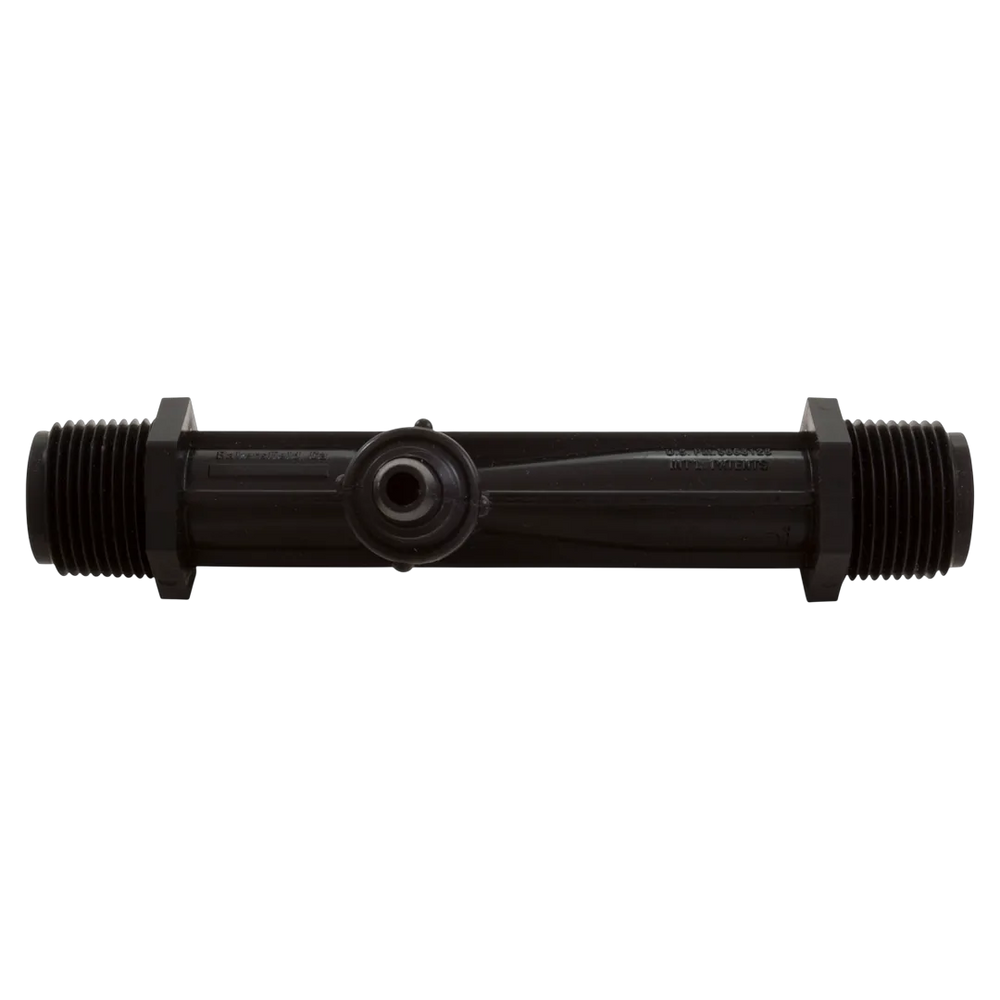

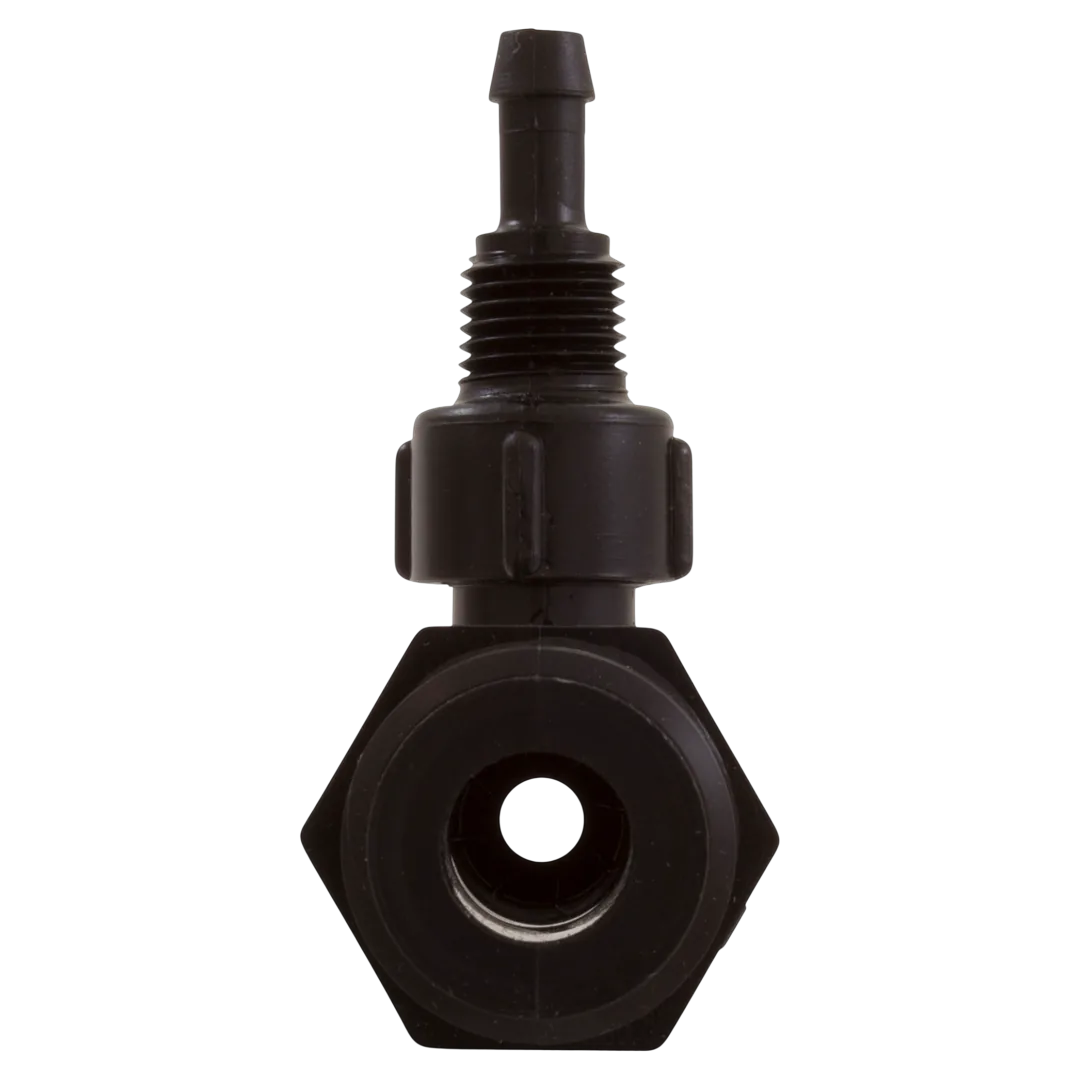

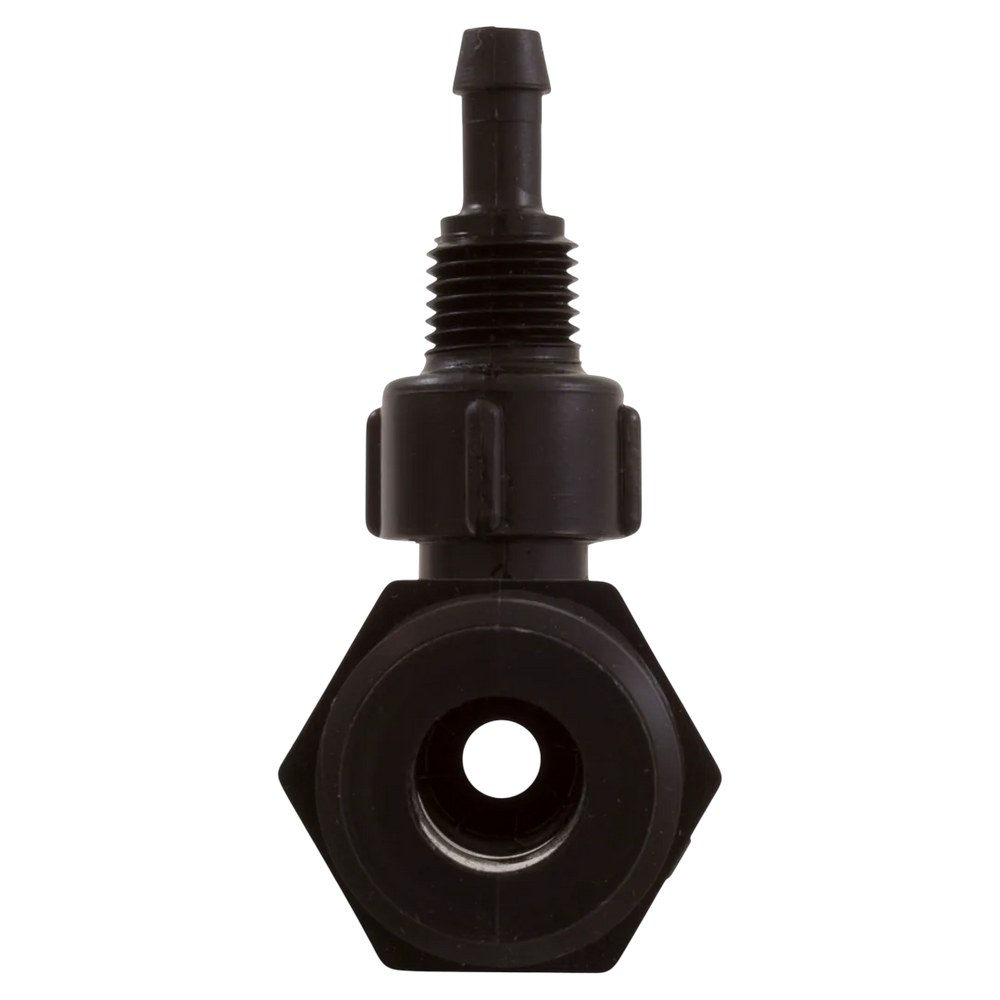

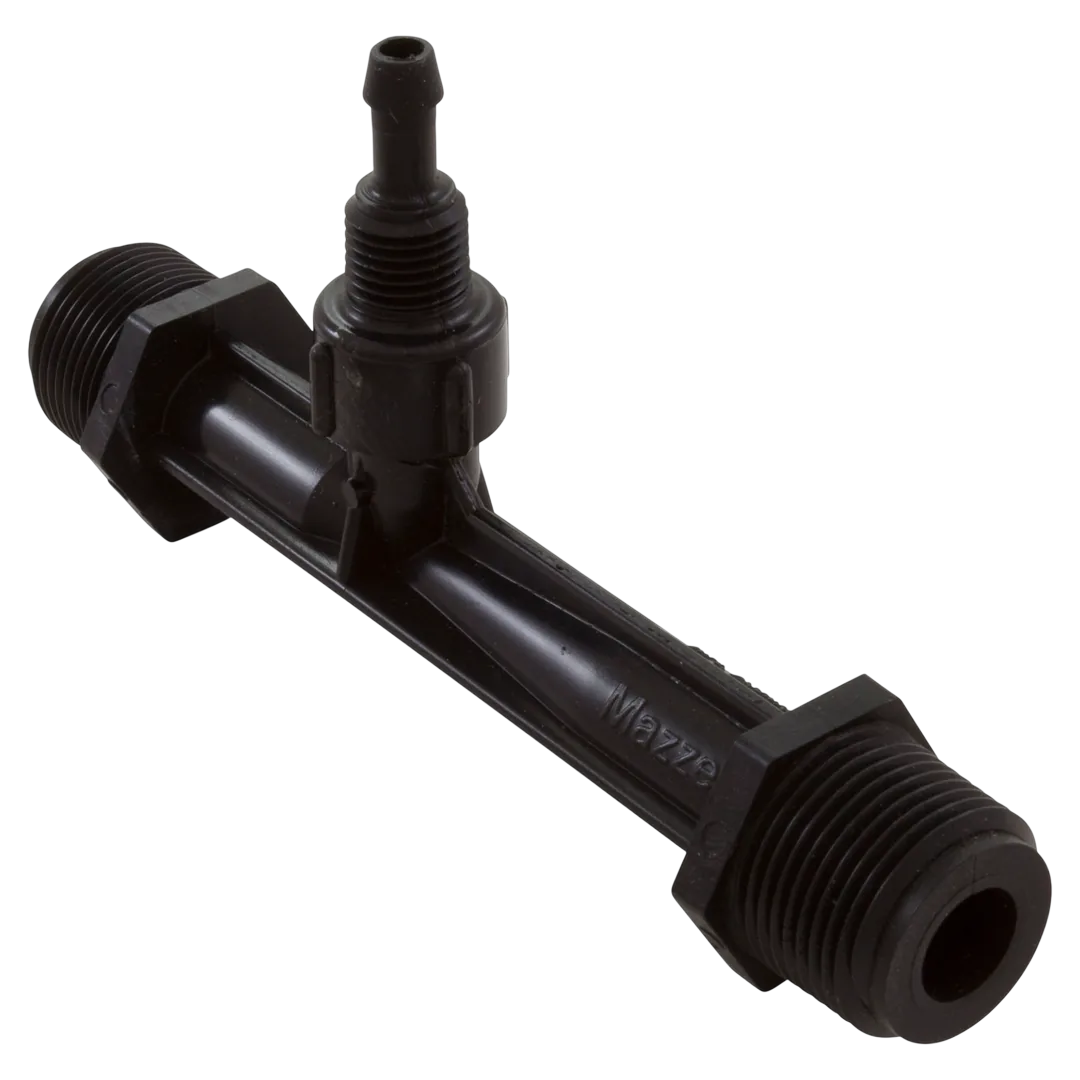

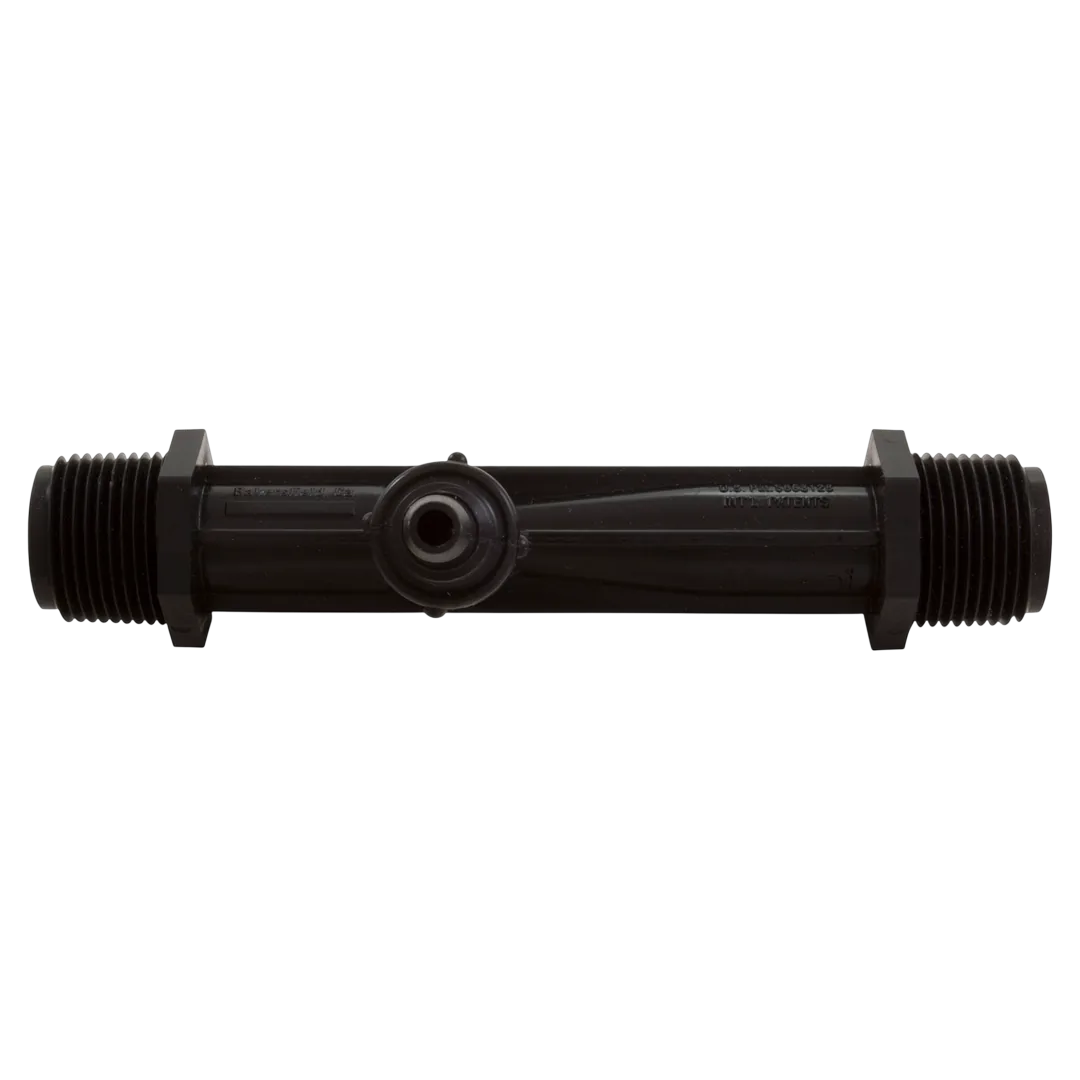

Mazzei 684-PVDF Injector
Mazzei | SKU:
684-PVDF
$10500/ea
Unit price
/
Unavailable
Mazzei 684-PVDF Injector is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

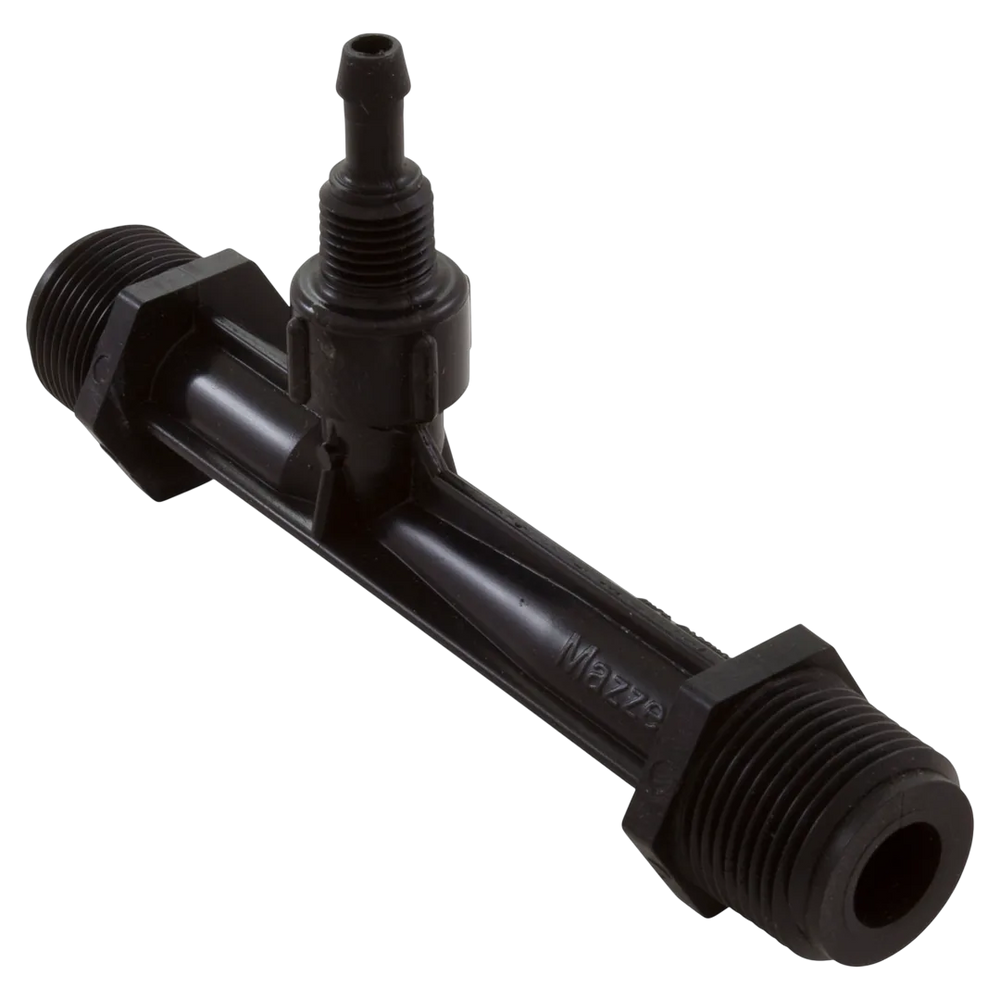

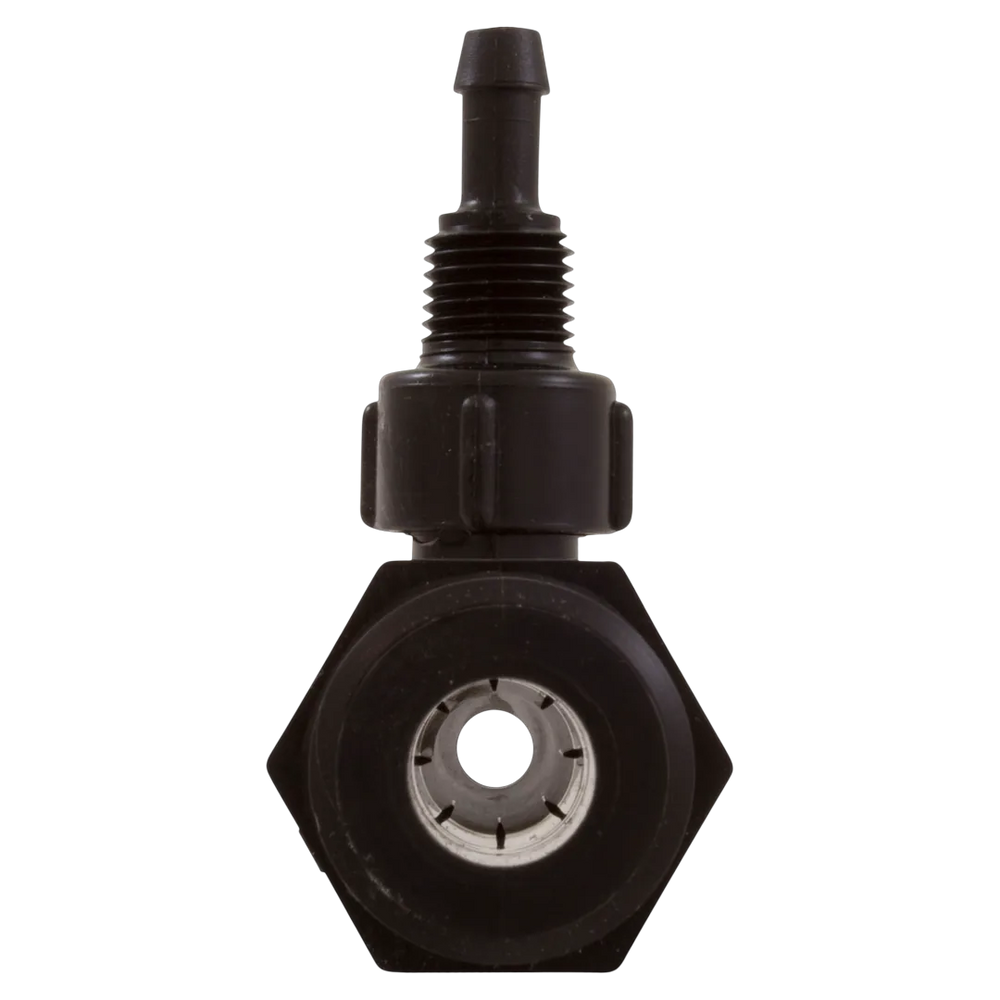

The Mazzei 684-PVDF is a gas/liquid injector constructed from Polyvinylidene Fluoride (Kynar), known for its chemical resistance. It features 3/4-inch MNPT inlet and outlet connections with a 1/4-inch barbed suction port. This injector, suitable for water flows between 5 to 15 GPM, is versatile in ozone injection applications.
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Mazzei 684-PVDF |
| Part Number | 684-PVDF |
| Part Type | Venturi Injector |
| Material | PVDF |
| Connection Size | 0.75 inch male NPT inlet/outlet, 0.25 inch barbed suction port |
| Pressure Rating | 120 PSI at 68°F |
| Shipping Dimensions | 5.9 x 2.5 x 2.5 inch |
| Product Weight | 0.22 pound |
