Jacuzzi J-200/J-300 Series Waterfall Fill Spout
Jacuzzi/Sundance | SKU:
6540-921
$7400/ea
Unit price
/
Unavailable
Jacuzzi J-200/J-300 Series Waterfall Fill Spout is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

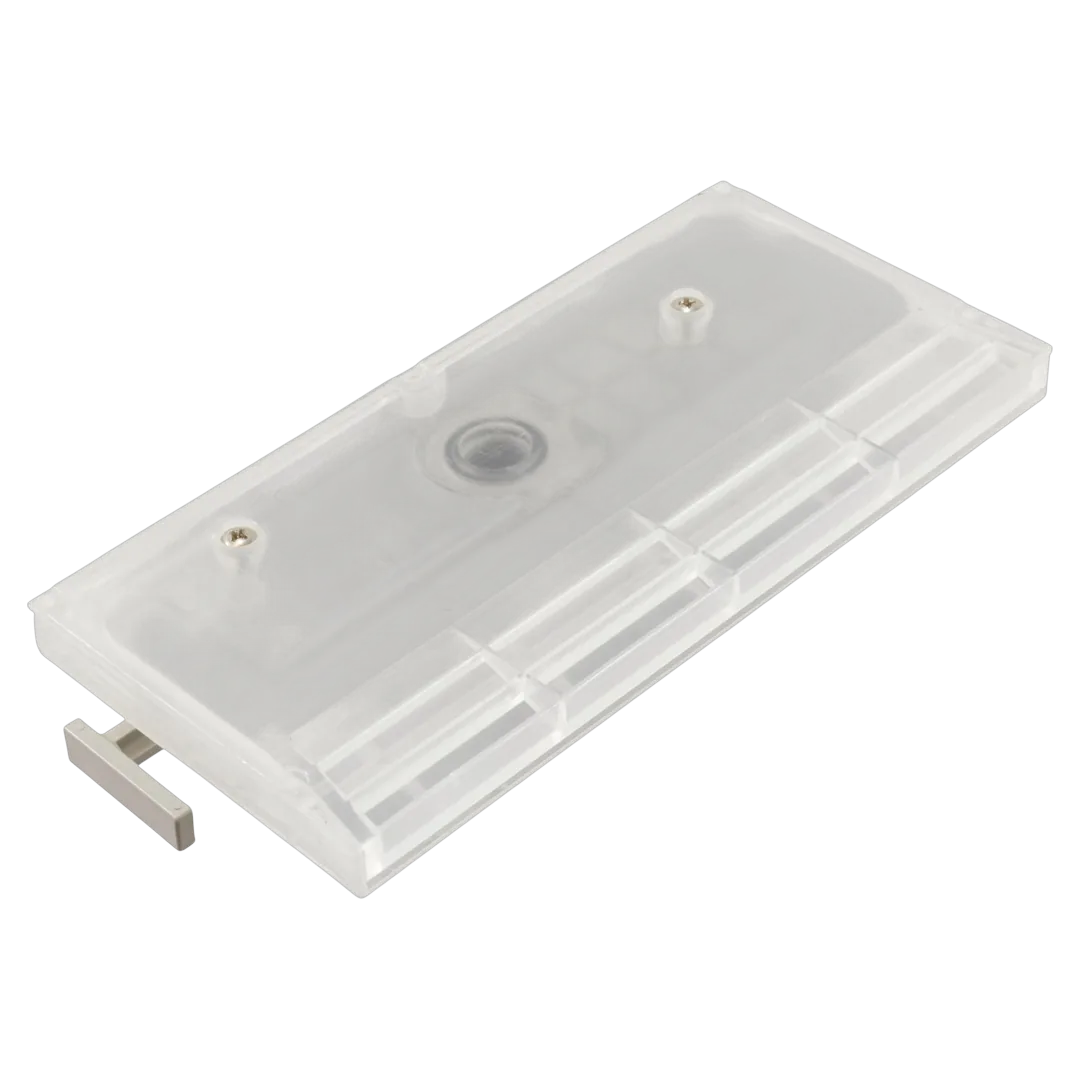

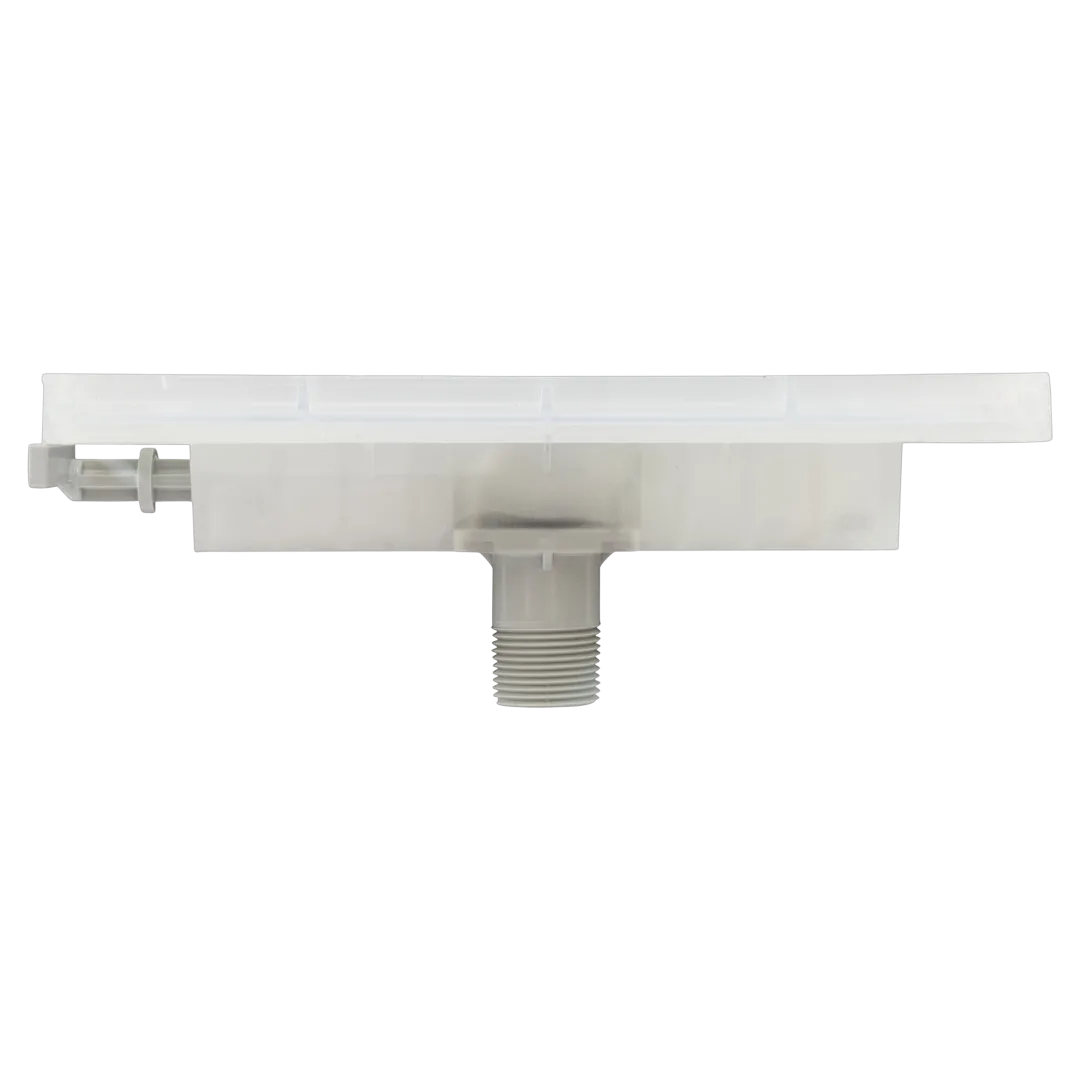

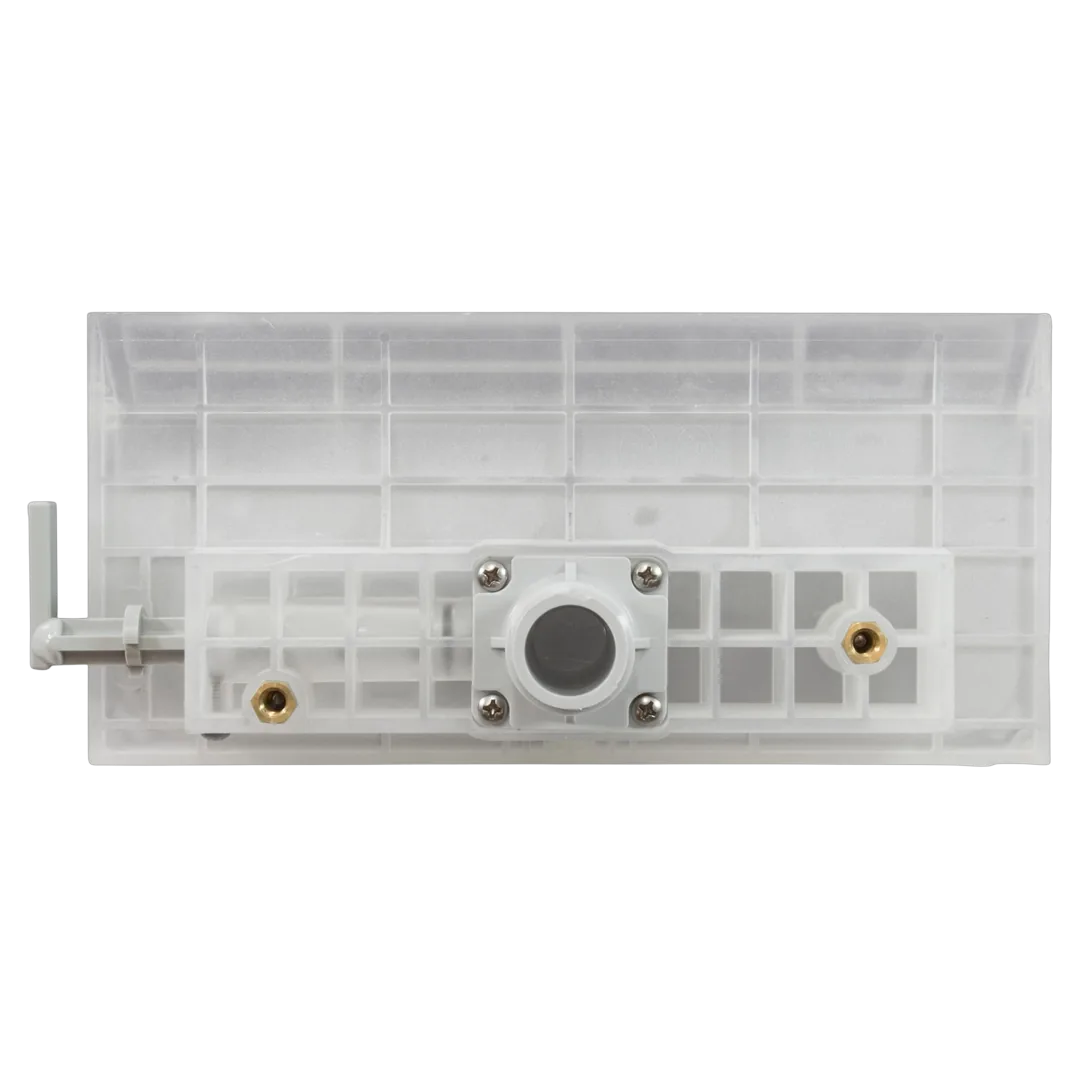

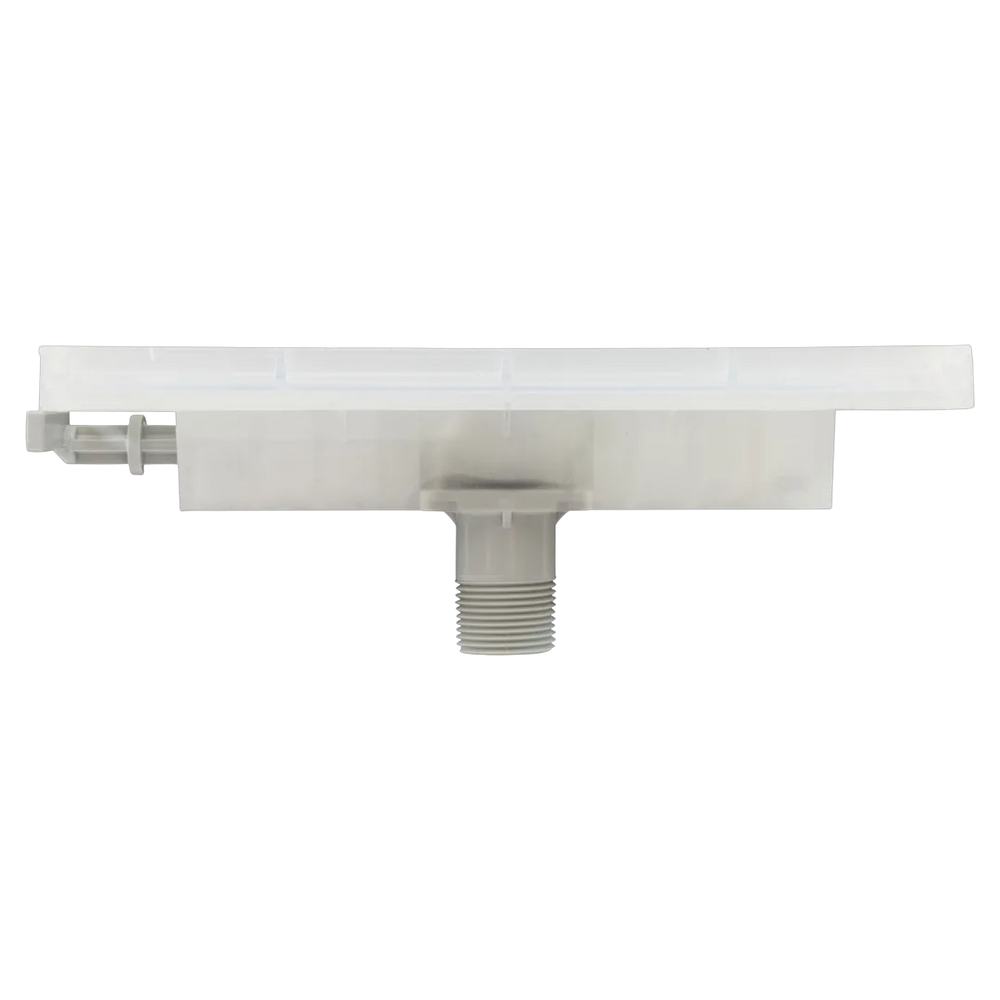

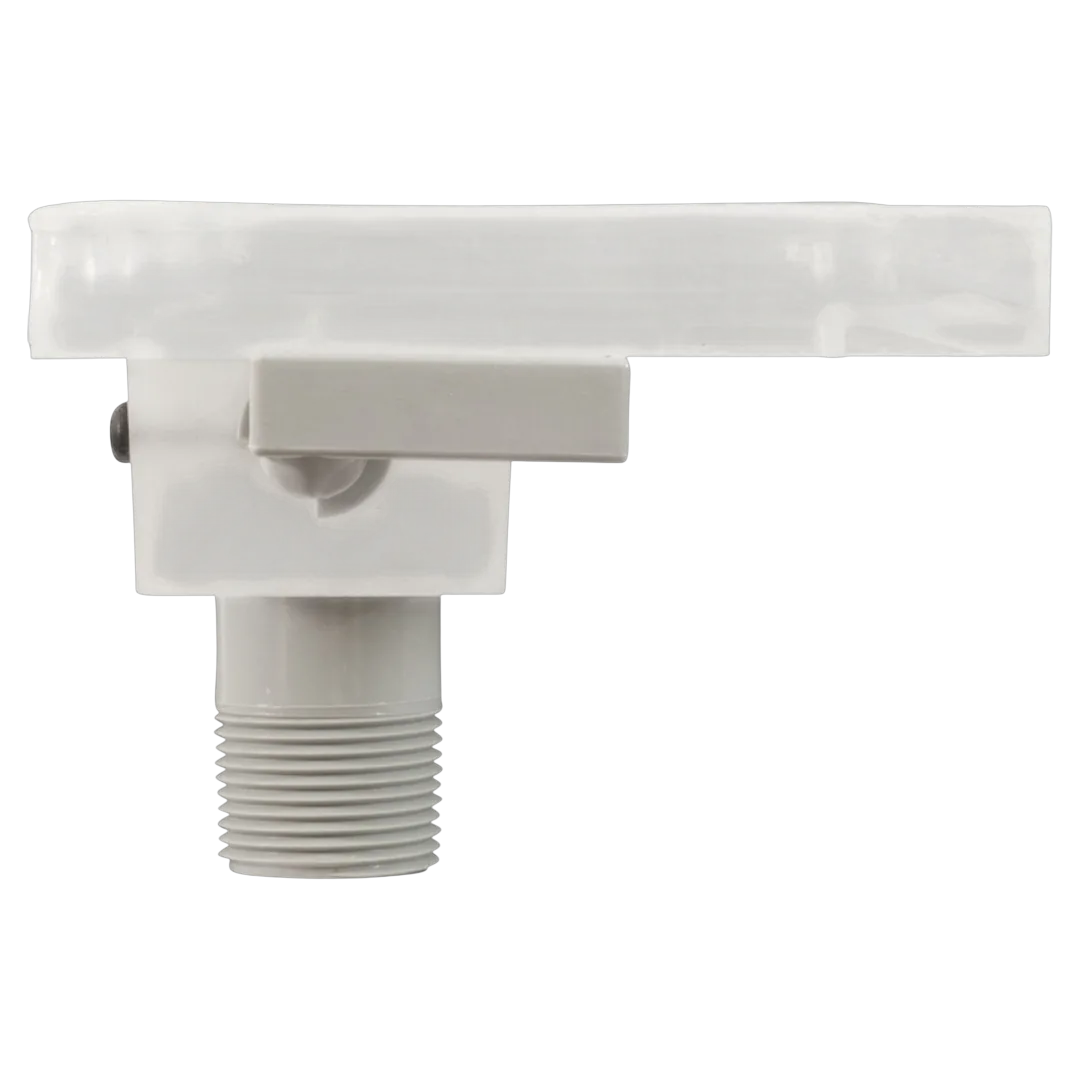

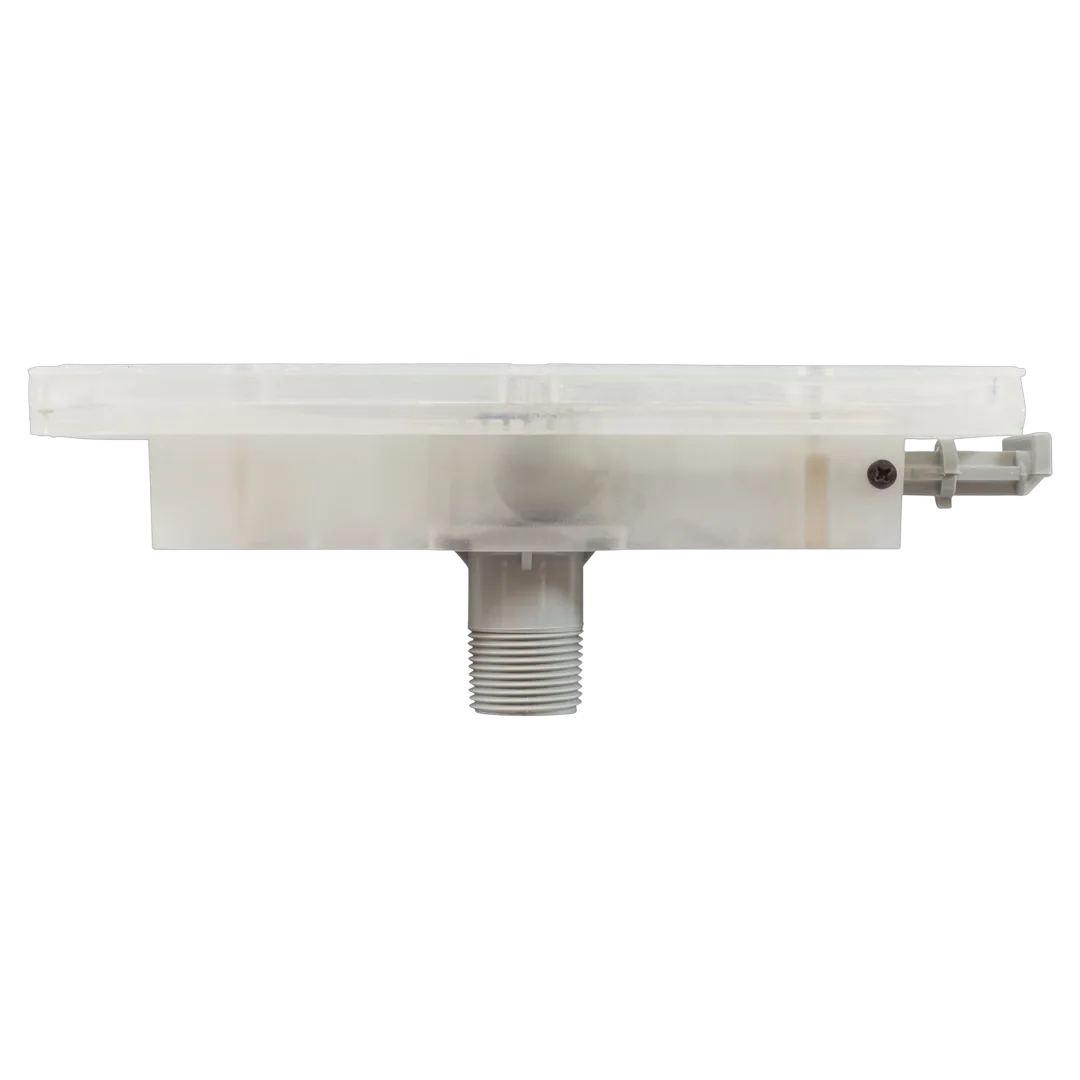

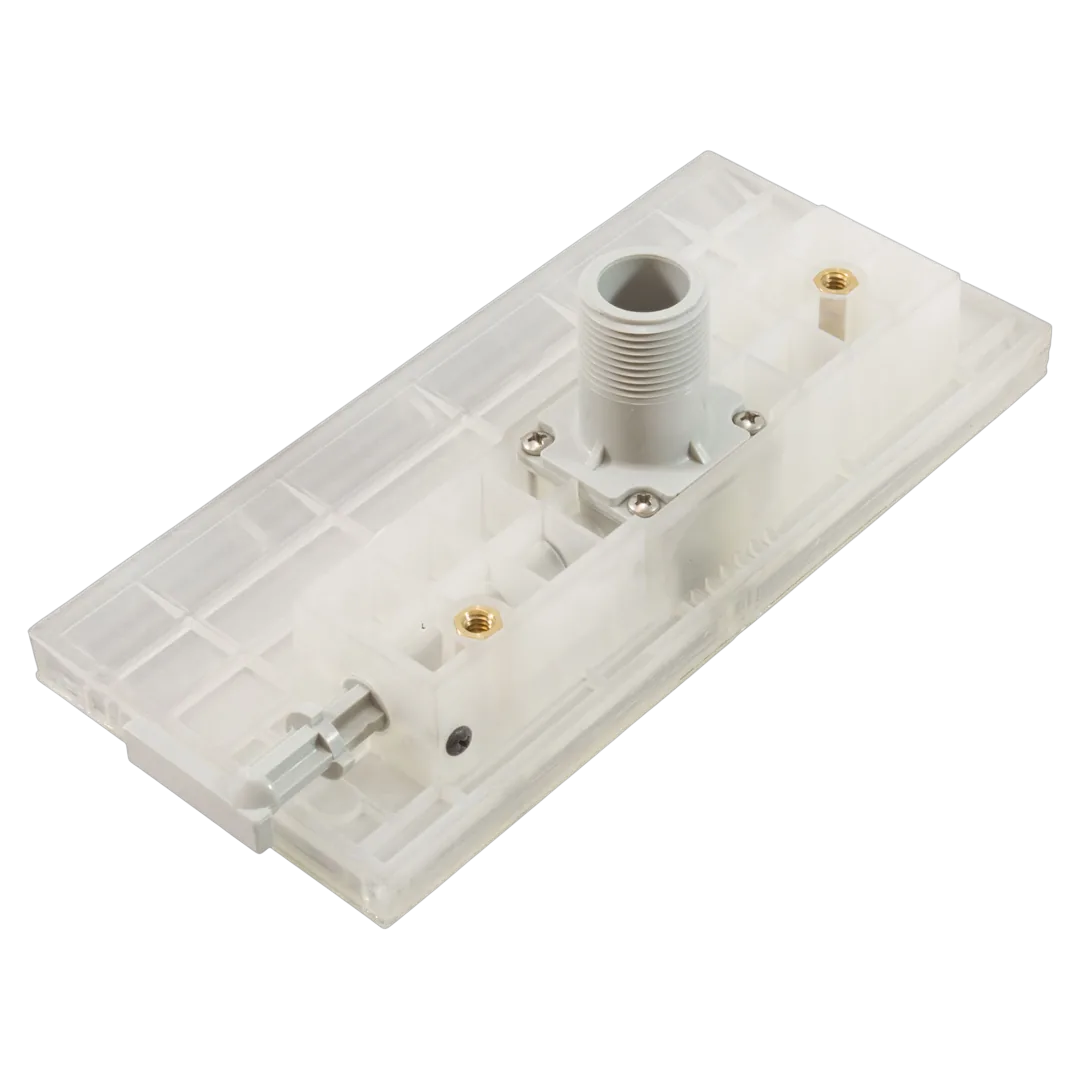

Replacement waterfall fill spout for Jacuzzi and Sundance spas (6540-921), used on 2002-2006 J-300 models and select J-200 units including J-315, J-325, J-270, J-280, J-235, J-245, and J-275. It channels water through the waterfall feature, and the clear body lets LED lighting illuminate the cascade. OEM spout only-light not included; replace the waterfall gasket (6541-285) if worn during install.
Includes: Fill spout (6540-921), grey plastic fill spout cover (6540-925), washers (6570-121), bolts (6570-120), 3/4" adapter (2540-004), barb fitting (6540-262)
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | 6540-921 |
| Part Number | 6540-921 |
| Compatibility | 2002-2006 J-300 Series 2007+ J-270, J-280 2012+ J-235, J-245, J-275 |
| Includes | Fill spout (6540-921), grey plastic fill spout cover (6540-925), washers (6570-121), bolts (6570-120), 3/4" adapter (2540-004), barb fitting (6540-262) |
| Part Type | Heater Assembly |
| Material | Clear plastic |
| Dimensions | 8.5 x 4 inch |
