Intermatic WG1573-10D Time Clock Motor
Intermatic | SKU:
WG1573-10D
$4900
/ea
Unit price
/
Unavailable
Intermatic WG1573-10D Time Clock Motor is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description

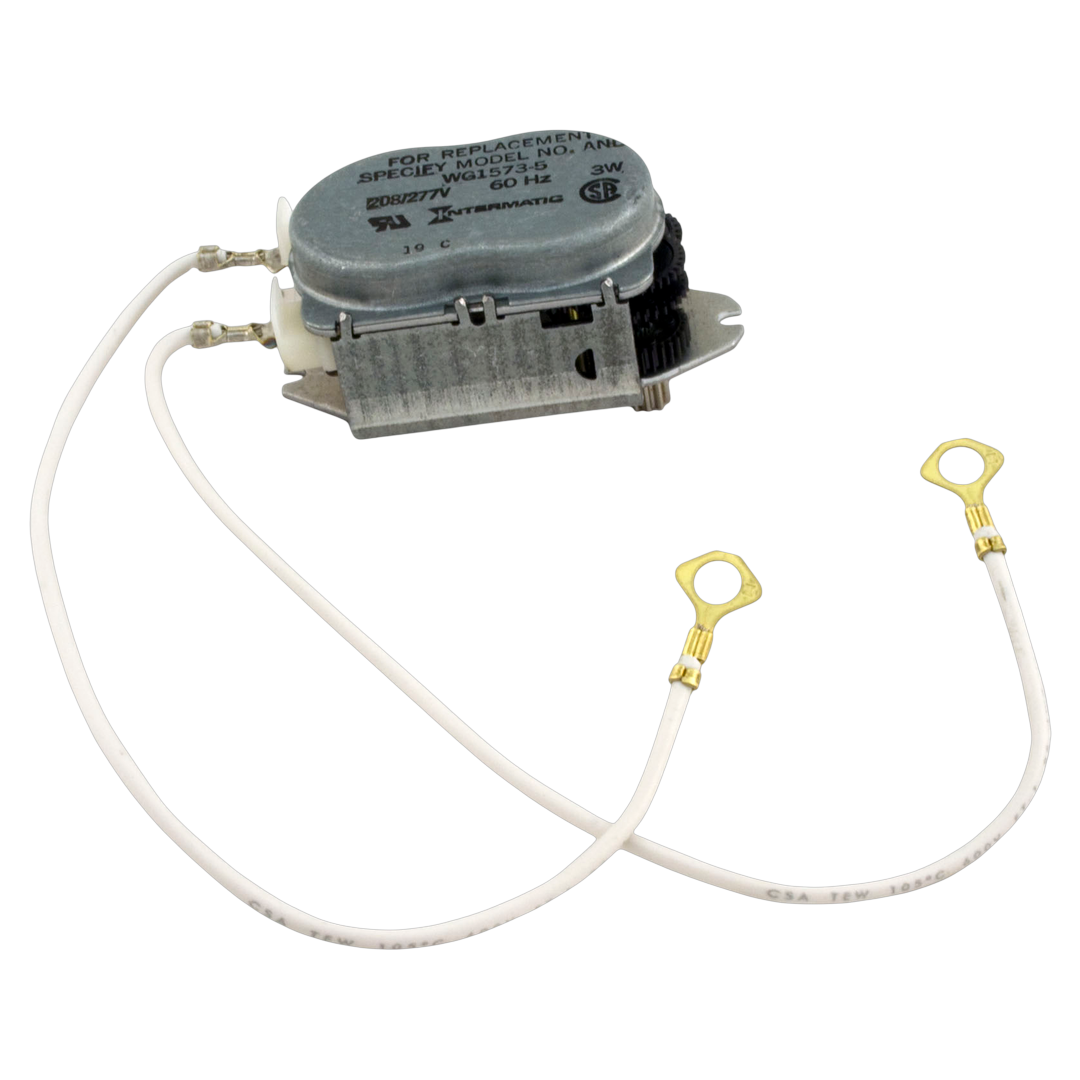

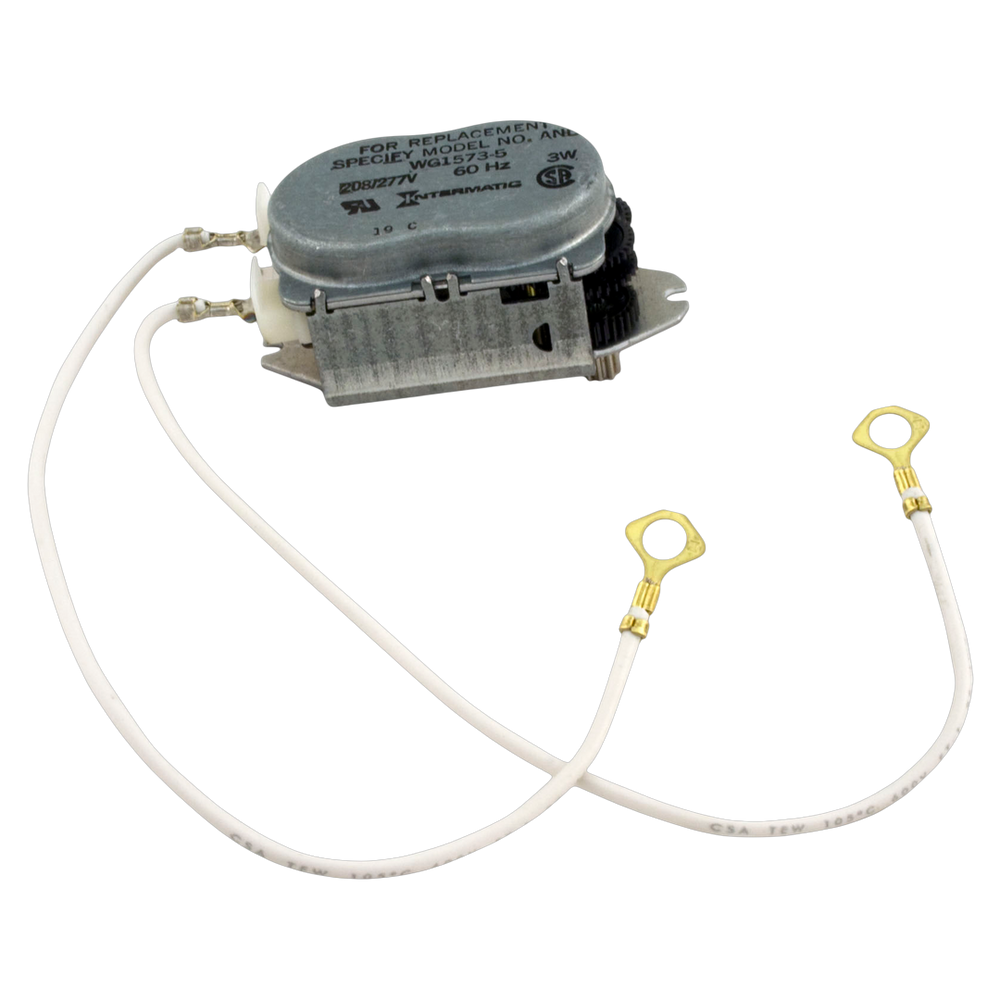

The Intermatic WG1573-10D is a high-torque time clock motor designed for use with various Intermatic timer models, including T102, T104, T106, T172, T174, and WH40. Its fixed tab connectors facilitate easy installation by sliding over the timer connection poles. This motor operates at 208-277 VAC, 60 Hz, making it a reliable replacement for your timer mechanisms.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic 208-277V 60Hz Clock Motor |
| Part Number | WG1573-10D |
| Part Type | Other |
| Brand | Intermatic |
| Primary Voltage | 208-277V |
| Frequency | 60 Hz |
| Wattage Rating | 3 Watts |
| Enclosure Material | Steel |
| Mounting Type | Panel Mount |
| Temperature Rating | -40°F to 130°F |
| Duty Cycle | Continuous |
| Suitable For Use With | T100, T102, T104, T170, T180, T100R201, T1400, T100-20, T100R301, WH10, WH30, WH40 Series Mechanical Time Switches |
| Certifications | UL Recognized |
| Shipping Dimensions | 2.2 x 1.4 x 3.1 inches |
| Product Weight | 0.2 pounds |
Features:
- High torque design
- Fixed tab connectors for easy installation
- Durable steel construction
