Load Center 100A Panel

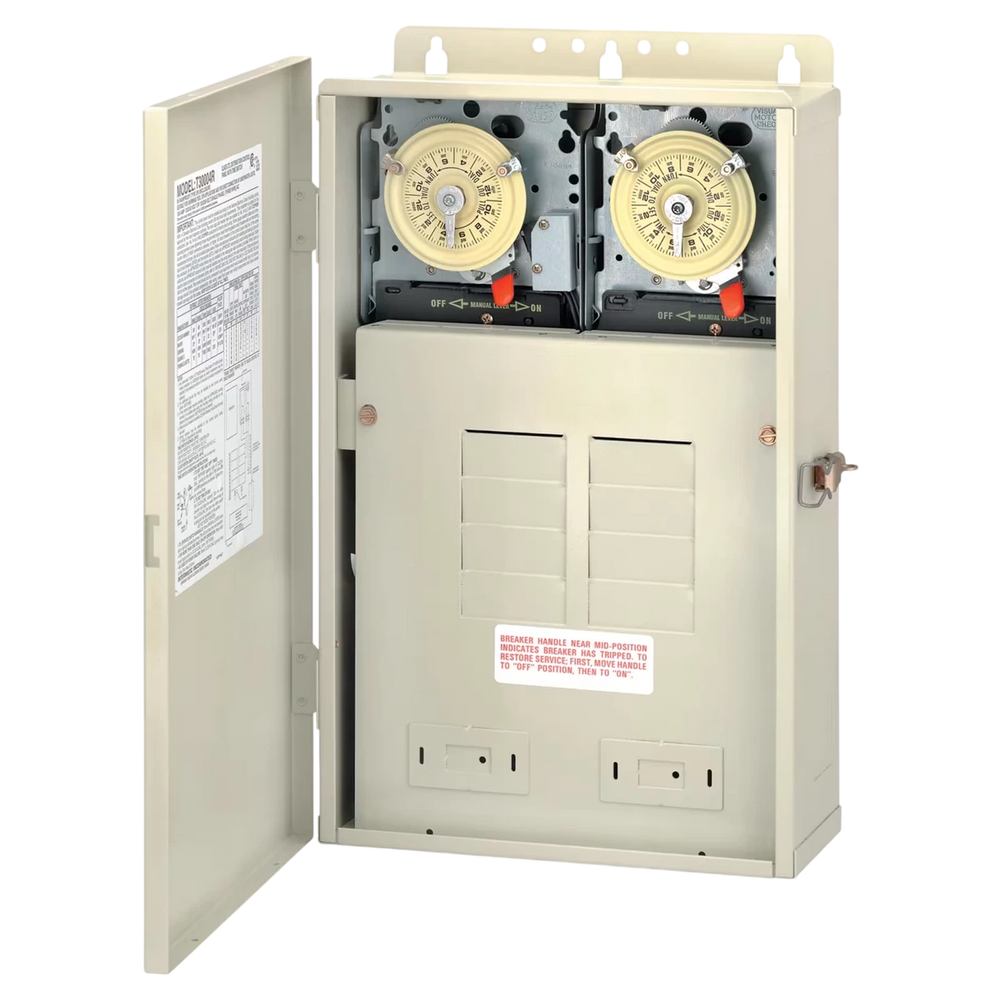

The T32404R is a 100 A NEMA 3R load center that ships pre-fitted with two timer mechanisms, T104M201 and T104M, both rated 208 to 277 VAC, giving a ready-to-wire two-circuit pool and spa control panel instead of an empty enclosure.

Key Features

• 100 A, 8 breaker spaces
• NEMA Type 3R rainproof enclosure, indoor/outdoor
• Two pre-installed timer mechanisms (T104M201, T104M)
• 208 to 277 VAC rating
• Accepts P1353ME, P4243ME, T100M, RC2000M, PF1000M mechanisms

Compatibility

• T104M201 and T104M timer mechanisms
• P1353ME and P4243ME mechanisms
• T100M, RC2000M, and PF1000M series mechanisms
• Two-speed pumps with compatible control modules

What's Included

• T104M201 timer mechanism, pre-installed
• T104M timer mechanism, pre-installed
• Knockouts for switches, GFCIs, or conduit entries

Wiring devices such as switches or GFCIs mount on separate standoffs rather than directly on the panel back.
