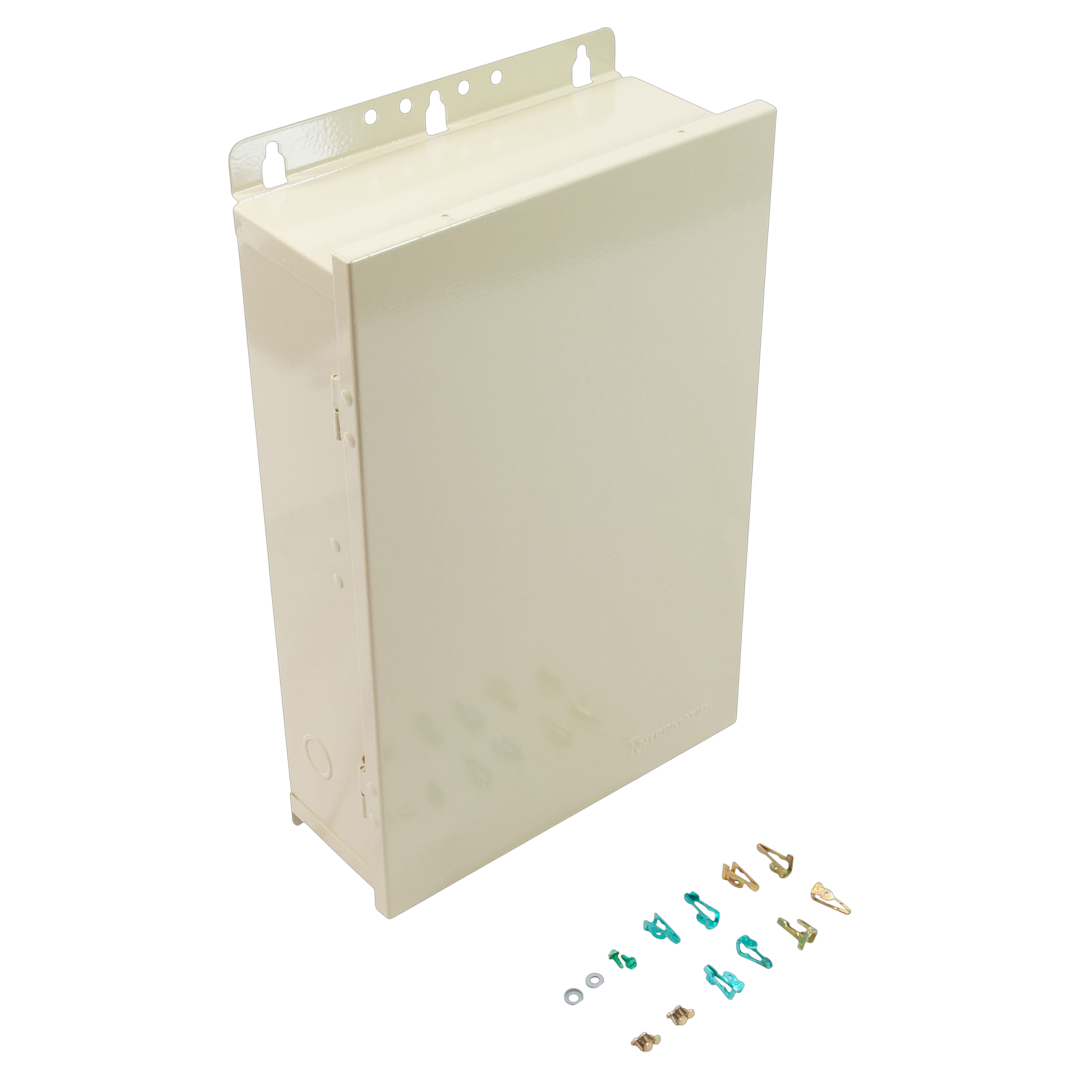

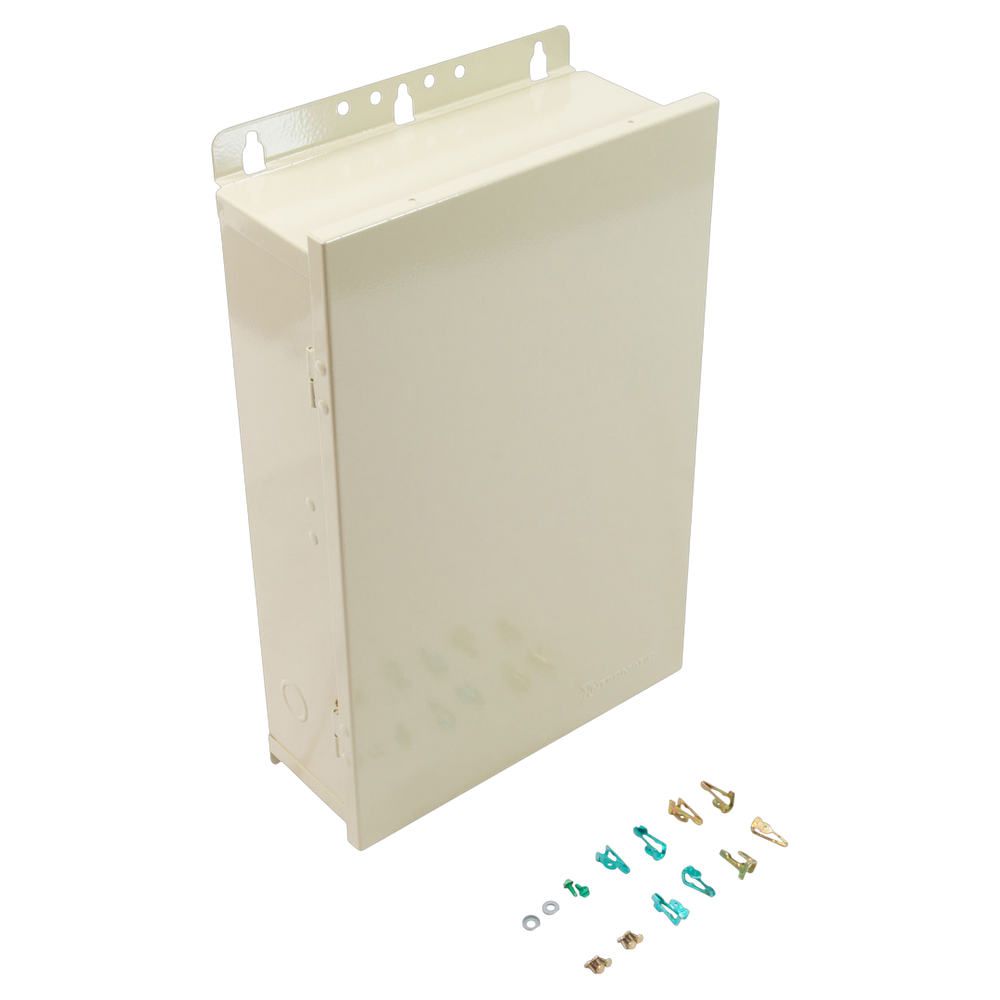

Intermatic T30404R 100A Pool/Spa Load Center with Dual Timers
Intermatic | SKU:
T30404R
$32400
/ea
Unit price
/
Unavailable
Intermatic T30404R 100A Pool/Spa Load Center with Dual Timers is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description

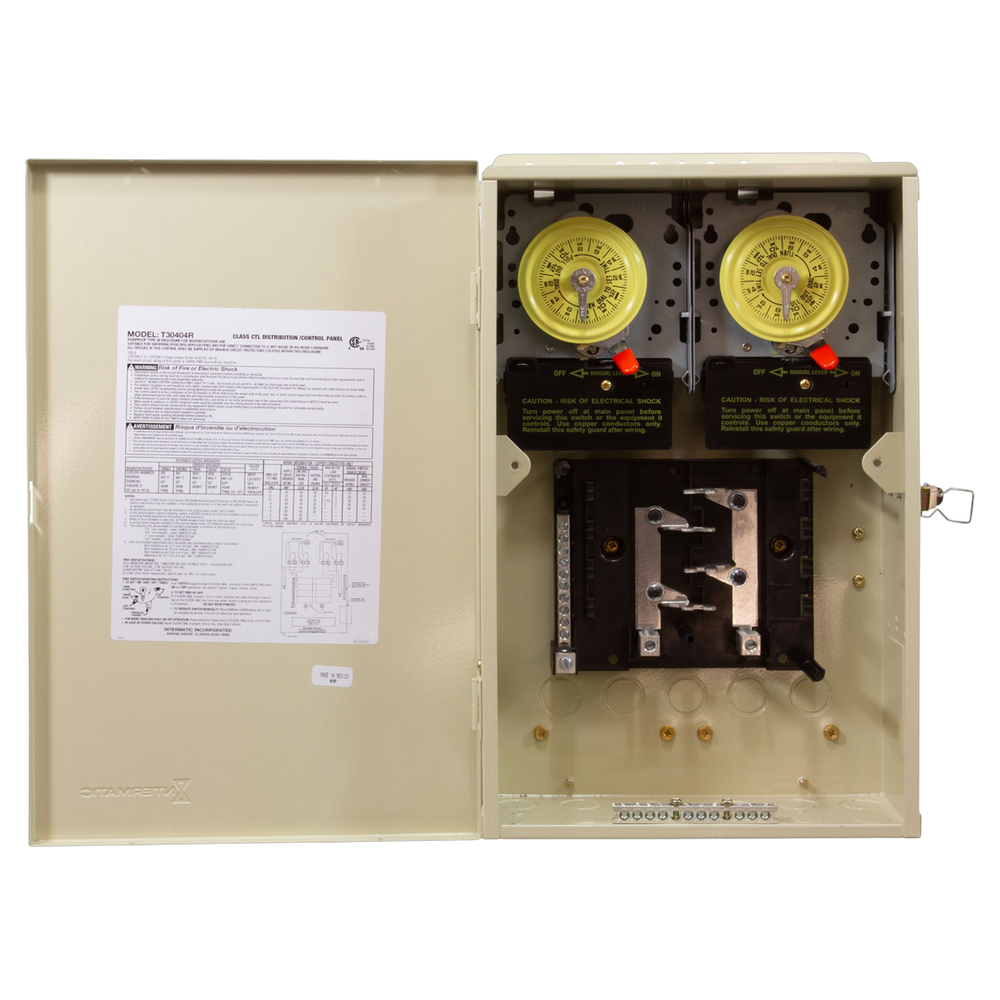

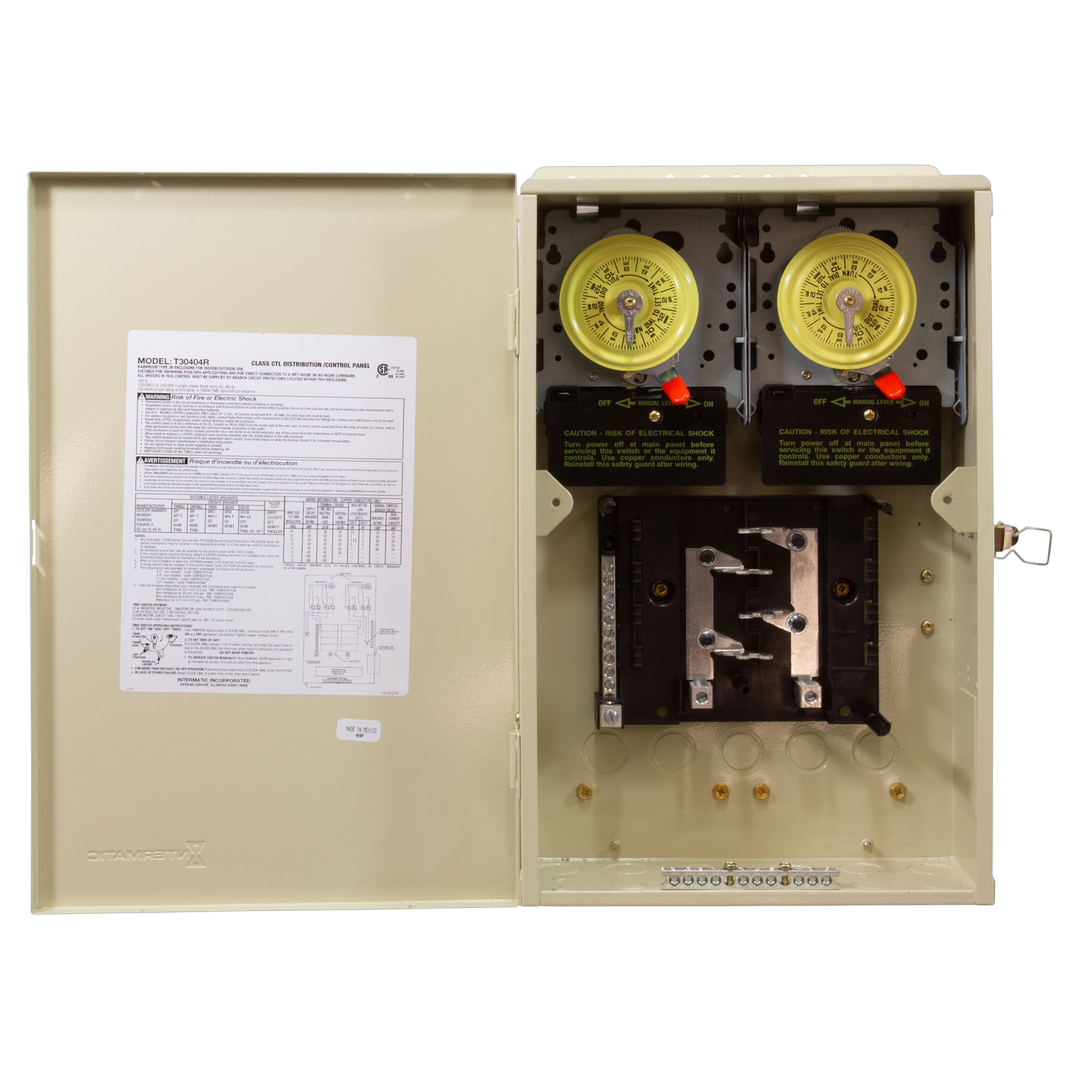

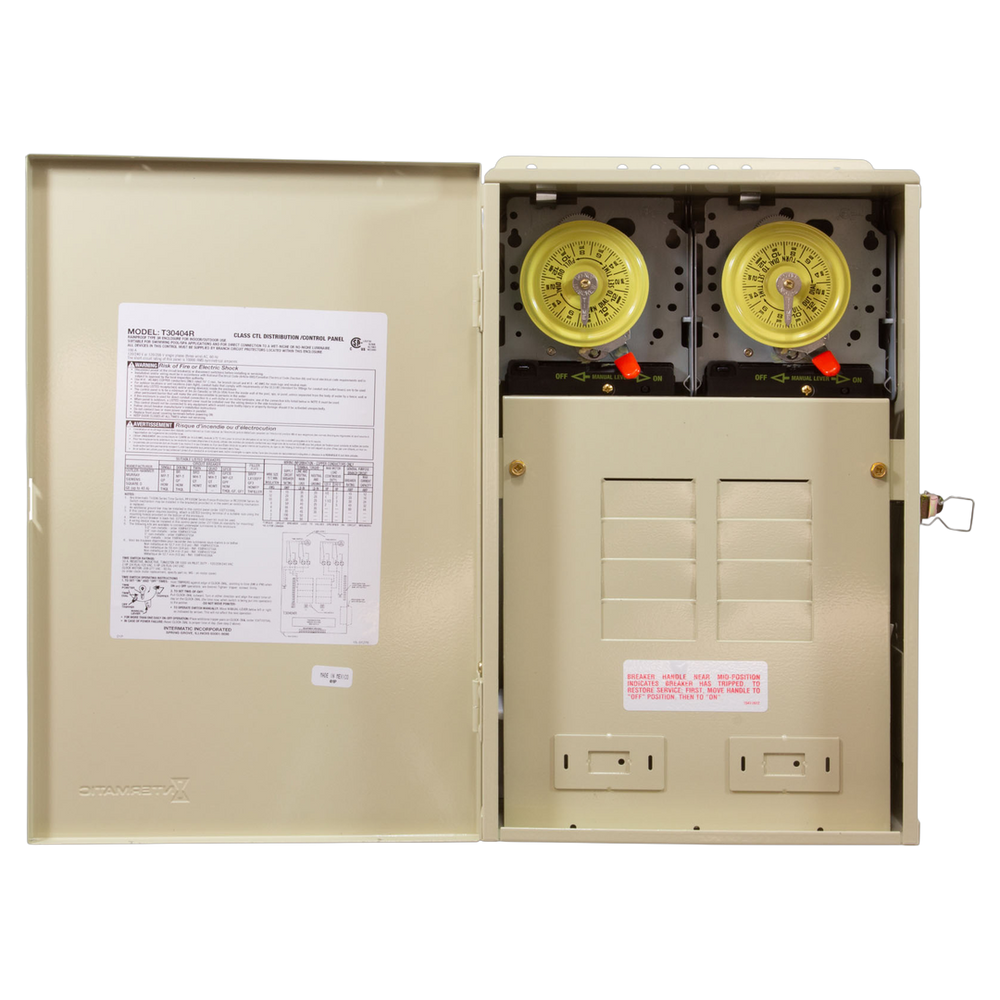

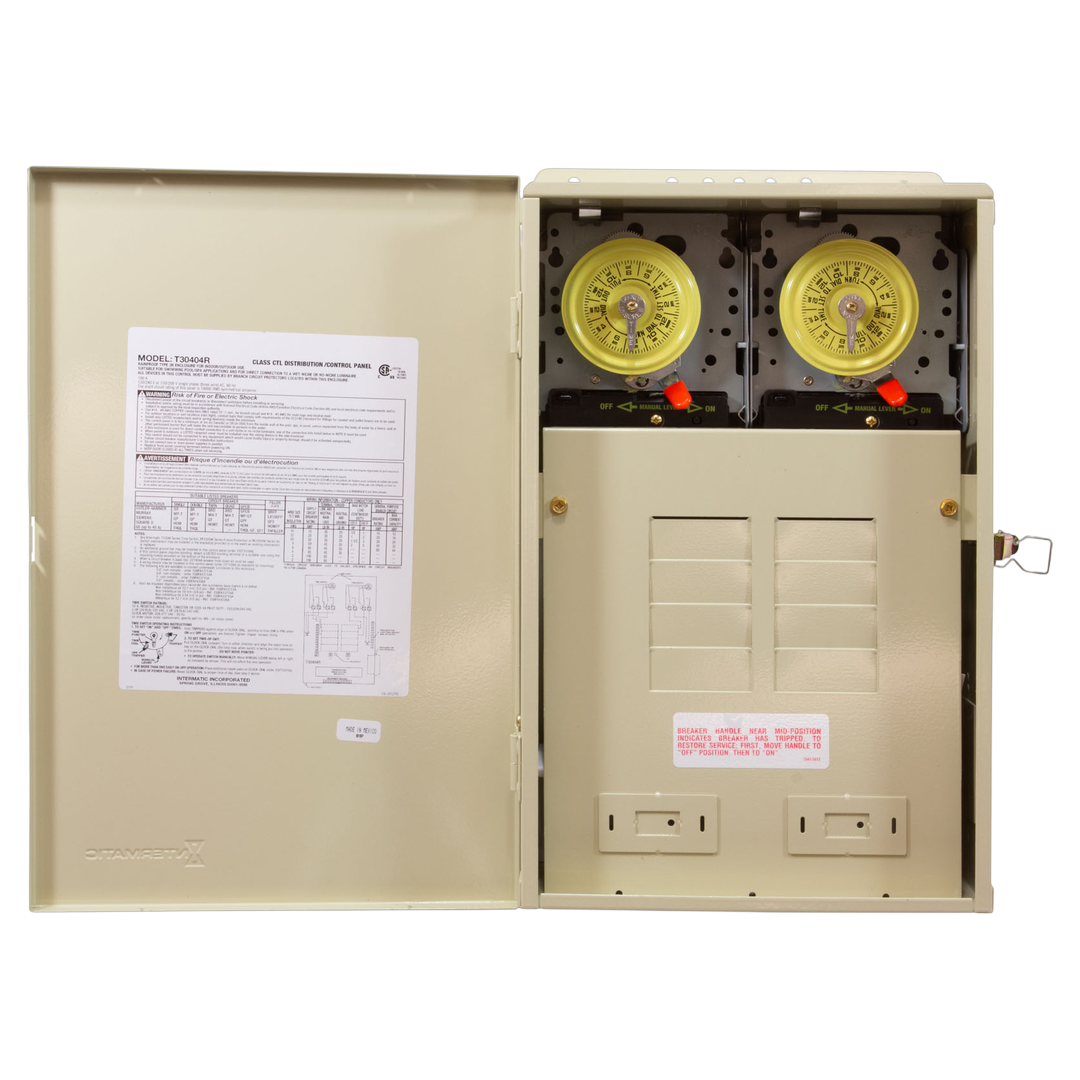

The Intermatic T30404R is a 100 A load center designed for pool and spa applications, featuring eight breaker spaces and two T104M timer mechanisms. It can serve as a standalone load center or be customized with additional time switches and wiring devices, providing flexible control options for pool equipment. This unit simplifies electrical management by integrating multiple functions into a single control panel.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic T30404R Load Center with Timer Switch |
| Part Number | T30404R |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 240V |
| Amperage Output | 30 A |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 30A/240V |
| Contact Rating | DPST |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Metal |

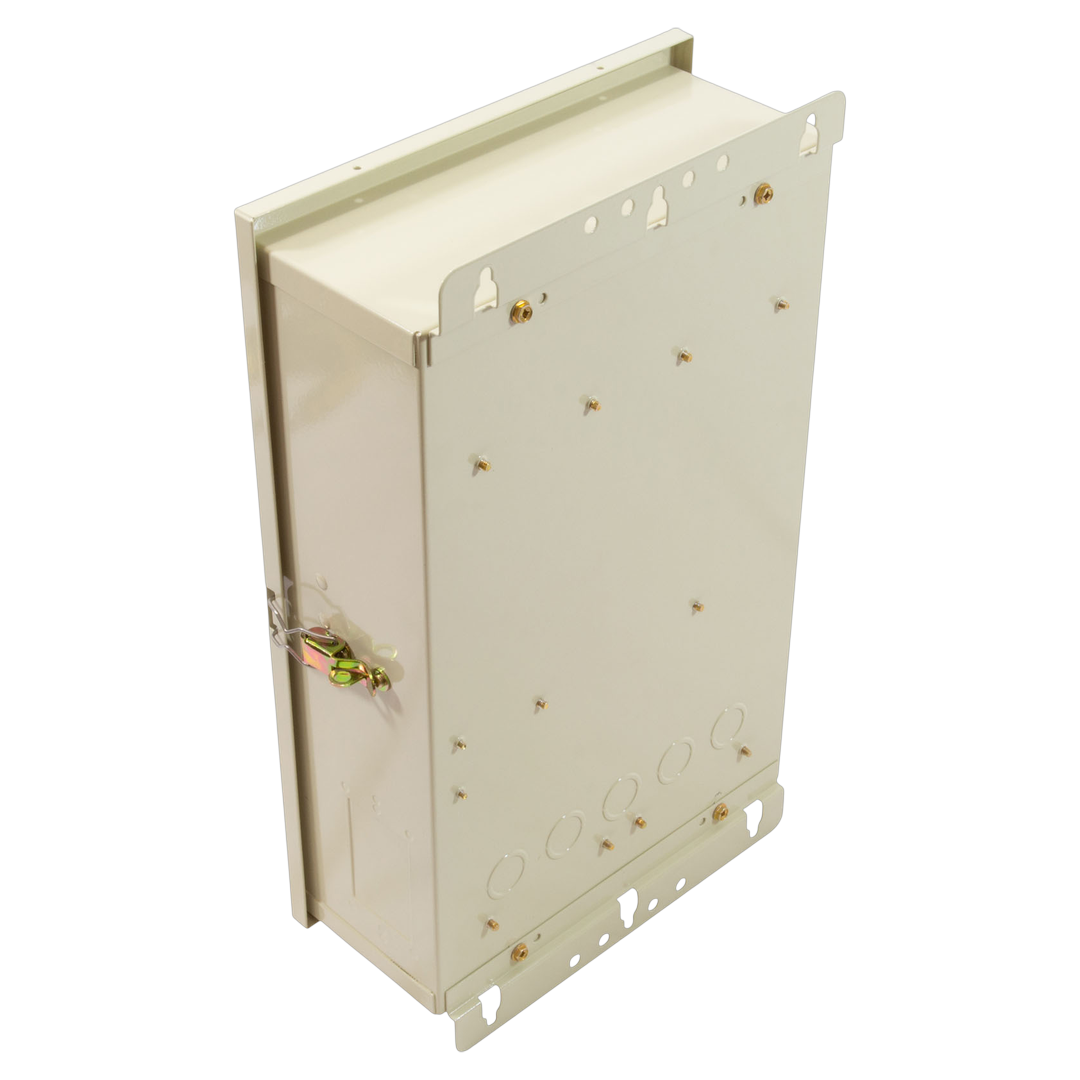

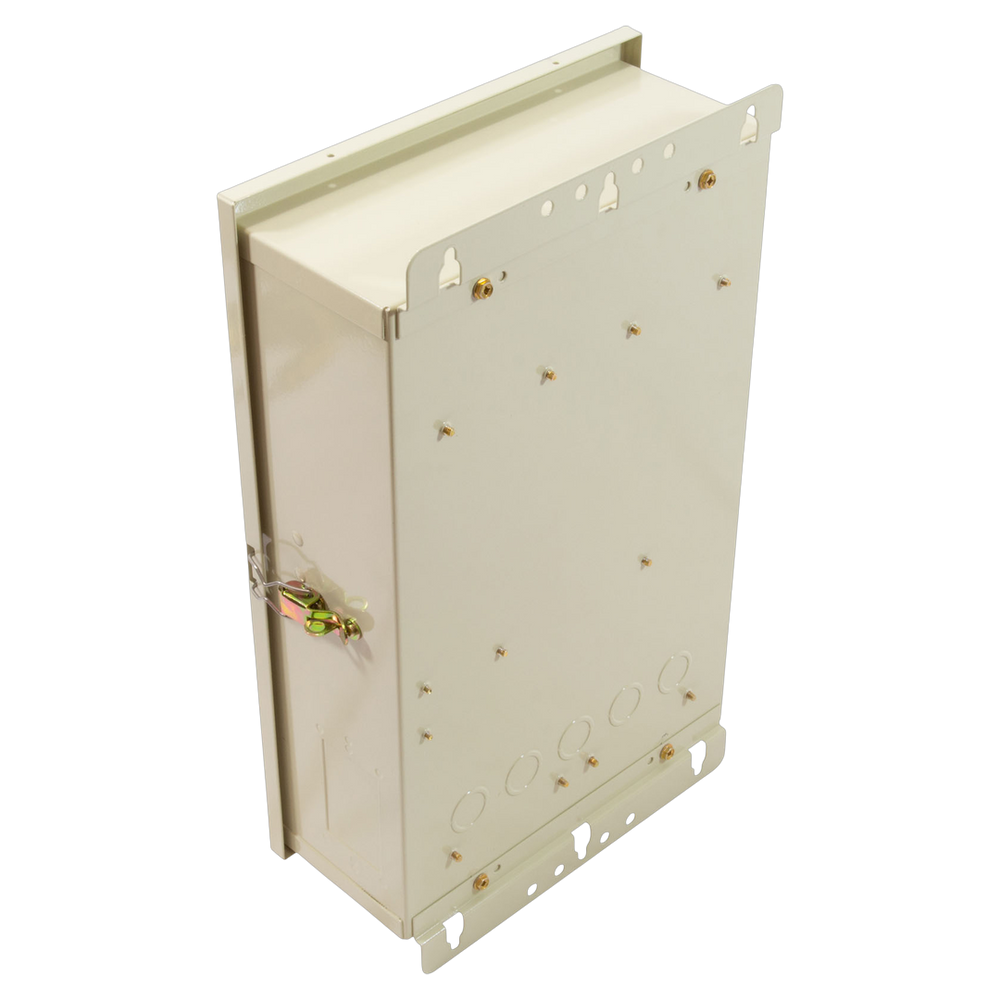

| Mounting Type | Wall Mount |
| Temperature Rating | -40°F to 130°F |
| Duty Cycle | Continuous |
| Number of Circuits | 2 |
| Load Type | Resistive |
| Override Function | Manual Override |
| Display Type | Analog |
| Programming Options | On/Off times |
| Grounding | Equipment Ground |
| Pool/Spa Application | Pool & Spa |
| Includes | P1353ME, P4243ME, T100M, PF1000M Series Mechanisms |
| Certifications | cCSAus Certified, RoHS Compliant |
| Warranty | Not specified |
| Shipping Dimensions | 16.5 x 10.875 x 4.5 inches |
| Product Weight | Not specified |
Features:
- Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems
- Comes with an 8 or 16 circuit breaker base, equipment grounding bar, and optional mechanical time switch(es)
- Reduces installation costs
- Eliminates the need for additional service panels
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M, or RC2000M series mechanisms
- Fully compatible with all electrical requirements for pool/spa installations
- Load center dead front has two knockouts for switches or GFCIs
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately below
