Intermatic T21004R Pool Spa Control Panel
Intermatic T21004R Pool Spa Control Panel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

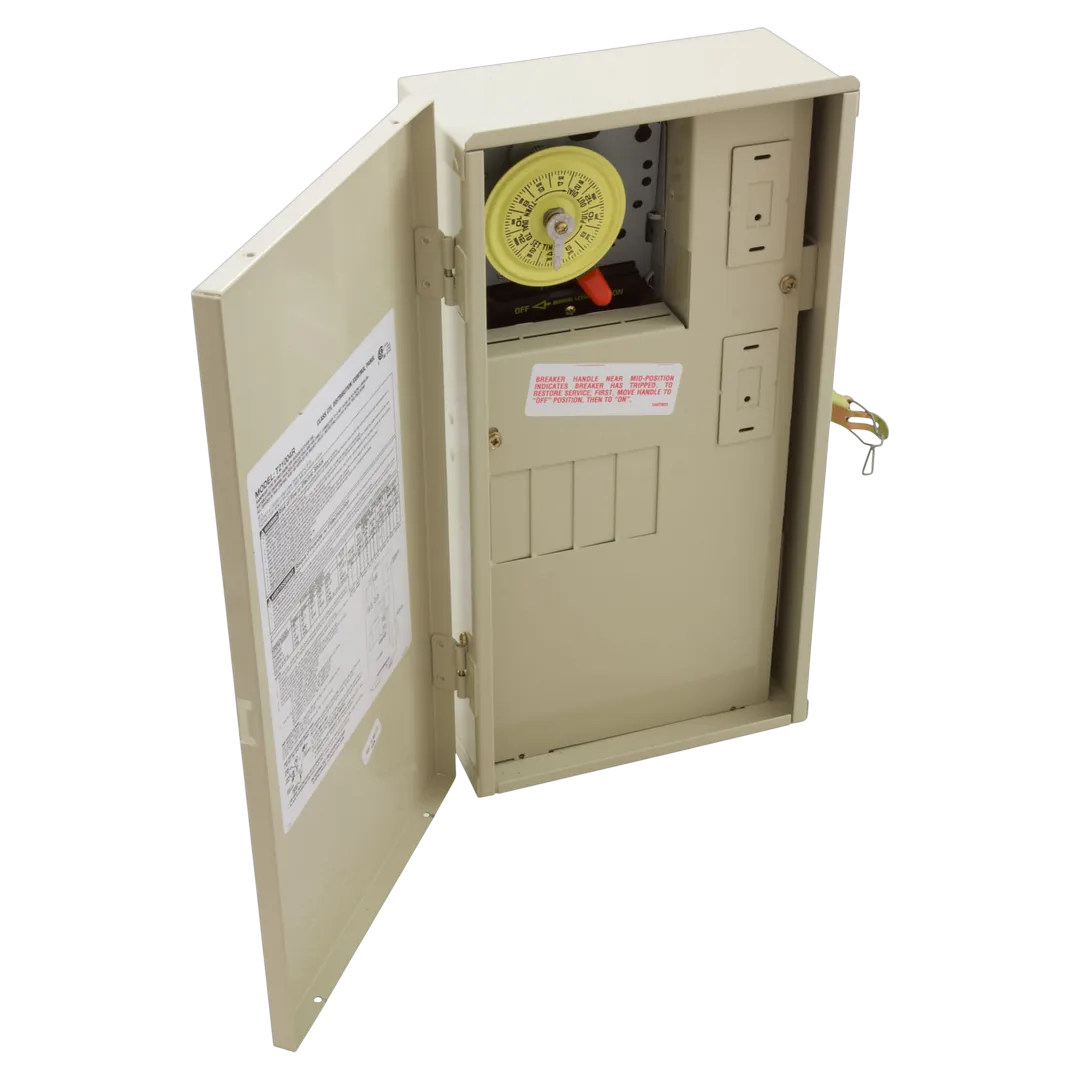

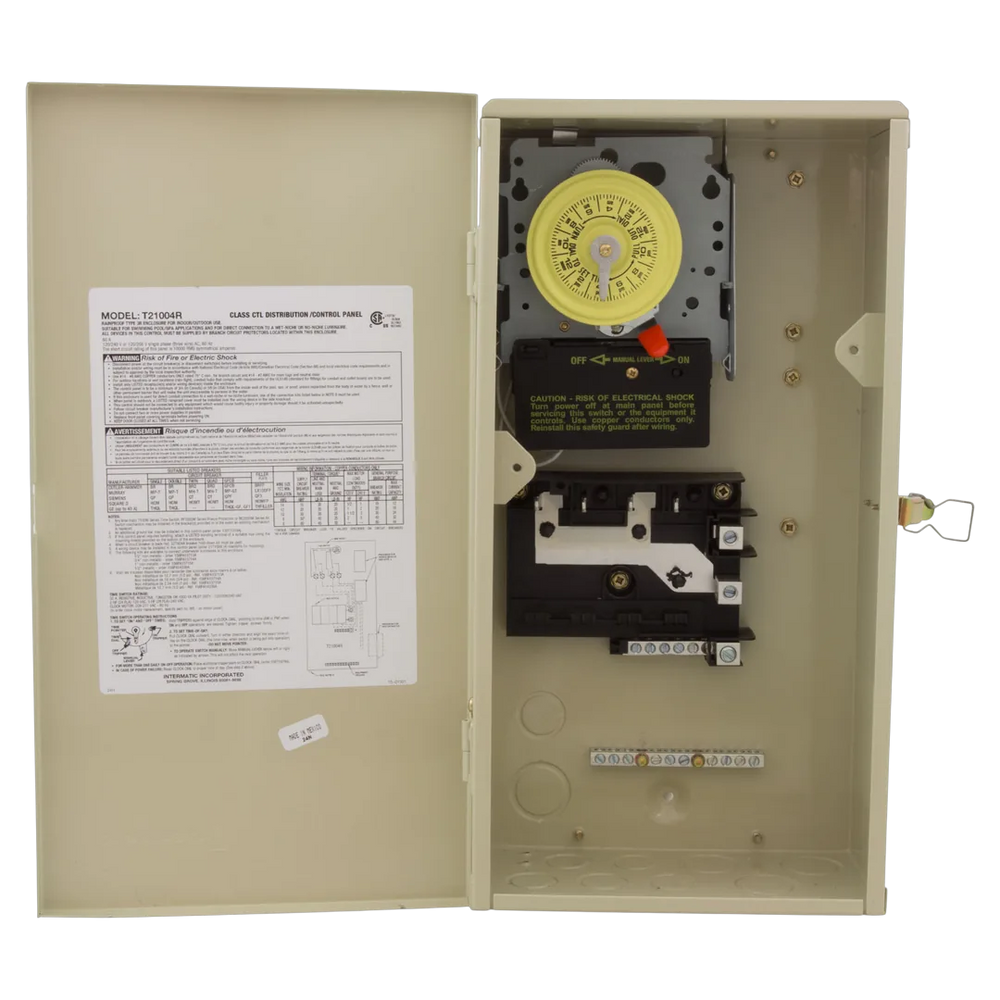

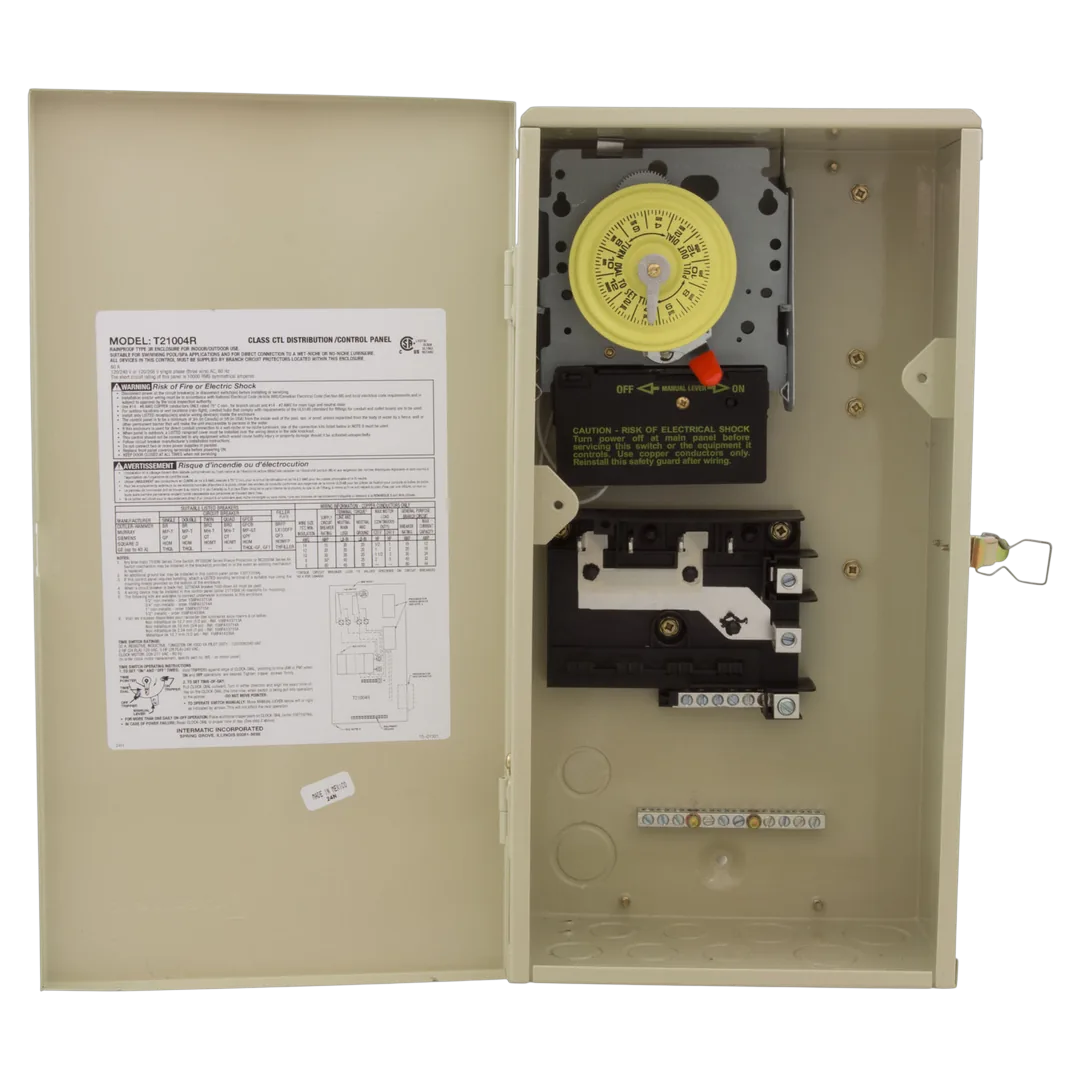

The Intermatic T21004R is a 60-amp load center equipped with a T104M mechanical time switch mechanism, allowing dual functionality as both a load center and a customizable control panel. It features an integrated dead front design with four breaker spaces, accommodating additional time switches or wiring devices for comprehensive system integration. This model is compatible with various mechanical mechanisms including PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M, or RC2000M series.
Includes: T104M mechanical time switch
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | T21004R |
| Part Number | T21004R |
| Part Type | Load Center with Time Switch |
| Includes | T104M mechanical time switch |
| Certifications | cCSAus Certified |
| Material | Metal |
| Switch Type | DPST |
| Number of Positions | 2 |
| Connection Size | Five combination 1/2" - 3/4" and three 3/4" - 1" on the bottom One combination 1/2" - 3/4" on the left side One 3/4" - 1" on the back One combination 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI |
| Mount Type | Surface with brackets |
| Flow Paths | Single-phase |
| Pressure Rating | 60 A, 120/240 VAC or 120/208 VAC Single Phase-60 Hz |
| Seal Material | NEMA 3R Enclosure |
| Shipping Dimensions | 16.875 x 8.875 x 4.75 inch |
| Product Weight | 12 pound |
