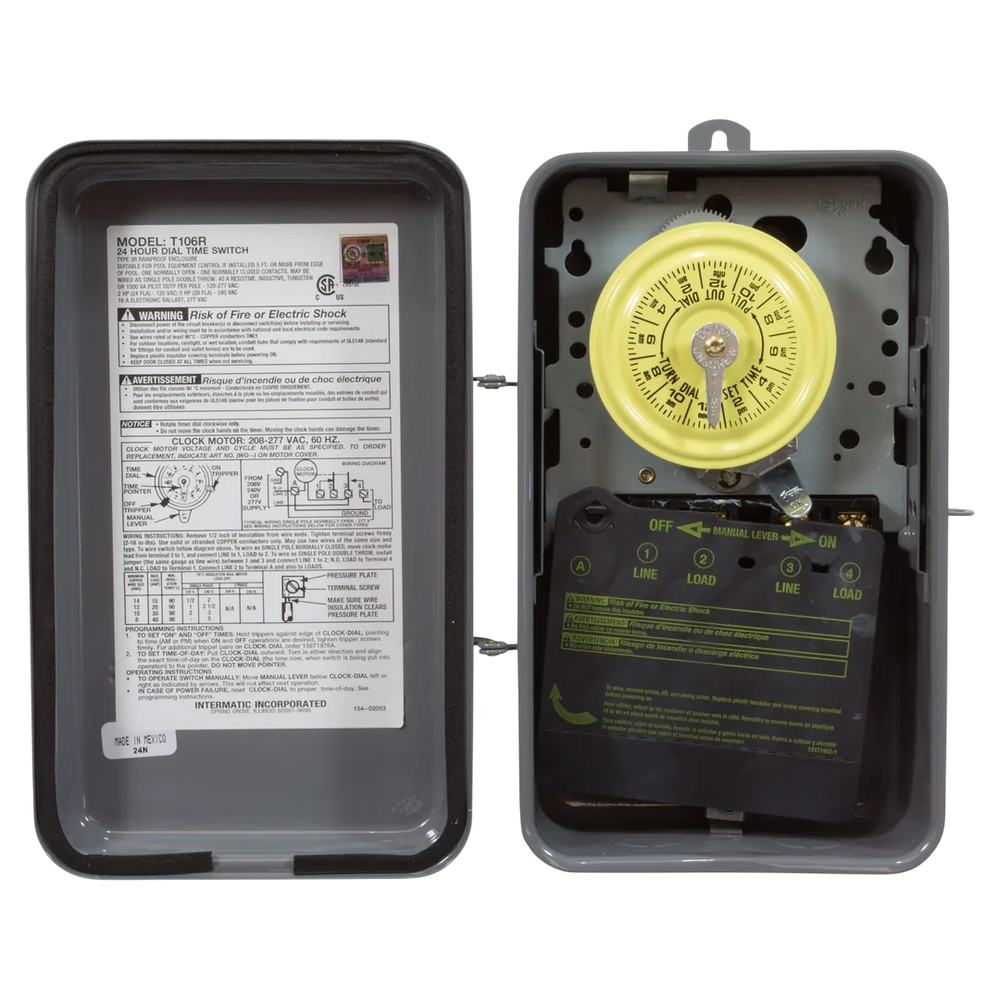

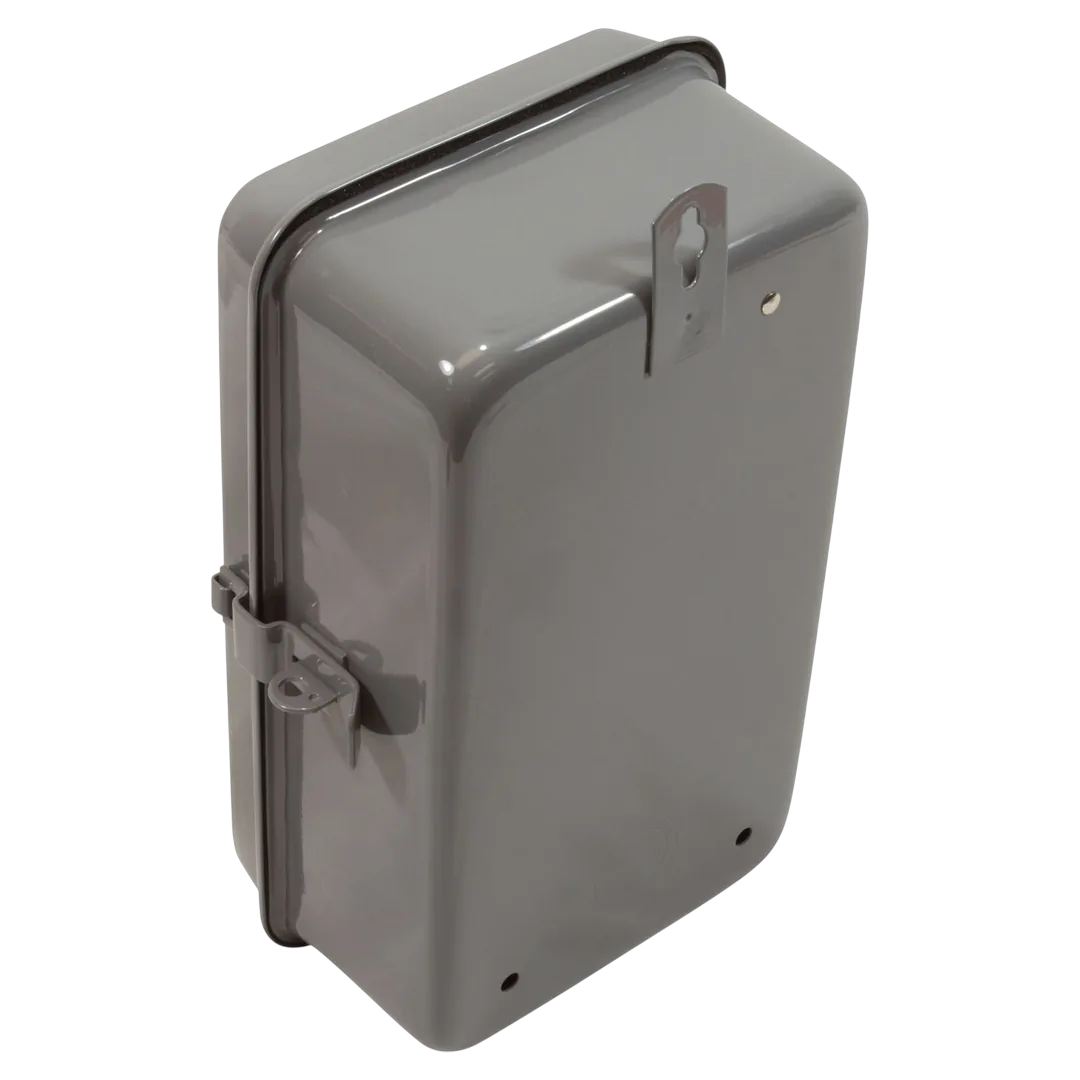

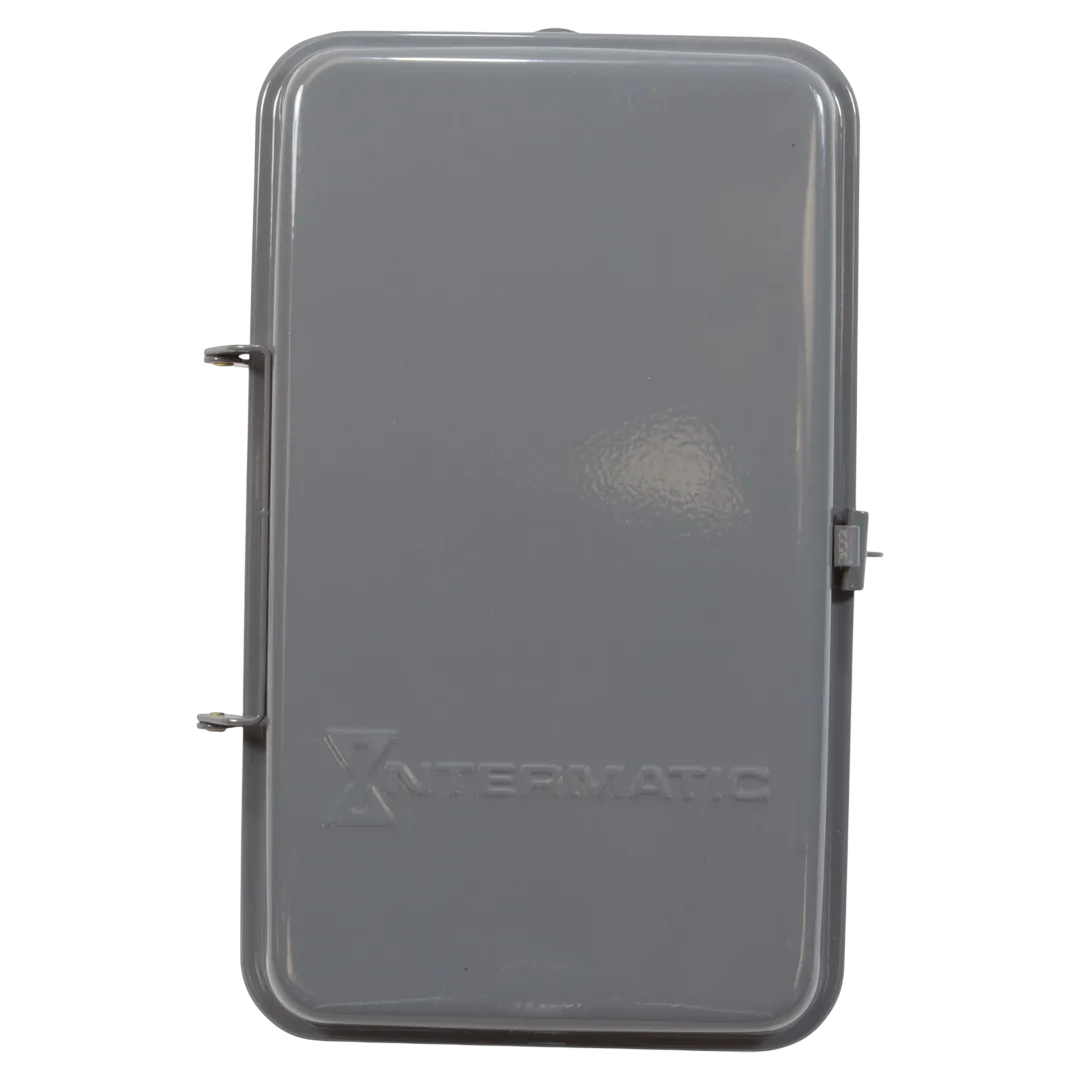

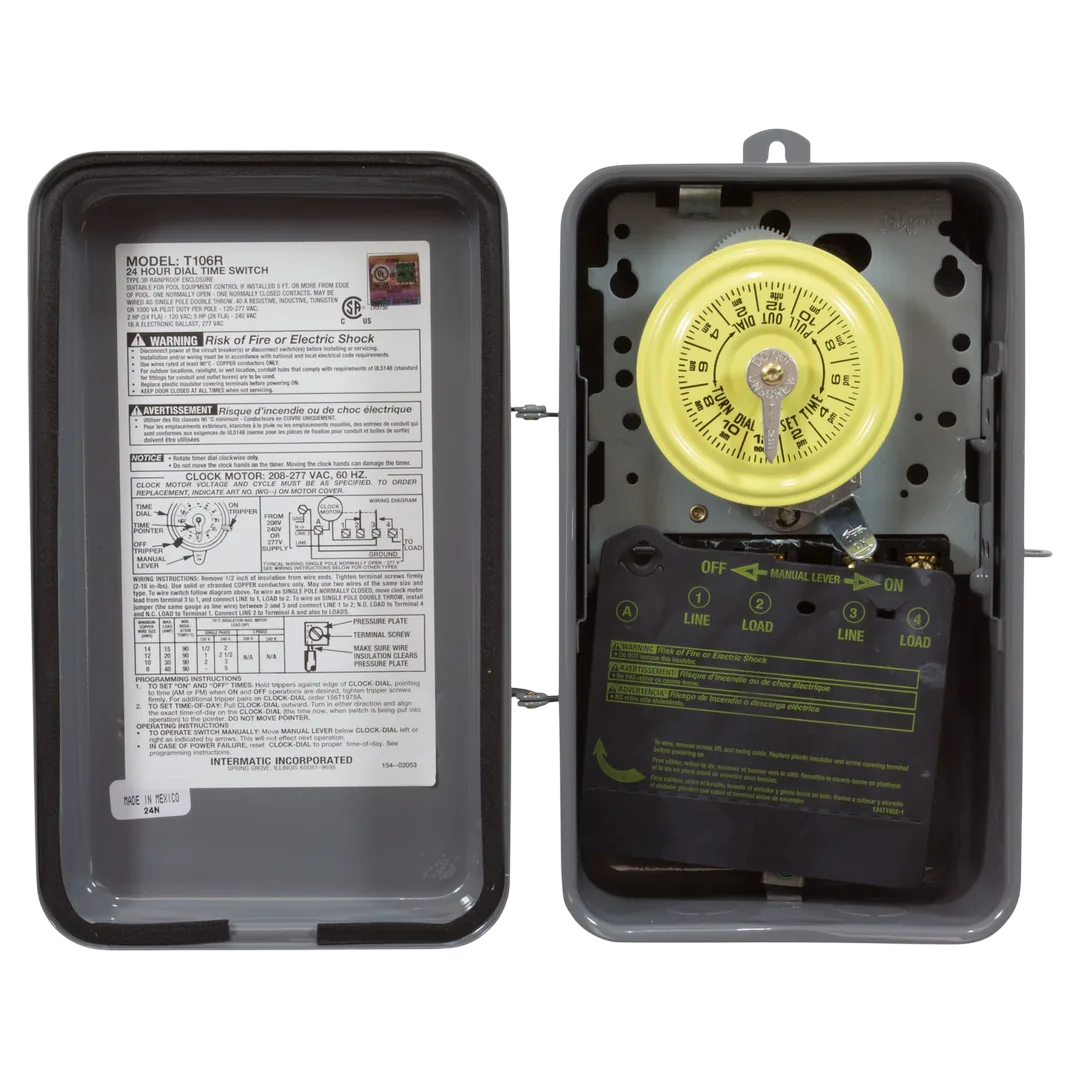

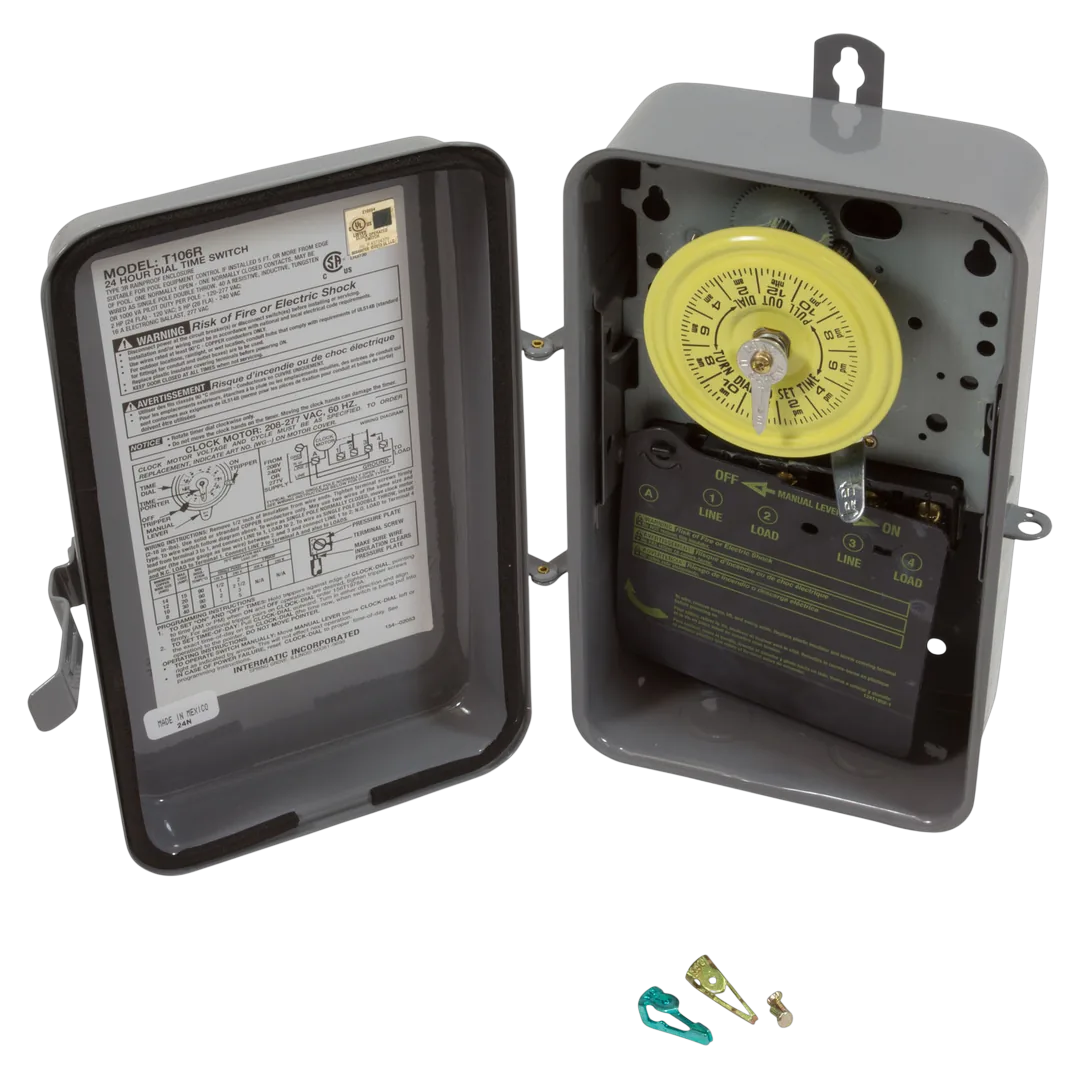

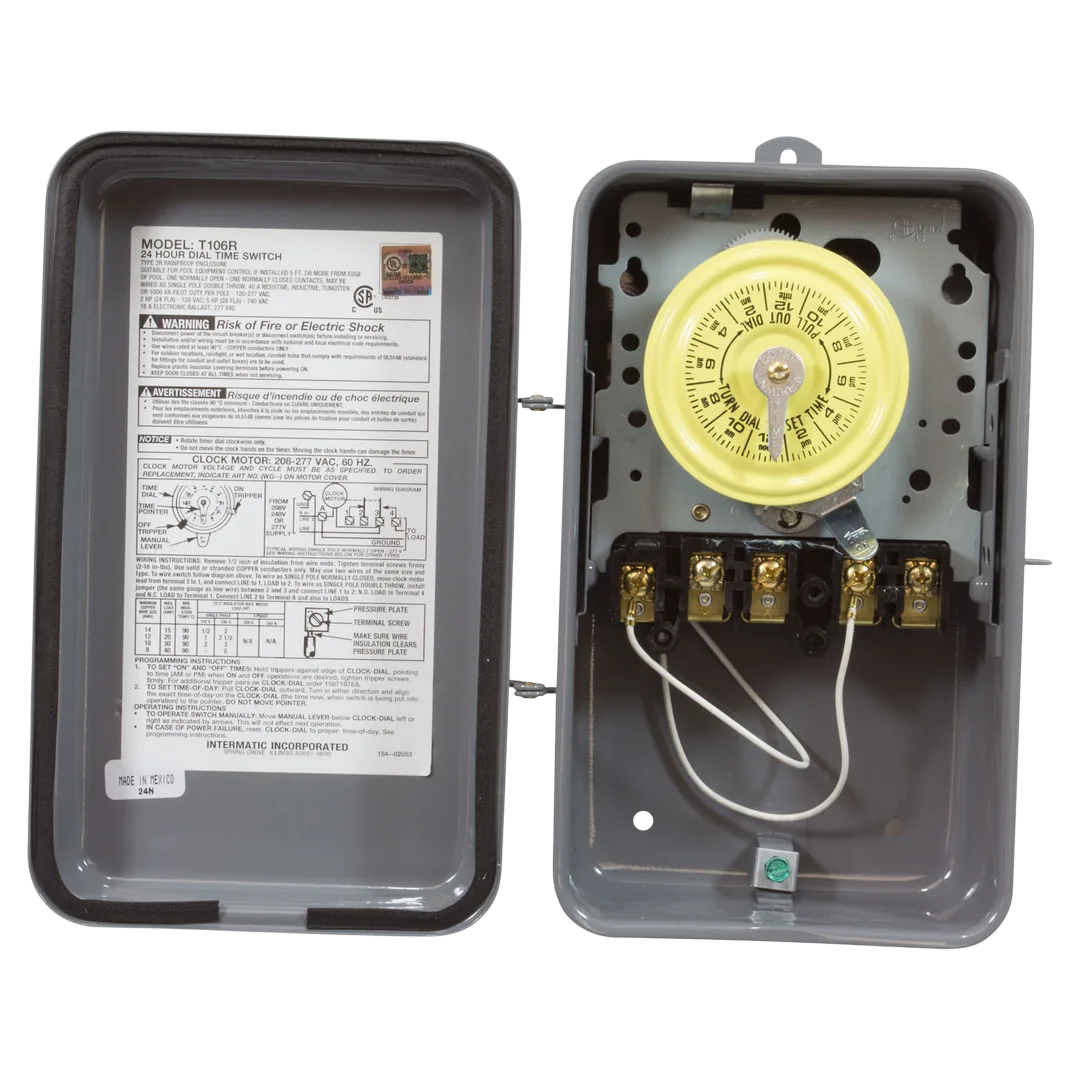

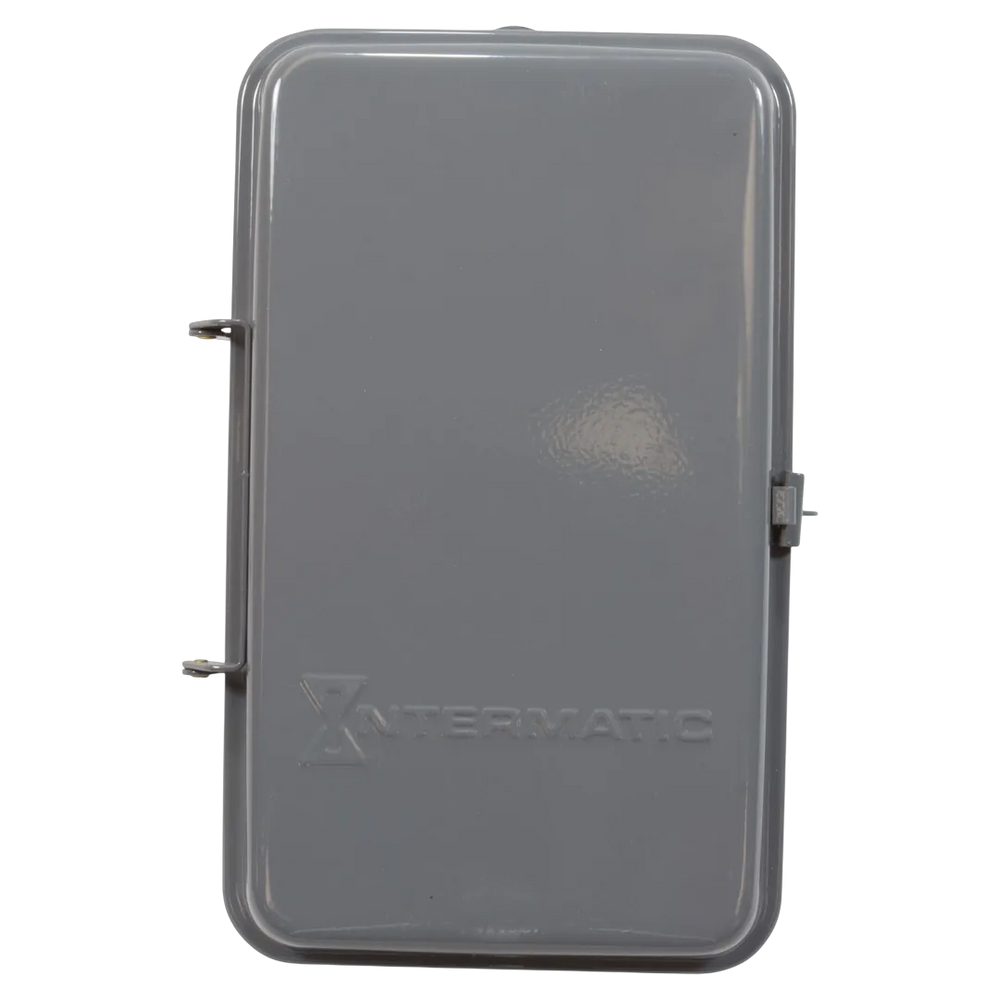

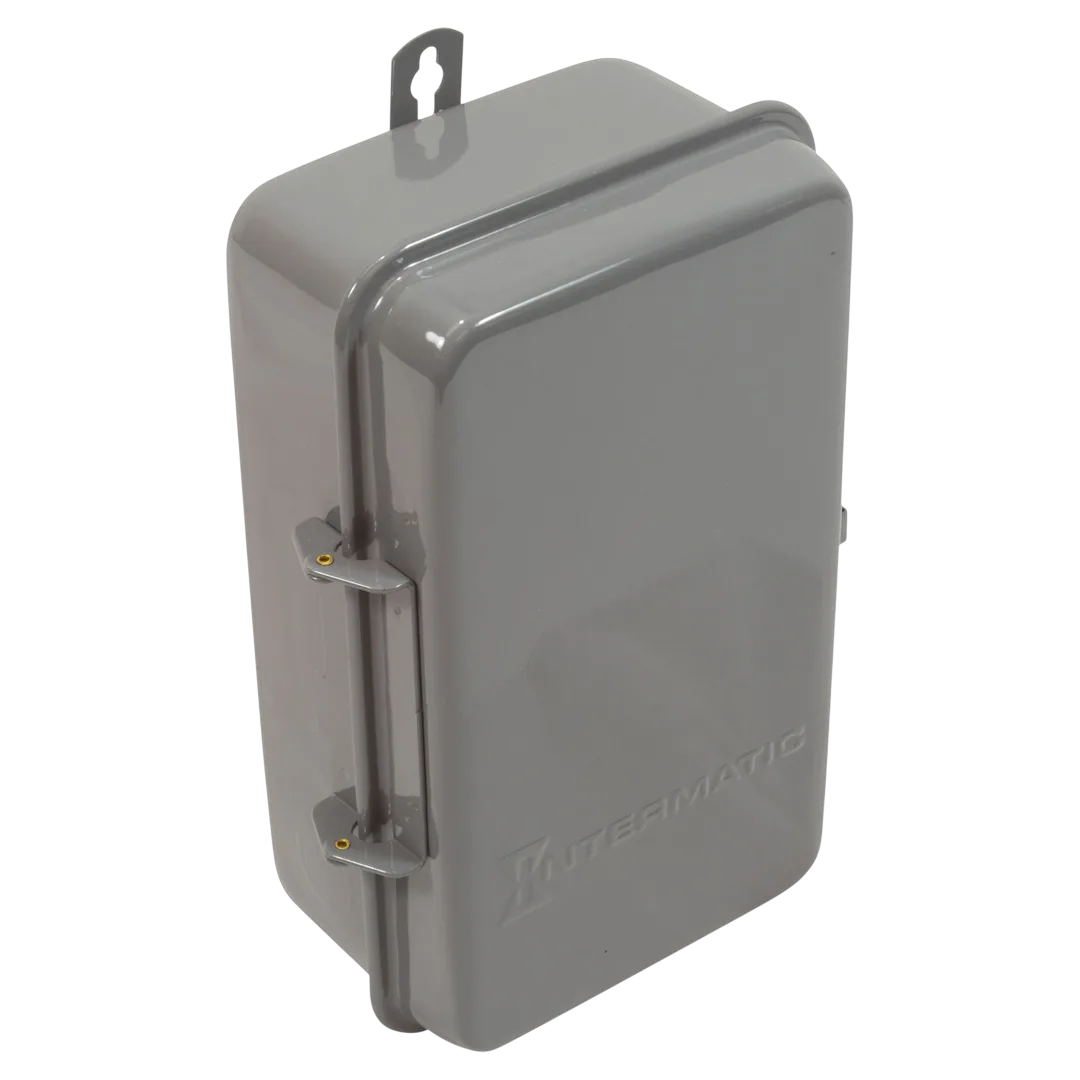

Intermatic T106R Mechanical Time Switch
Intermatic | SKU:
T106R
$20900/ea
Unit price
/
Unavailable
Intermatic T106R Mechanical Time Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Automates high/low speed switching on two-speed pool pumps; the Intermatic T106R is an SPDT mechanical time switch. It provides 24-hour scheduling with up to 12 on/off events per day and a manual override for service. The assembly is housed in a rainproof NEMA 3R steel enclosure and includes one ON and one OFF tripper.
Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T106R |
| Part Number | T106R |
| Part Type | Mechanical Time Switch |
| Includes | One ON and one OFF tripper |
| Certifications | cCSAus cULus Green Energy LED |
| Material | Steel |
| Number of Positions | 12 ON/OFF operations per day |
| Connection Size | Teeter-type terminals for multiple load connections |
| Mount Type | Wall |
| Flow Paths | 1 NO/1 NC, SPDT |
| Pressure Rating | 40 A, 120-240 VAC, 60 Hz |
| Seal Material | NEMA 3R Enclosure |
| Shipping Dimensions | 6.56 x 4 x 10.06 inch |
| Product Weight | 3.493 pound |
