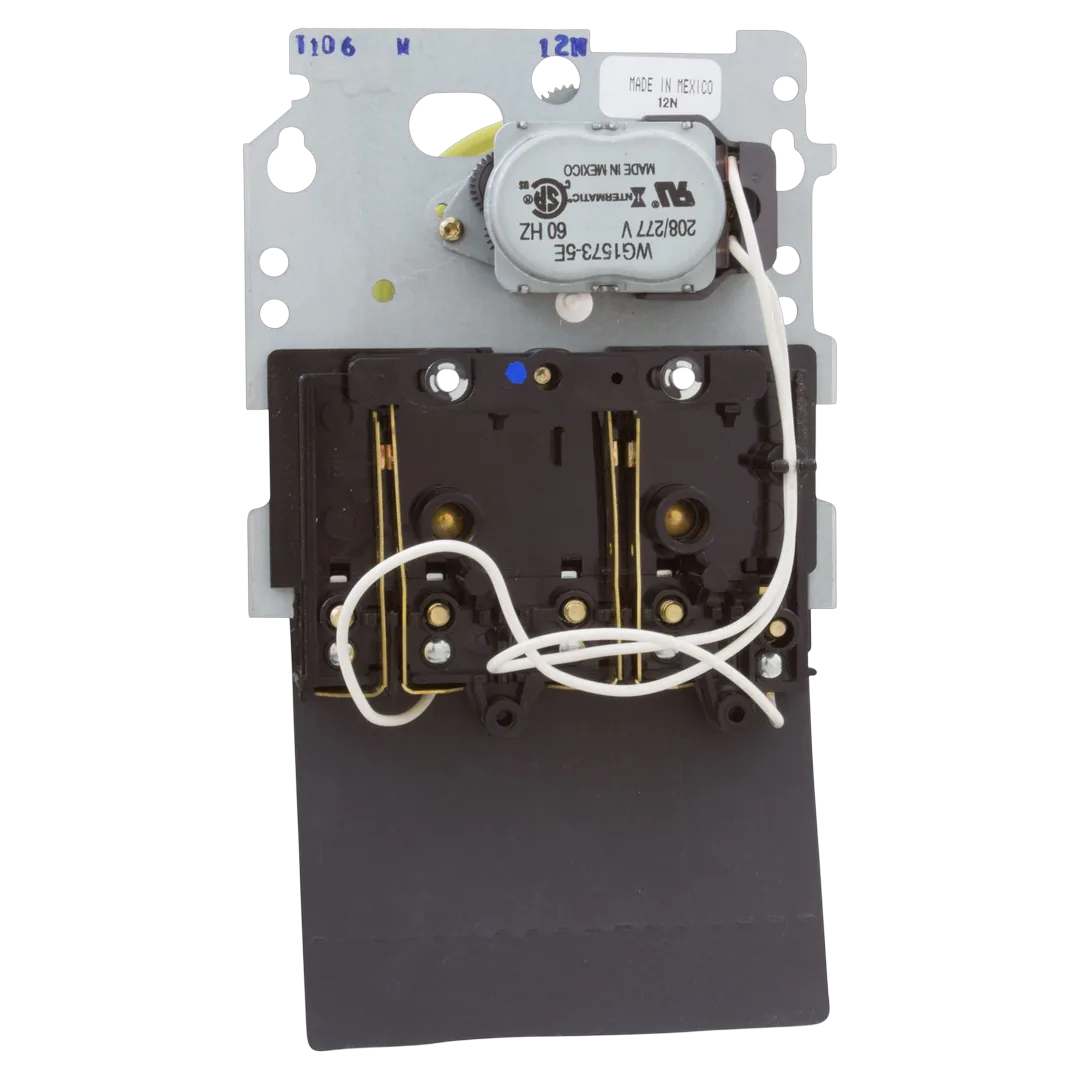

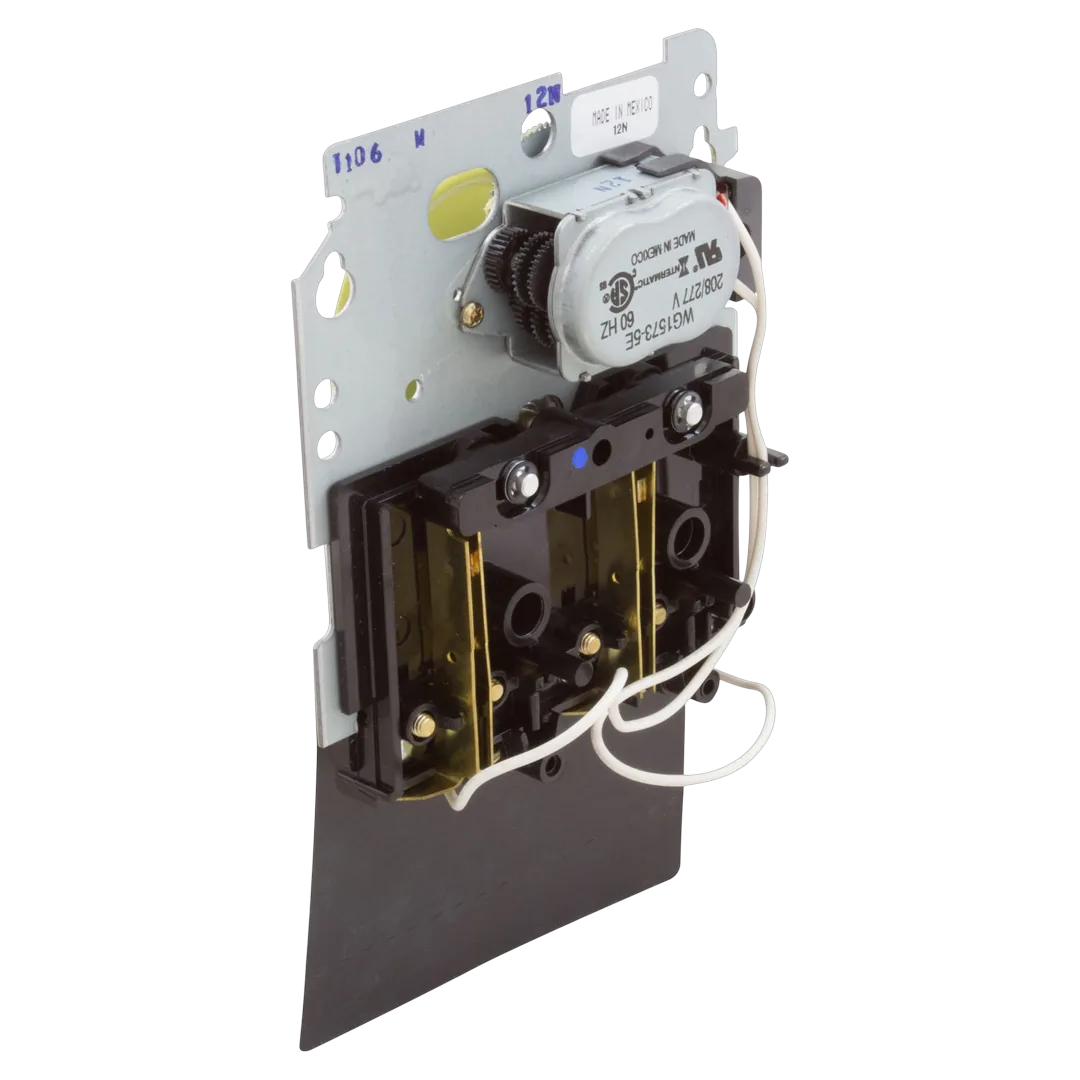

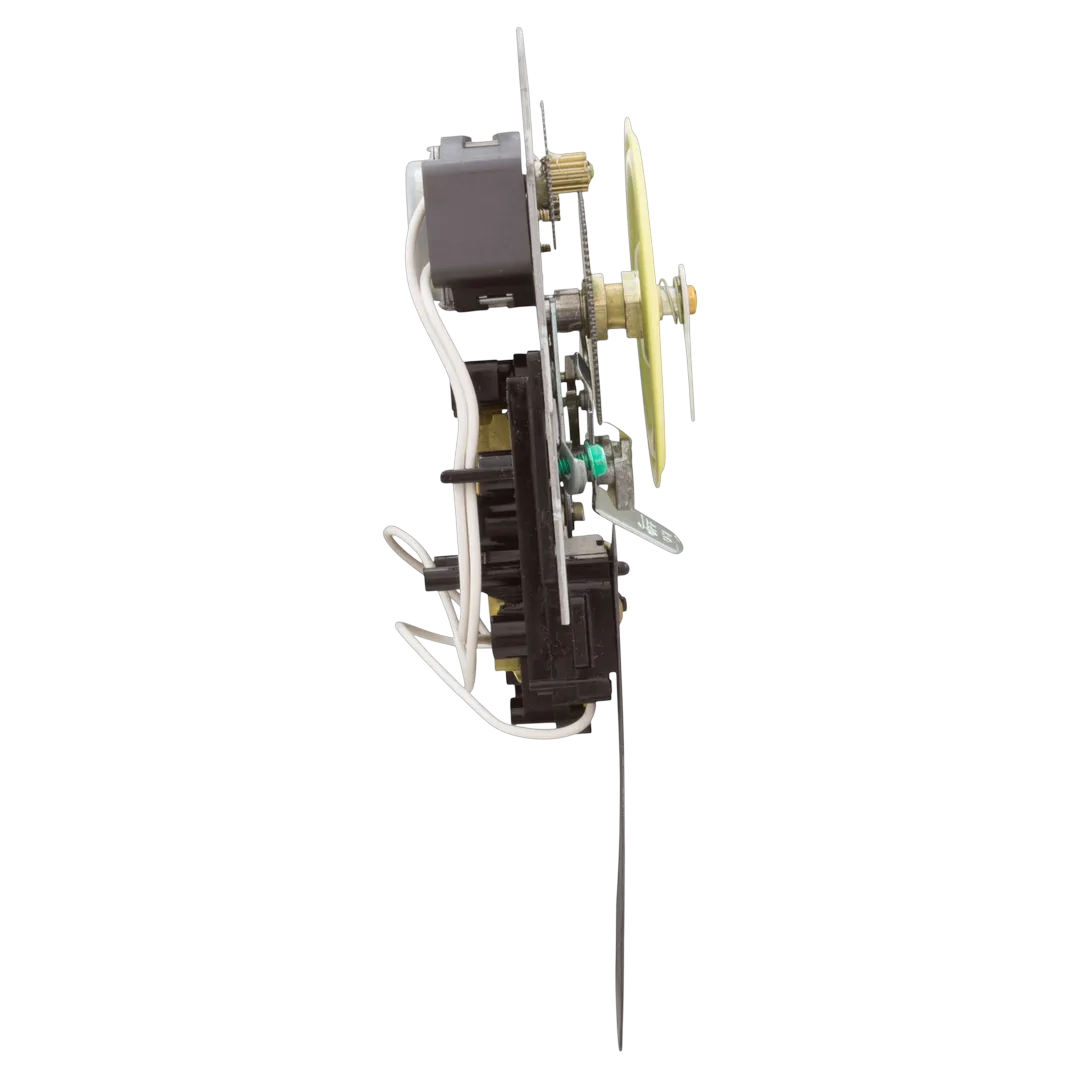

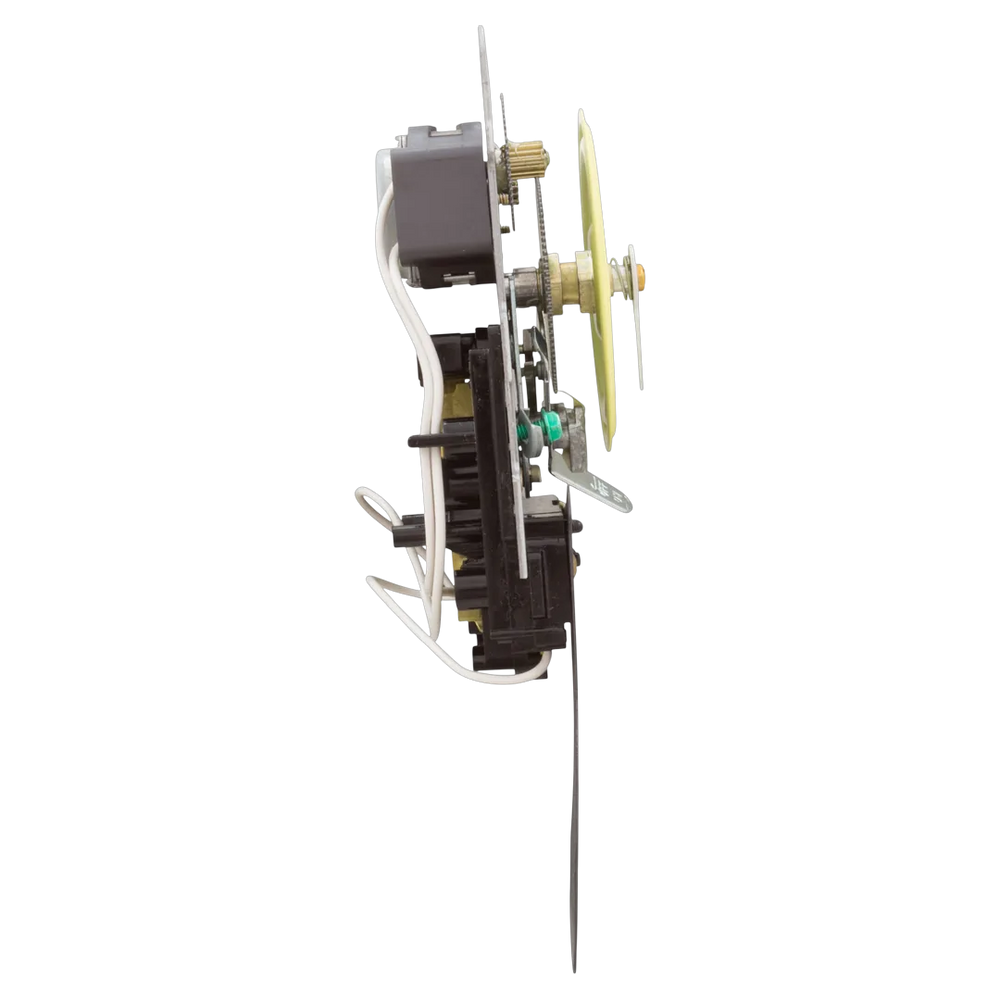

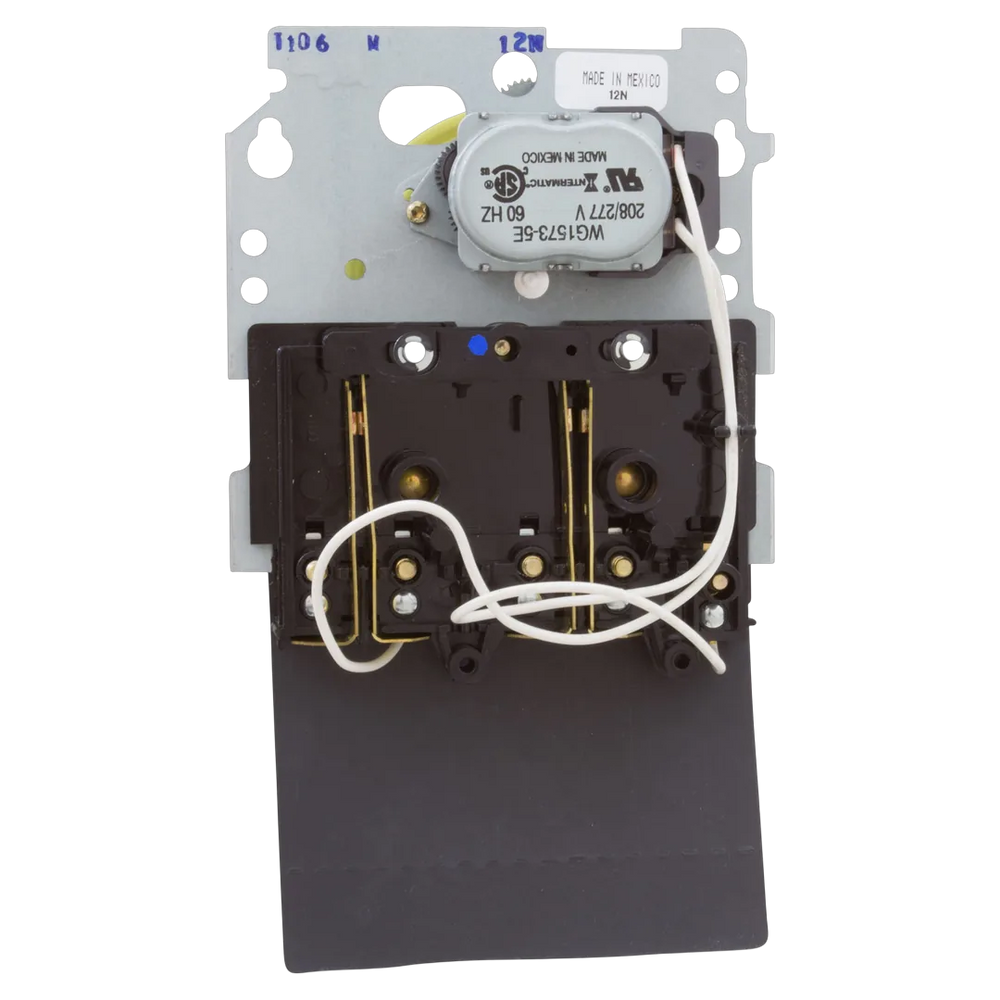

Intermatic T106M Mechanical Time Switch Mechanism
Intermatic | SKU:
T106M
$15500/ea
Unit price
/
Unavailable
Intermatic T106M Mechanical Time Switch Mechanism is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

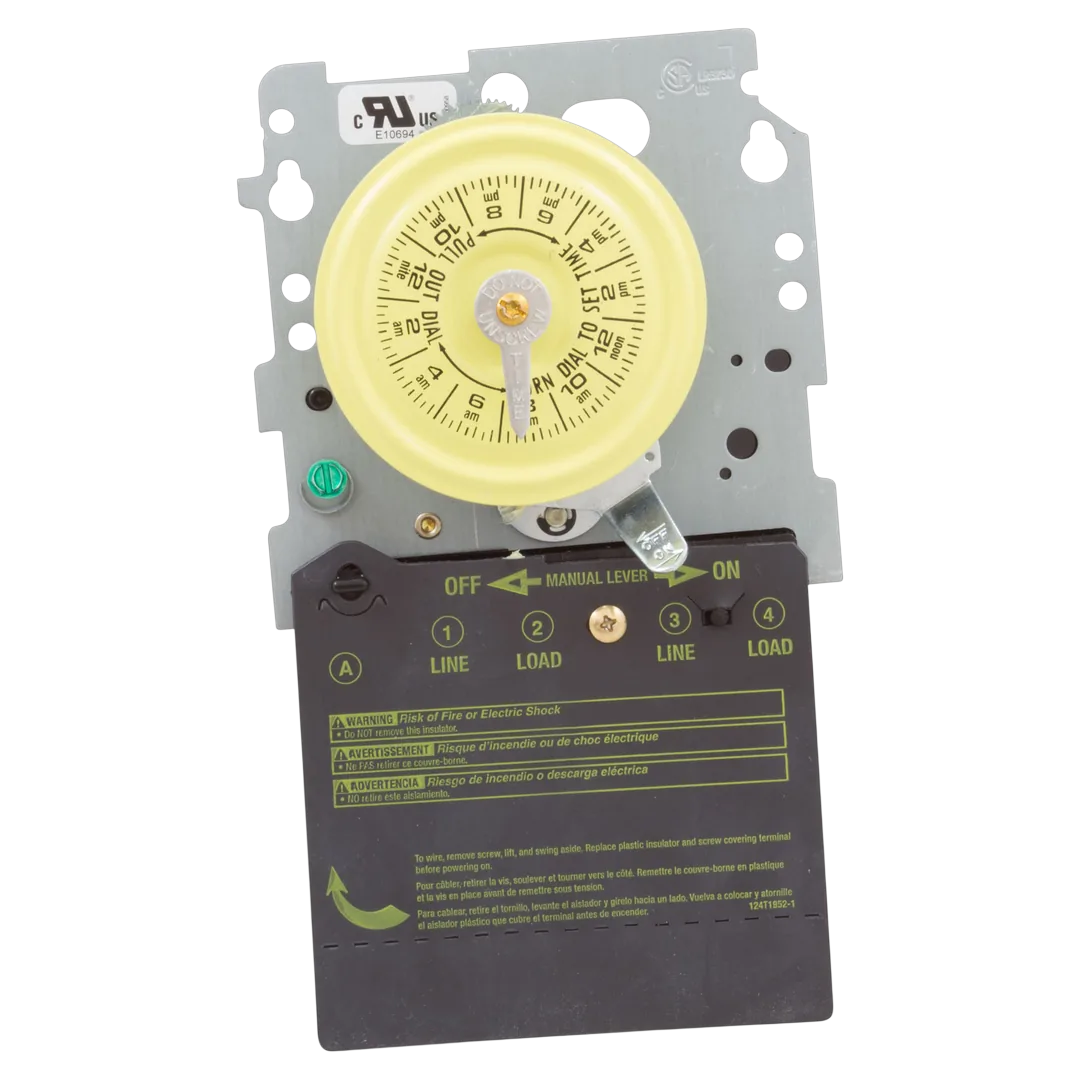

Replacement 24-hour timer mechanism for high/low speed control on two-speed pool pumps - Intermatic T106M. It toggles the motor between speeds on a daily schedule and is often paired with a T104 to switch pump power on/off. Mechanism-only unit fits standard Intermatic T100-series timer boxes and includes one ON tripper, one OFF tripper, and a manual override.

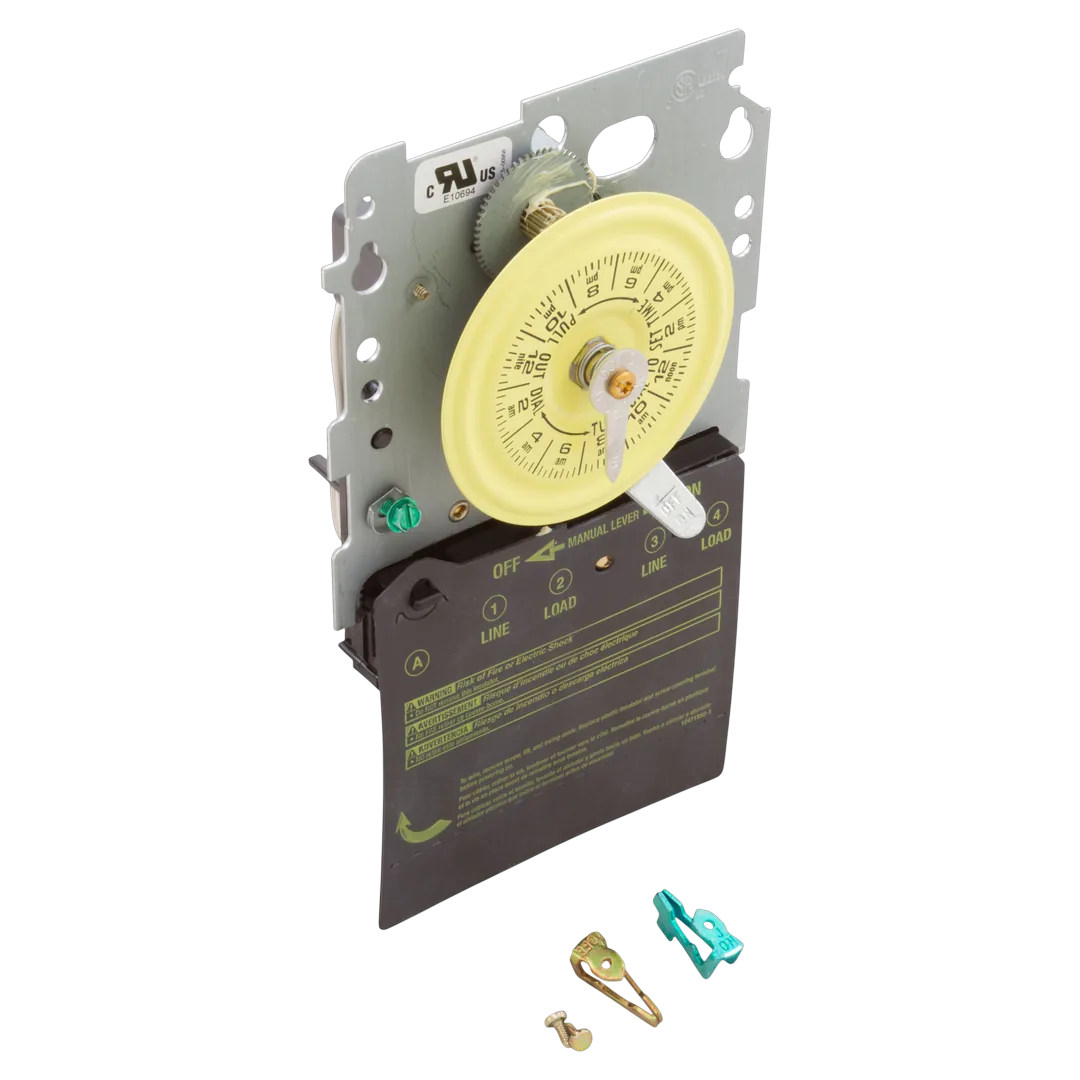

Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T106M |
| Part Number | T106M |
| Part Type | Mechanical Time Switch Mechanism |
| Compatibility | Can be installed in most Intermatic enclosures |
| Includes | One ON and one OFF tripper |
| Certifications | cCSAus, cULus, Green Energy, LED |
| Material | Plastic |
| Switch Type | SPDT 1 NO/1 NC |
| Number of Circuits | 1 |
| Input Voltage Range | 208-277 VAC, 60 Hz |
| Resistive Load Ratings | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings | 40 A, 120-240 VAC, 60 Hz |
| Motor Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Pilot Duty Load Ratings | 1000 VA, 120-240 VAC, 60 Hz |
| Electronic Ballast Load Ratings | 16 A, 208-277 VAC |
| Minimum ON/OFF Times | 1 hour |
| Maximum ON/OFF Operations per Day | 12 |
| Manual Override | Yes |
| Operating Temperature Range | -40°F to 130°F (-40°C to 54°C) |
| Shipping Dimensions | 5.5 x 3.5 x 8.25 inch |
| Product Weight | 1.347 pound |
