Intermatic T104R201 24-Hour Mechanical Time Switch
Intermatic | SKU:
T104R201
$25600/ea
Unit price
/
Unavailable
Intermatic T104R201 24-Hour Mechanical Time Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

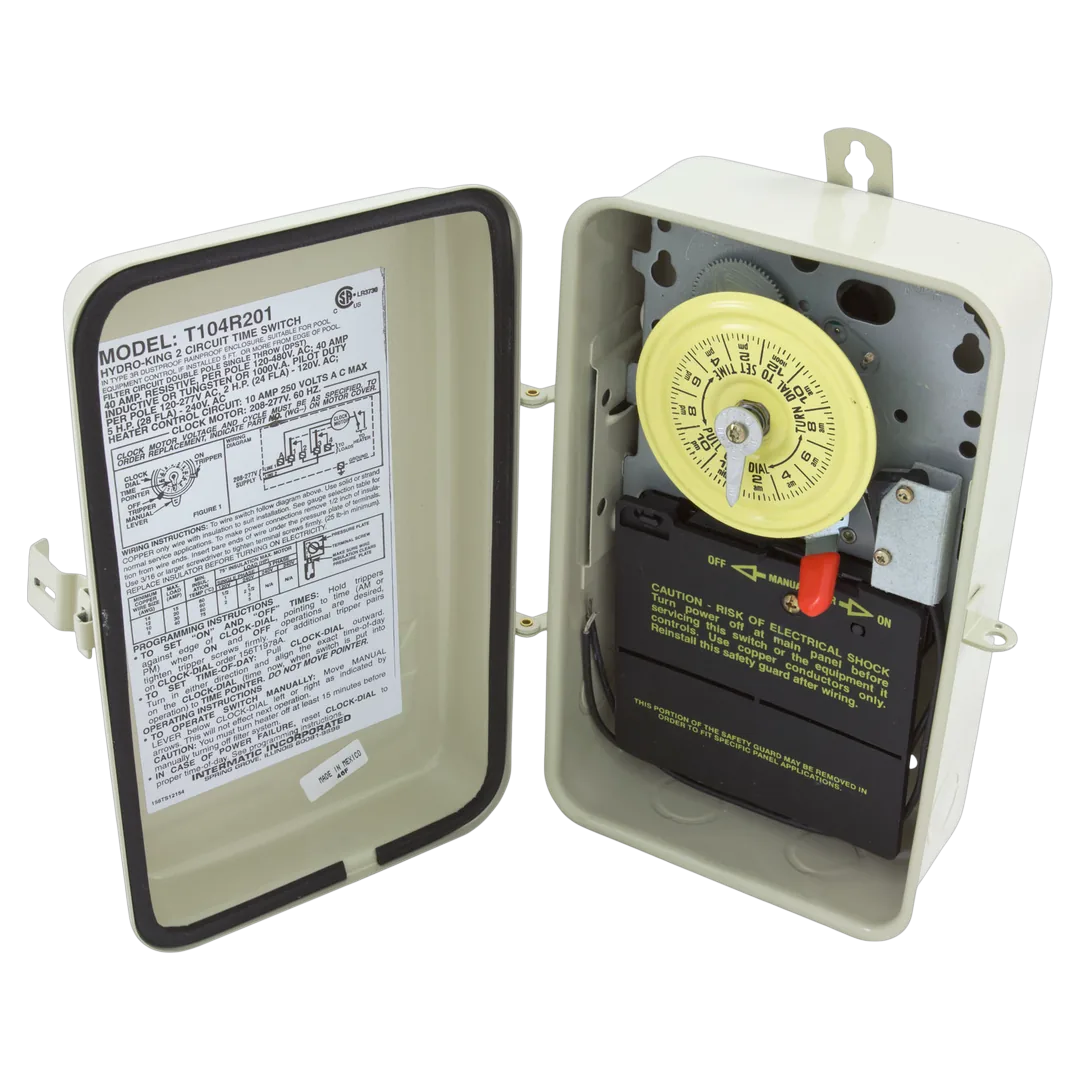

Intermatic T104R201 mechanical time switch schedules your pool pump and adds built-in heater protection for gas units that use a fireman-switch circuit. It runs the pump on a 24-hour program and shuts the heater off 15-20 minutes before pump shutdown to prevent heat soak or banging. The assembly comes in an outdoor-rated steel enclosure and includes one ON and one OFF tripper.
Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T104R201 |
| Part Number | T104R201 |
| Part Type | Mechanical Time Switch |
| Compatibility | Suitable for heater thermostat control, motor control, pump control, and water circulation applications |
| Includes | One ON and one OFF tripper |
| Certifications | cCSAus, cULus, Green Energy, LED |
| Material | Metal |
| Switch Type | DPST |
| Number of Positions | 12 ON/OFF operations per day |
| Connection Size | 1/2" and 3/4" combination knockouts |
| Mount Type | Wall Mount |
| Flow Paths | Single circuit |
| Pressure Rating | 40 A, 120-480 VAC, 60 Hz (Resistive) 40 A, 120-277 VAC, 60 Hz (Tungsten, Inductive) |
| Seal Material | N/A |
| Shipping Dimensions | 11.75 x 7.25 x 4.25 inch |
| Product Weight | 3.493 pound |
