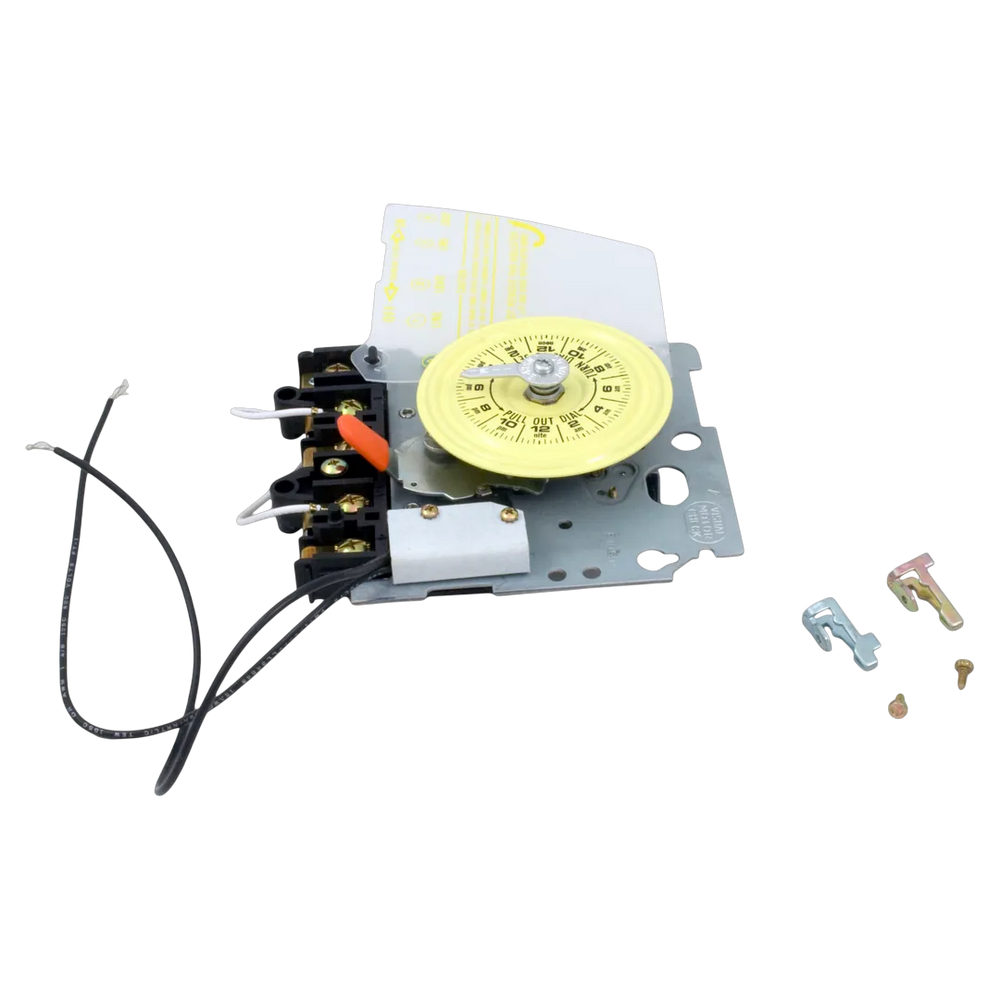

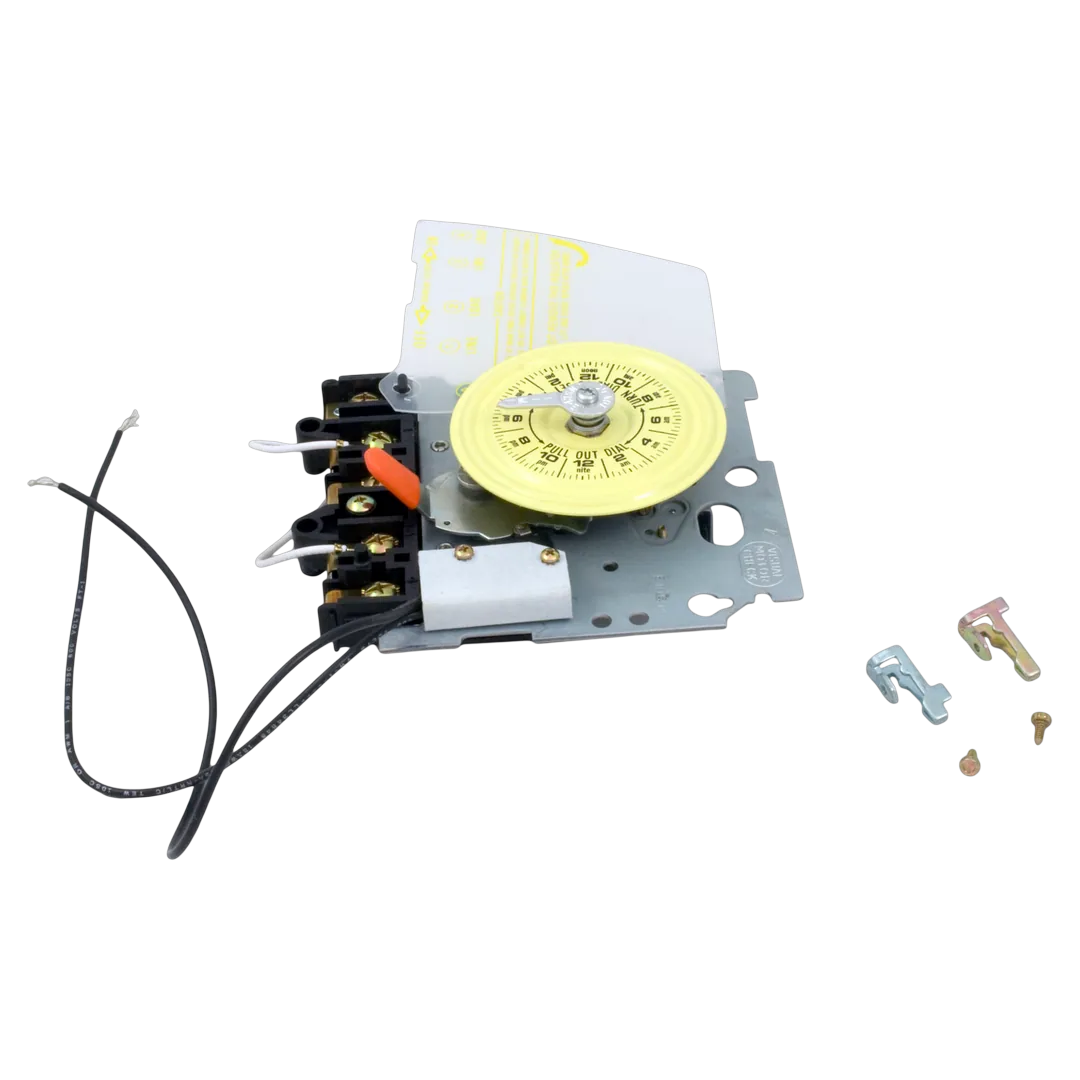

Intermatic T104M201 Mechanical Time Switch Mechanism
Intermatic | SKU:
T104M201
$18200/ea
Unit price
/
Unavailable
Intermatic T104M201 Mechanical Time Switch Mechanism is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
Replacement 24-hour mechanical time switch mechanism with pool heater protection for Intermatic T100-series enclosures - T104M201. It controls a single load on a daily schedule, and a built-in Fireman switch shuts the heater off before pump shutdown to protect the heat exchanger. Mechanism-only drop-in; includes one ON and one OFF tripper and is OEM.
Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T104M201 |
| Part Number | T104M201 |
| Part Type | Mechanical Time Switch Mechanism |
| Includes | One ON and one OFF tripper |
| Certifications | cCSAus, cULus, Green Energy, LED |
| Material | Gray |
| Switch Type | DPST |
| Number of Positions | 12 ON/OFF operations per day |
| Connection Size | Terminals |
| Mount Type | Mechanism only |
| Flow Paths | N/A |
| Pressure Rating | N/A |
| Seal Material | N/A |
| Shipping Dimensions | 5.5 x 3.5 x 8.25 inch |
| Product Weight | 1.397 pound |
