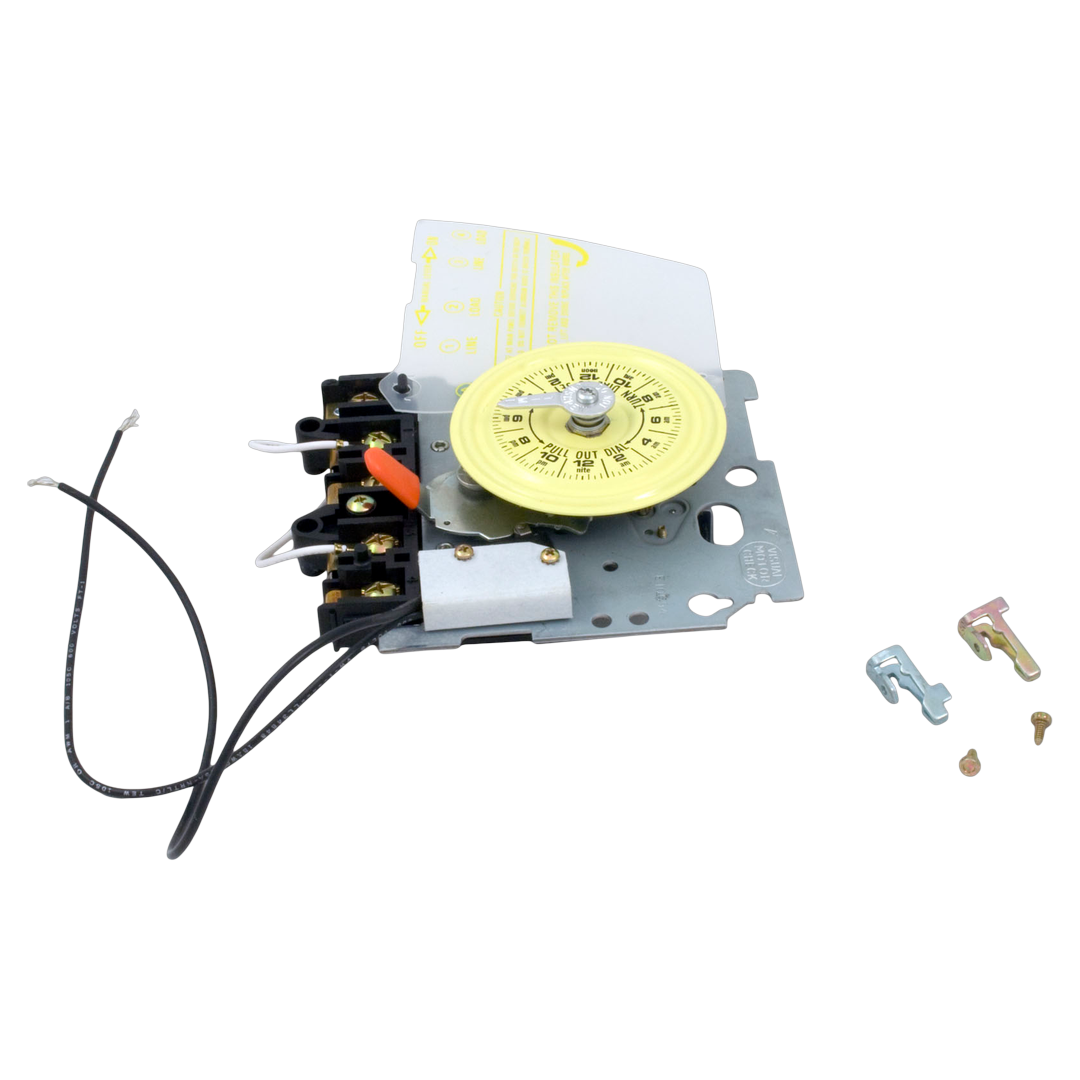

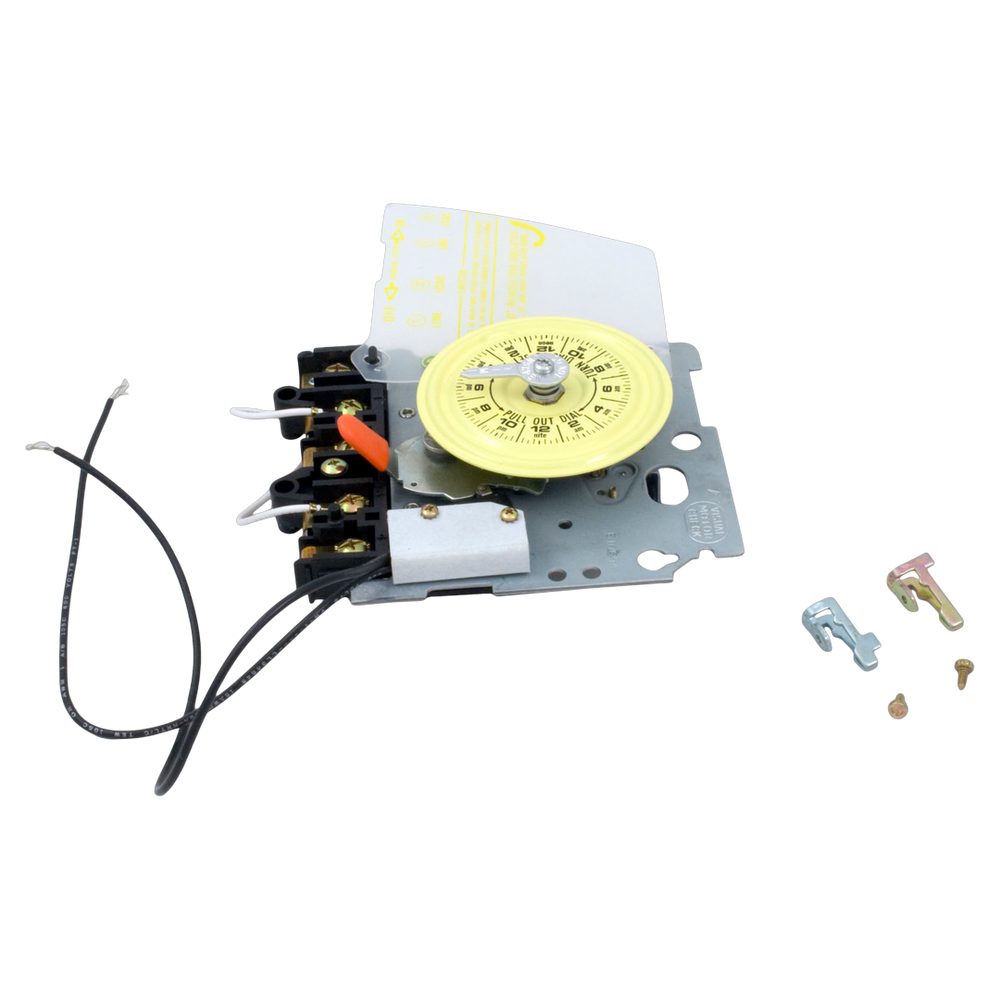

Intermatic T104M201 24-Hour Mechanical Timer
Intermatic | SKU:
897-T104M201
$14200
/ea
Unit price
/
Unavailable
Intermatic T104M201 24-Hour Mechanical Timer is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description
The Intermatic T104M201 is a mechanical time switch designed for efficient control of pool heaters and filter pumps. Operating on 208-277 VAC, it allows for up to 12 ON/OFF cycles per day, making it suitable for managing heater operations in residential and commercial swimming pools. This time switch is built to provide reliable protection and performance for heating systems, ensuring energy efficiency and safety.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic 24-Hour Mechanical Time Switch with Pool Heater Protection |
| Part Number | T104M201 |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 208-277V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 40A/208-277V |
| Contact Rating | DPST |
| Enclosure Type | None |
| Mounting Type | Panel Mount |
| Temperature Rating | -40°F to 130°F |
| Duty Cycle | Continuous |
| Protection Type | None |
| Number of Circuits | 1 |
| Load Type | Resistive, Inductive, Motor |
| Override Function | Manual Override |
| Certifications | cCSAus Certified |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 7 x 2.5 x 5 inches |
| Product Weight | 2.5 |
Features:
- Provides 12 ON/OFF operations per day
- Includes one ON and one OFF tripper
- Installs in most Intermatic enclosures
- Has teeter-type terminals for multiple load connections
- Suitable for pumps, lighting, and heaters
