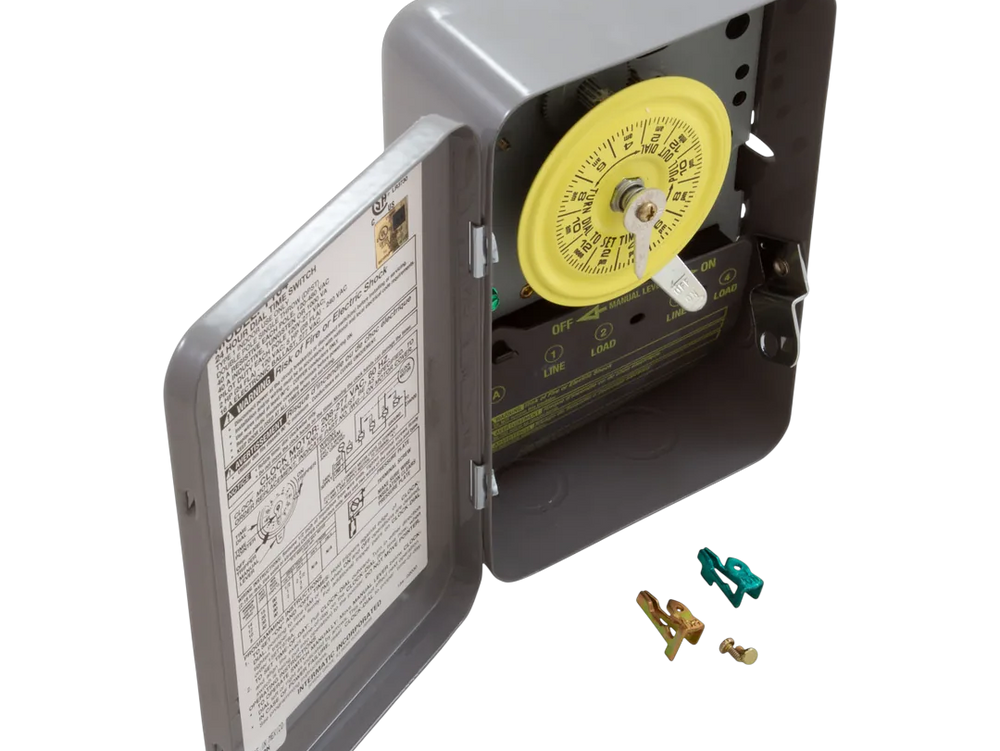

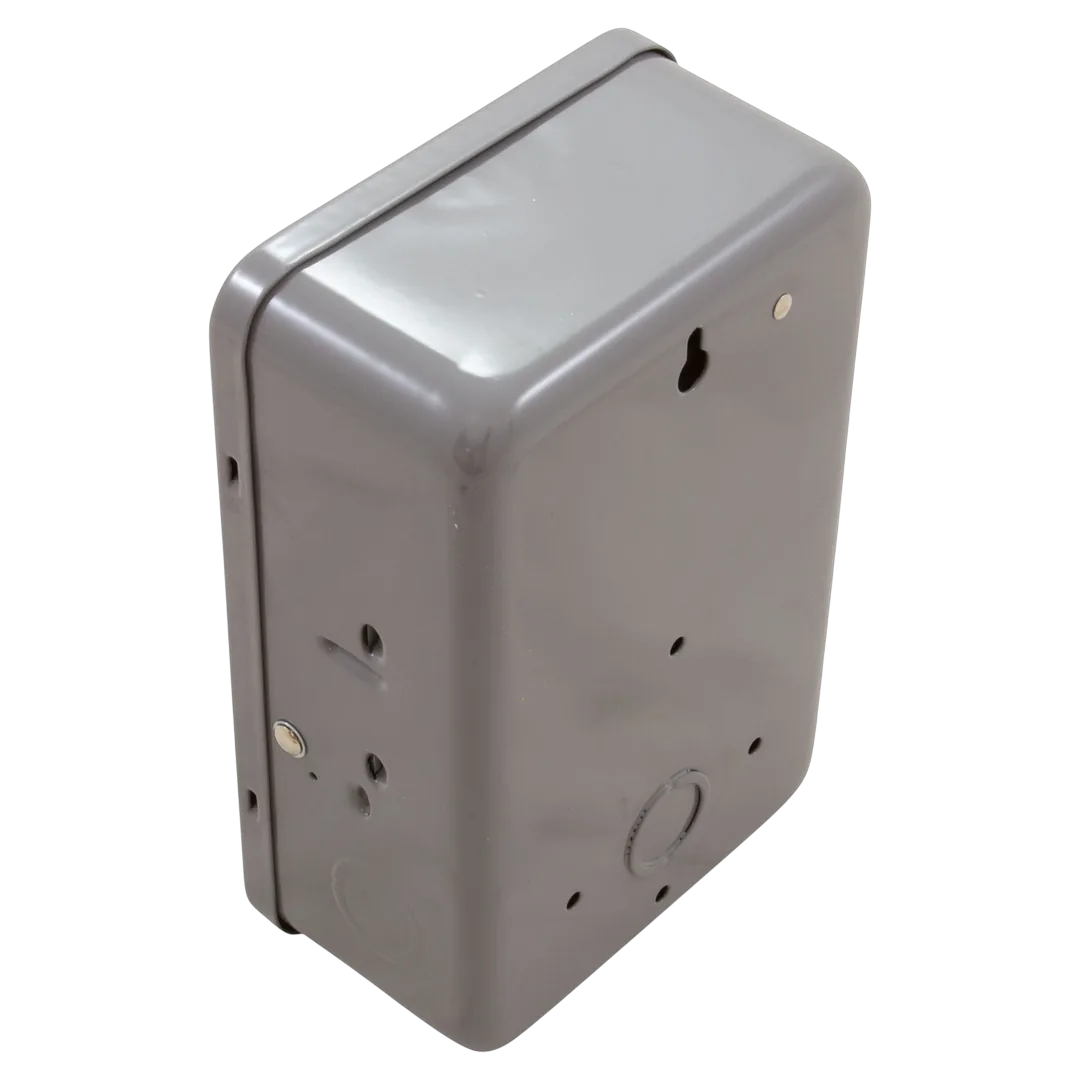

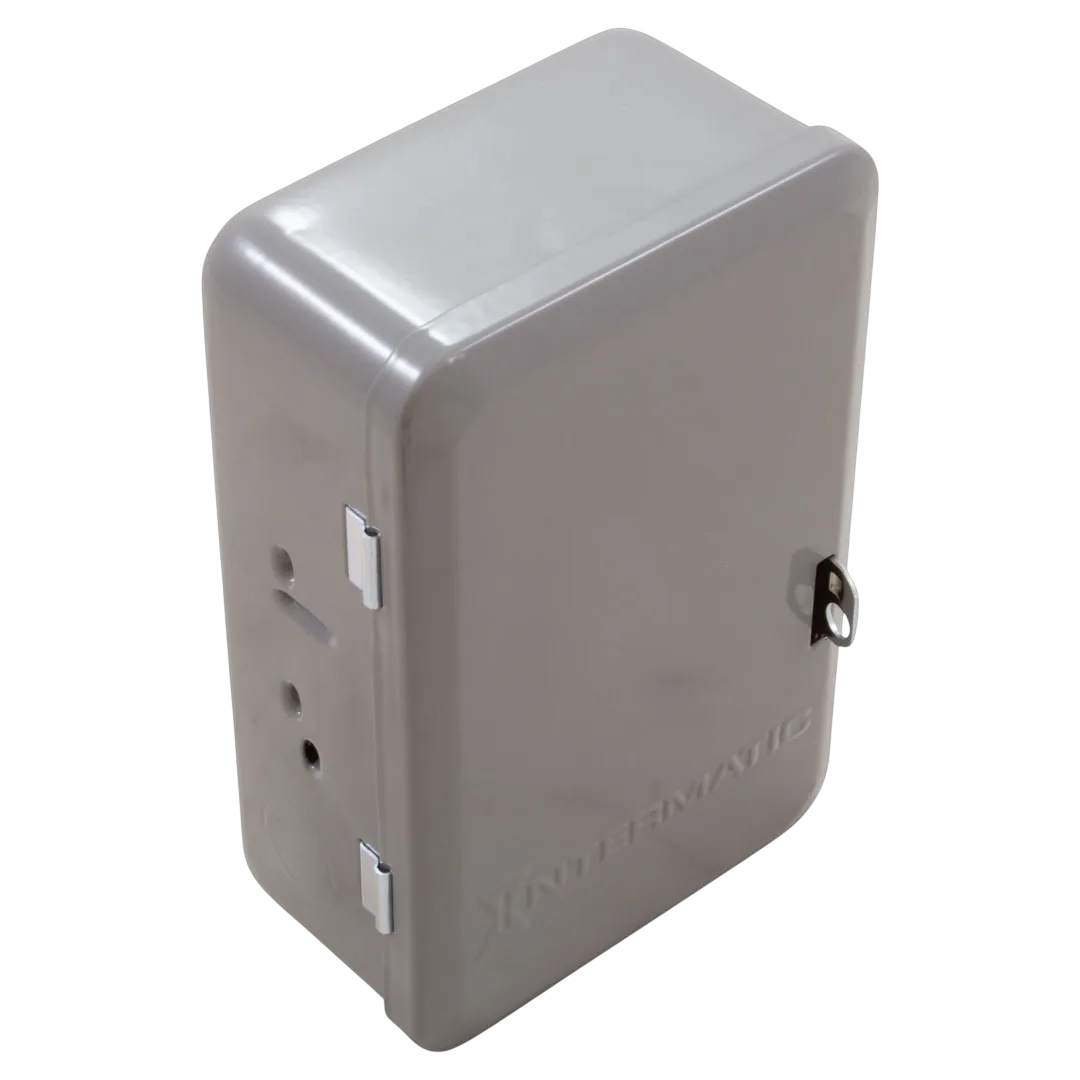

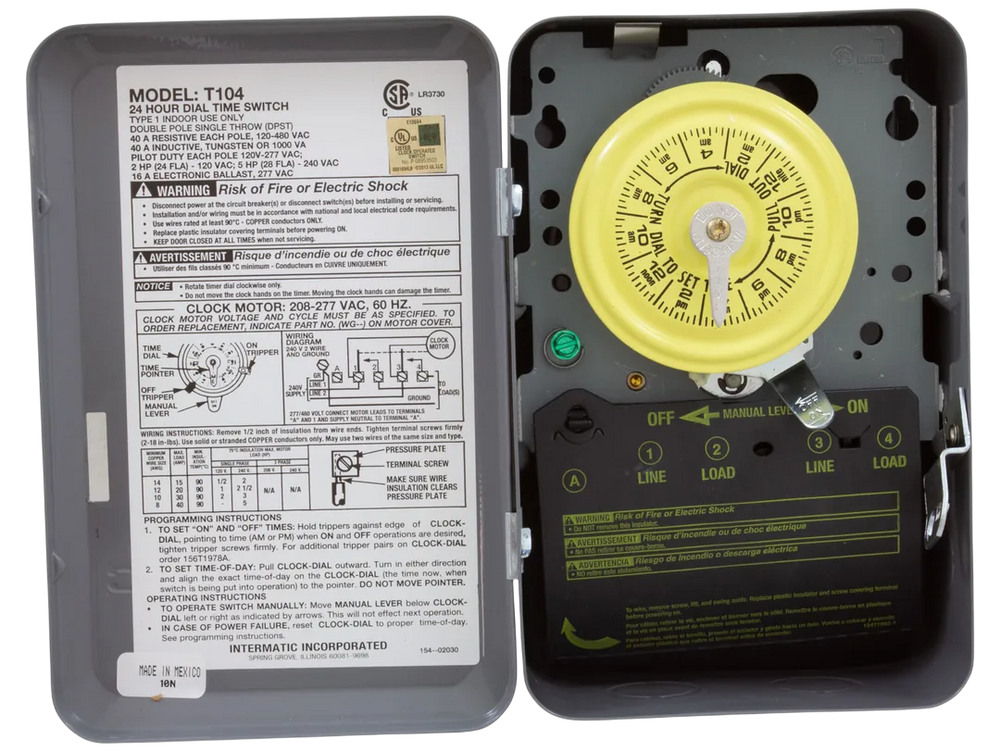

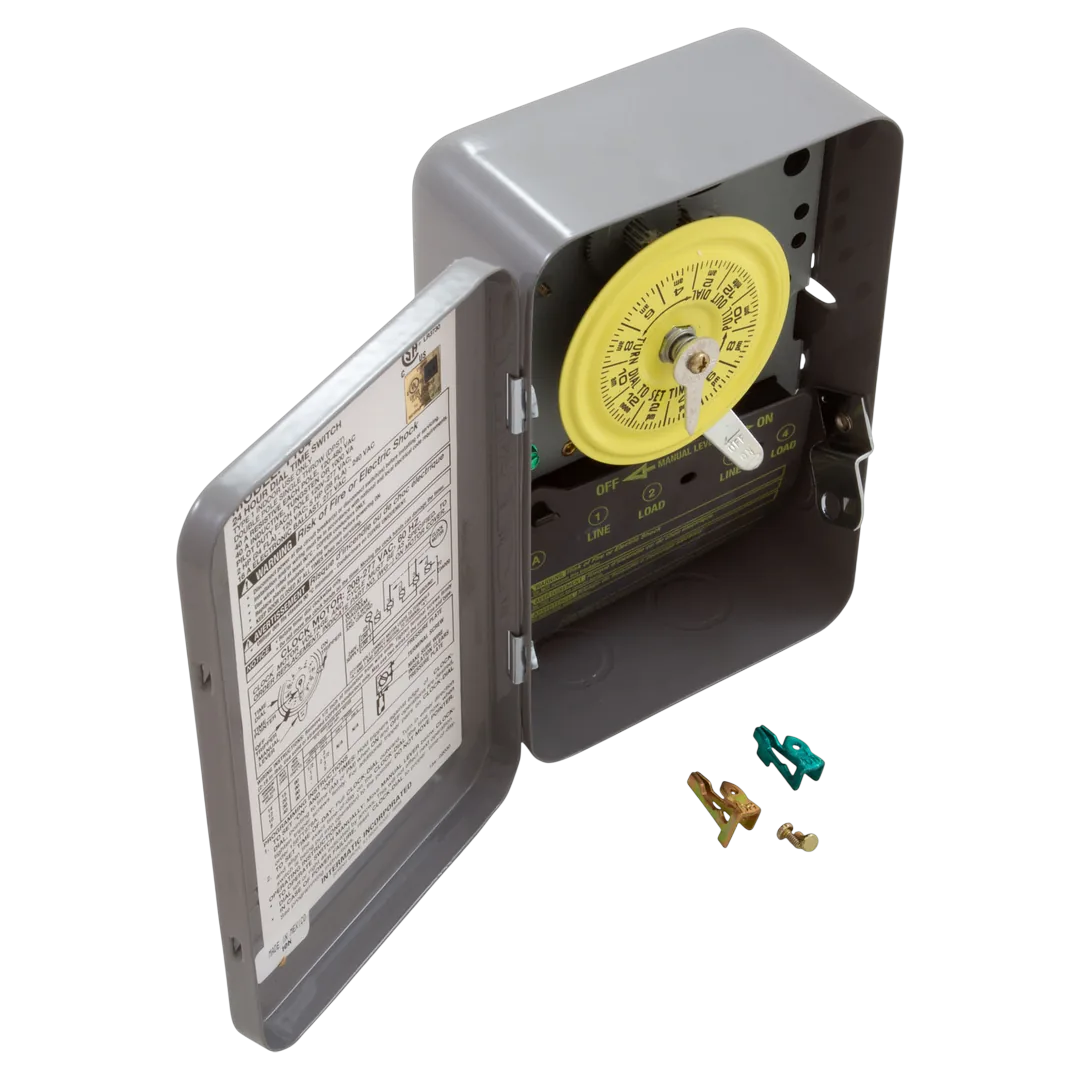

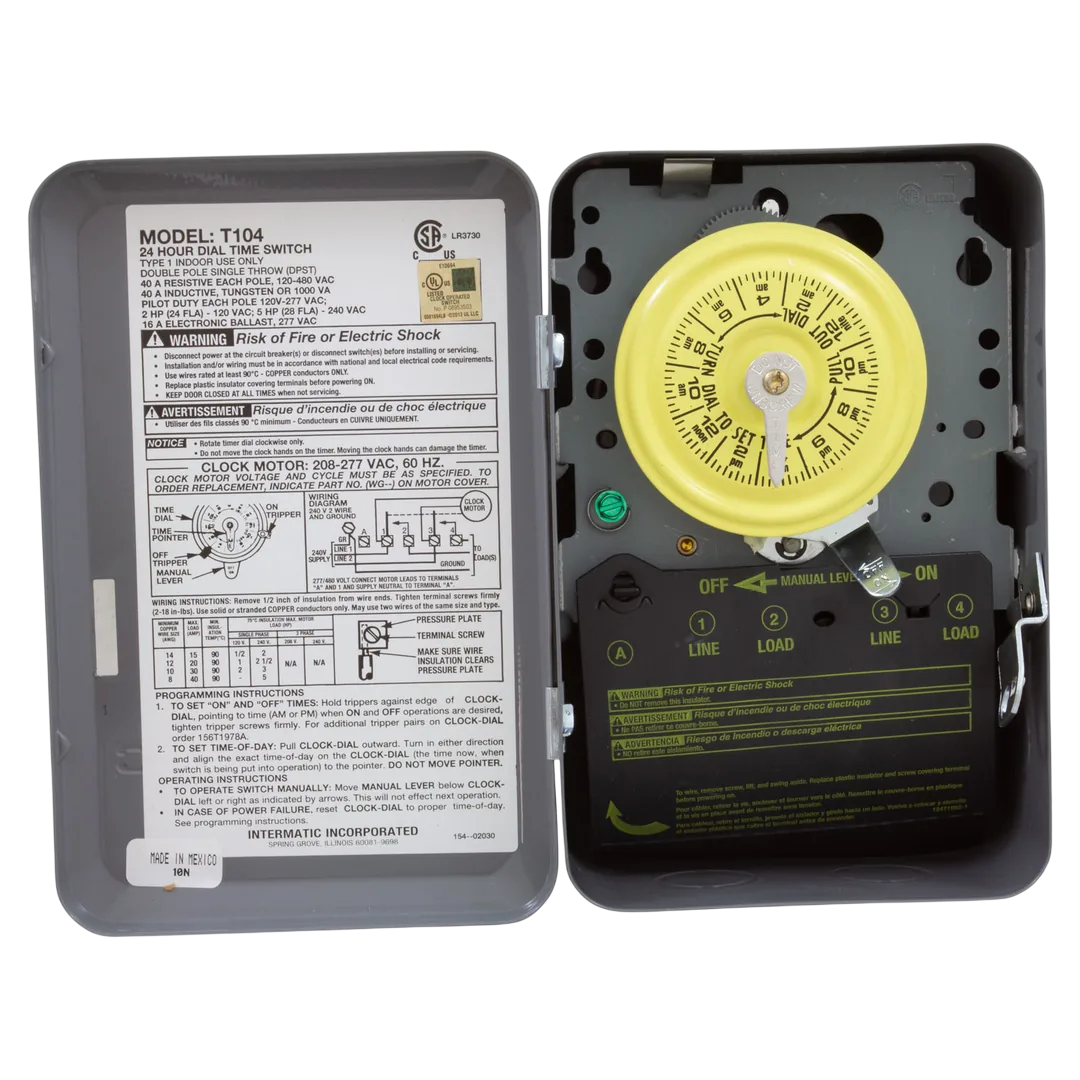

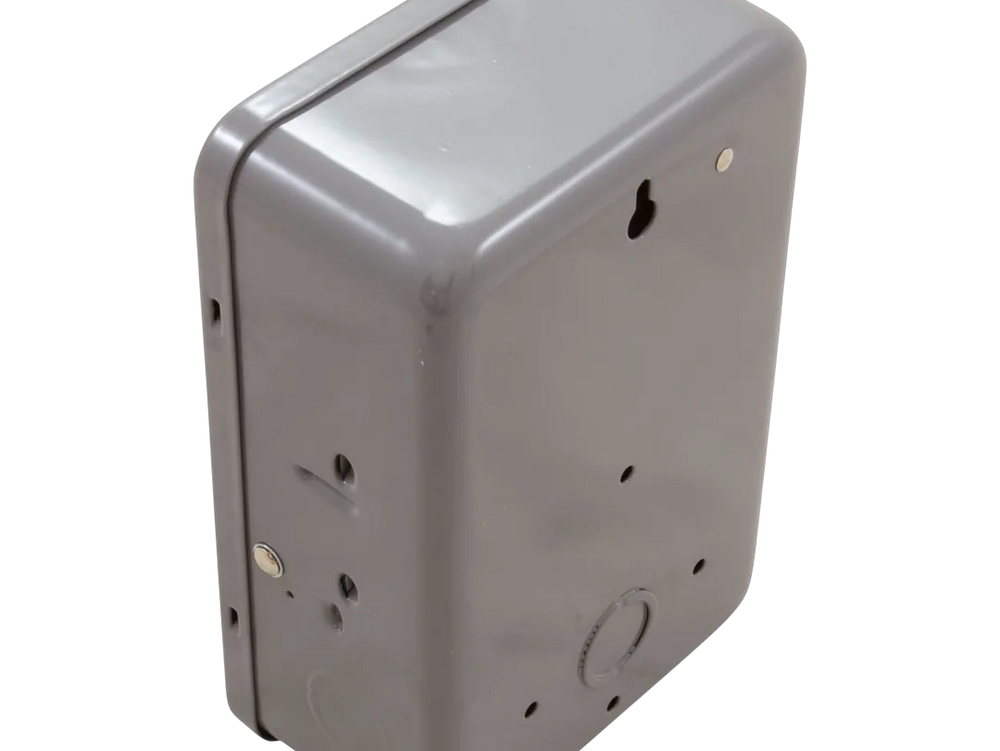

Intermatic T104 24-Hour Mechanical Timer Switch
Intermatic | SKU:
T104
$17500
/ea
Unit price
/
Unavailable
Intermatic T104 24-Hour Mechanical Timer Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Intermatic T104 is a 24-hour mechanical time switch from the T100 Series, designed for controlling electrical loads. It operates at 208-277 VAC with a Double Pole Single Throw (DPST) configuration and can handle up to 40 Amps per pole. The device is equipped with manual override and one ON and one OFF tripper, allowing for up to 12 ON/OFF operations per day with a minimum operation time of one hour.
Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T104 |
| Part Number | T104 |
| Part Type | Mechanical Time Switch |
| Includes | One ON and one OFF tripper |
| Certifications | cCSAus Certified, cULus Listed, RoHS Compliant |
| Material | Metal |
| Number of Positions | 2 |
| Connection Size | Teeter Type |
| Mount Type | Wall |
| Flow Paths | 2NO/DPST |
| Pressure Rating | 40 A at 120 - 480 VAC (Resistive), 40 A at 120 - 277 VAC (Tungsten) |
| Seal Material | NEMA 1 Enclosure |
| Shipping Dimensions | 5 x 3 x 7.75 inch |
| Product Weight | 2.73 pound |
