Intermatic T101R Mechanical Time Switch
Intermatic | SKU:
T101R
$17900
/ea
Unit price
/
Unavailable
Intermatic T101R Mechanical Time Switch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

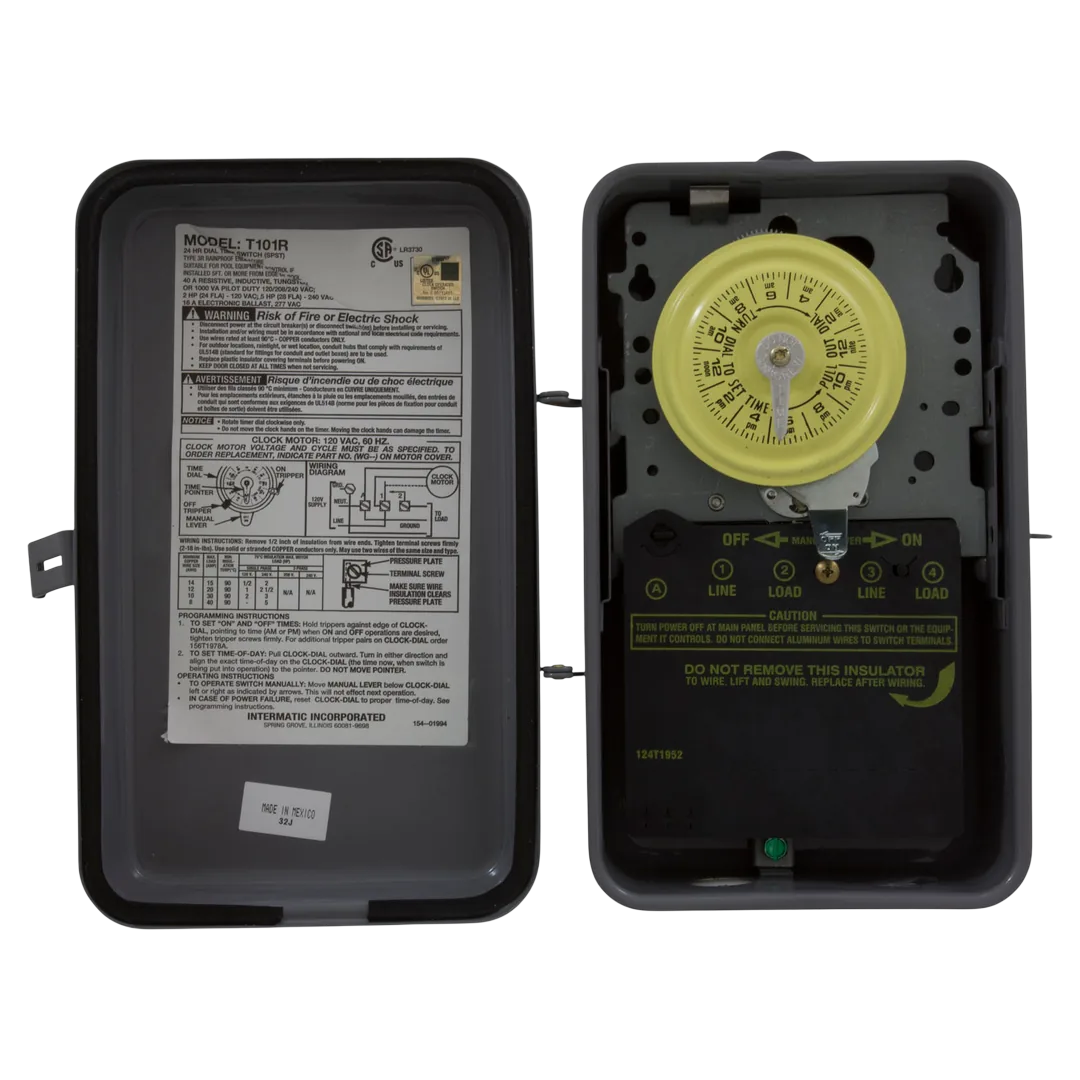

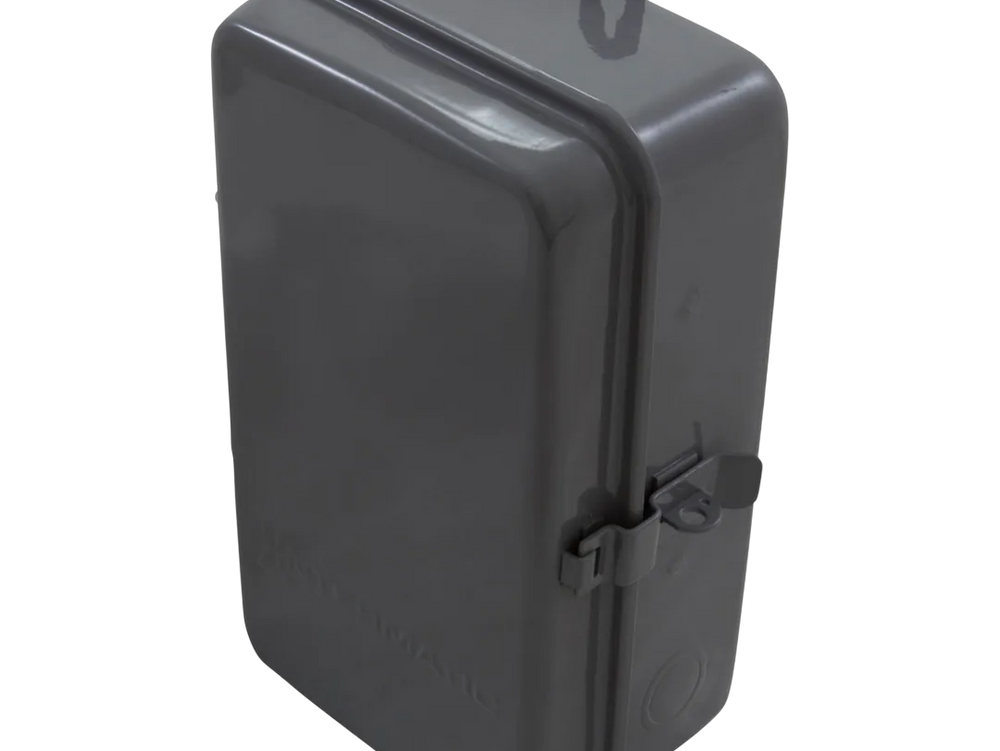

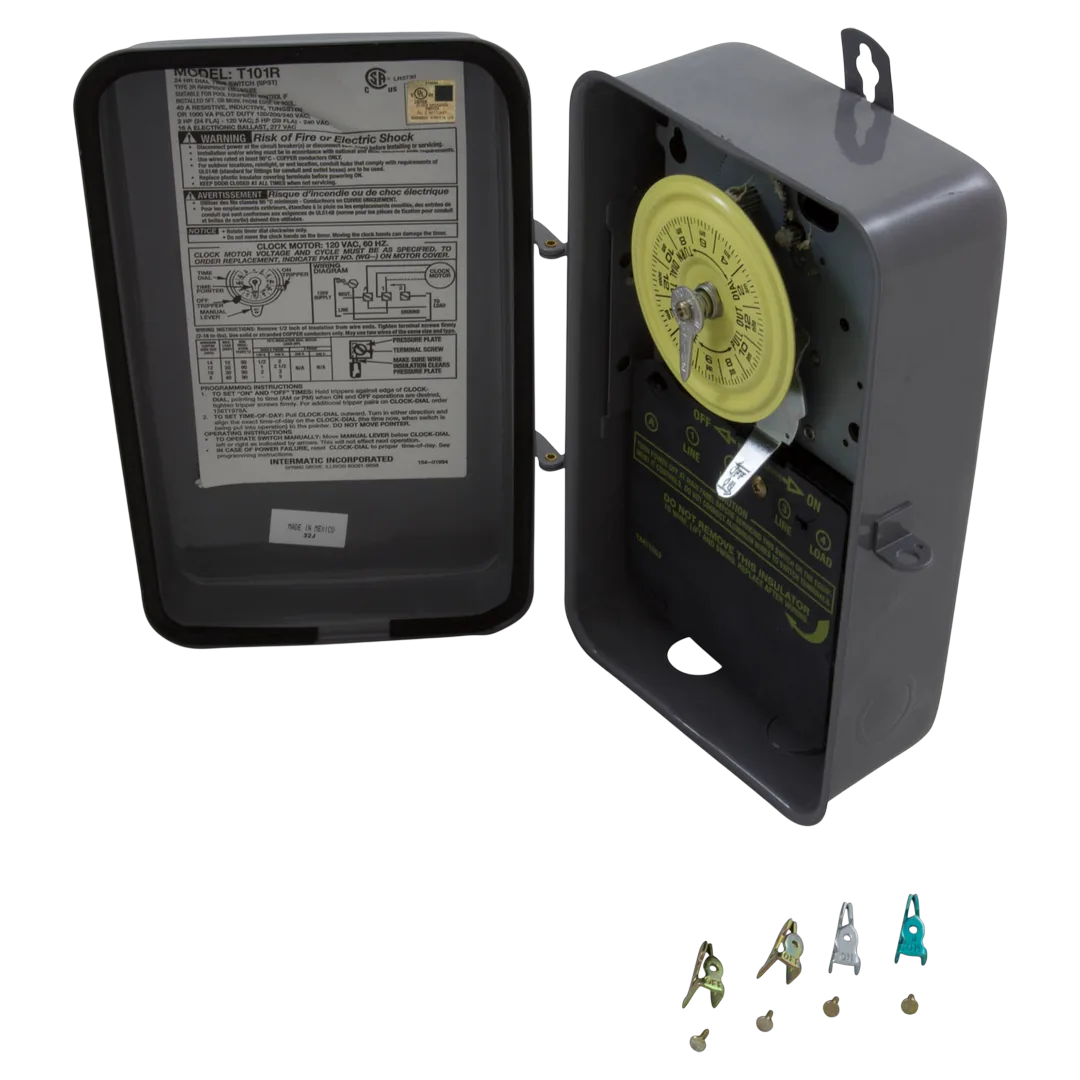

The Intermatic T101R is a 120 VAC mechanical time switch designed for handling electrical loads up to 40 amps per pole. It includes an SPST (Single Pole Single Throw) switch and is housed in an outdoor enclosure, allowing for up to 12 ON/OFF operations per day. This time switch is suitable for residential, commercial, and industrial applications requiring reliable daily control of electrical circuits.

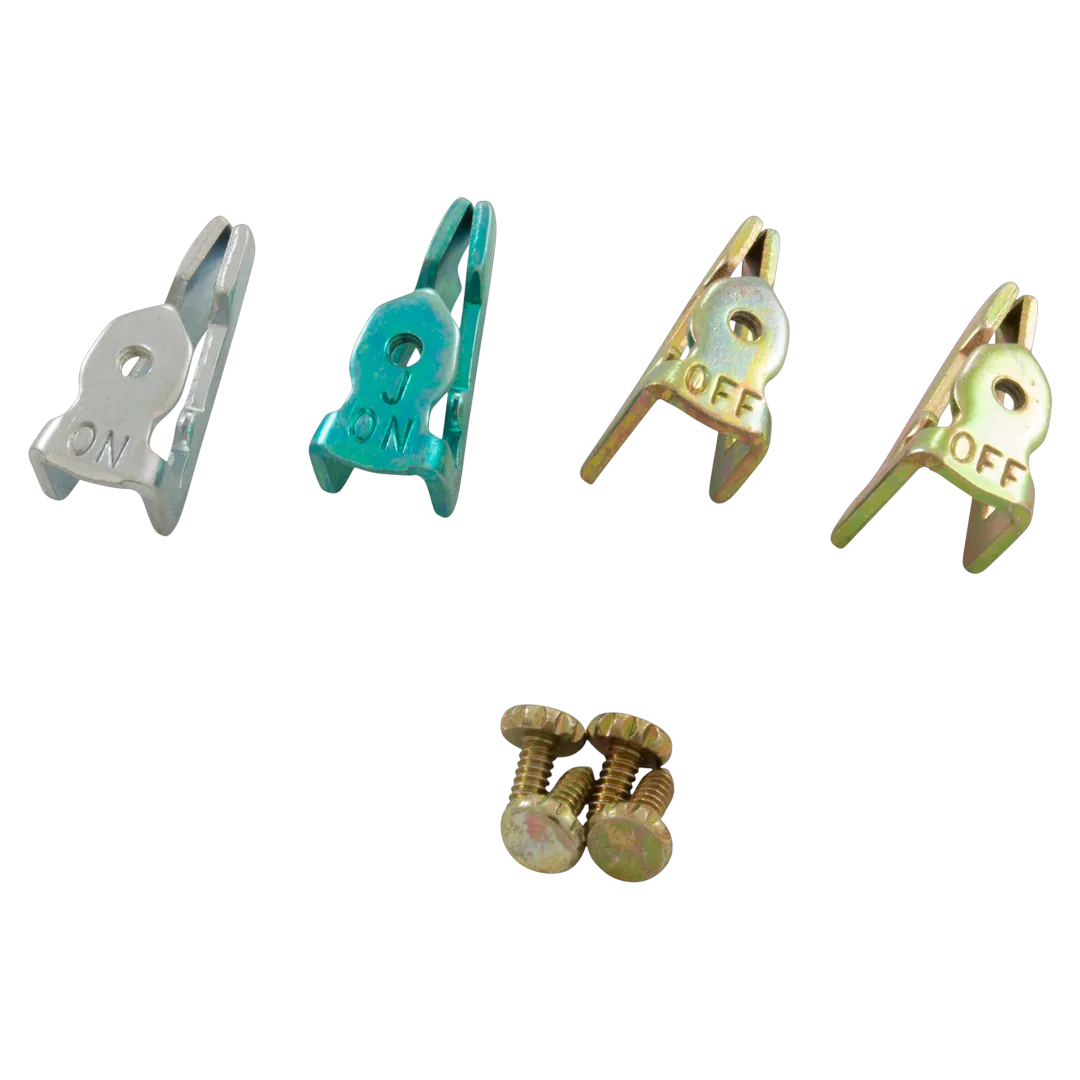

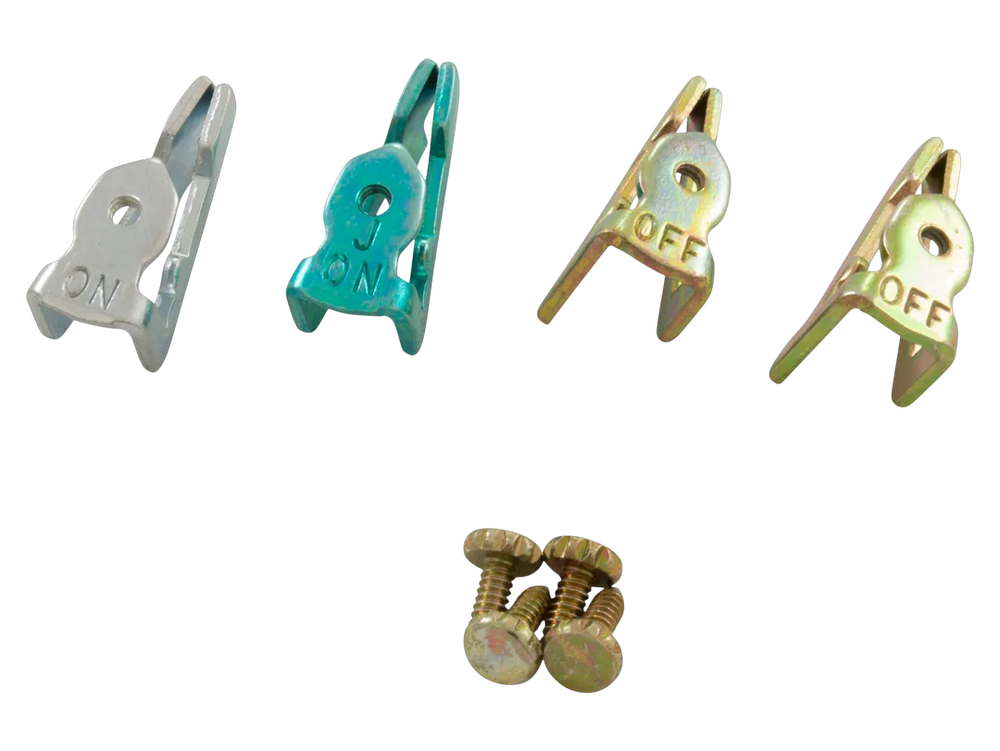

Includes: One ON and one OFF tripper
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | Intermatic T101R |
| Part Number | T101R |
| Part Type | Mechanical Time Switch |
| Includes | One ON and one OFF tripper |
| Certifications | cULus Listed, cCSAus Certified, RoHS Compliant |
| Material | Steel |
| Mount Type | Wall Mount |
| Connection Size | Terminals |
| Flow Paths | SPST |
| Pressure Rating | 40 A at 120-480 VAC (Resistive), 40 A (Inductive), 40 A at 120-277 V (Tungsten) |
| Seal Material | NEMA 3R Enclosure |
| Shipping Dimensions | 10 x 4 x 6.5 inch |
| Product Weight | 3.393 pound |
