Mechanical Timer Mechanism

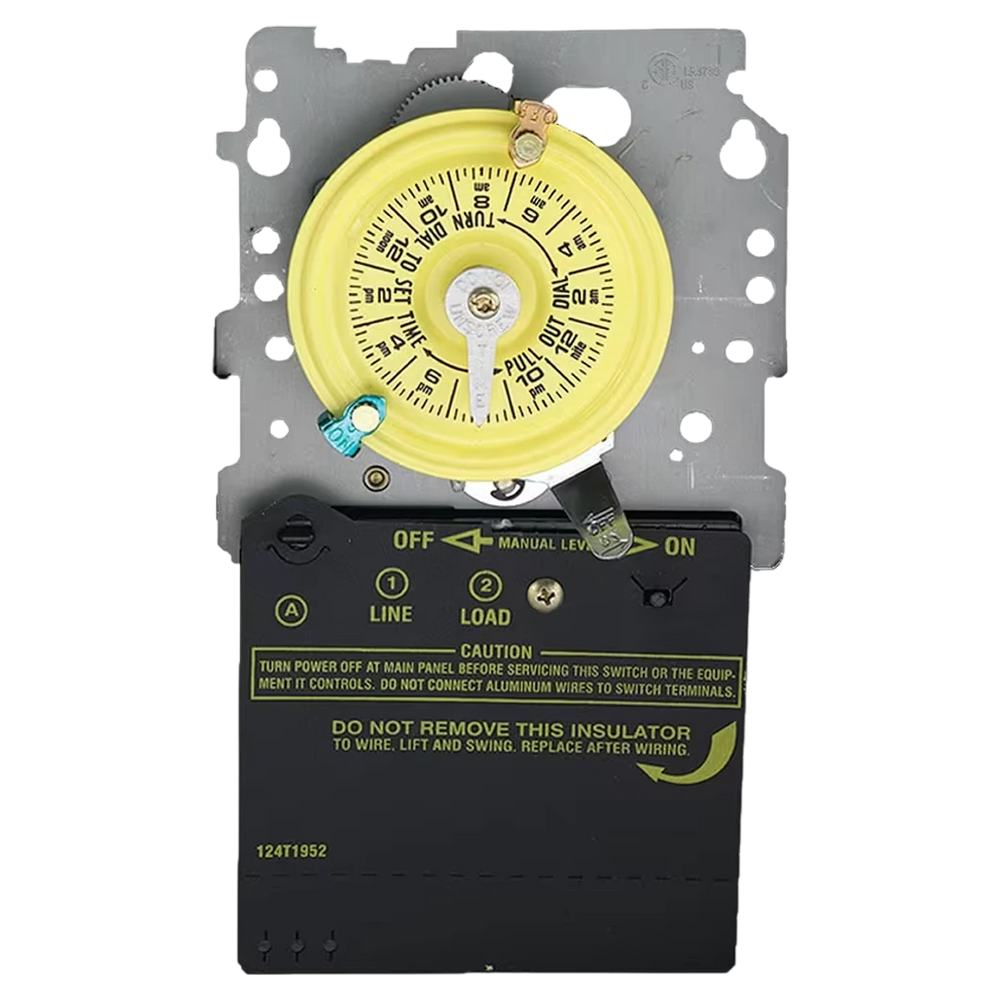

The T101M is the mechanical clock mechanism for Intermatic time switches, providing 120 VAC SPST on/off scheduling for a single load like a pool pump or outdoor lighting. It installs into an existing Intermatic metal or plastic timer enclosure and does not include a box.

Key Features

• Manual override lever
• Teeter-type terminals for multiple loads
• Up to 12 ON/OFF cycles per day
• 1-hour minimum ON/OFF interval
• 16 A, 5 hp, 120 VAC, SPST

What's Included

• One ON tripper
• One OFF tripper

This is the mechanism only; it requires an existing or separately purchased Intermatic enclosure to function as a timer.
