Intermatic PX600 Pool & Spa Transformer
Intermatic | SKU:
PX600
$33300
/ea
Unit price
/
Unavailable
Intermatic PX600 Pool & Spa Transformer is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

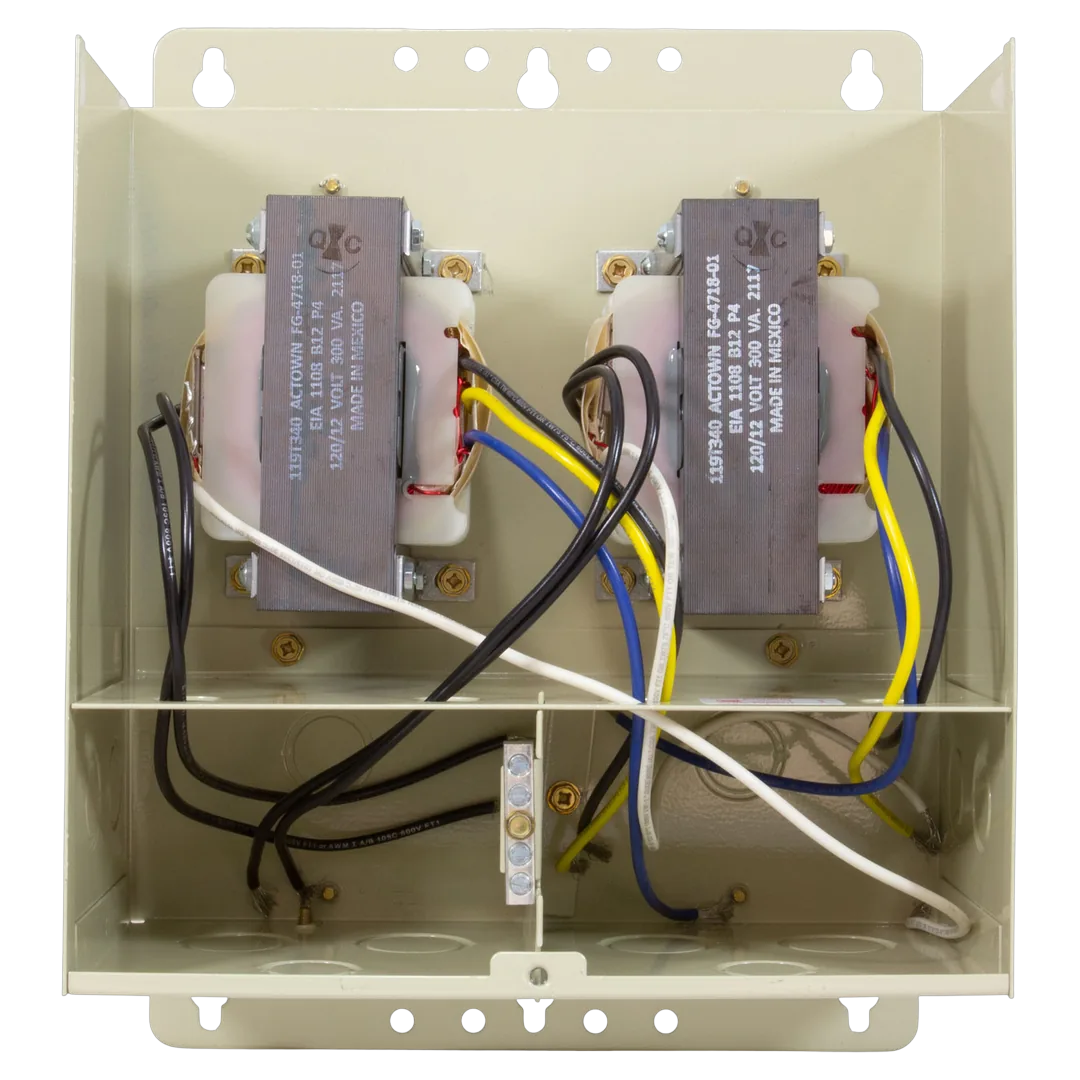

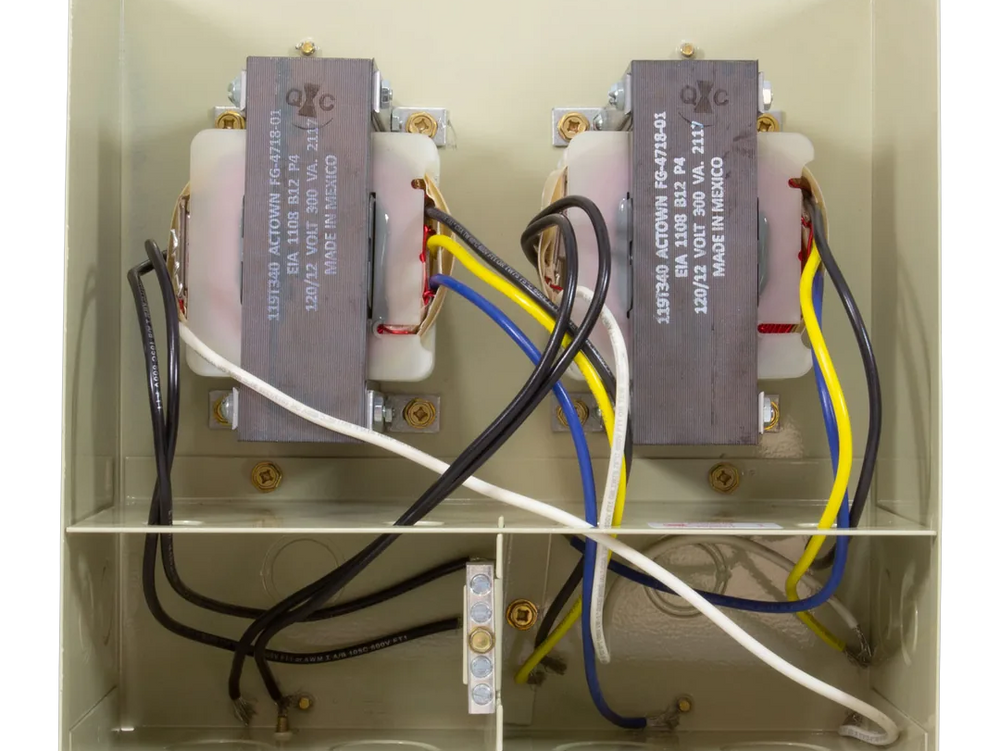

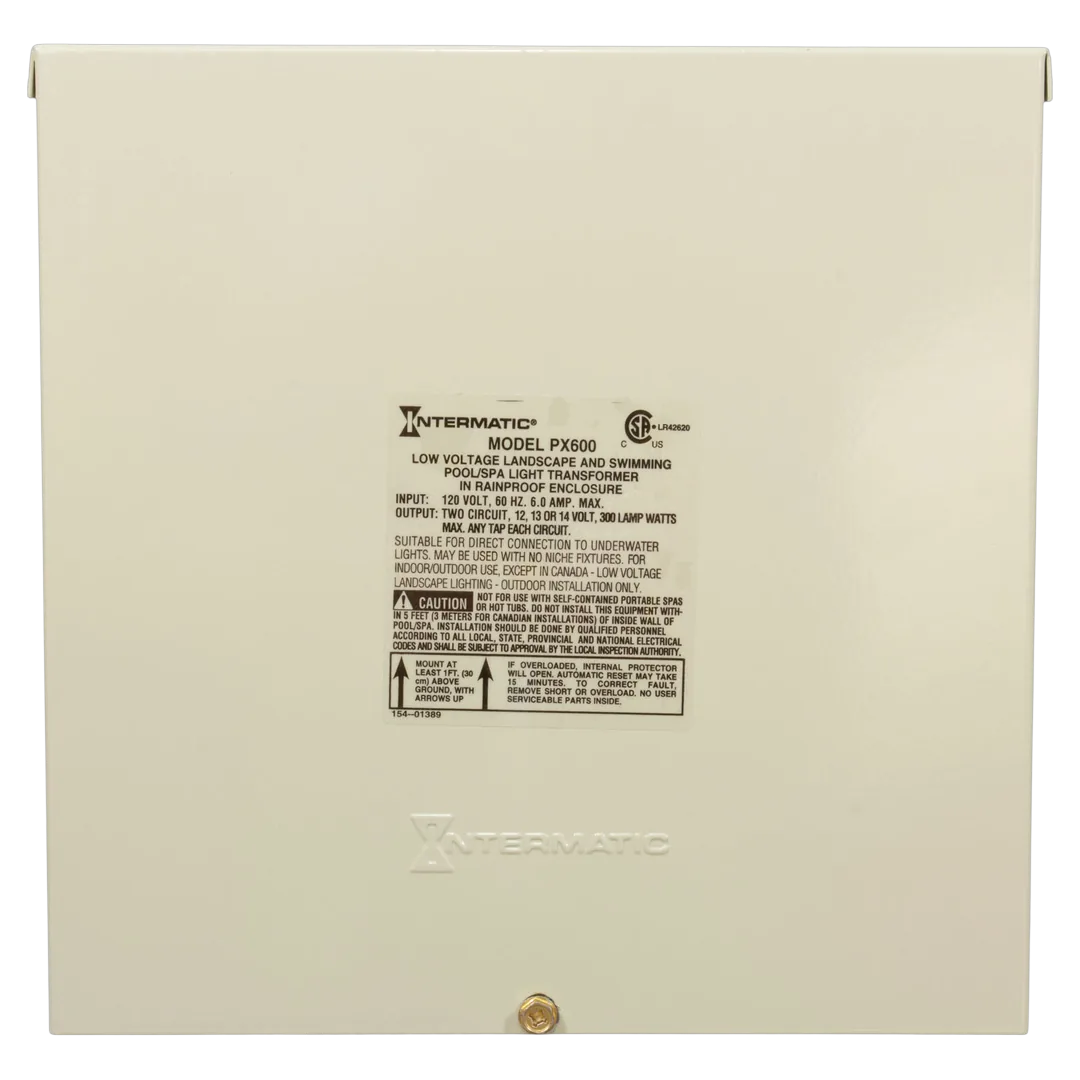

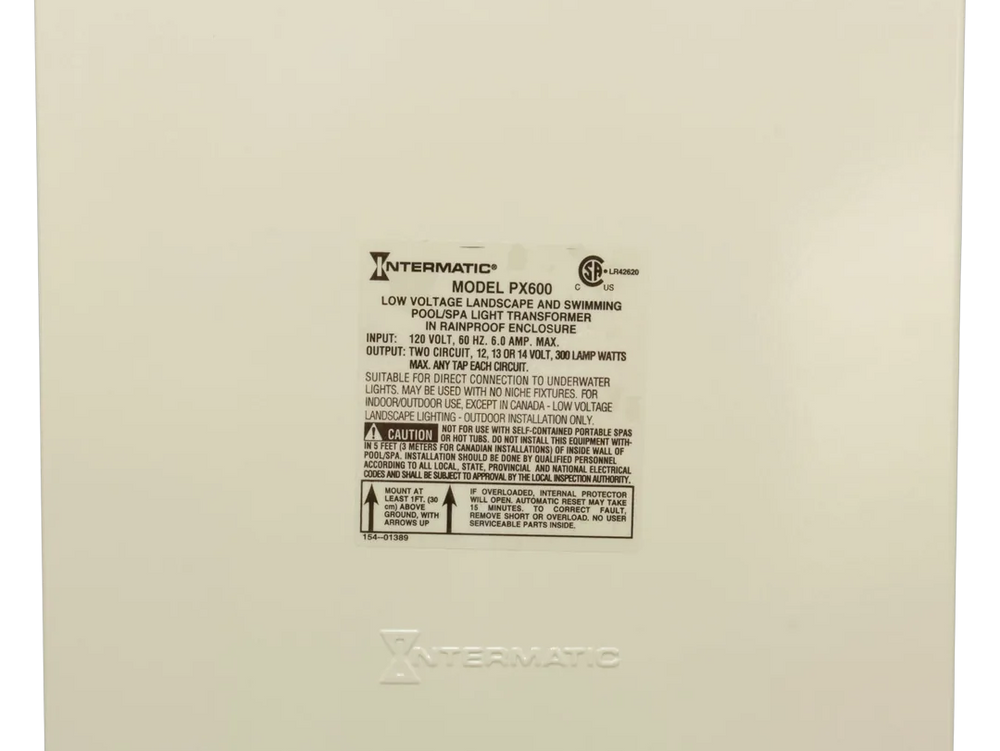

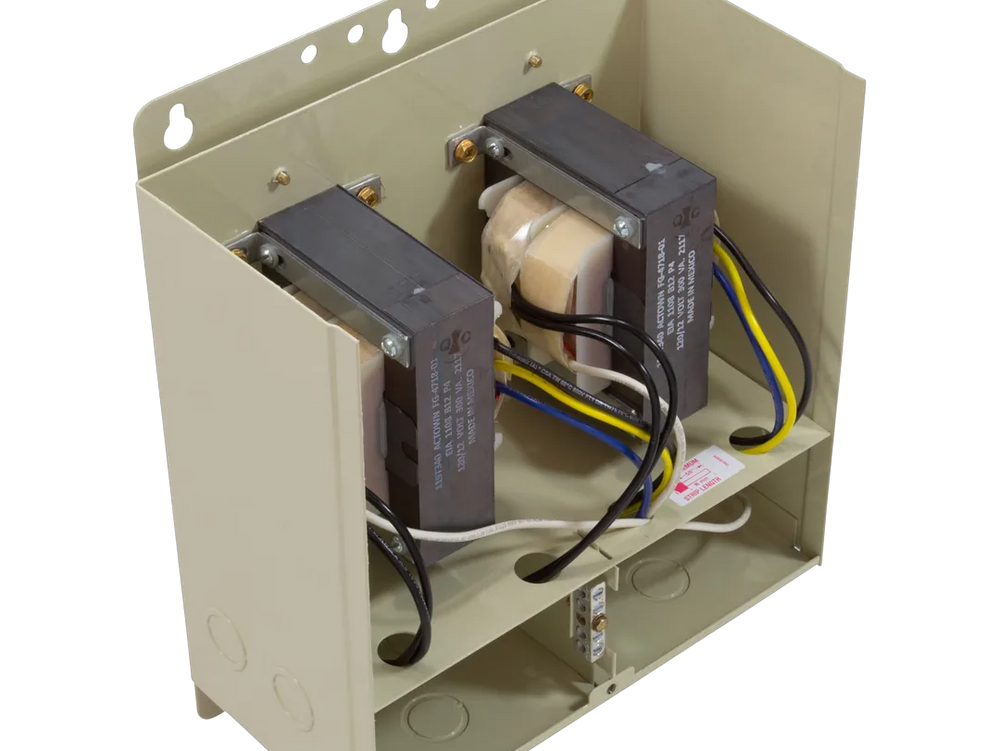

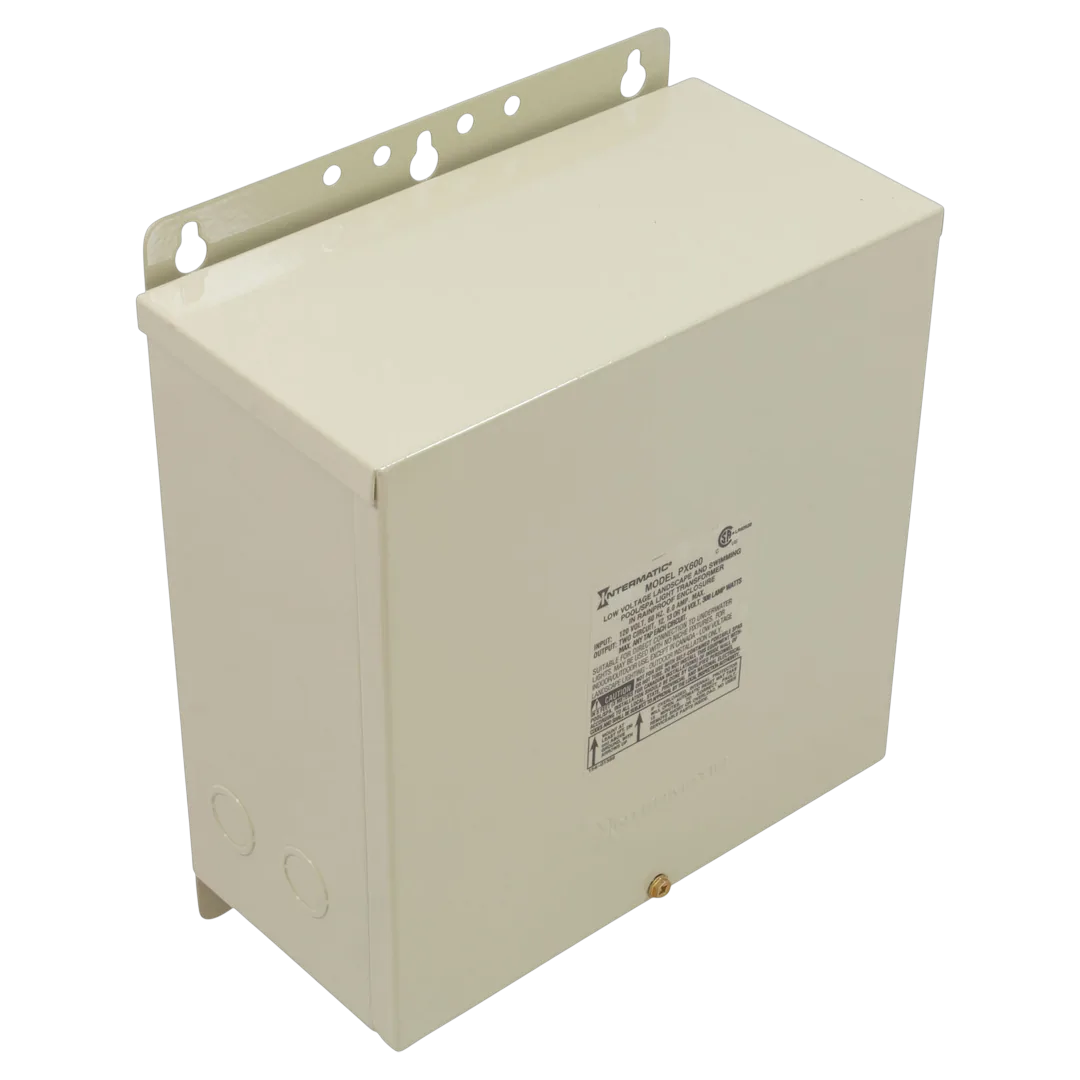

The Intermatic PX600 is a 600-watt pool and spa safety transformer housed in a beige steel enclosure. It converts 120V AC input to 12, 13, or 14 volts AC, and includes circuit protection features for secure lighting operation. This transformer is suitable for supplying power to pool and spa lights, submersible fixtures, and outdoor garden lighting systems.
Includes: Transformer unit with mounting brackets
Technical Specifications
| Specification | Details |
|---|---|
| Part Name | PX600 |
| Part Number | PX600 |
| Part Type | Pool & Spa Safety Transformer |
| Compatibility | Designed to supply 12 volts to pool/spa lights, submersible fixtures, and outdoor garden lights |
| Includes | Transformer unit with mounting brackets |
| Certifications | cCSAus Certified RoHS Compliant |
| Material | Beige steel enclosure |
| Input Voltage | 120 V AC, 60 Hz |
| Output Voltage | 12 V, 13 V, or 14 V AC |
| Power Rating | 600 W |
| Amperage Rating | 6 A |
| Enclosure Type | NEMA 3R |
| Mount Type | Bracket Mount |

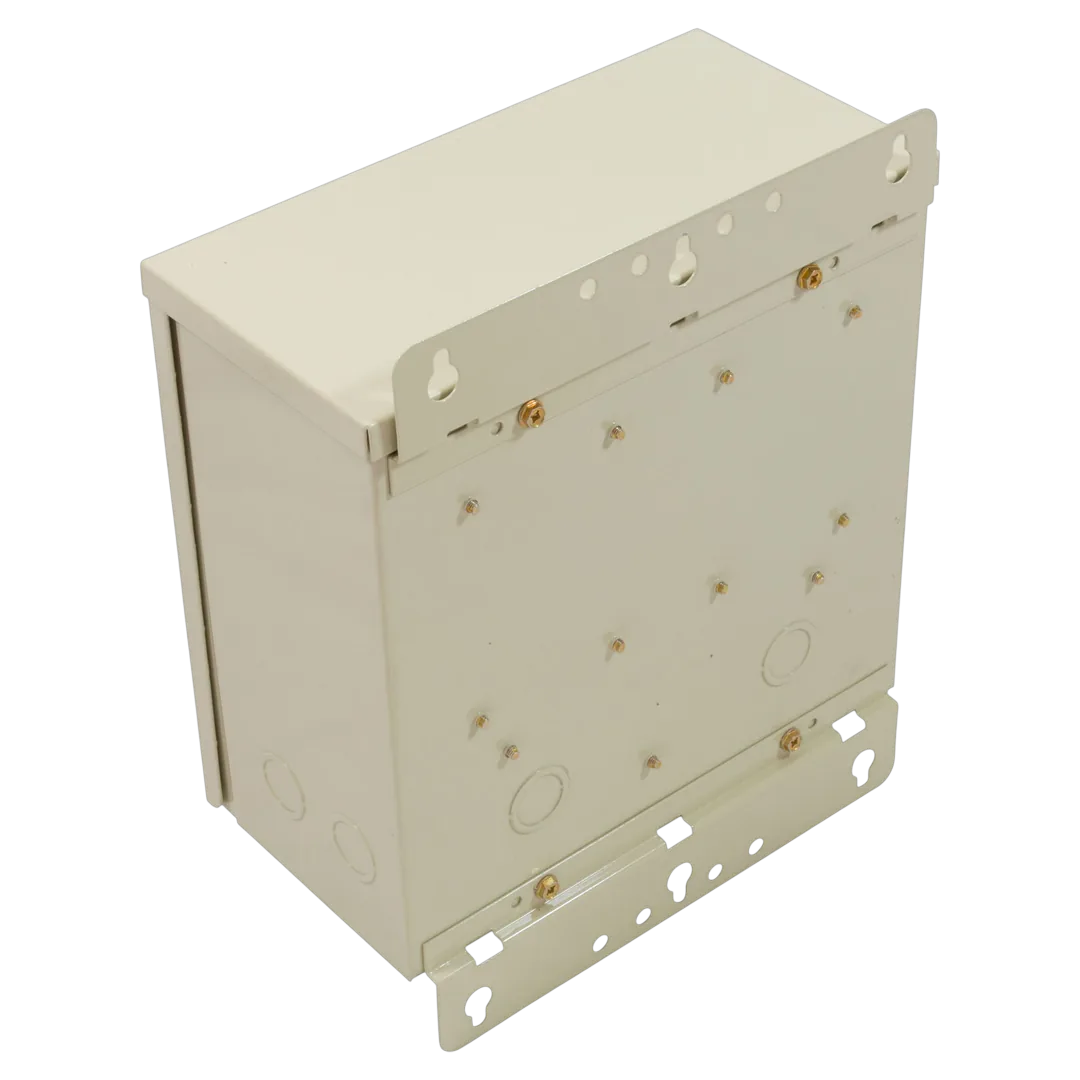

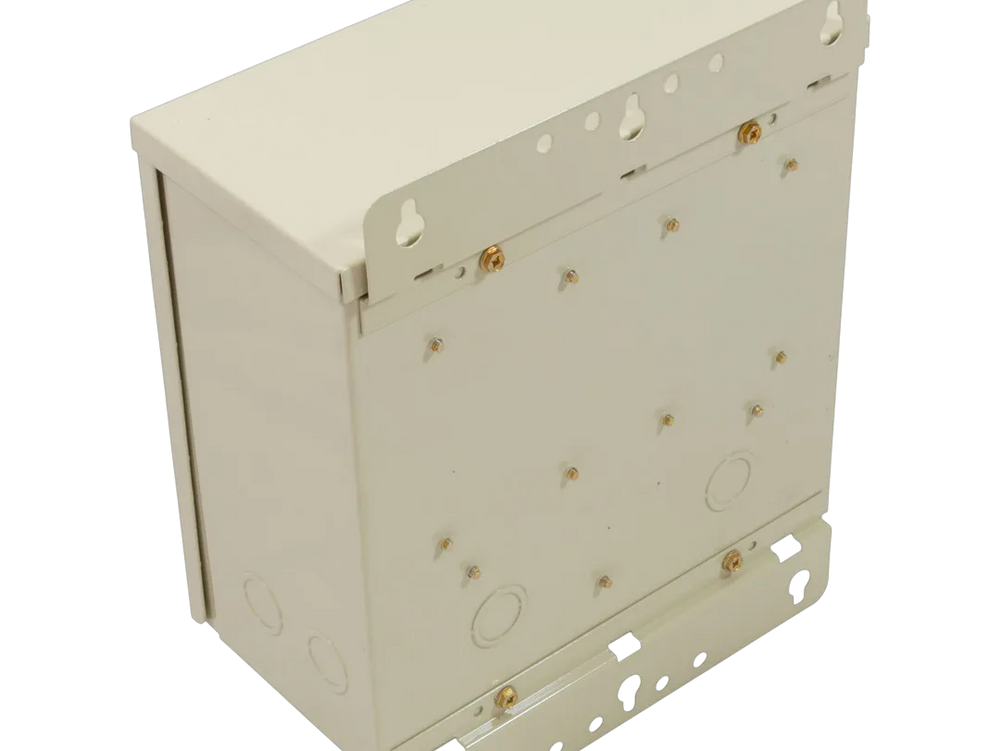

| Knockouts | Two combination 1/2"-3/4" and four combination 3/4"-1" knockouts on the bottom Two combination 1/2"-3/4" knockouts on each side and back |
| Shipping Dimensions | 11.75 x 10.75 x 6 inch |
| Product Weight | 23.6 pound |
