Intermatic PF1202T Freeze Protection Control Center
Intermatic | SKU:
PF1202T
$51000
/ea
Unit price
/
Unavailable
Intermatic PF1202T Freeze Protection Control Center is backordered and will ship as soon as it is back in stock.
Inventory:
10 In Stock
10 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description

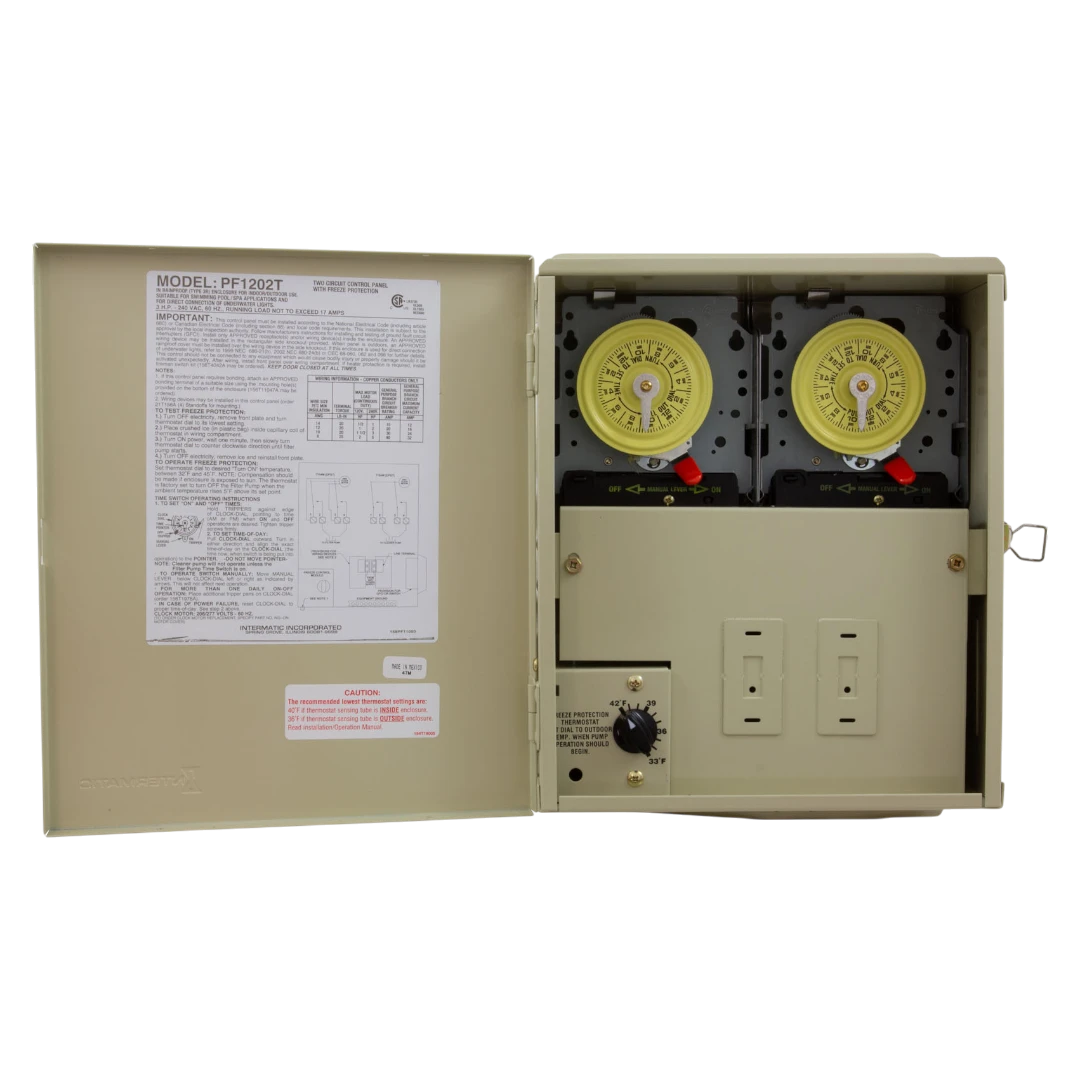

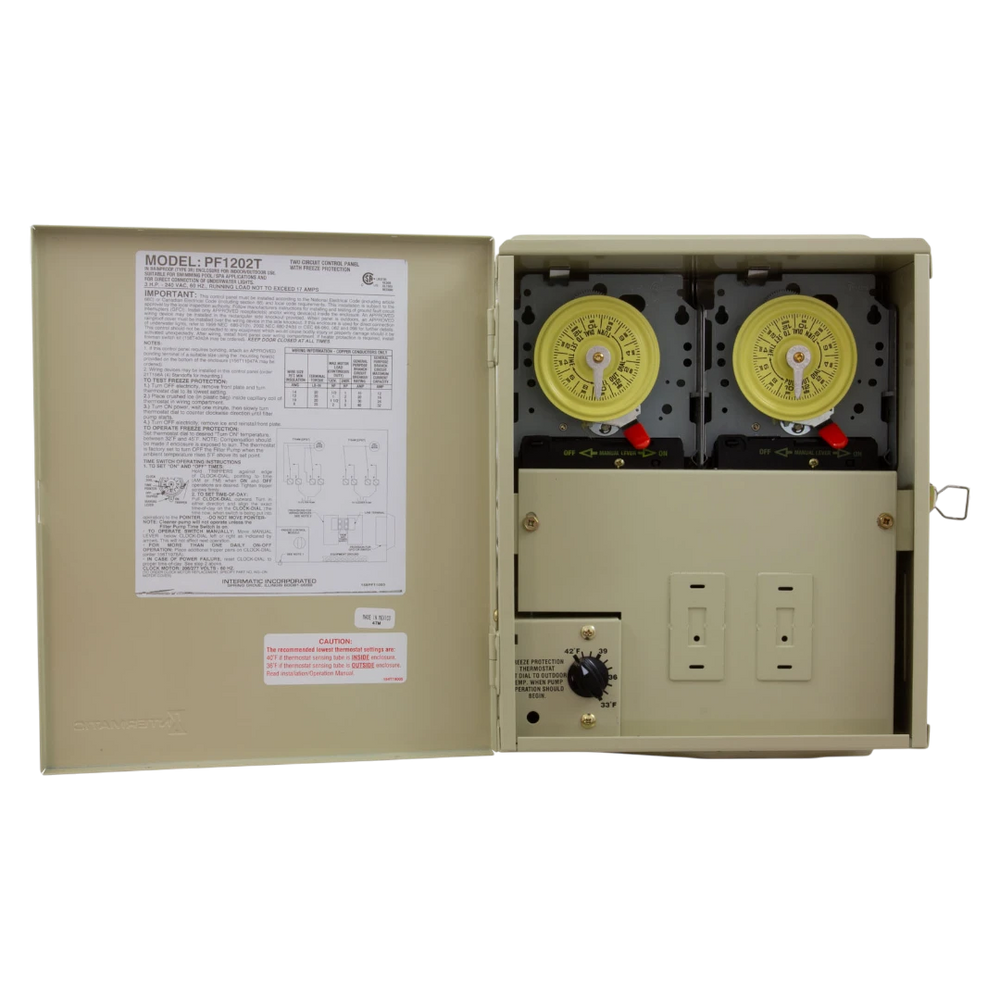

The Intermatic PF1202T is a freeze protection control center designed to safeguard pool and spa equipment from freeze damage. It features a built-in timer and thermostat, activating pumps and heaters when temperatures drop, and is suitable for 240V applications, including setups that require one or two time switches.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic Freeze Protection Control Center with 2 Timers and Thermostat |
| Part Number | PF1202T |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 240V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | Dual Circuit |
| Switch Rating | 30A at 240V |
| Contact Rating | DPST |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Steel |
| Mounting Type | Wall Mount |
| Conduit Entries | Five combination 1/2"-3/4" and two combination 3/4"-1" knockouts on the bottom; one combination 1/2"-3/4" on the left side; one combination 3/4"-1" on the back; one knockout 1-3/4" x 2-3/4" on the right side for mounting switches or GFCI |
| Temperature Rating | 32°F to 44°F |
| Duty Cycle | Continuous |
| Protection Type | None |
| Number of Circuits | 2 |
| Load Type | Resistive, Inductive |
| Override Function | Manual Override |
| Display Type | Analog |
| Programming Options | On/Off times, Freeze Protection |
| Grounding | Equipment Ground |
| Pool/Spa Application | Pool & Spa |

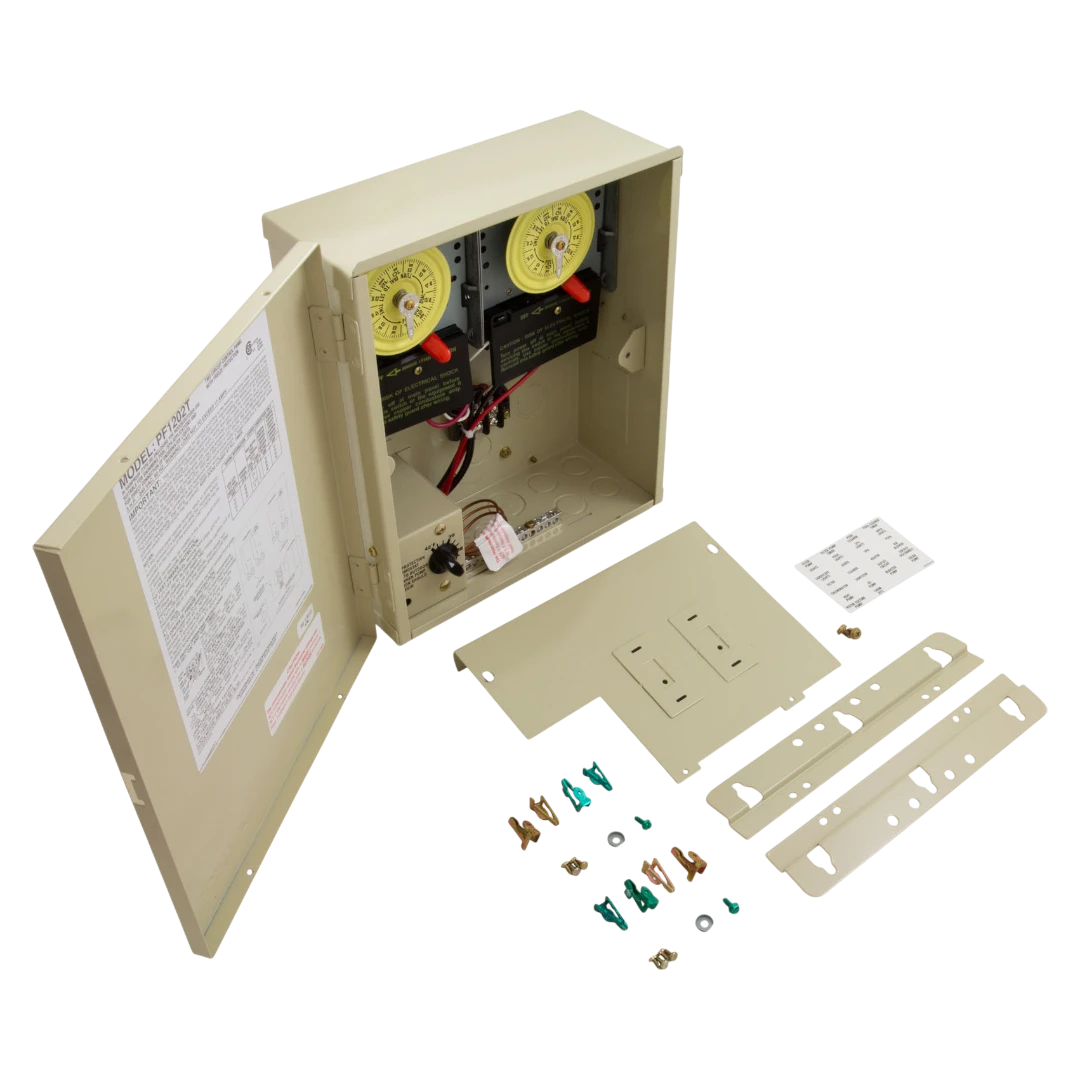

| Includes | Control center, Thermostat, Installation manual |
| Certifications | CSA Listed |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 13.81 x 12.06 x 5.63 inches |
| Product Weight | 12.374 pounds |
Features:
- GFCI and switch mounting capabilities
- Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat

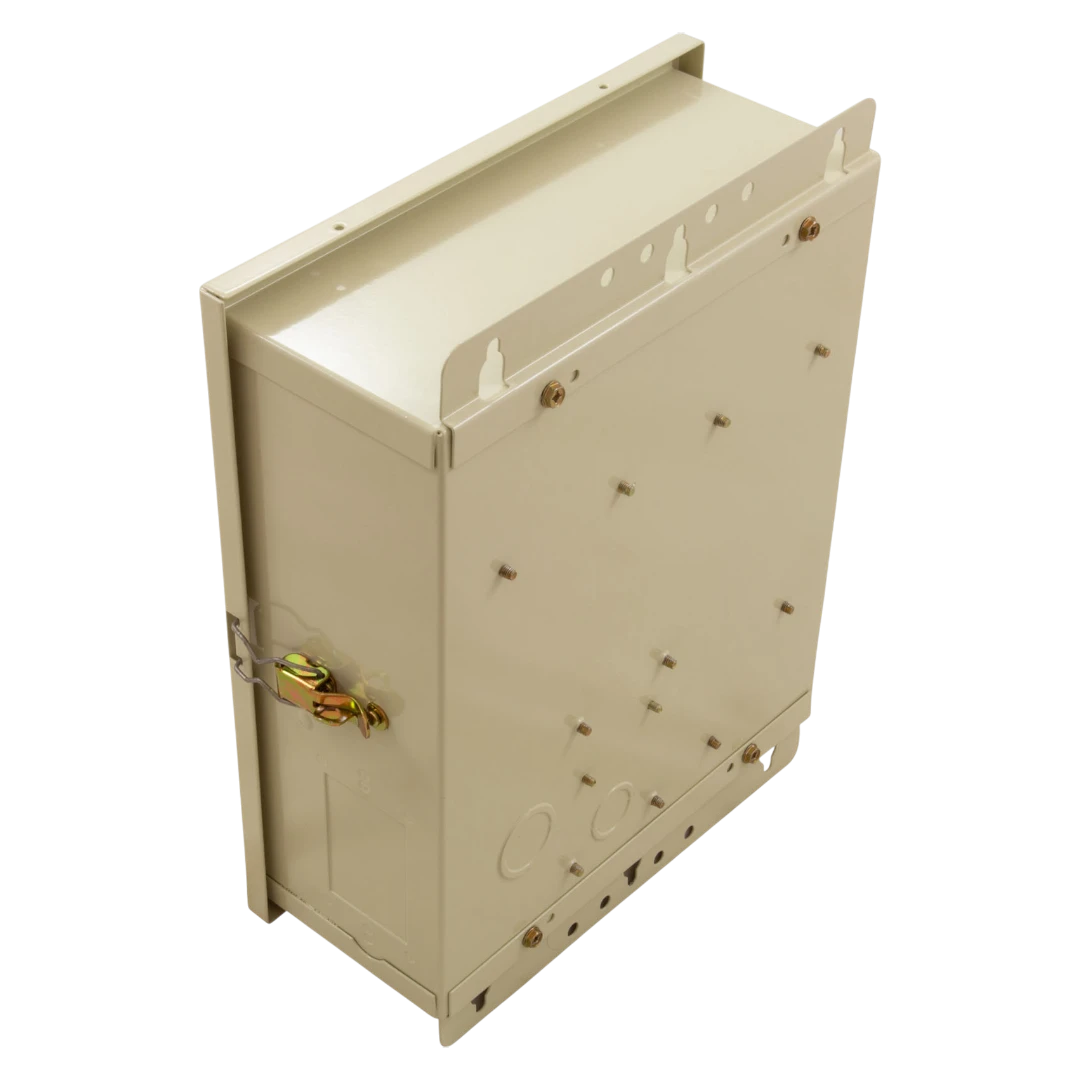

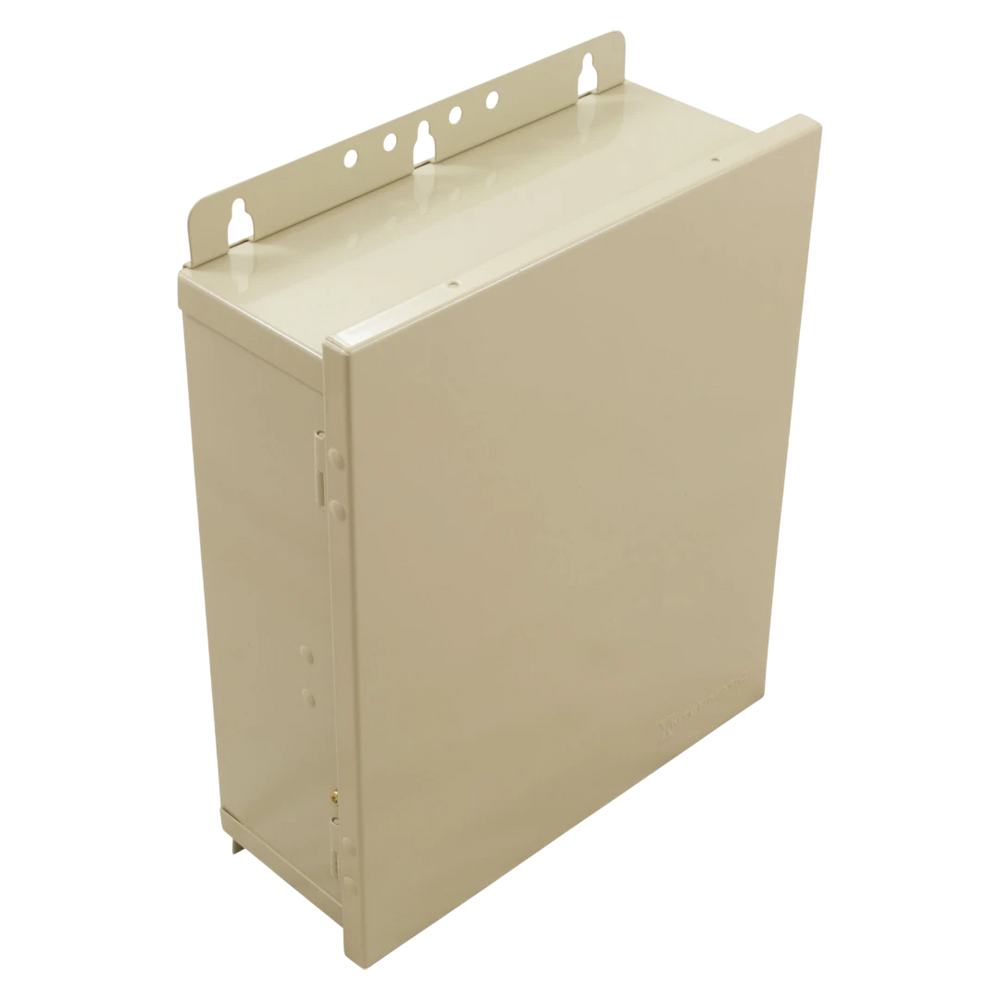

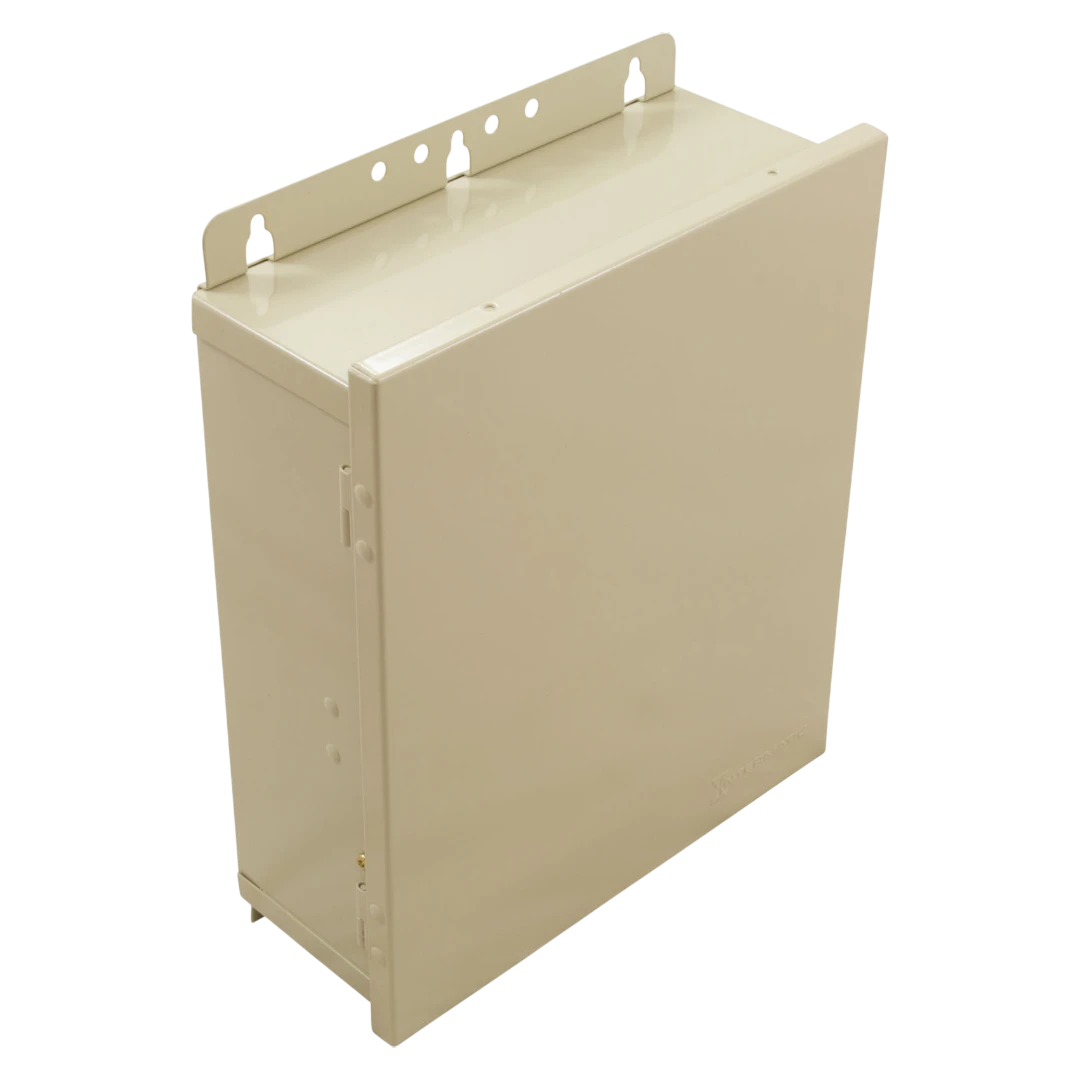

- Heavy-duty Type 3R metal indoor/outdoor enclosure
