Intermatic PF1103T Freeze Protection Timer
Intermatic | SKU:
PF1103T
$31500
/ea
Unit price
/
Unavailable
Intermatic PF1103T Freeze Protection Timer is backordered and will ship as soon as it is back in stock.
Inventory:
3 In Stock
3 In Stock
Shipping:
Free 1-3 Day Shipping
Description
Description

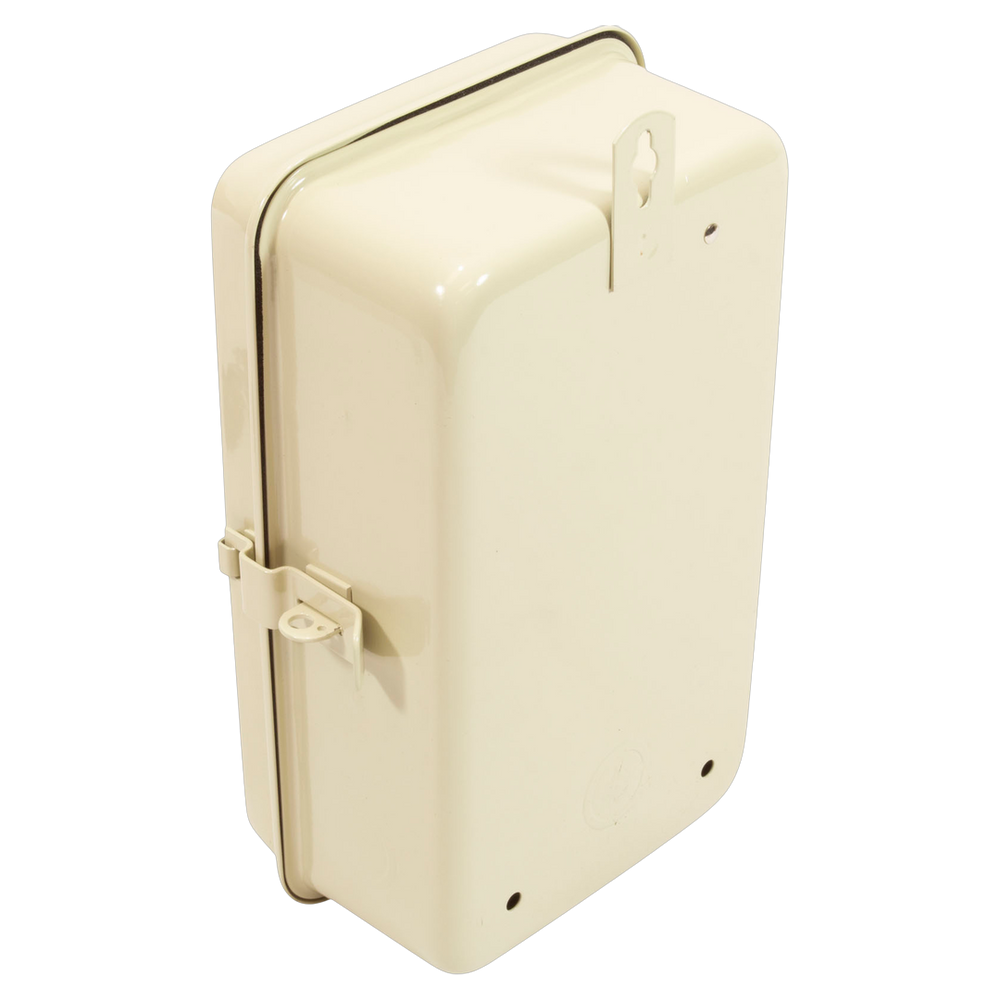

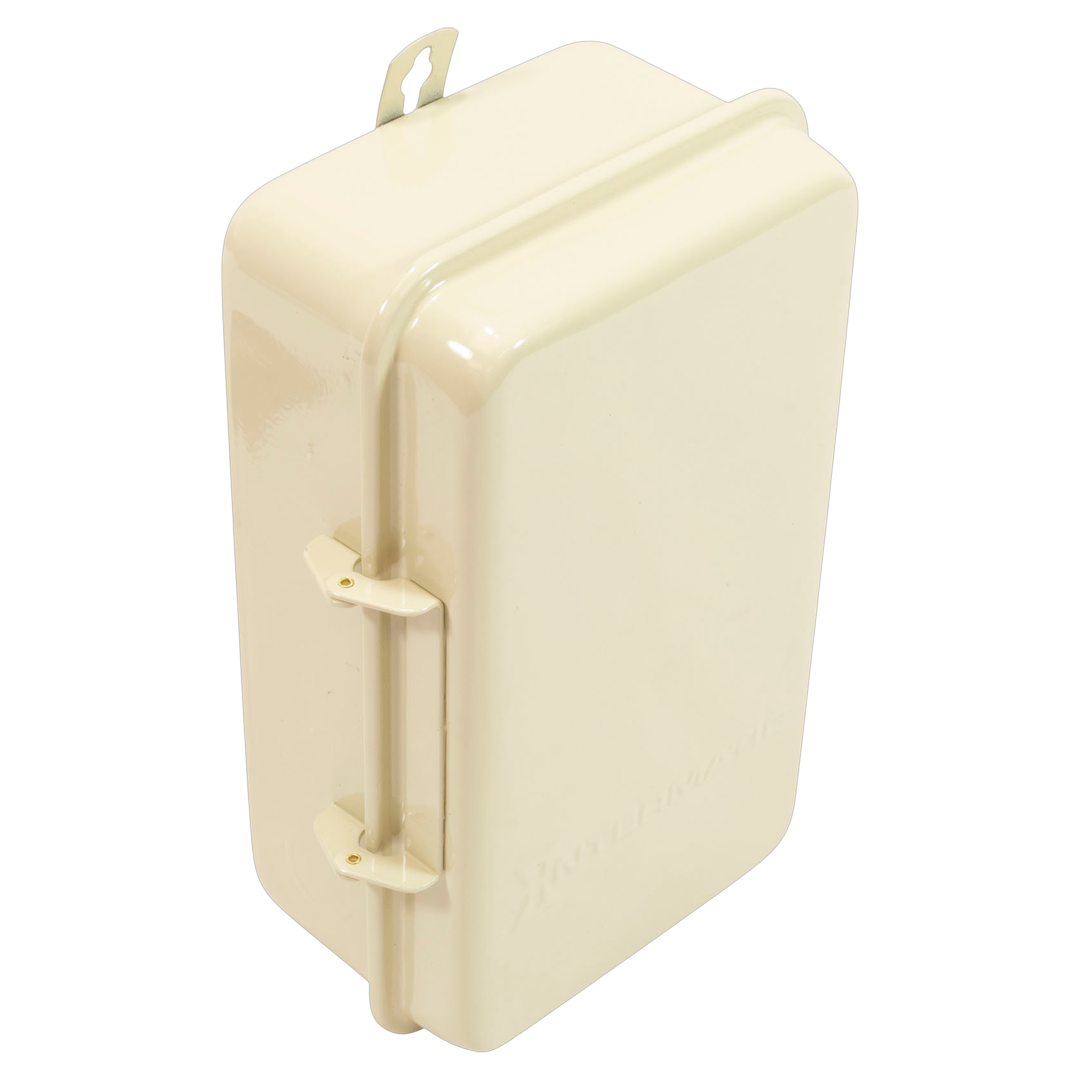

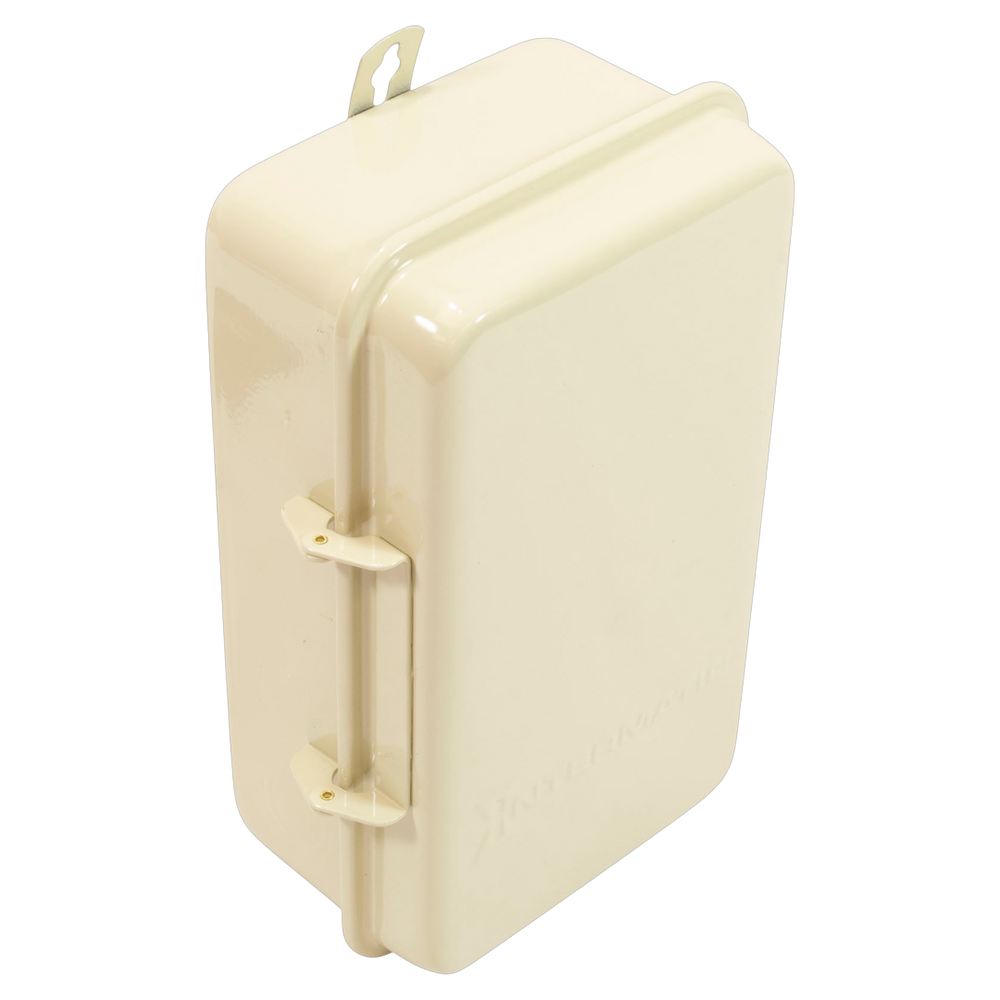

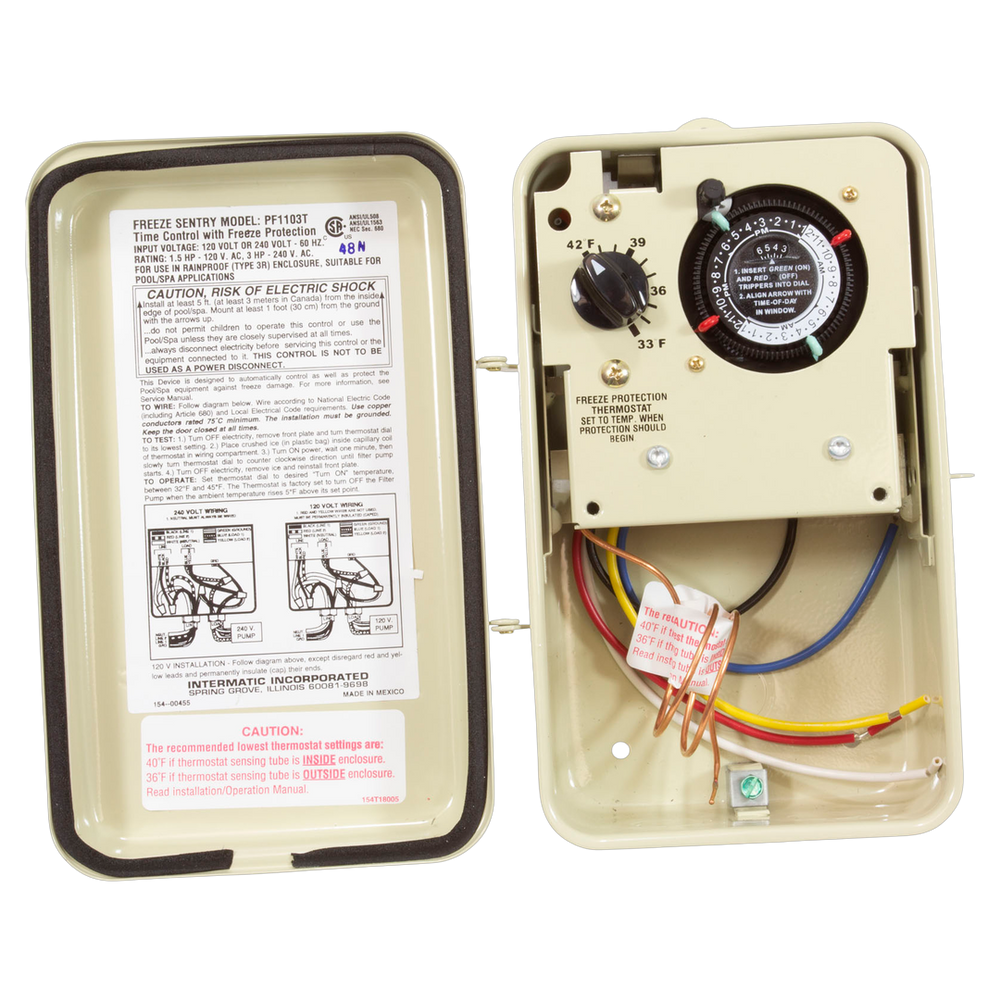

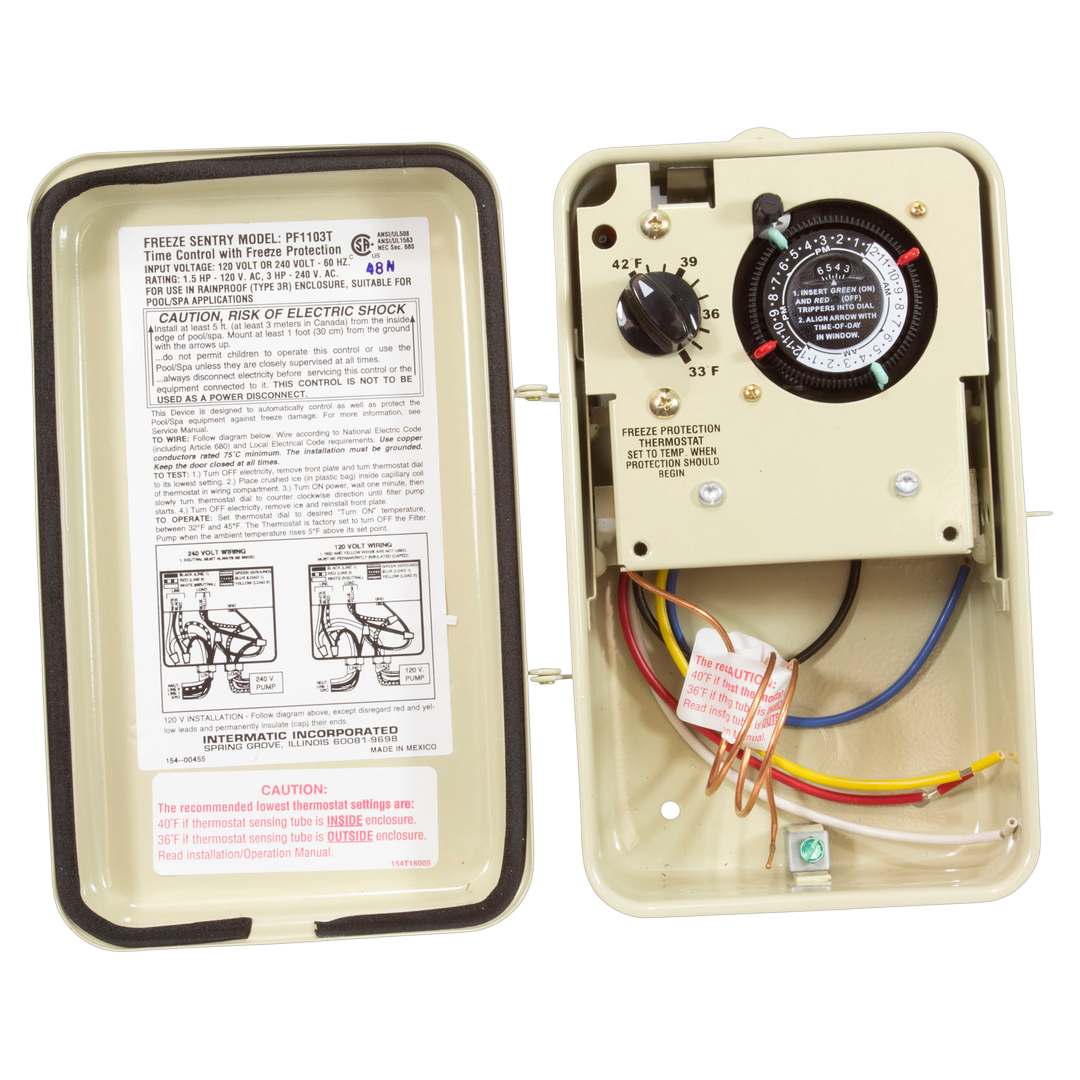

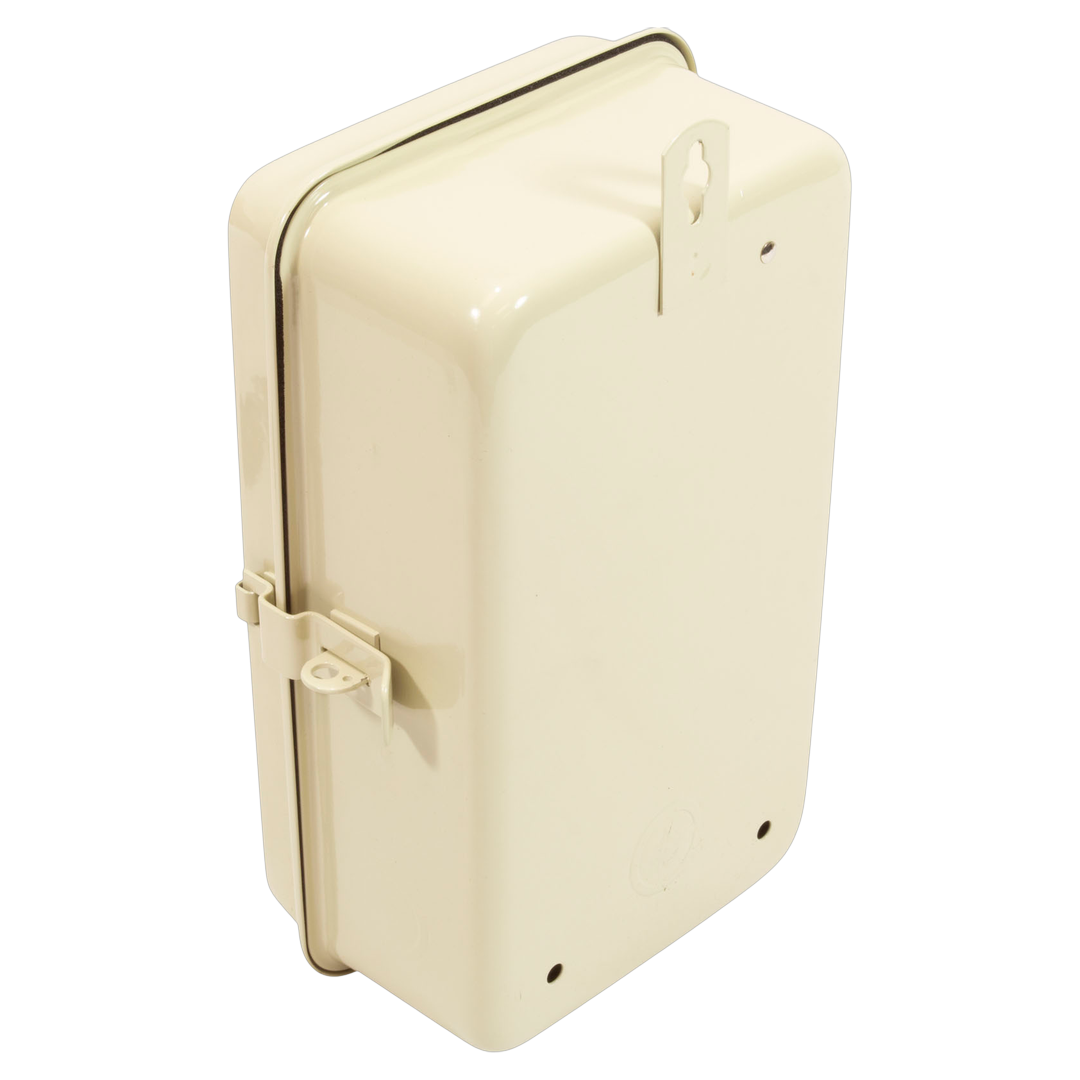

The Intermatic PF1103T is a freeze protection timer with a built-in thermostat, designed to activate pool and spa pumps and heaters to prevent freeze damage. It operates on 120/240V and features a durable rainproof metallic enclosure suitable for both indoor and outdoor use. This device is essential for safeguarding plumbing and equipment against freezing temperatures.
Technical Specs
Technical Specs
| Specification | Details |
|---|---|
| Part Name | Intermatic PF1103T Freeze Protection Timer |
| Part Number | PF1103T |
| Part Type | Timer |
| Brand | Intermatic |
| Primary Voltage | 120/240V |
| Frequency | 60 Hz |
| Timer Type | Mechanical |
| Timer Configuration | 24-Hour |
| Switch Rating | 1.5 HP at 120V, 3 HP at 240V |
| Enclosure Type | NEMA 3R |
| Enclosure Material | Metal |
| Mounting Type | Wall Mount |
| Conduit Entries | (4) 1/2" - 3/4" knockouts on back, (1) 1/2" - 3/4" knockout on each side, (2) 1/2" - 3/4" knockouts on bottom |
| Temperature Rating | 32°F to 45°F adjustable thermostat range |
| Duty Cycle | Continuous |
| Protection Type | Freeze Protection |
| Number of Circuits | 1 |
| Load Type | Resistive, Inductive |
| Override Function | Manual Override |
| Display Type | Analog |
| Programming Options | On/Off times, Freeze Protection |
| Grounding | Equipment Ground |
| Pool/Spa Application | Pool & Spa |
| Includes | Timer with thermostat, Enclosure, Installation instructions |
| Certifications | CSA Certified |
| Warranty | 1-Year Limited |
| Shipping Dimensions | 11.5 x 7.06 x 4 inches |
| Product Weight | 4.1 pounds |
Features:
- Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
- Heavy-duty metallic rainproof enclosure
- Suitable for pool and spa, pond, fountain, or marina applications
- User-adjustable thermostat range from 32°F to 45°F
- Provides both automation and protection for equipment
